Kuraki Saturn 13 TC II

Boring Machine (Table Type), All Machines

Details :

Machine Type CNC Table type boring
Make Kuraki
Type Saturn 13 TC II
CNC Control Fanuc 16iM
Year of Manufacture 2000
Country of origin Japan

Technical Details :

spindle diameter 130 mm
x-travel (cross) 3000 mm
y-travel (Vertical) 2050 mm
Z-travel (Table to column) 1300 mm
W-travel (spindle quill) 700 mm
Table surface area 1600 x 1800 mm
Table load capacity 12000 kg
Table Index 0,001 degree
Rapid X/Y/Z &W 10000 & 6000 mm/min
Feed X/Y/Z/W 4000 mm/min
spindle cone BT 50
Spindle speed 5 - 3000 rpm
Servo motors AC Fanuc
Spindle cooling with chiller
Coolant through spindle 5-70 Bar
Chip conveyor
Approximate total weight 36000 kg

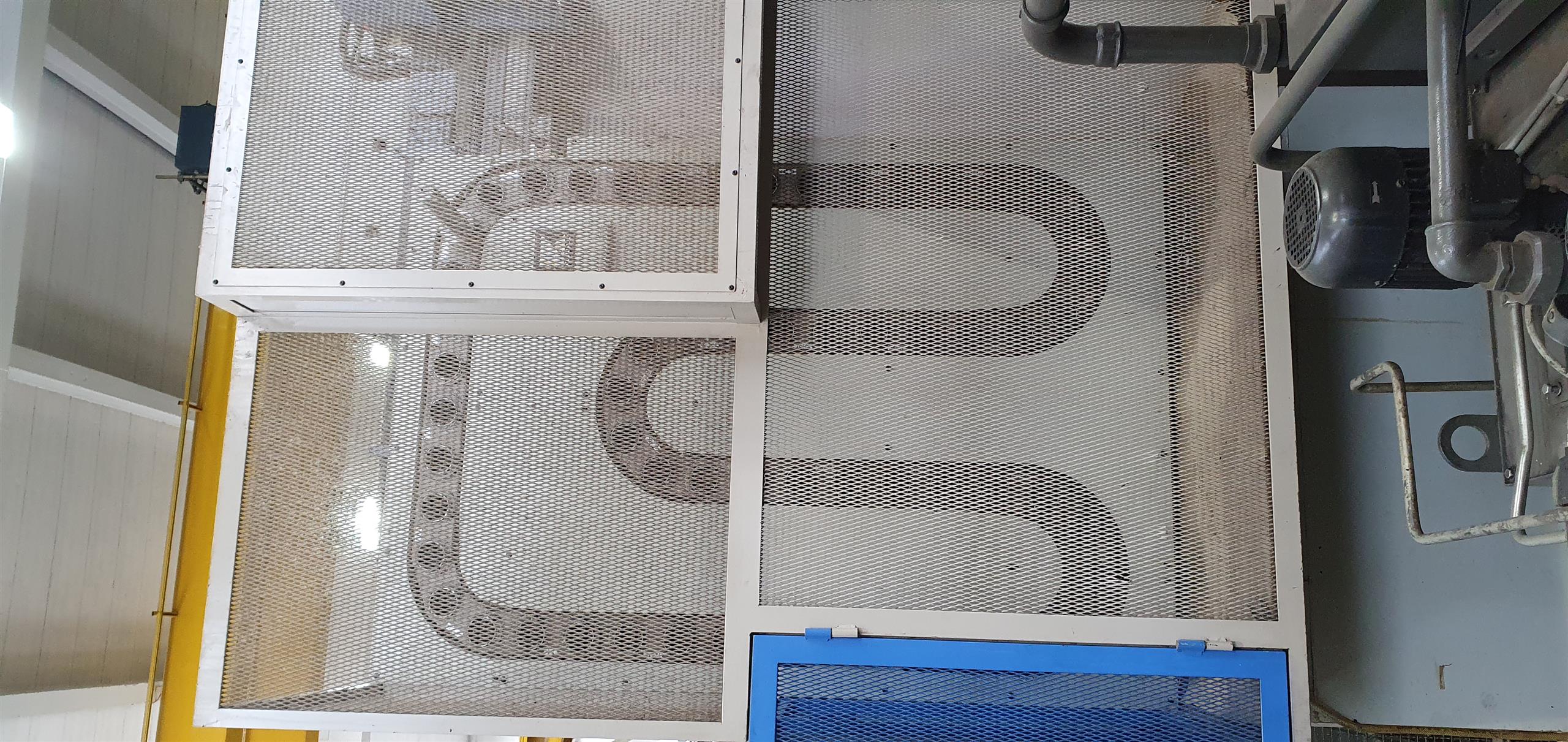

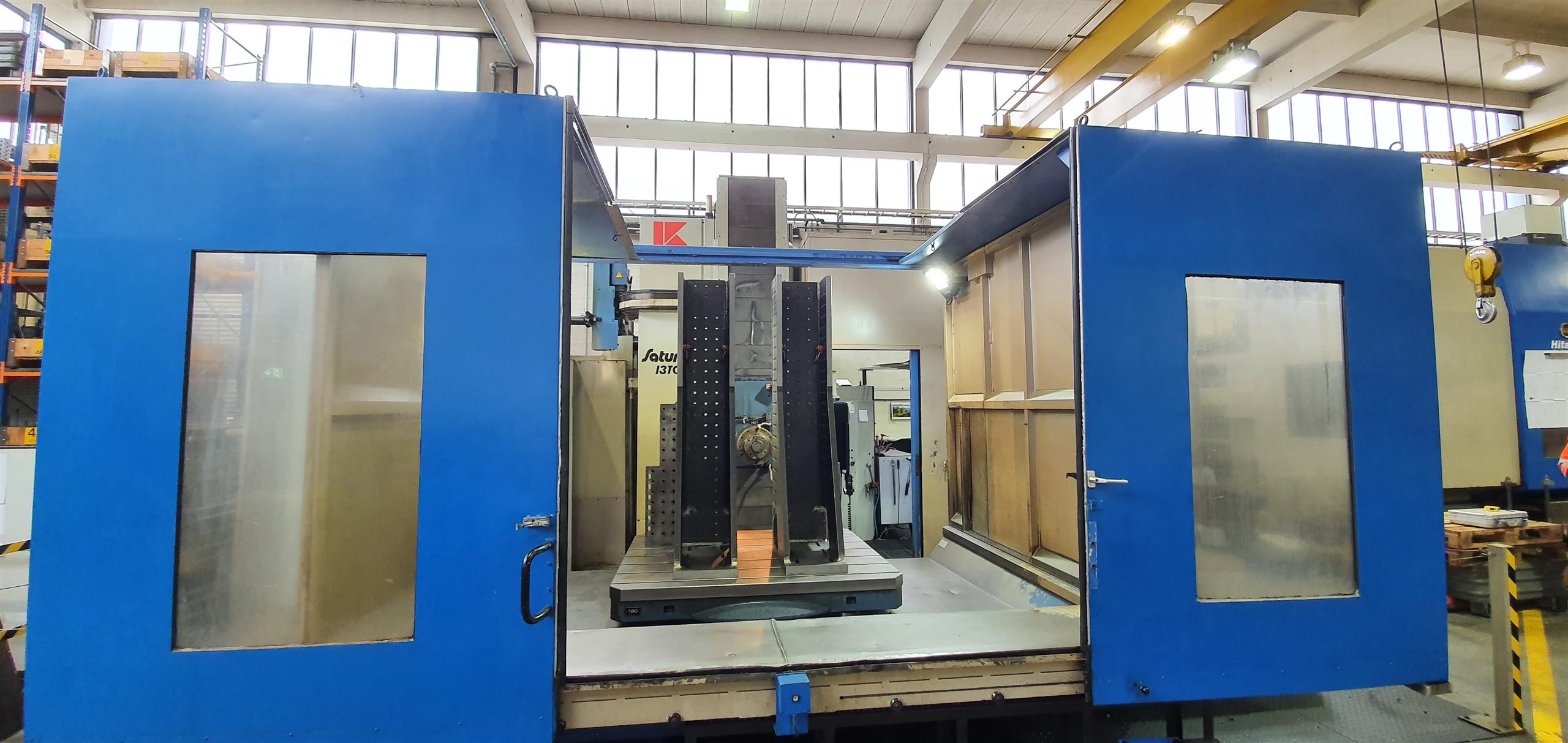

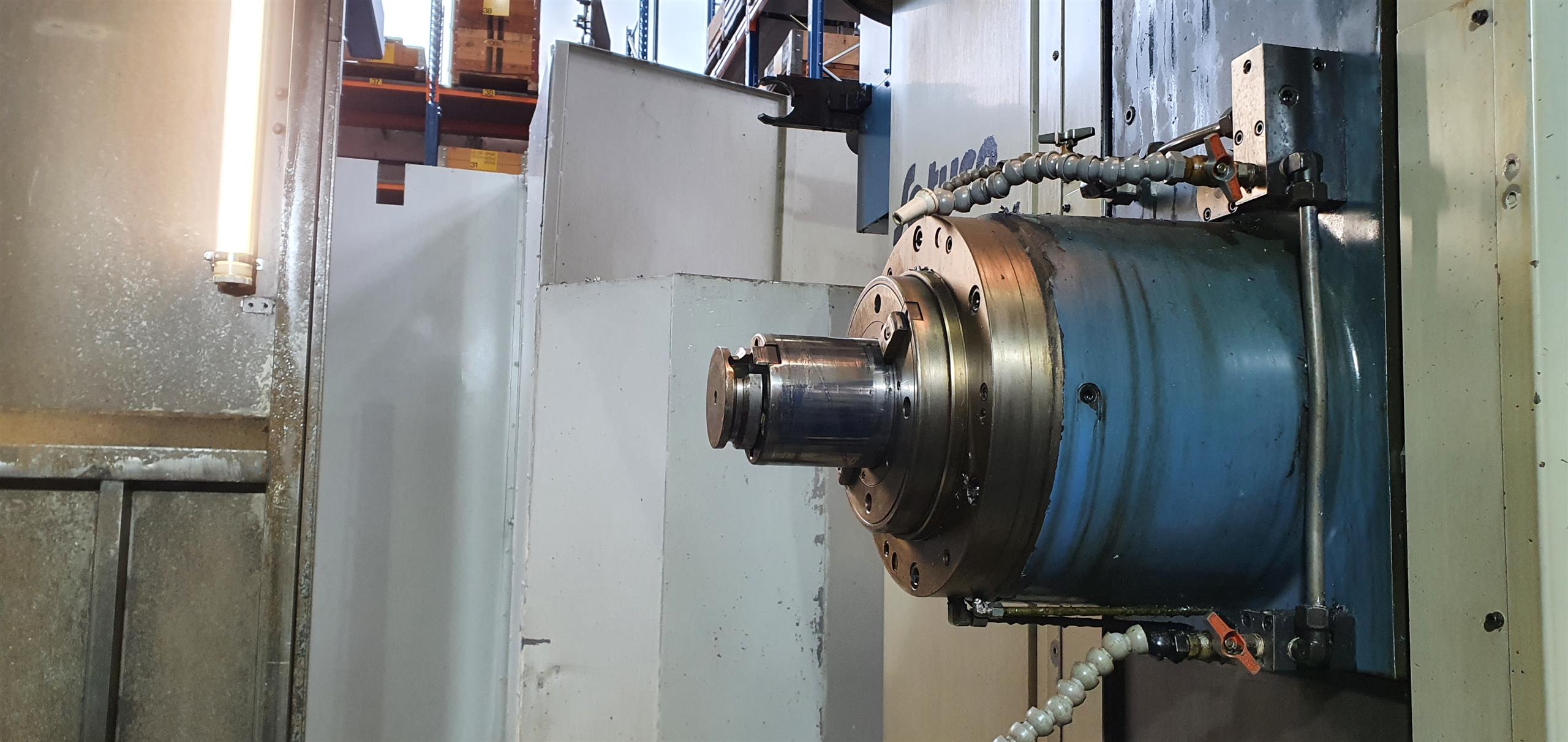

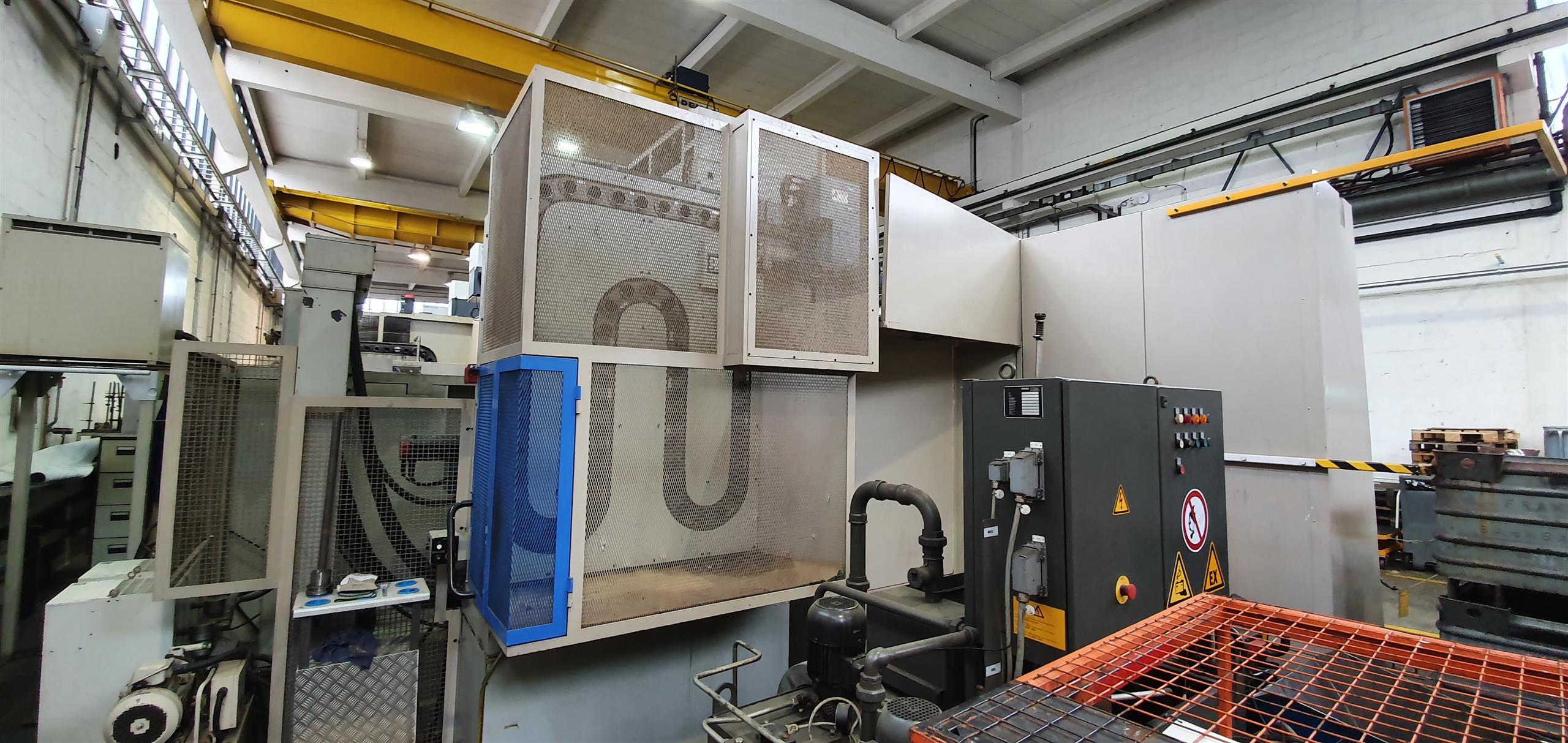

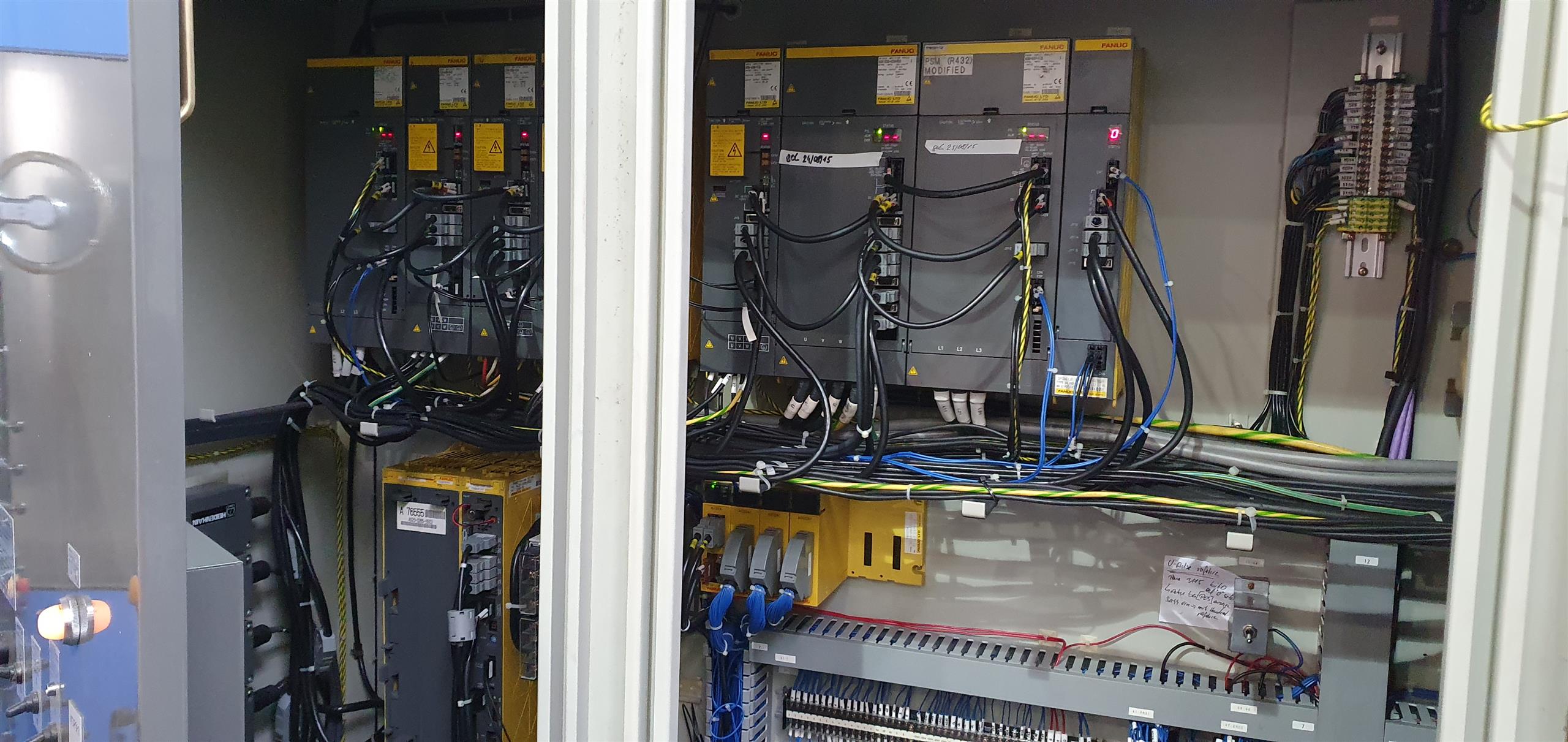

Machine Gallery :
