CNC Lathe MORI SEIKI L100V #L316

CNC Lathe Machines (CNC/TMC), All Machines

Details :

Stock No 1133-L316
Machinetype CNC Lathe
Make MORI SEIKI
Type L100V
Newin 1988
Control conventional
Location Rajkot India
Country of origin Japan
Term of delivery at Immediate
Quotation Free loaded; Container/Truck
Price

Technical Details :

turning diameter 152 mm
turning length 100 mm
control Fanuc OT
total power requirement kW
weight of the machine ca. 3 t
dimensions of the machine ca. m

Other Details :

  • Max longitudinal travel 225 mm / Workpiece length 80 mm
  • Max cross travel (o.d.cutting tool) 270 mm
  • pindle Nose A2-5, Spindle inside taper 1/20 taper
  • Spindle front bearing I.D.dia 80 mm,
  • Spindle Speed 40-4000rpm, 60-6000rpm(option)

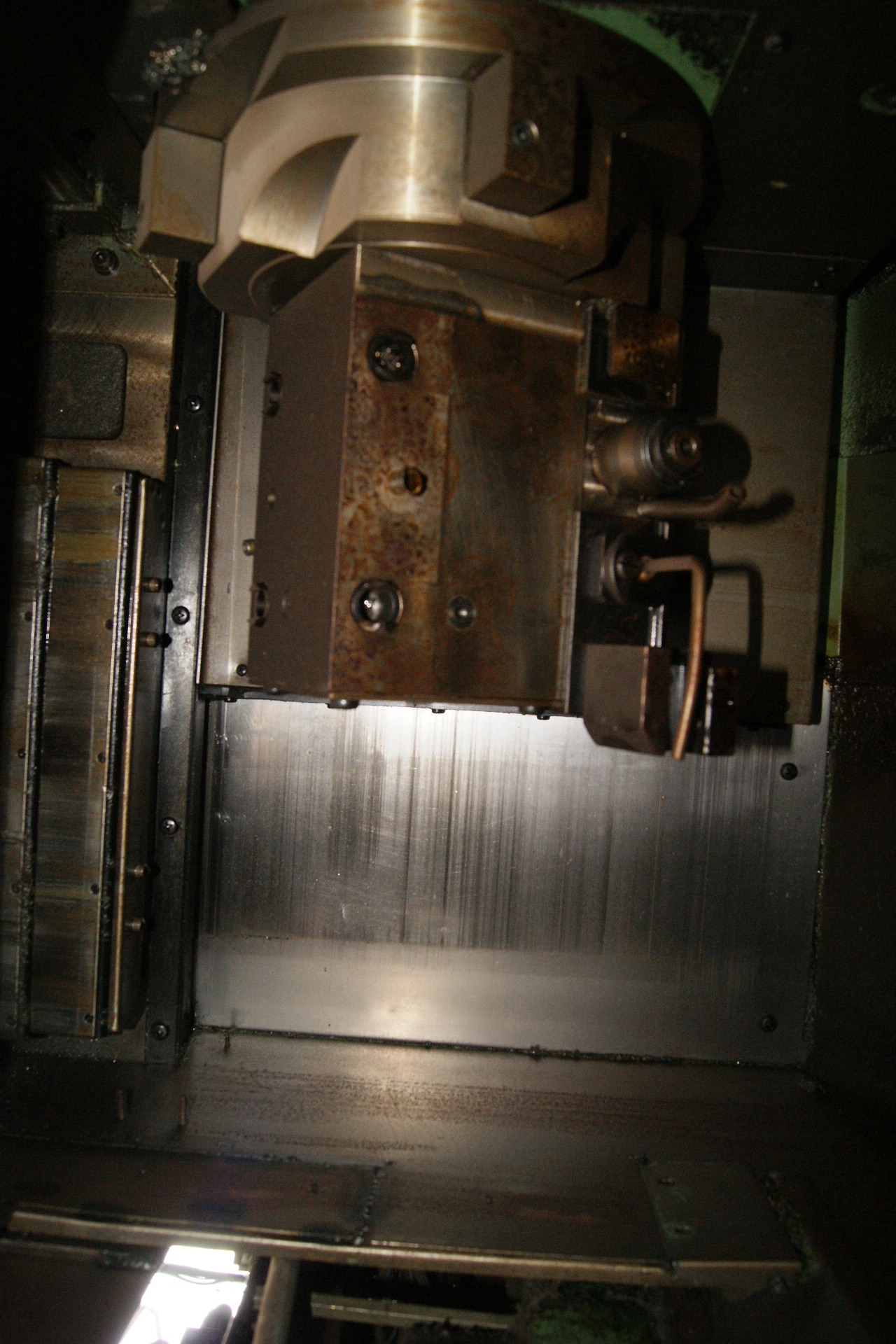

  • Turret tool positions 16 (4 stations X 4 tools),
  • Standard cutting tool size dia 25mm
  • Turret curvic coupling diameter 180mm, clamping force 2200kg
  • Feed X-axis ball screws diameter 28mm /pitch P6
  • Feed Z-axis ball screws diameter 36mm /pitch P6
  • Feed X-axis drive motor F: 0.6kw Y:0.4kw
  • Feed Z-axis drive motor F: 0.9kw Y:0.8kw
  • Main motor AC 5.5kw/3.7kw (30-minute rating / continuous)

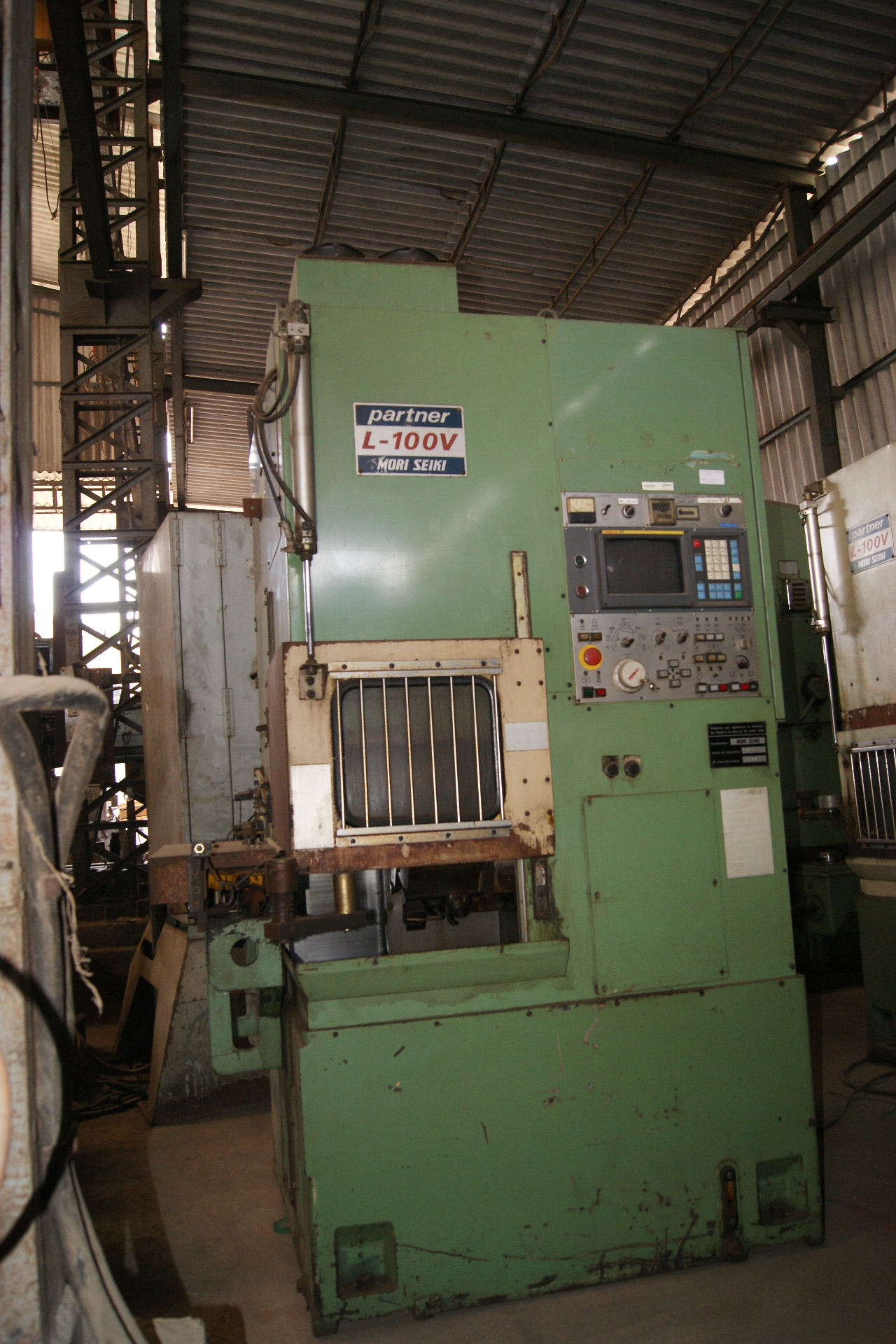

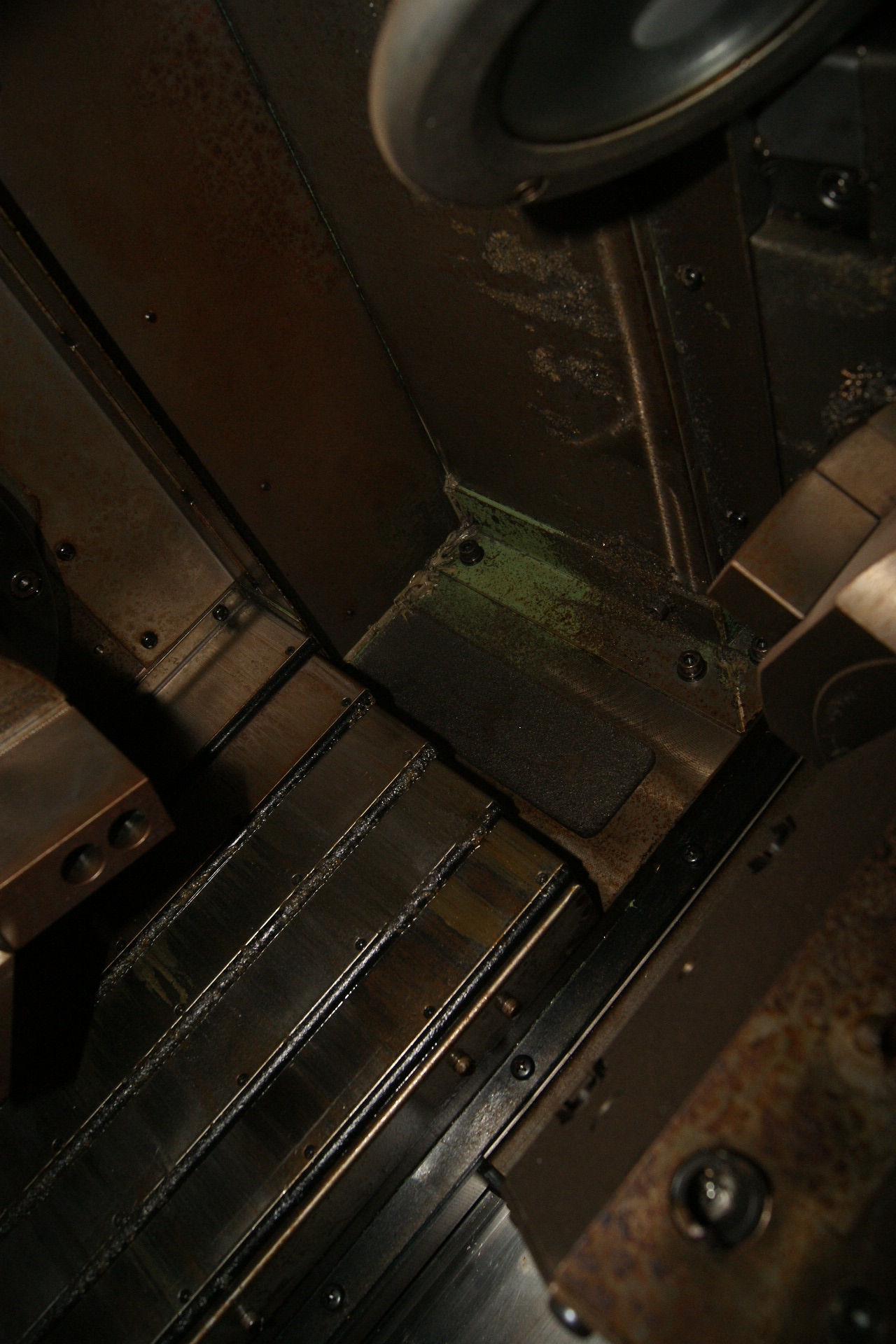

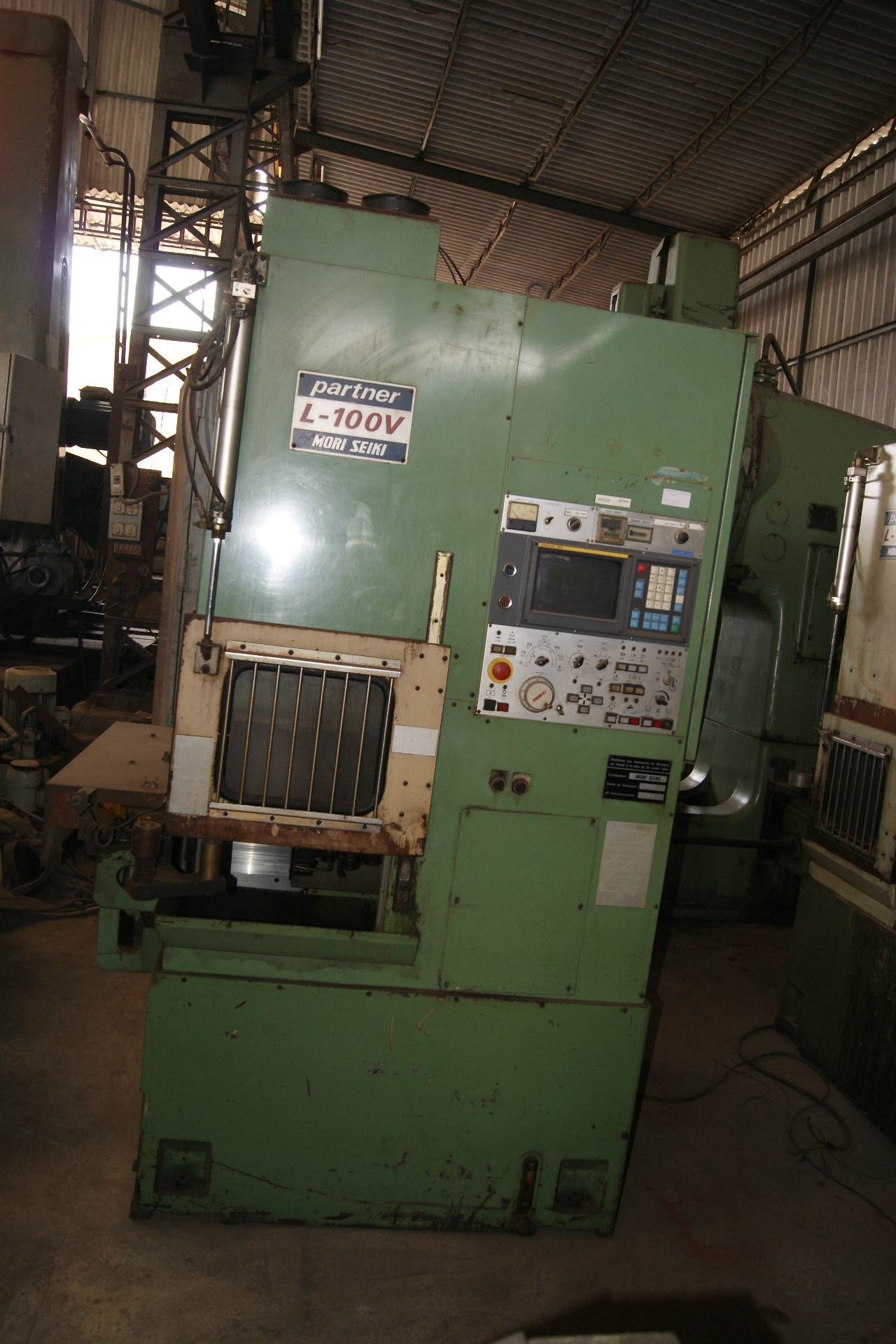

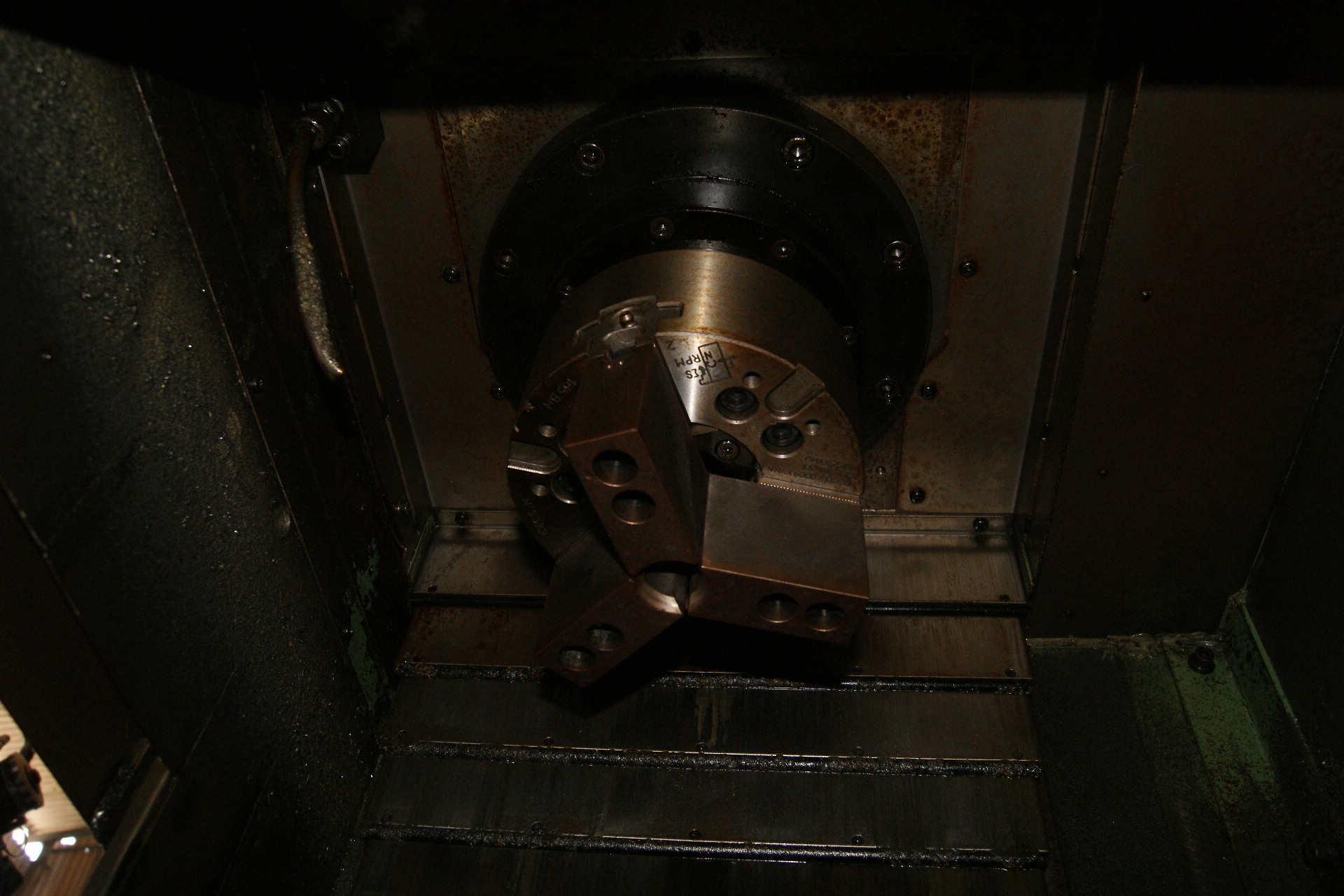

Machine Gallery :
