CETOS BUC 63 x 4000 - 1998

Grinding Machines, Recently Arrived, All Machines

Details :

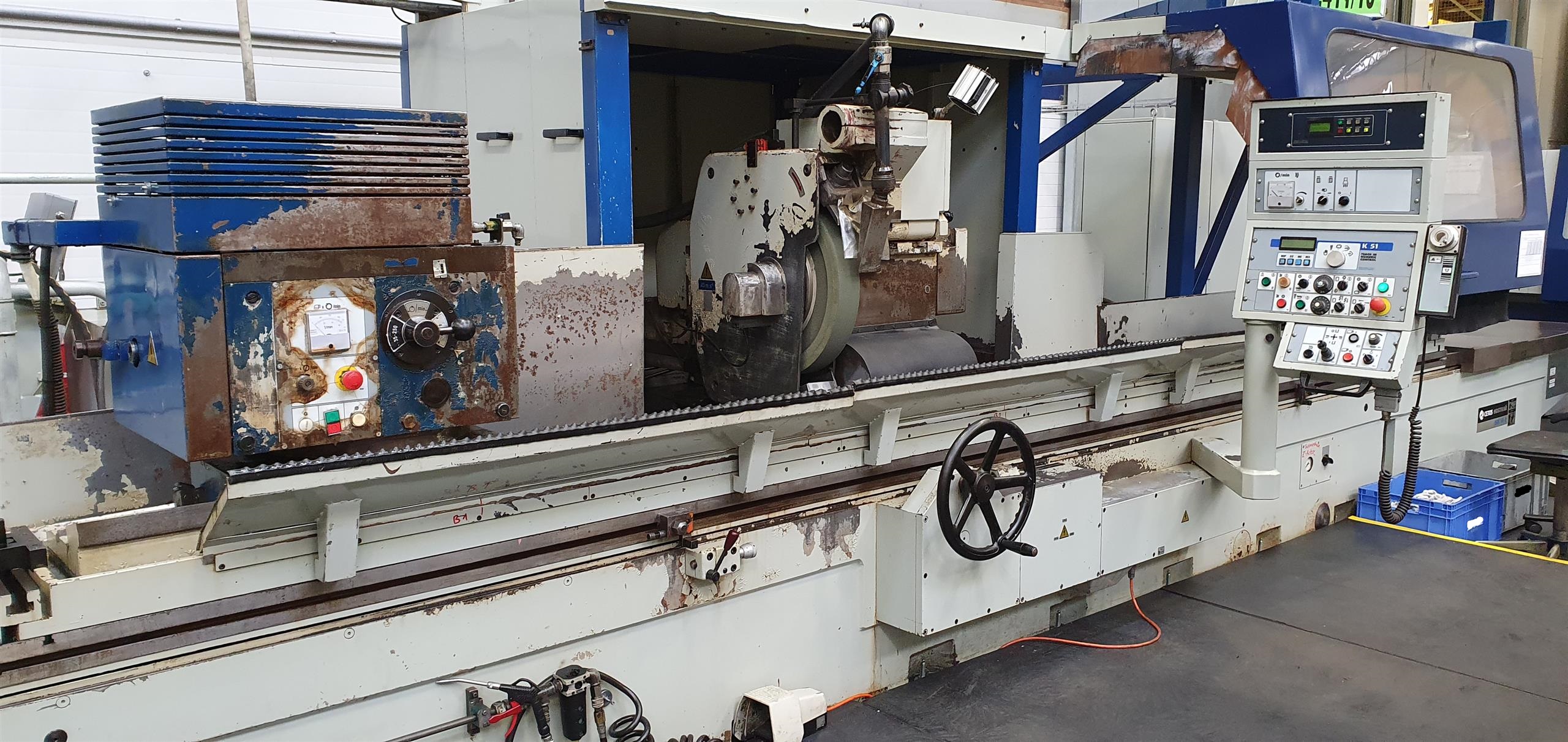

Machine Type NC Cylindrical Grinding Machine

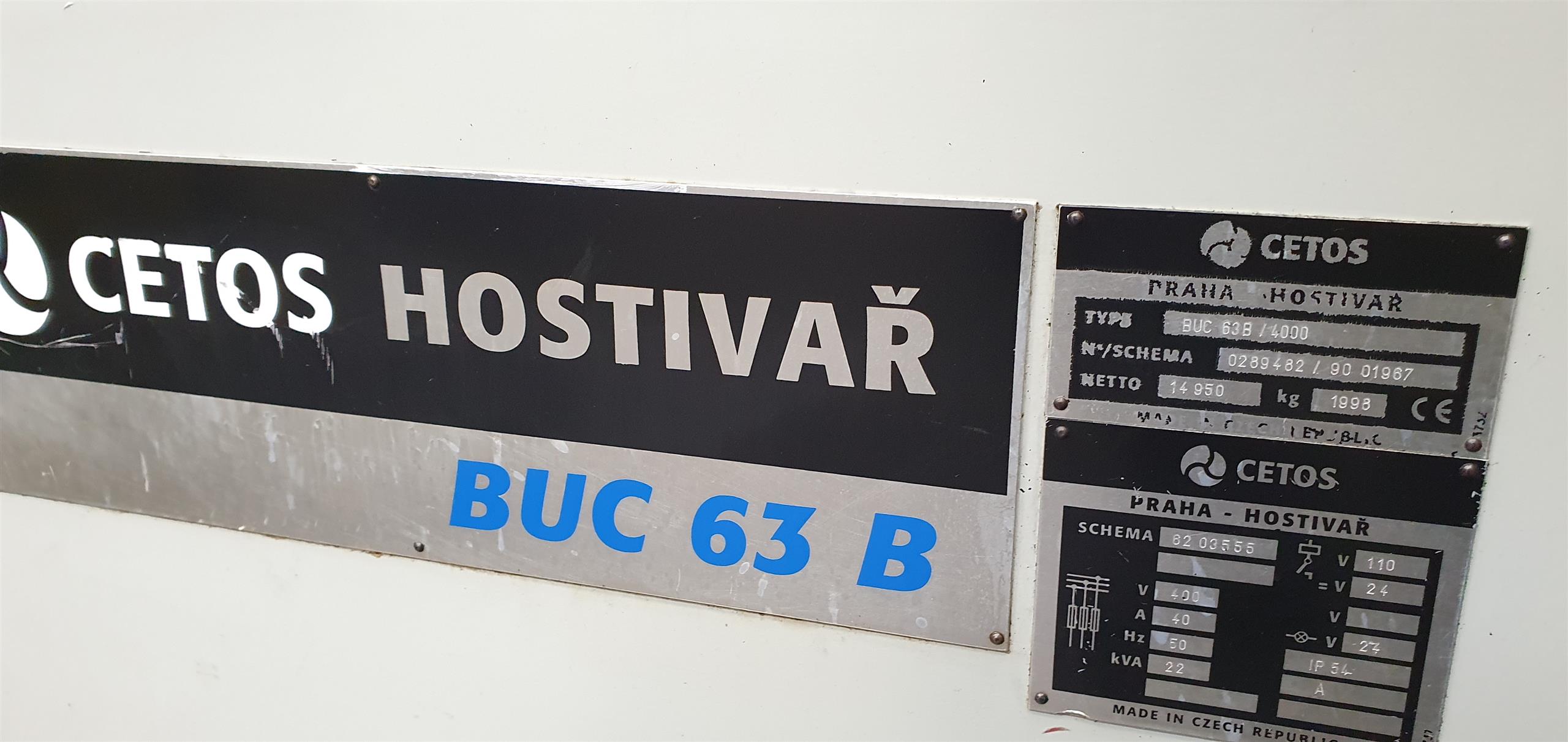

Make CeTOS
Type BUC 63 x 4000

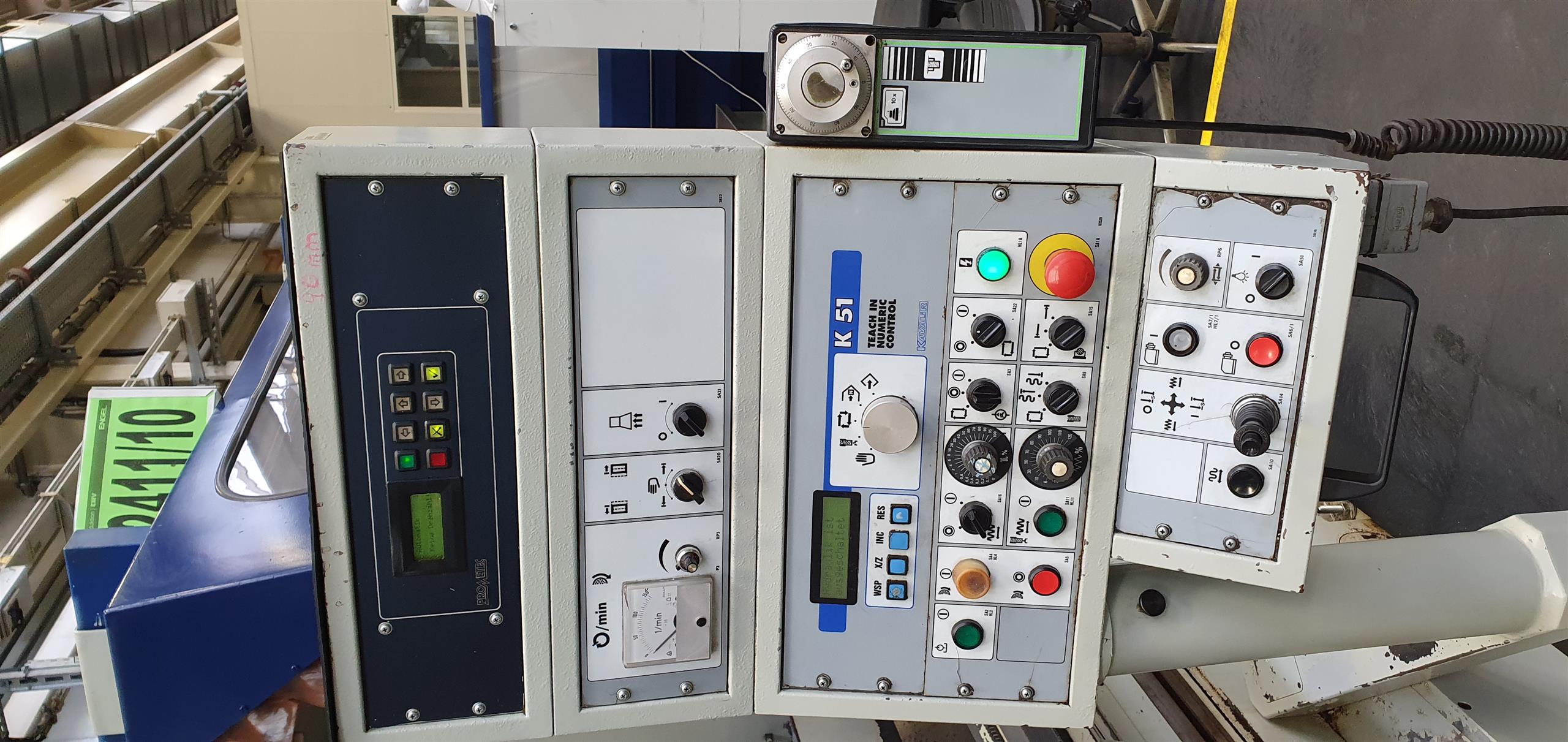

Control NC
Year of Manufacture 1998
Country of origin Czech Republic

Technical Details :

Max. grinding dia: 630 mm

Max. grinding length: 4000 mm

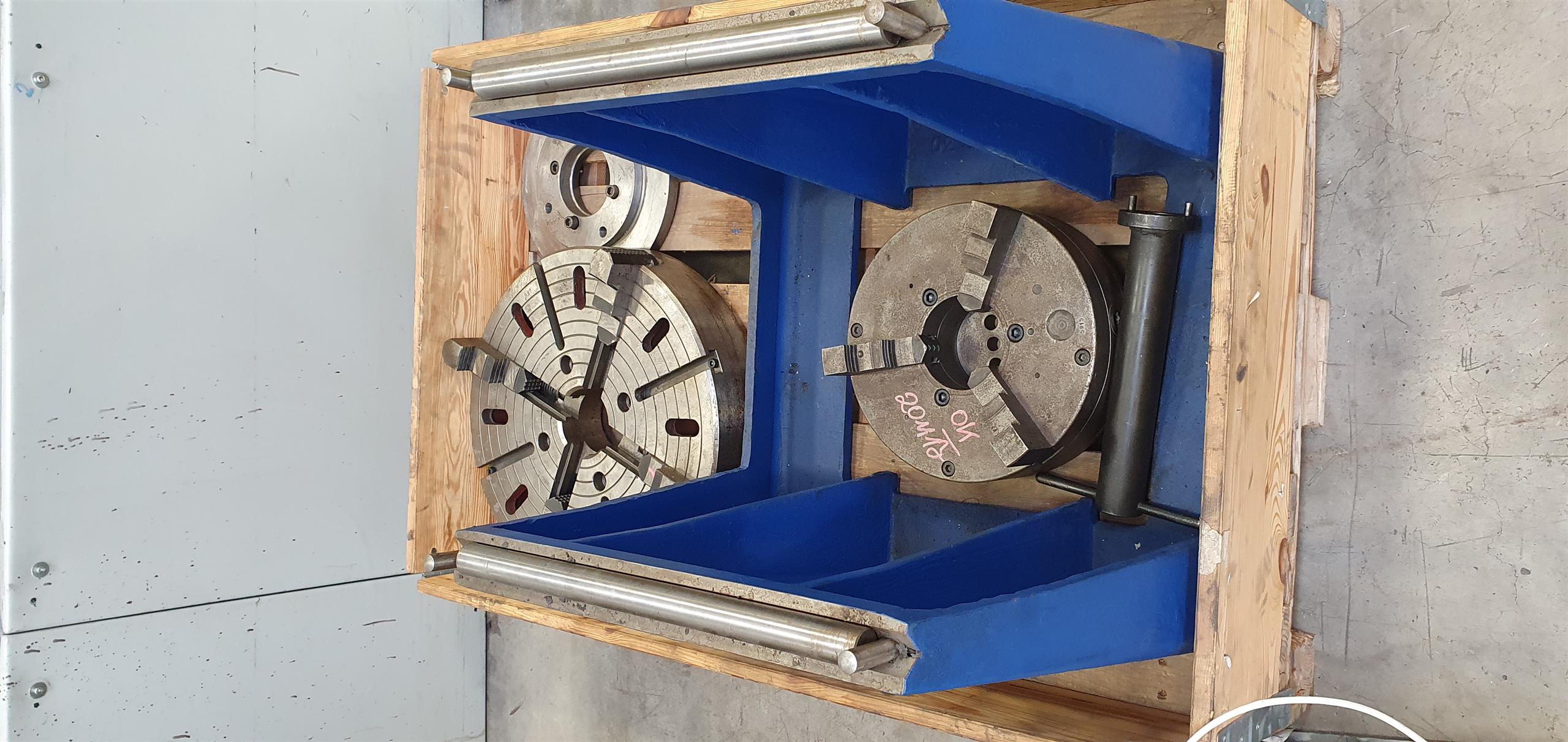

Chuck: 500 mm & 315 mm

Grinding head tilting: -30 to +10°

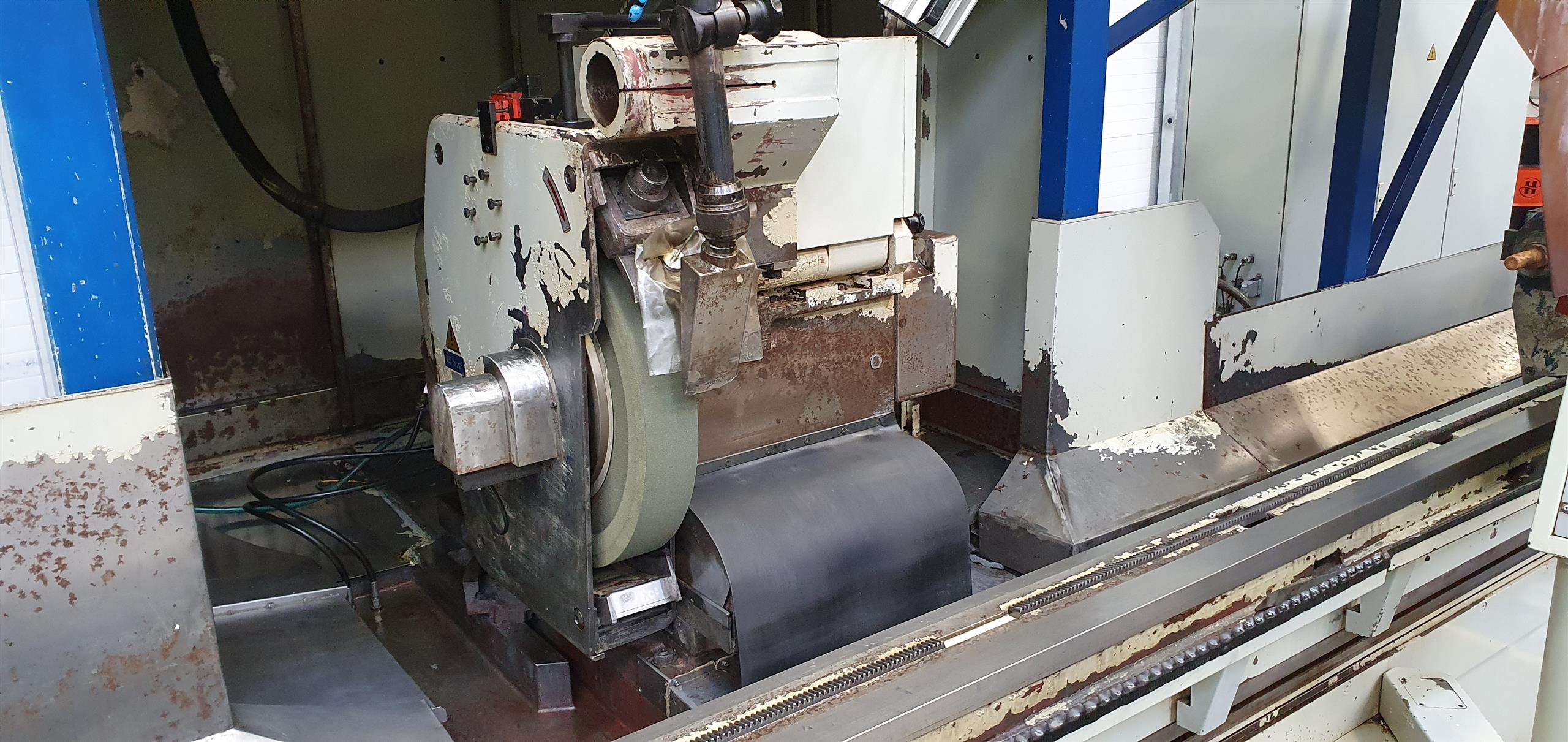

Grinding wheel size: 750 dia x 100 x 305 (Bore)

Table feed travel: 4400 mm

Table feed speed: 0,05 to 3,8 m/min

Rapid feed: up to 4 m/min

Table tilt: +4 to -4°

Workpiece weight: 3000 kg with tailstock, 4000 Kg with open steady

Grinding wheel speed: 1322 rpm

Headstock speed: 35- 250 rpm

Machine weight: 15 Tonnes

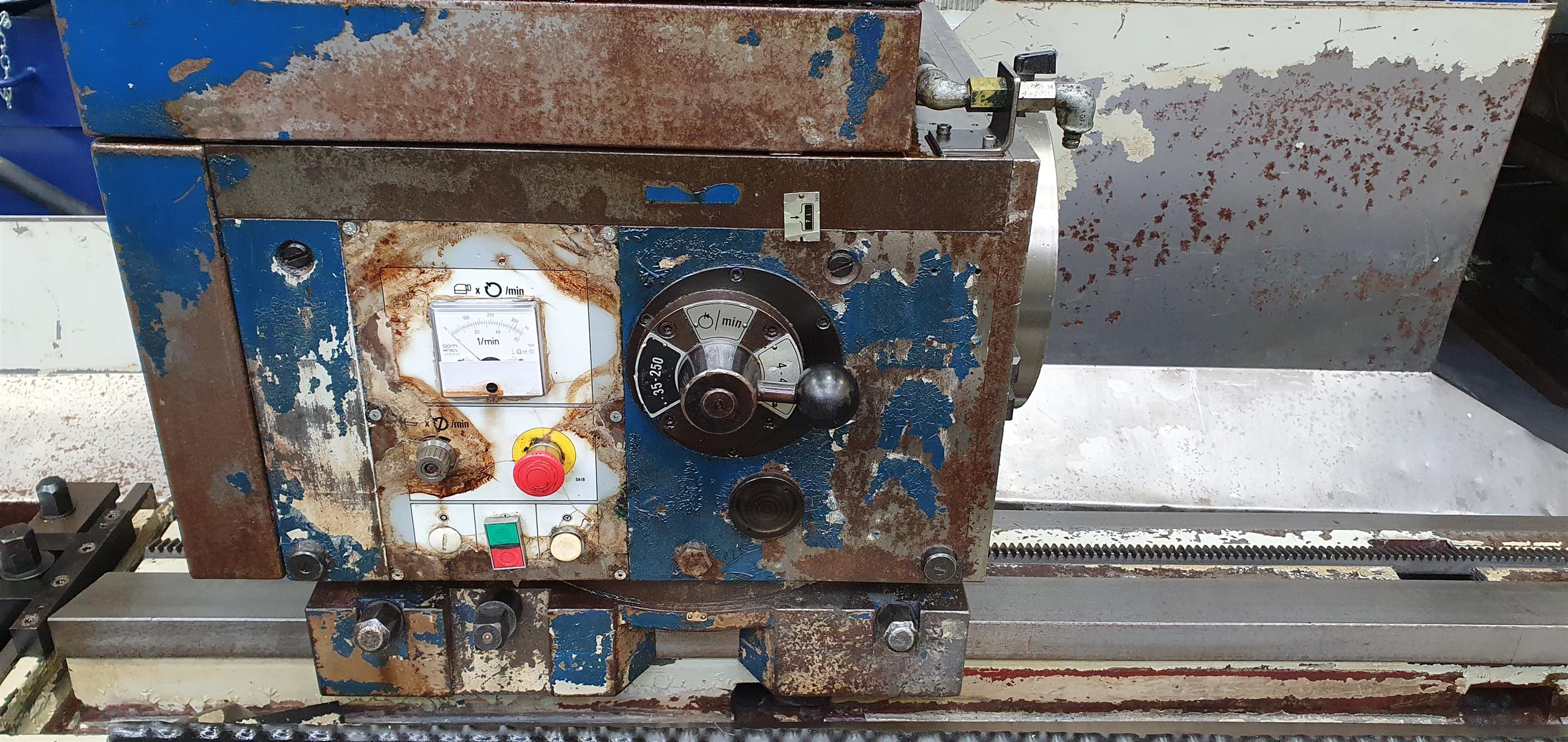

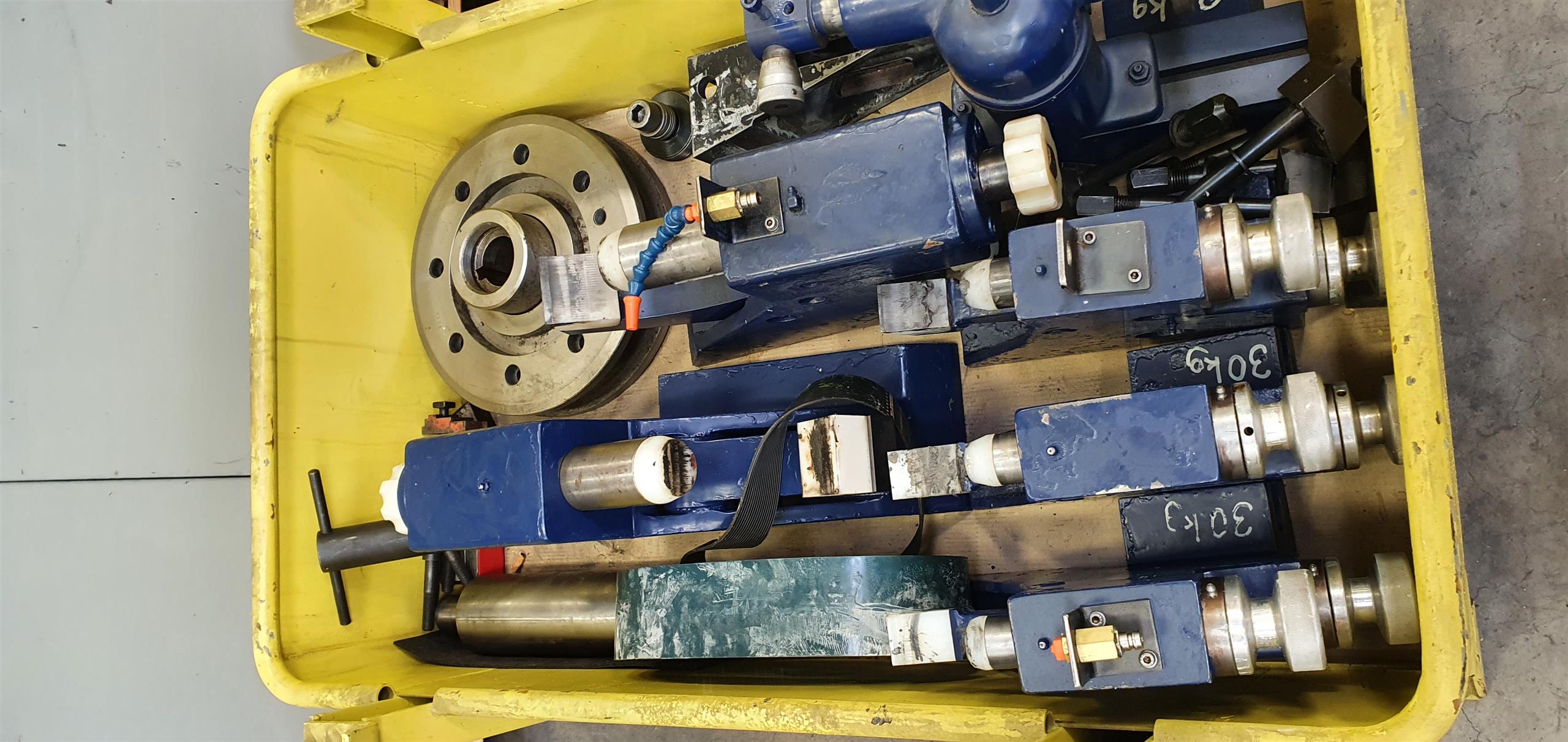

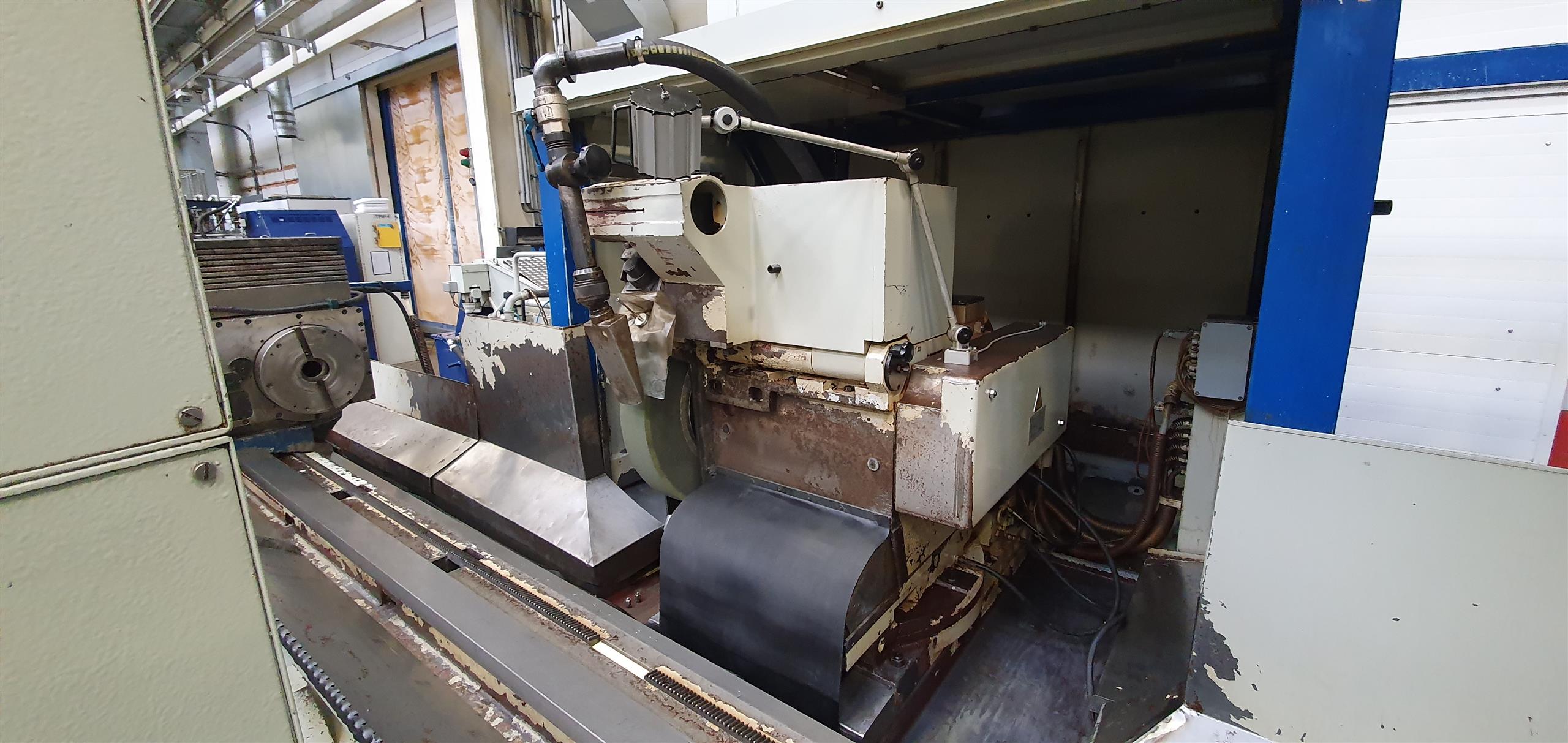

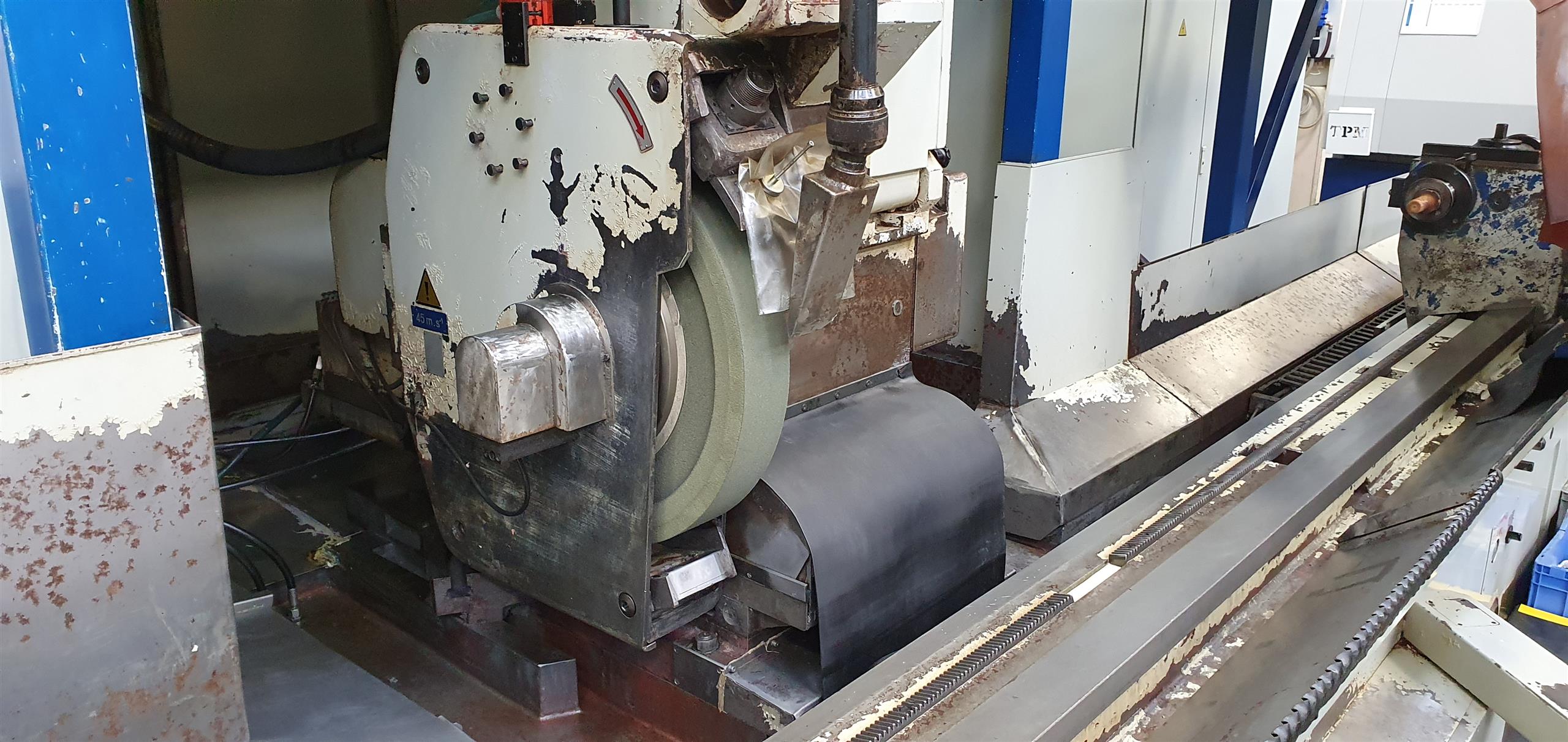

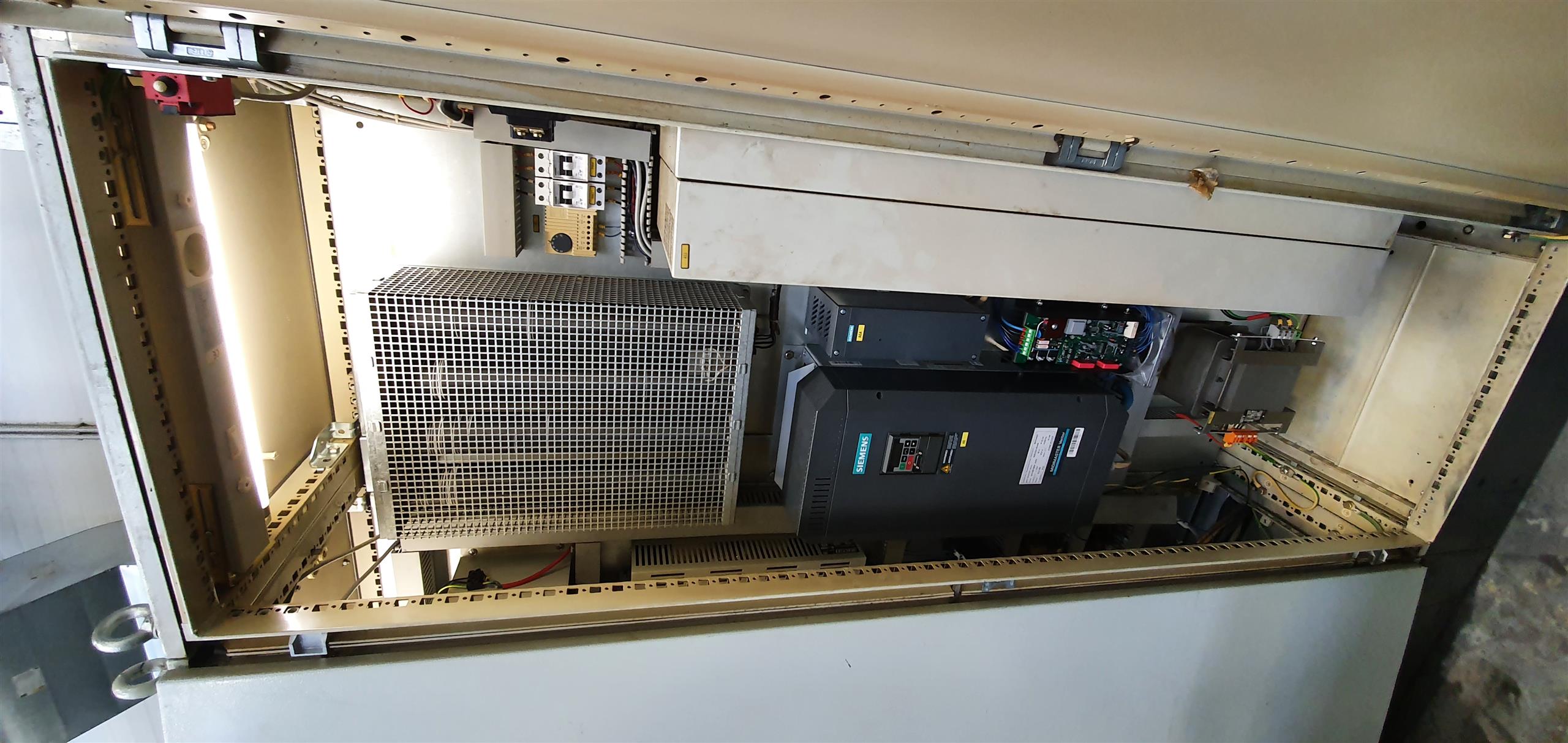

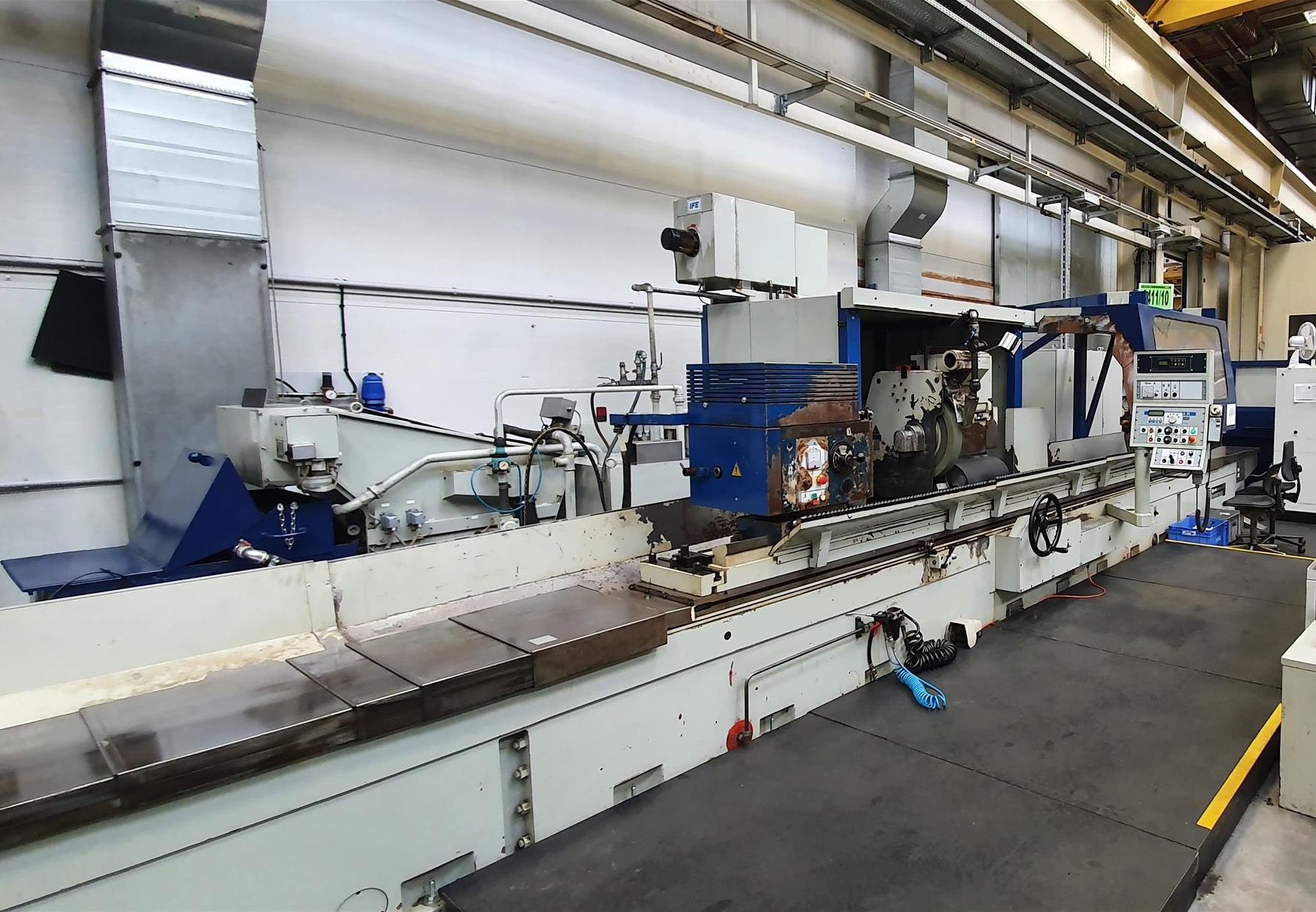

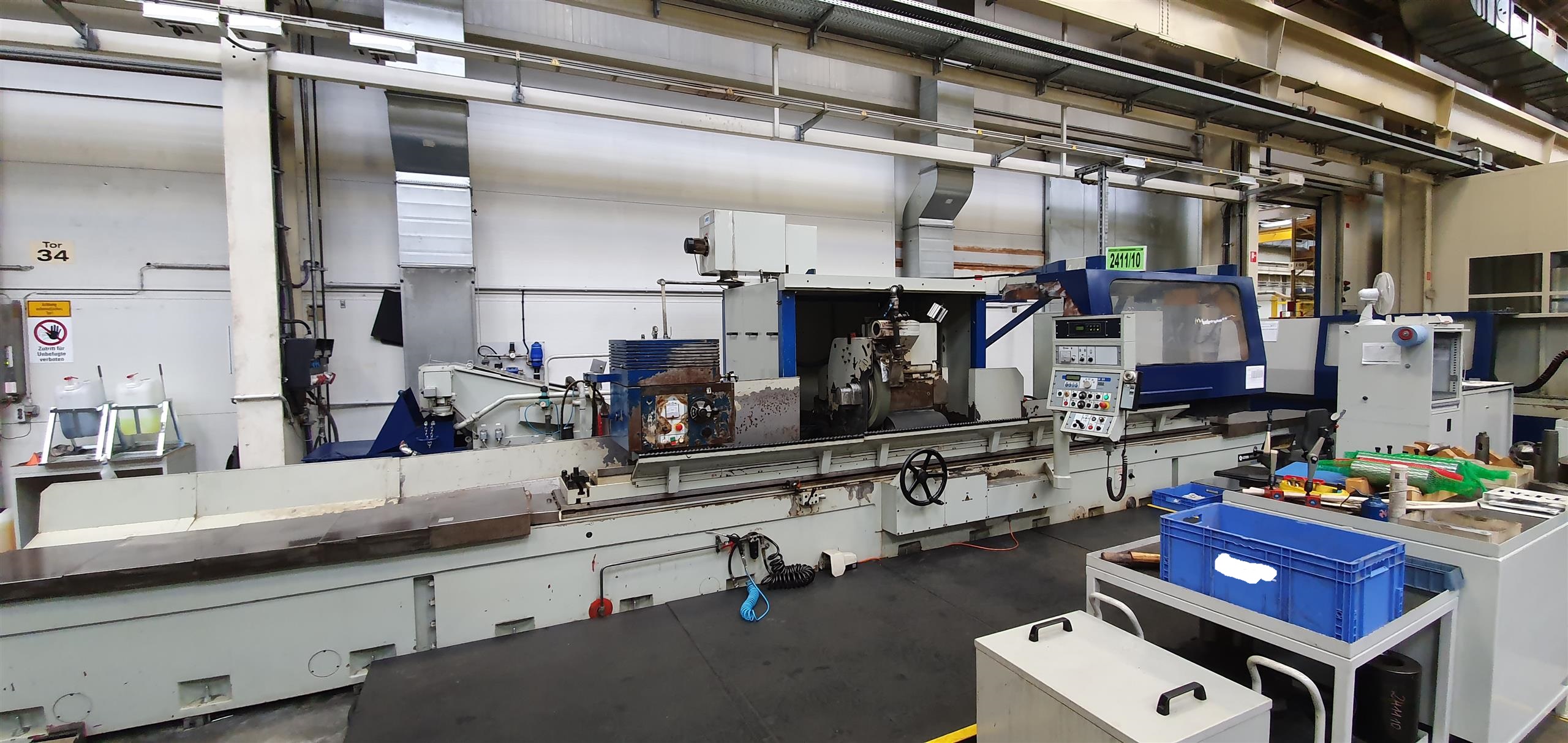

Machine Gallery :
