HMC Makino MC 50

Horizontal Machining Center (HMC), All Machines

Details :

Machine Type Horizontal Machining Center (HMC)
Make Makino
Type MC50
Newin 1991

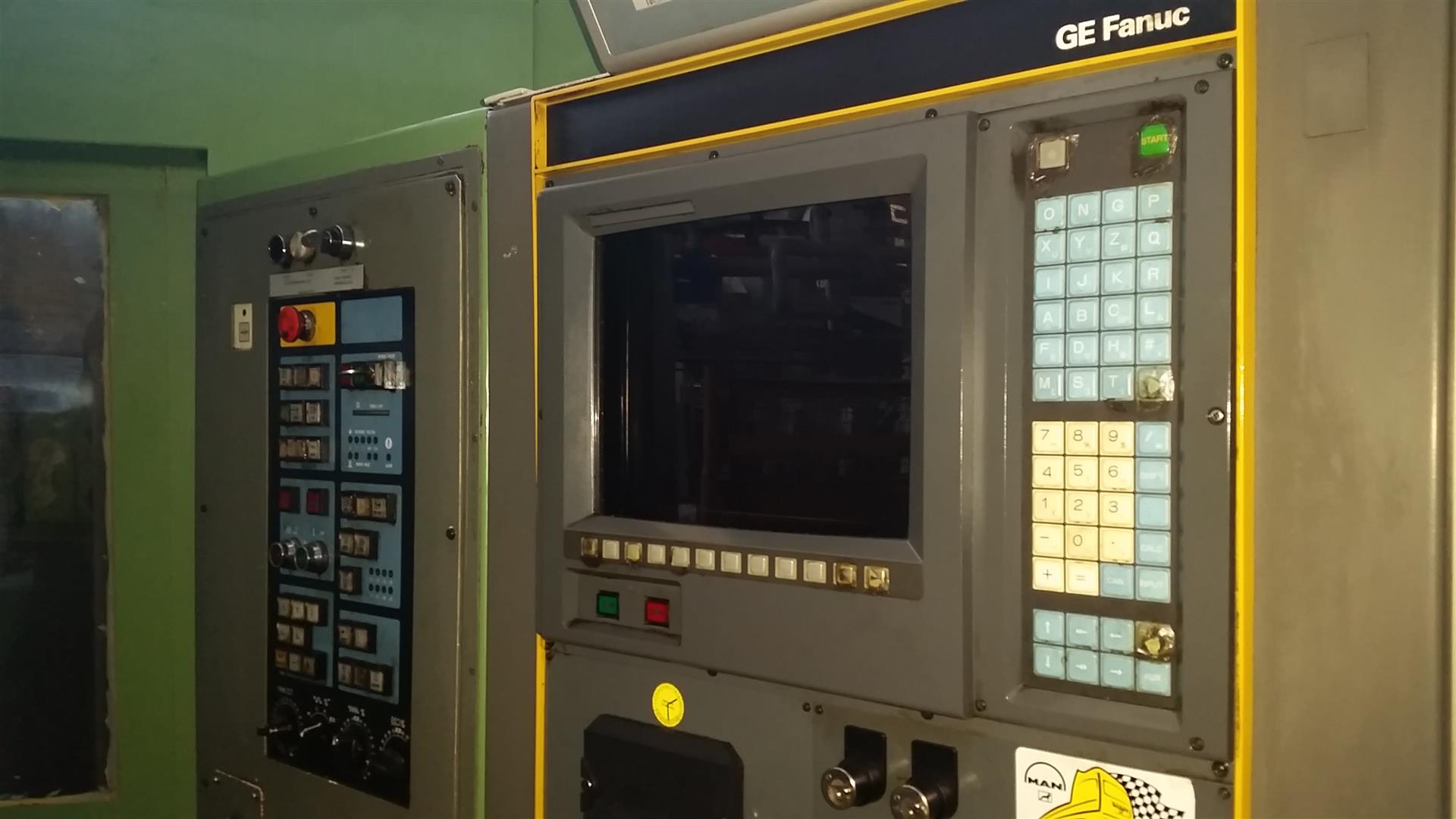

Control Fanuc 15M
Location Germany
Country of origin Japan
Technical Details
x-travel 600 mm
y-travel 500 mm
z-travel 560 mm
size of pallet 500 x 400 mm
Pallet change type 2 Way

spindle turning speed range 10 - 7000 rpm
no. of tools in the magazine 40 pcs
table - indexing 0,001 degree
Tool taper BT 40
distance between table center to spindle nose 75 - 575 mm
Distance between table face to spindle (vertical) 125 - 685 mm
Spindle power 11 kW
Spindle cutting power 290 Nm
Weight of the machine 10 tone
Other information
- In Excellent condition
- Pallet change with lift arm
- Coolant Through spindle
- with complete documentation

Machine Gallery :
