CNC Bed Milling YCM Supermax 1800 HV

Milling (Bed & Column type)

Details :

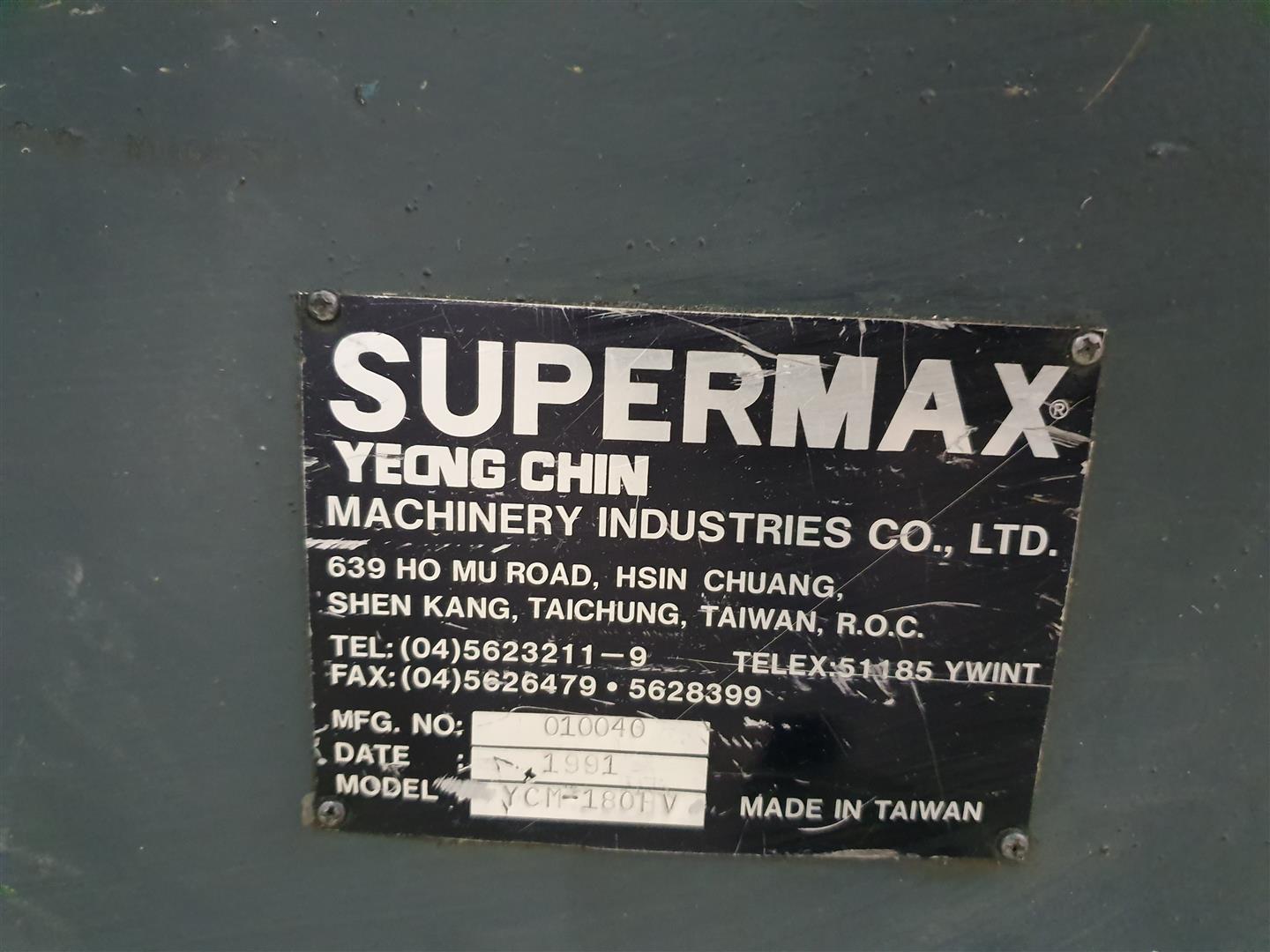

Make YCM Supermax (Taiwan)
Type 1800 HV
Year 1991
Control Fanuc OM-F

Technical Details :

Travel X 1800 mm
Travel Y 740 mm (Ram)
Travel Z 900 mm (vertical)
Table Size 2000 x 600 mm
Spindle nose to table surface 100 - 1000 mm
Spindle center to column surface 105 - 845 mm
Max. Table load cap. 2000 Kg
Rapid Feed X/Y: 9m/min, Z: 6 m/min
Cutting Feed 2.5 m/min
Spindle Motor 15 KW

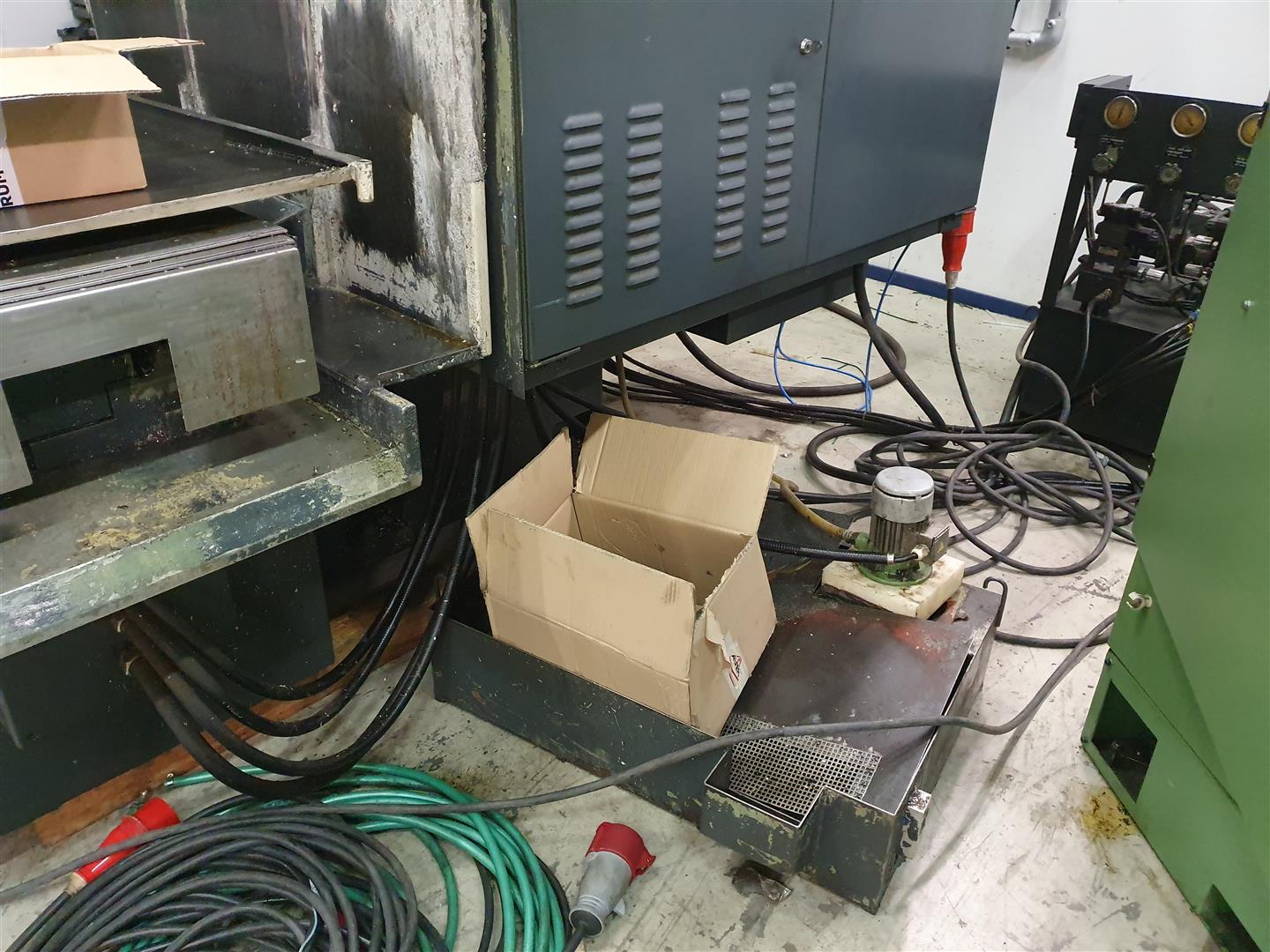

Machine Gallery :

Video Gallery :

Contact now for this machine
