Radial Drilling Machine CSEPEL RF 51 1133-D175

Radial Drilling, All Machines

Details :



Stock No 1133-D175
Machinetype Radial Drilling Machine
Make CSEPEL
Type RF 51
Newin
Control konventionell
Location India - Ahmedabad
Country of origin Hungary
Term of delivery immediately
Quotation Freeloaded on Truck
Price 0.00 lkR

Technical Details :

bore capacity in steel (diameter) 100 mm
throat max. 3000 mm
workpiece height max. 440 – 2100 mm
spindle taper MT 6
spindle turning speed range 18 – 1800 U/min
quill stroke 400 mm
surface area 3160 x 1550 mm
feed range – boring 0,0375 – 2 mm/min
voltage 380 V
distance spindle – column min./max. 400 – 2850 mm
total power requirement 13 kW
weight of the machine ca. 13,2 t
dimensions of the machine ca. 4,39 x 1,55 x 4,13 m

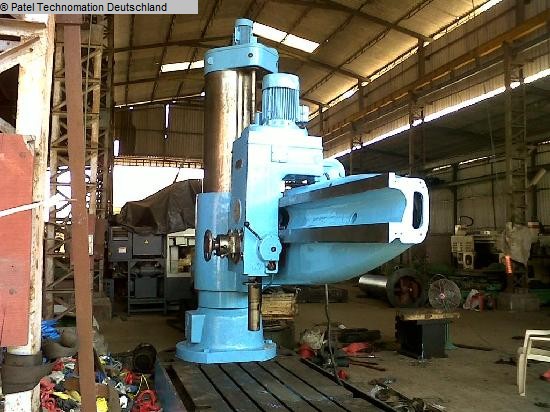

Machine Gallery :

Contact now for this machine
