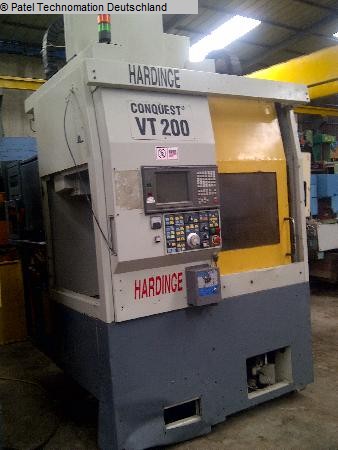

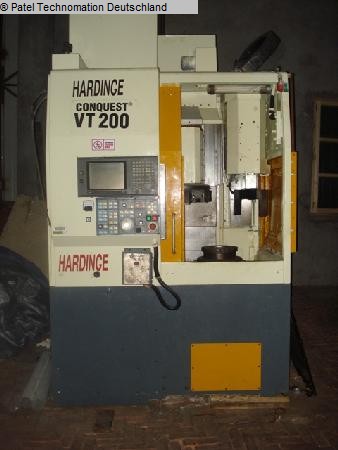

CNC VTL HARDINGE VTL200 #L237

SOLD Articles

Details :



Stock No 1133-L237
Machine type Vertical Turret Lathe - Single Column
Make HARDINGE
Type VTL200
Newin 1997
Control CNC
Location INDIA - Rajkot
Country of origin Italien
Term of delivery 0
Quotation Free loaded in Container/Flat
Price 0.00 EUR

Technical Details :



face plate diameter 400 mm
swing diameter 650 mm
turning height 600 mm
total power requirement kW
weight of the machine ca. 9 t
dimensions of the machine ca. m

Other Details :

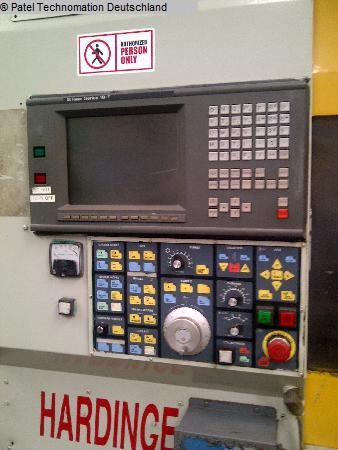

  • Fanuc 18T (CNC)
  • Total Power Requirement45 KVA
  • Spindle DriveAC Spindle Drive 22 KW
  • Spindle Height841 mm
  • Machine ControlFanuc 18 T CNC Control

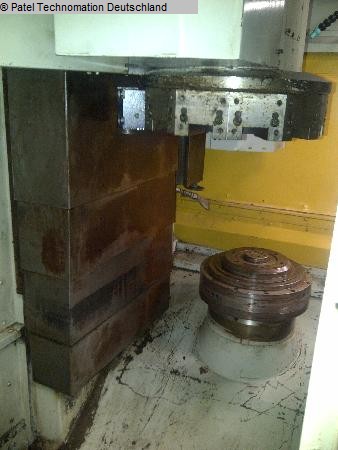

  • Tool ing Turret12 Station
  • Chuck Size400 mm Collet
  • Size of Boaring Bar40 mm
  • Size of Turning Tool25 mm

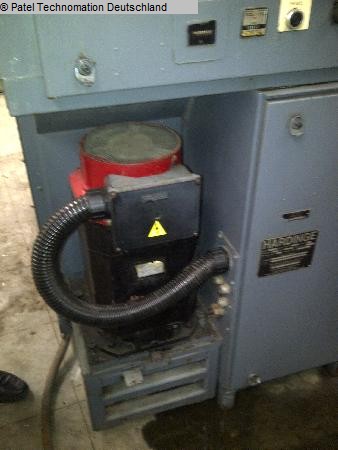

  • Main Motor / Spindle Motor22 KW
  • Spindle Speeds RPM3000 RPM
  • X- Axis Traverse Rate (Max.)472 Ipm
  • Z- Axis Traverse Rate ( Max)630 Ipm
  • Z- Axis Travel500 mm
  • X – Axis Travel200 mm
  • Tailstock Vertical Travel425 mm
  • Swing Diameter Over Way Covers650 mm
  • Distance Between Centres500 mm
  • Maximum Turning Diameter400 mm

Machine Gallery :
