Details :
Make: SKODA
Type: W 200H GO
Year: 1999 GO
Control: Siemens 840-C
Complete with
- Universal milling head
- Facing and boring unit with intermediate flange and extension piece
- Angle head: IFW2A-IFW3A / SK60
- Universal angle head: INW2-3A-200 / SK60
- Angle head: IFVW1B 750 mm / SK40
- Rotary Table
- Chip Conveyor
Price: 320,000 EUR
Technical Details :

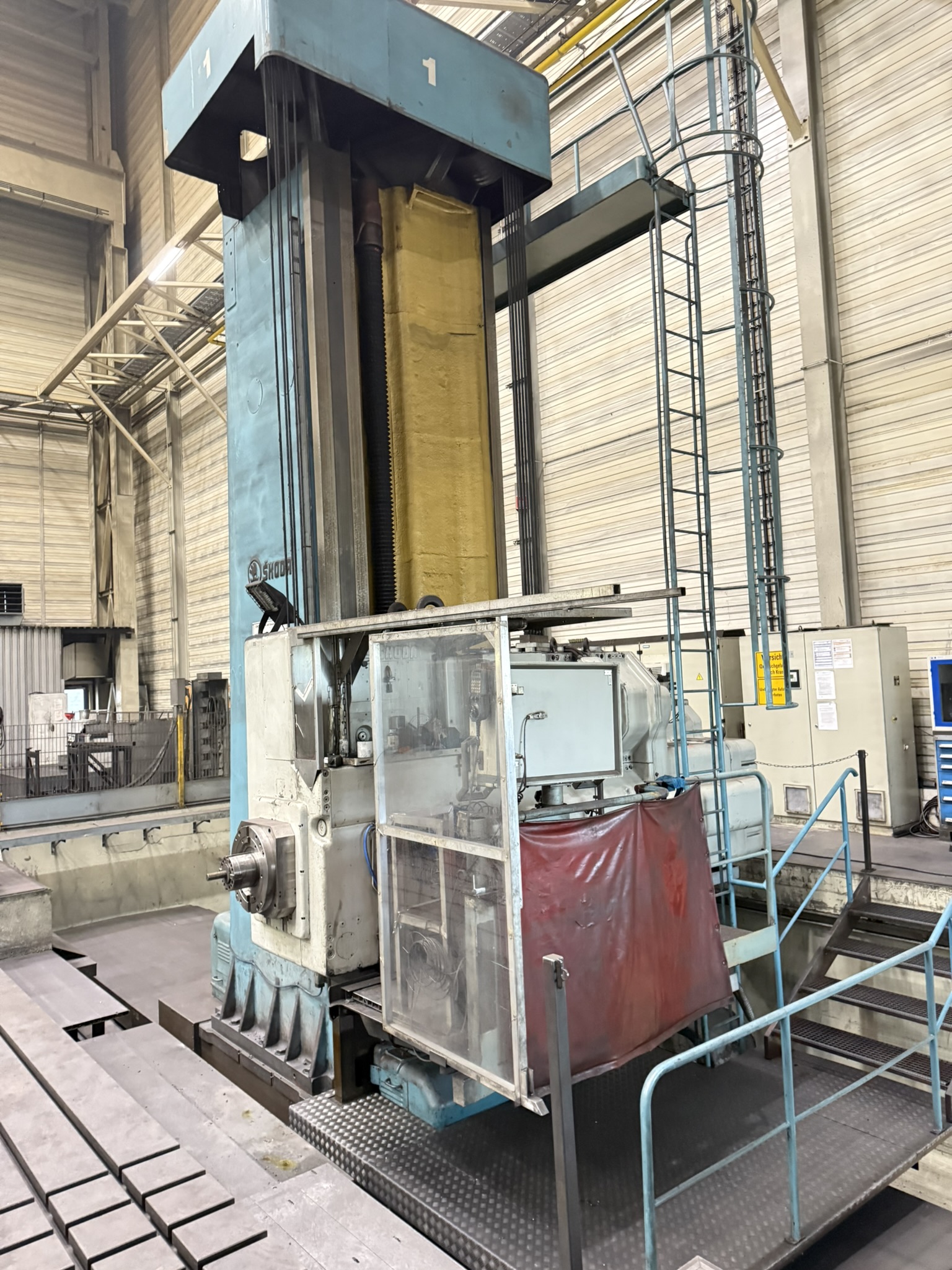

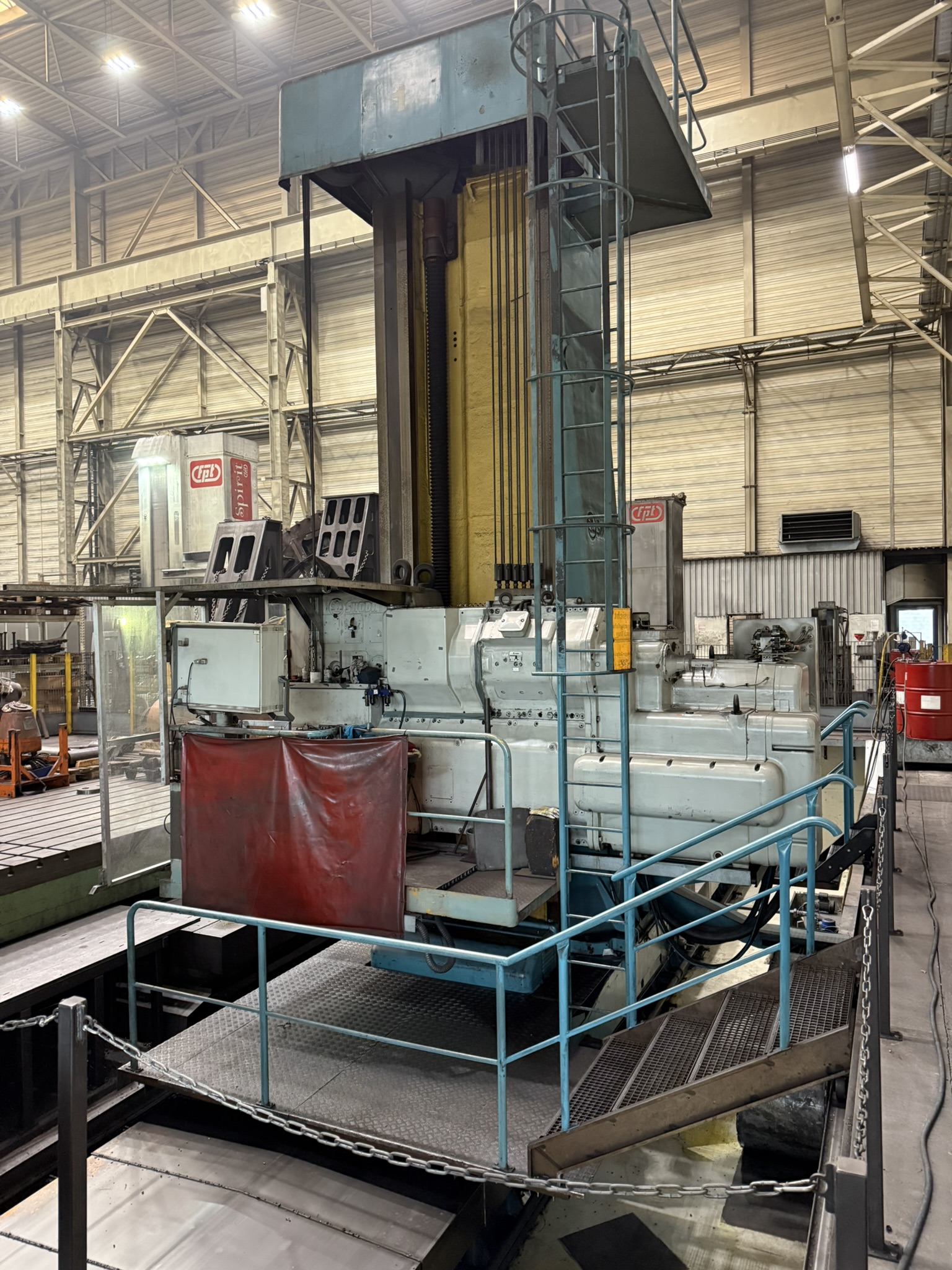

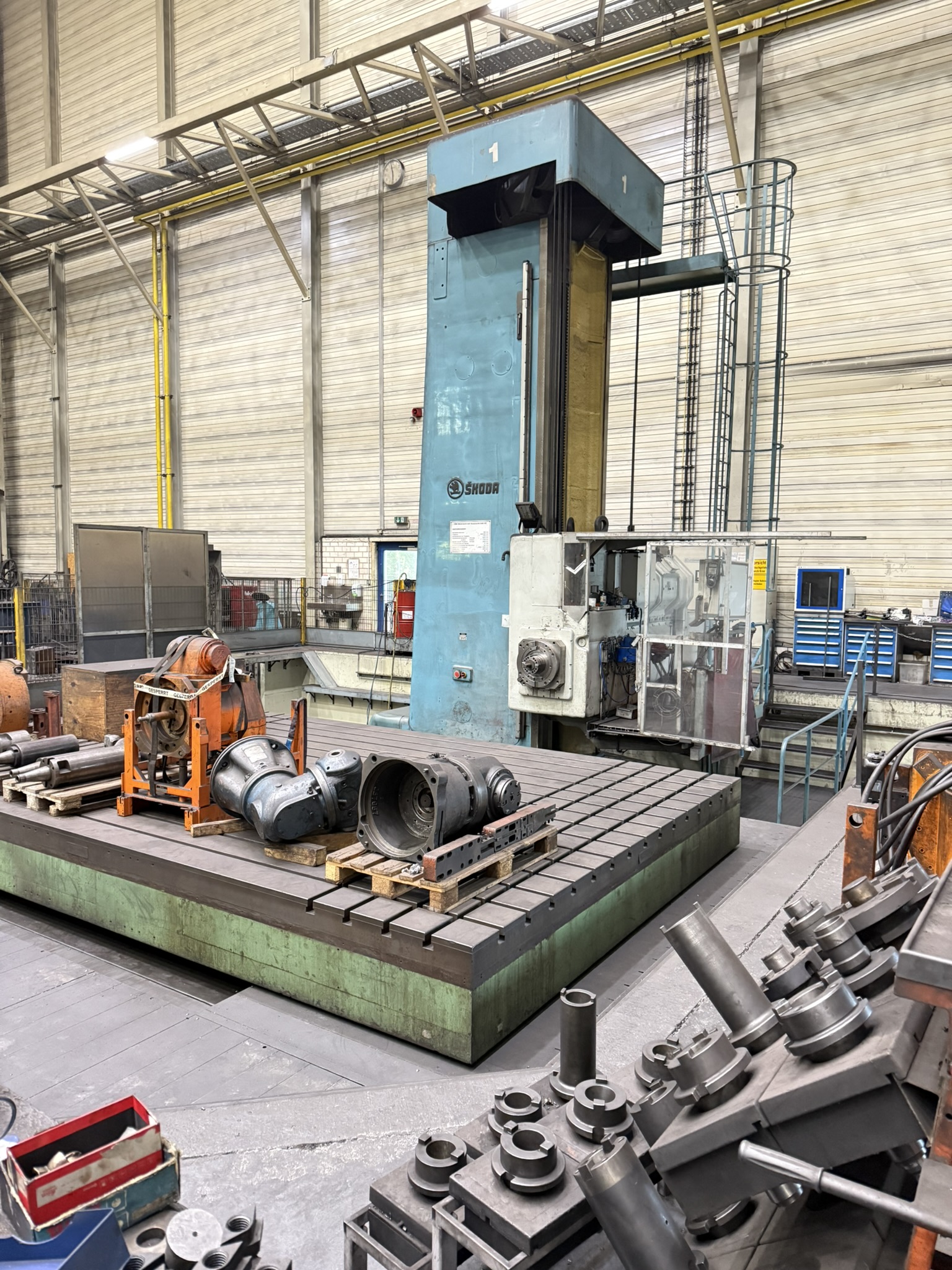

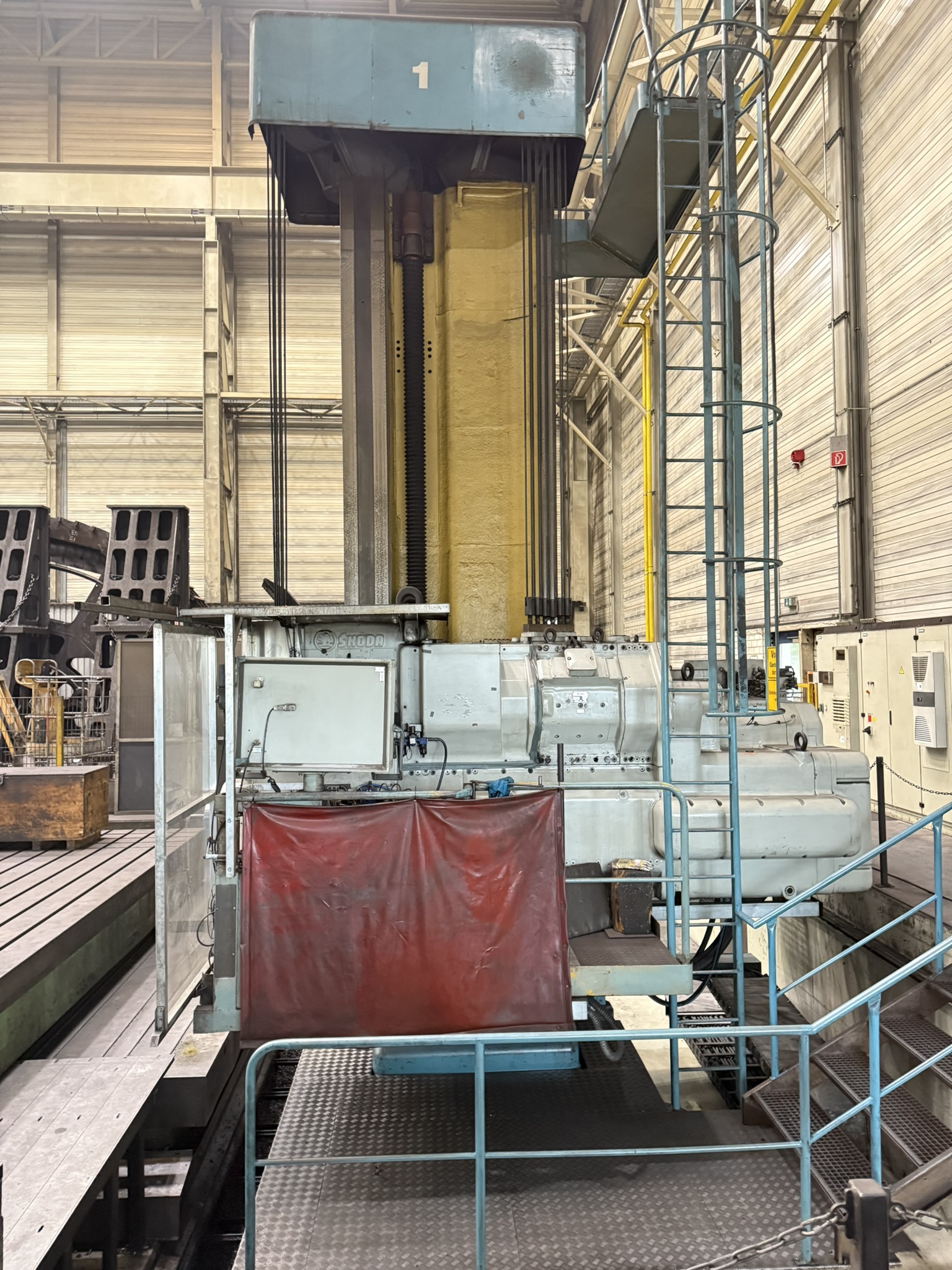

Make: SKODA
Type: W 200 H
Control system: SIEMENS Sinumerik 840 C
Travel paths:
X-axis - horizontal: 8,000 mm - hydrostatic double pinion
Y-axis - vertical: 4,150 mm
W-axis (spindle including support sleeve): 2,000 mm
Z-axis (support sleeve extension range): 1,600 mm
Spindle:
- Spindle diameter: 200 mm
- Support sleeve: 520 x 520 mm
- Tool taper according to DIN 2080 AD, ISO 60
- Spindle speed: 0.0 - 930 rpm
- Spindle drive power: 77 kW

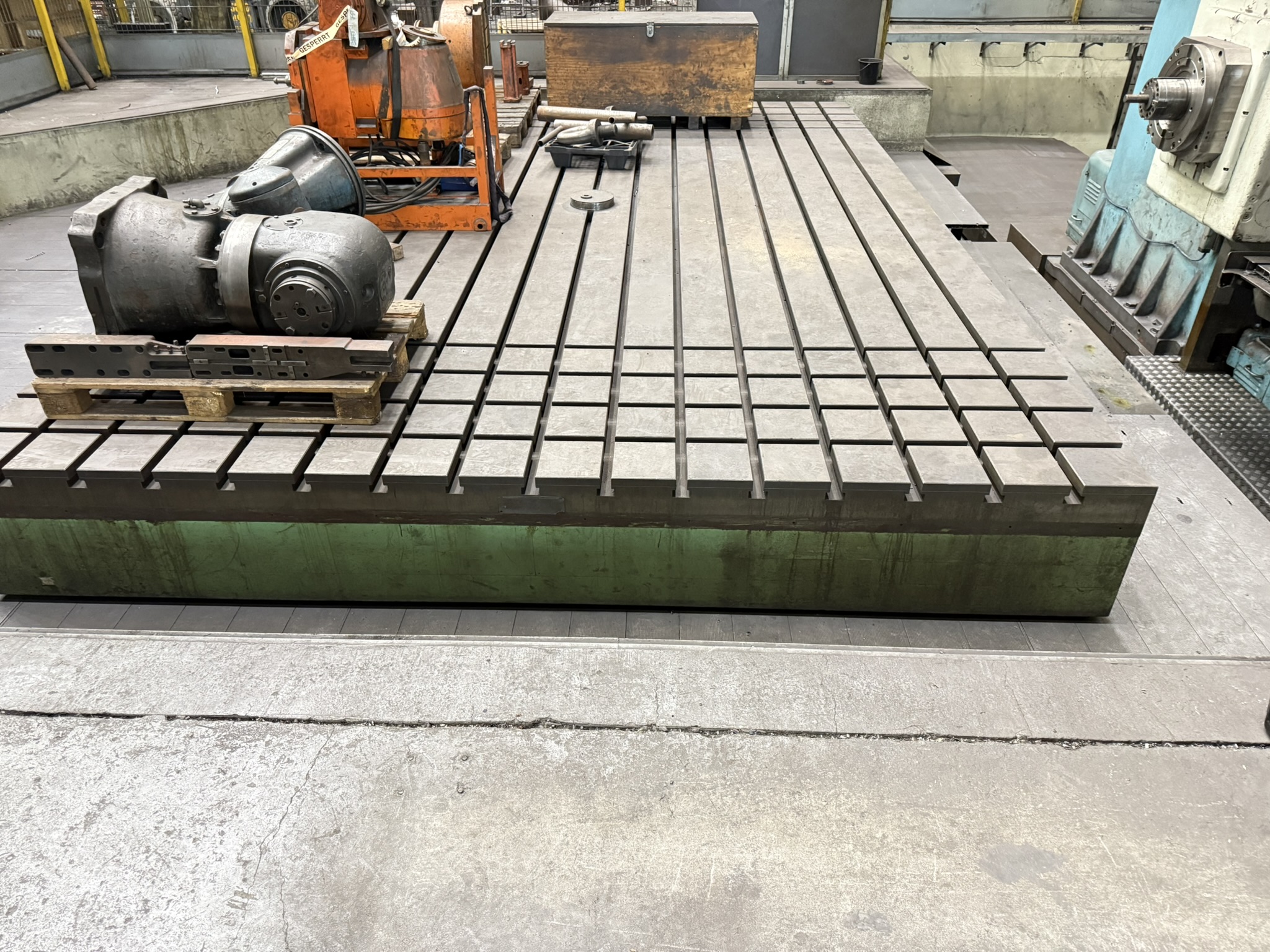

Boring Mill Rotary Table:
- Manufacturer: SCHARMANN
- Type: TDV7
- Table clamping area: 6,000 x 4,000 mm
- V-axis: 2,000 mm
- Maximum table load: 80 t
- B-axis: 360°, pitch: 0.001°
Includes the following accessories:
- Universal milling head
- Facing and boring unit with intermediate flange and extension piece
- Angle head: IFW2A-IFW3A / SK60
- Universal angle head: INW2-3A-200 / SK60
- Angle head: IFVW1B 750 mm / SK40
- Chip conveyor belt, length: 15,400 mm
