Details :

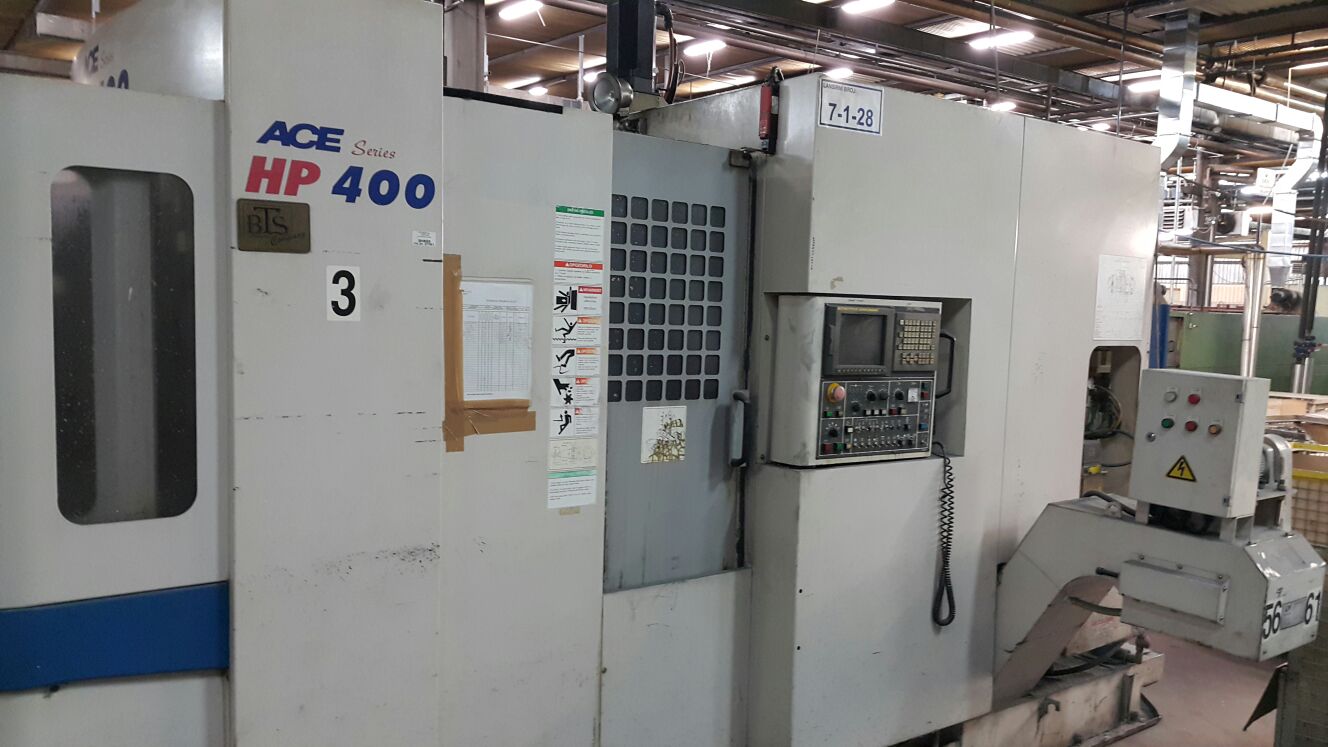

Machinetype   Machining Center - Horizontal
Make   Doosan - Daewoo Type  ACE-HP400 Â
with Year of manufacture 2003
Control FanucÂ
Technical details
x-travel         600 mm
y-travel         560 mm
z-travel 565 mm
Spindle Nose to Table center 150-715 mm
Spindle Center to pallet top 50 - 610 mm
Number of pallets      2 way
size of pallet    400 x 400 mm
feeds   24000 mm/min
rapid traverse   48000 mm/min
spindle taper   BT40
Table Indexing 1 degree
spindle turning speed range    14000 U/min
Tool magazine positions         60 fach
a weight of the machine ca. Â Â Â Â Â Â 9,5 t
Additional information
- With Chip conveyor
- 2 x Identical Machines available
