Ram-Type Floor Boring and Milling M/C SKODA WD 160A 1133-B183

Boring Machine (Floor Type), SOLD Articles, All Machines

Details :


Stock No 1133-B183
Machinetype Ram-Type Floor Boring and Milling M/C
Type WD 160A
Newin 1969
Control konventionell
Location INDIA - Ahmedabad
Country of origin Czech Republic
Term of delivery immediately
Quotation Free loaded on Truck/Flat
Price 0.00 EUR

Technical Details :


spindle diameter 160 mm
x-travel 6000 mm
y-travel 2500 mm
z-travel 1250 mm
w-travel 1600 mm
dimension of the ram 450×450 mm
spindle motor 35 kW
spindle taper metric MT 100
weight of the machine ca. 80 t

Other Details :

  • Excellent condition
  • With Floor plate two piece: 1800×5000 mm

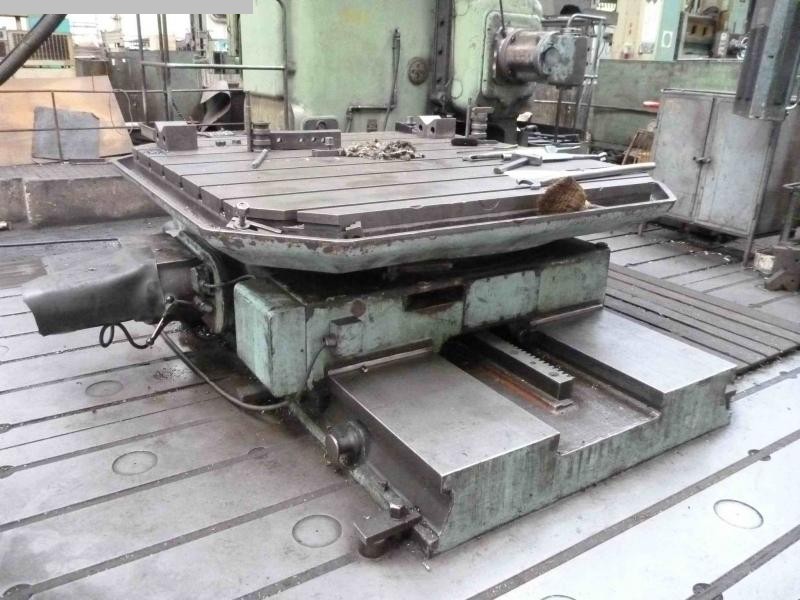

  • With rotary table Skoda Type: E20, Clamping table area 2000×2000 mm, Table load max workpiece 200 000 N (20 t), The movement of the slide bed 1200 mm
  • With one milling head
  • With facing tool
  • With some tools
  • With machine documents
  • more photos + working video over further request

Machine Gallery :
