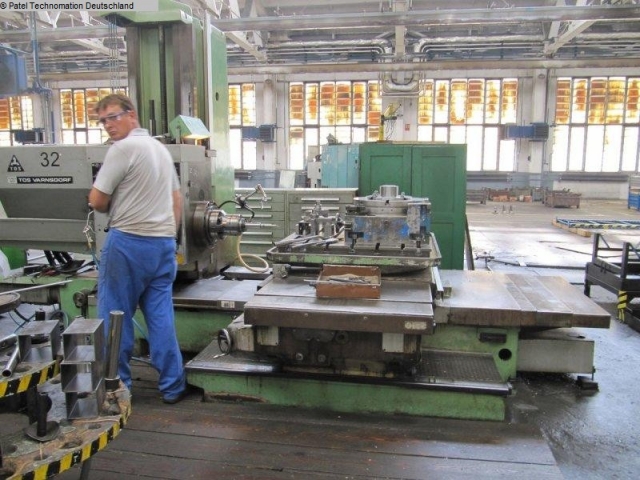

Machining Center Universal TOS WH 10 NC B221

Boring Machine (Table Type), SOLD Articles, All Machines

Details :

Stock No 1133-B221
Machinetype Machining Center - Universal
Make TOS
Type WH 10 NC
Newin 1987
Control NC
Location Czech Republic
Country of origin Czech Republic
Term of delivery immediately
Quotation ex works
Price



Technical Details :

x-travel 1250 mm
y-travel 1100 mm
z-travel 950 mm
spindle hollow 100 mm
spindle taper ISO 50
table-size 1000 x 1120 mm
table load capacity 3000 kg
spindle speed: 16 - 1250 rpm
total power requirement 20 kW
weight of the machine ca. 13,4 t
dimensions of the machine ca. m

Other Details :

  • NC Controlled machine
  • All 3-axis with Ball screws
  • The axis screws are connected via gearbox with single servo motor
  • Guide ways with Hardened strip
  • In Excellent condition
