CNC VTL Rafament KCF 320 with extra height

CNC Lathe Machines (CNC/TMC), Vertical Lathes (VTL), SOLD Articles, All Machines

Details :

Type of Machine CNC Vertical Lathe (VTL)
Make Rafmet
Type Vertimaxx 2000
Year of manufacture 1987 / 2009 Retrofit
Control Fanuc OiTD
Storage Location Germany
Country of Origin Poland

Technical Details :

Faceplate Dia 3200 mm
Max. turning dia 3500 mm
Max. turning height 2500 mm
Max. workpiece weight 25000 Kg
Table speed up to 72 rpm
Main spindle motor power 60 KW AC Fanuc
Ram section 300 x 220 mm
Max. travel of cross slide 2200 mm
Ram Travel Vertical 1800 mm
Ram Travel Horizontal 2100 mm (each Left & Right RAM)
Tool holder Capto C6

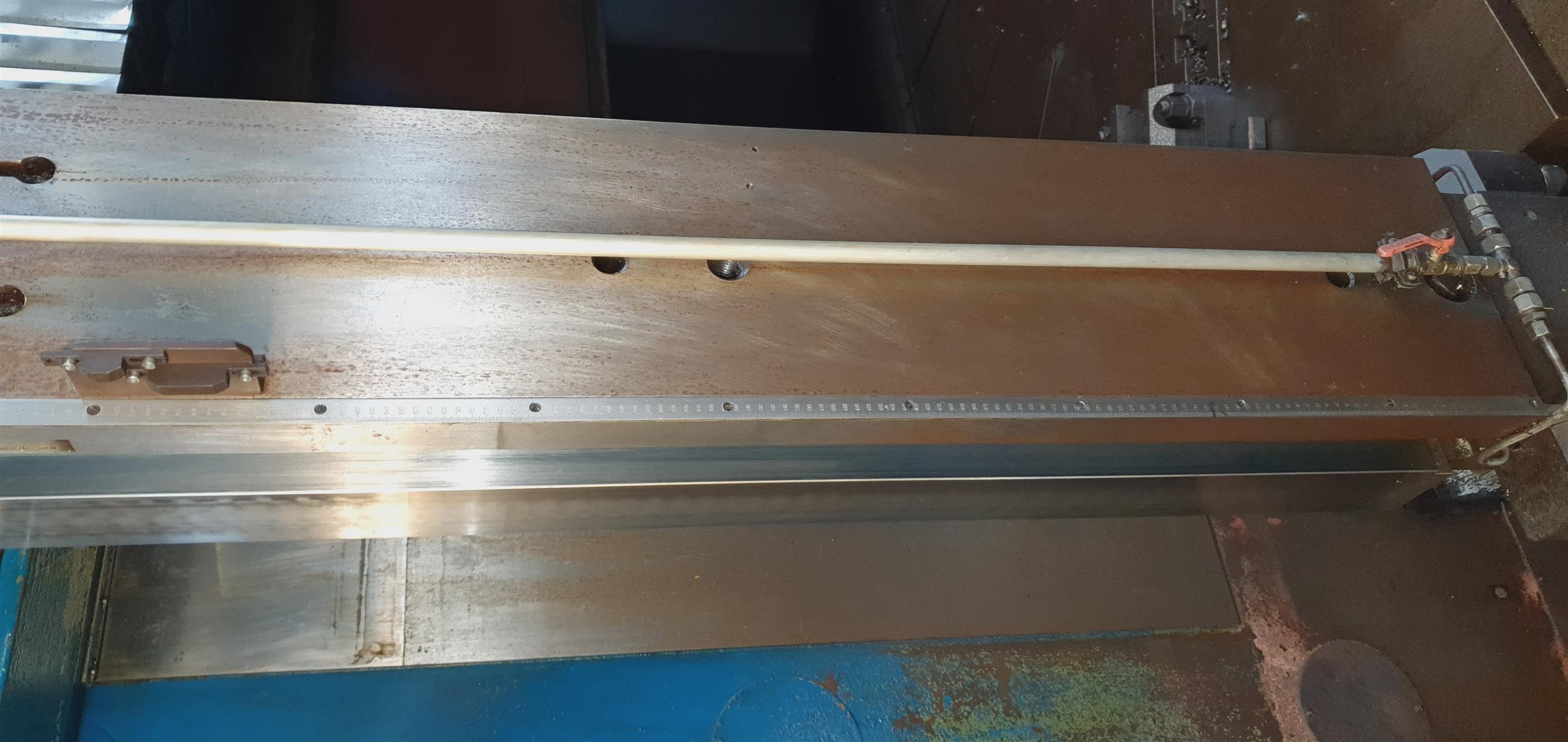

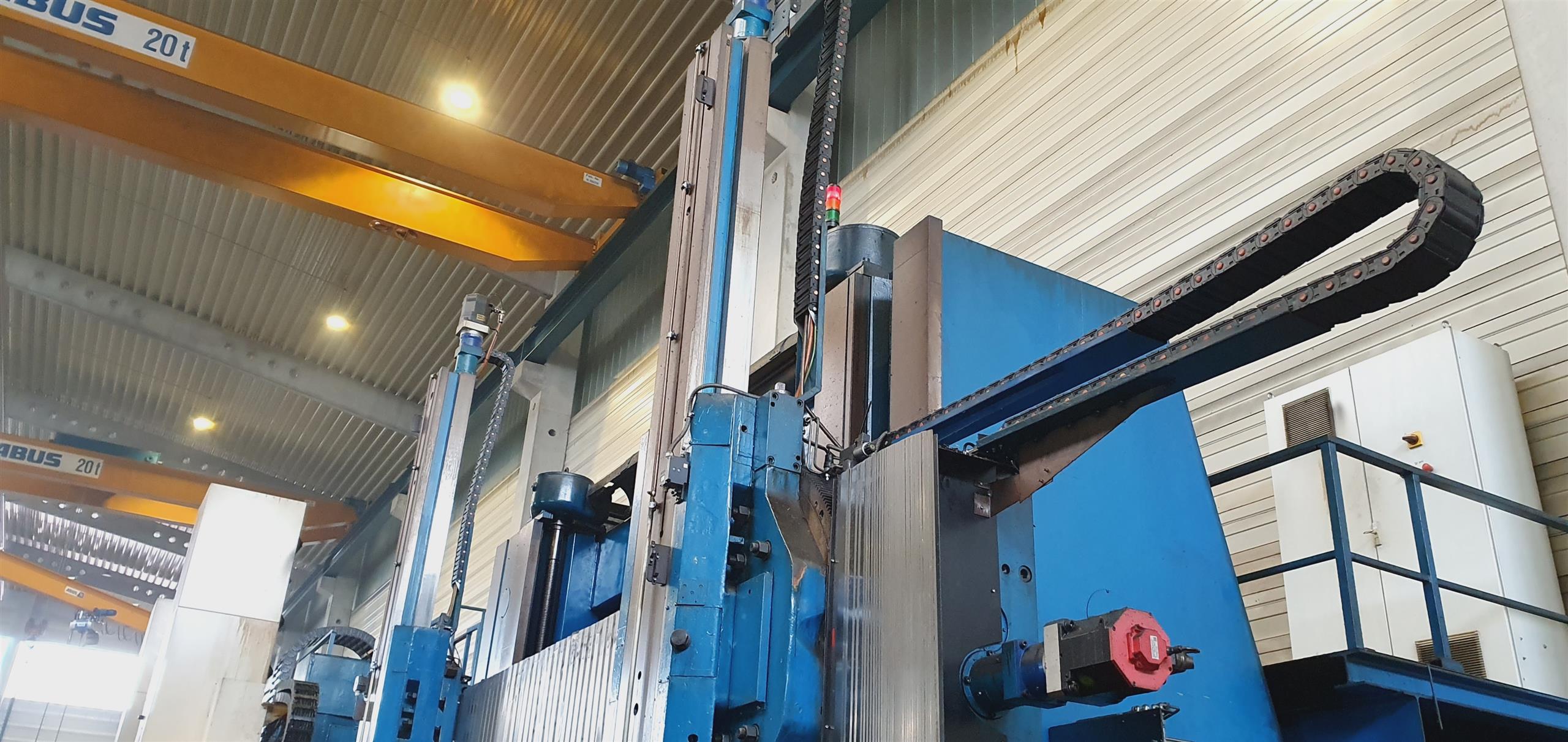

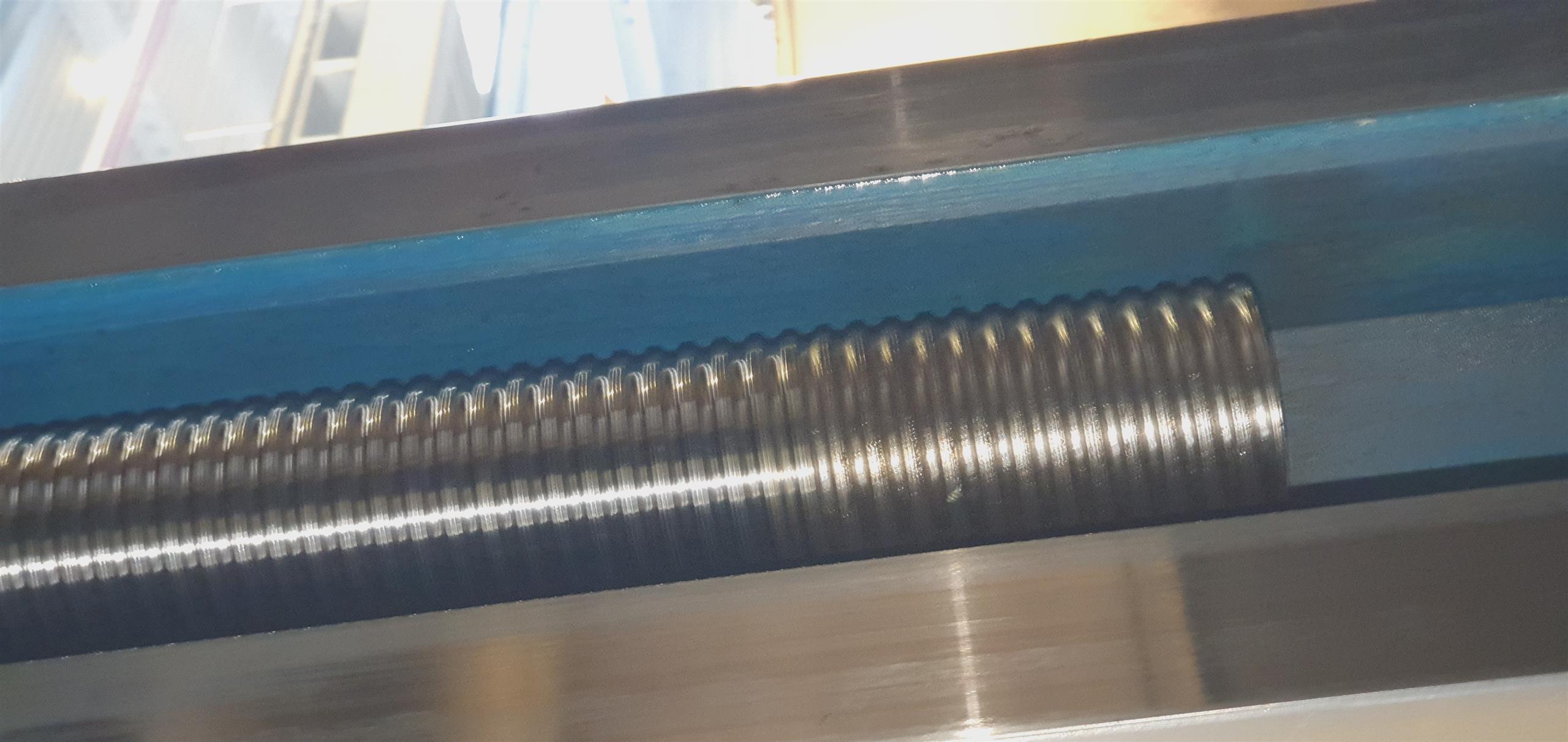

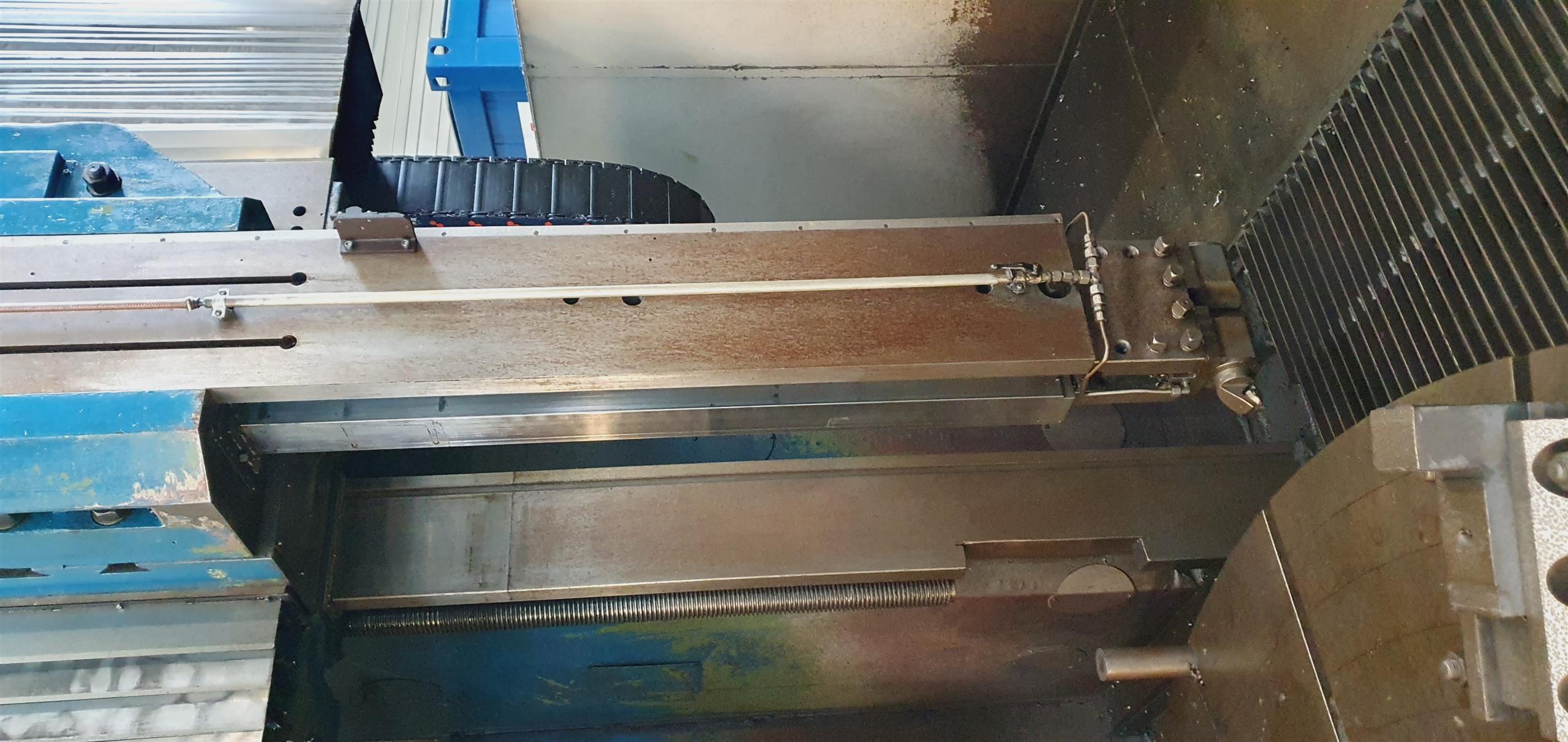

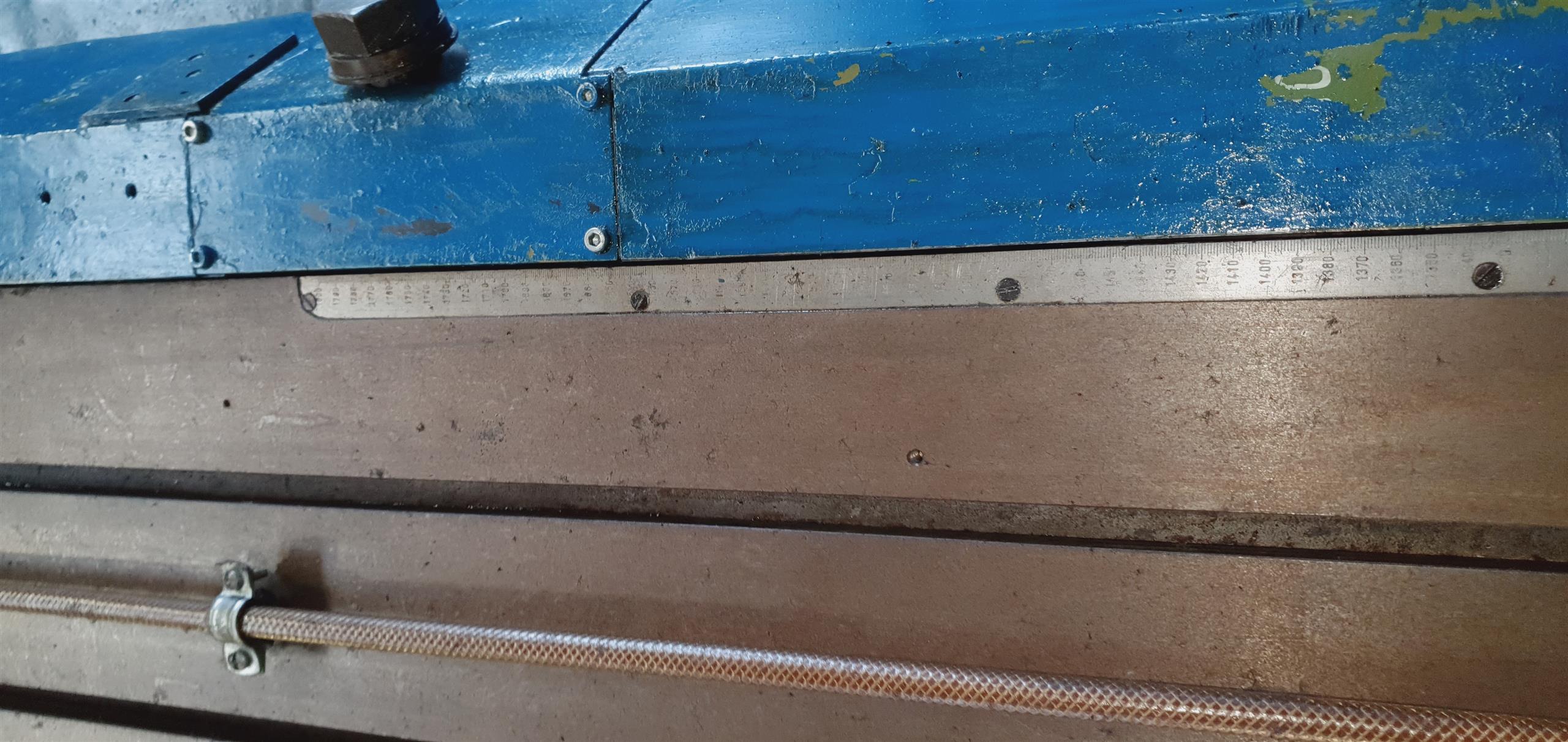

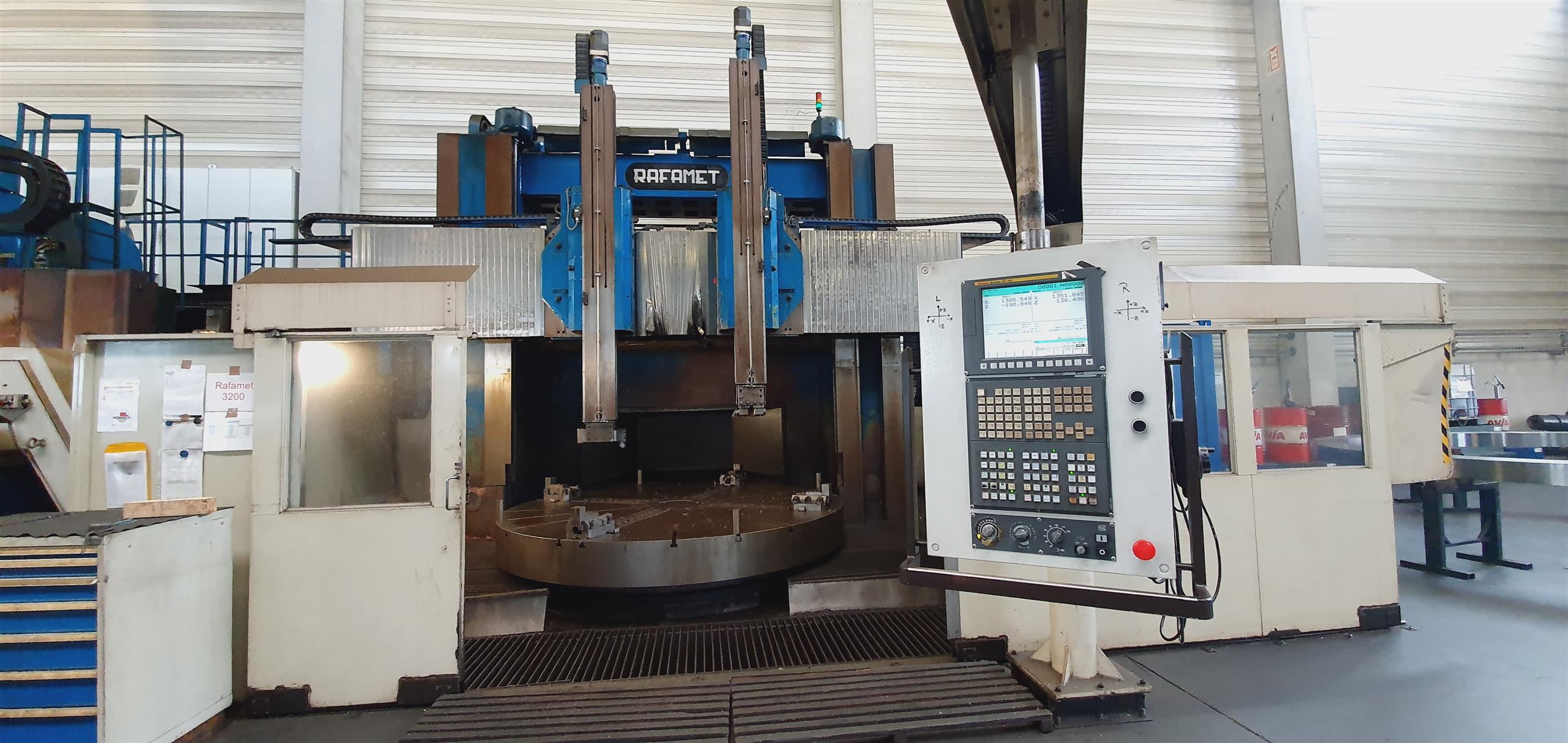

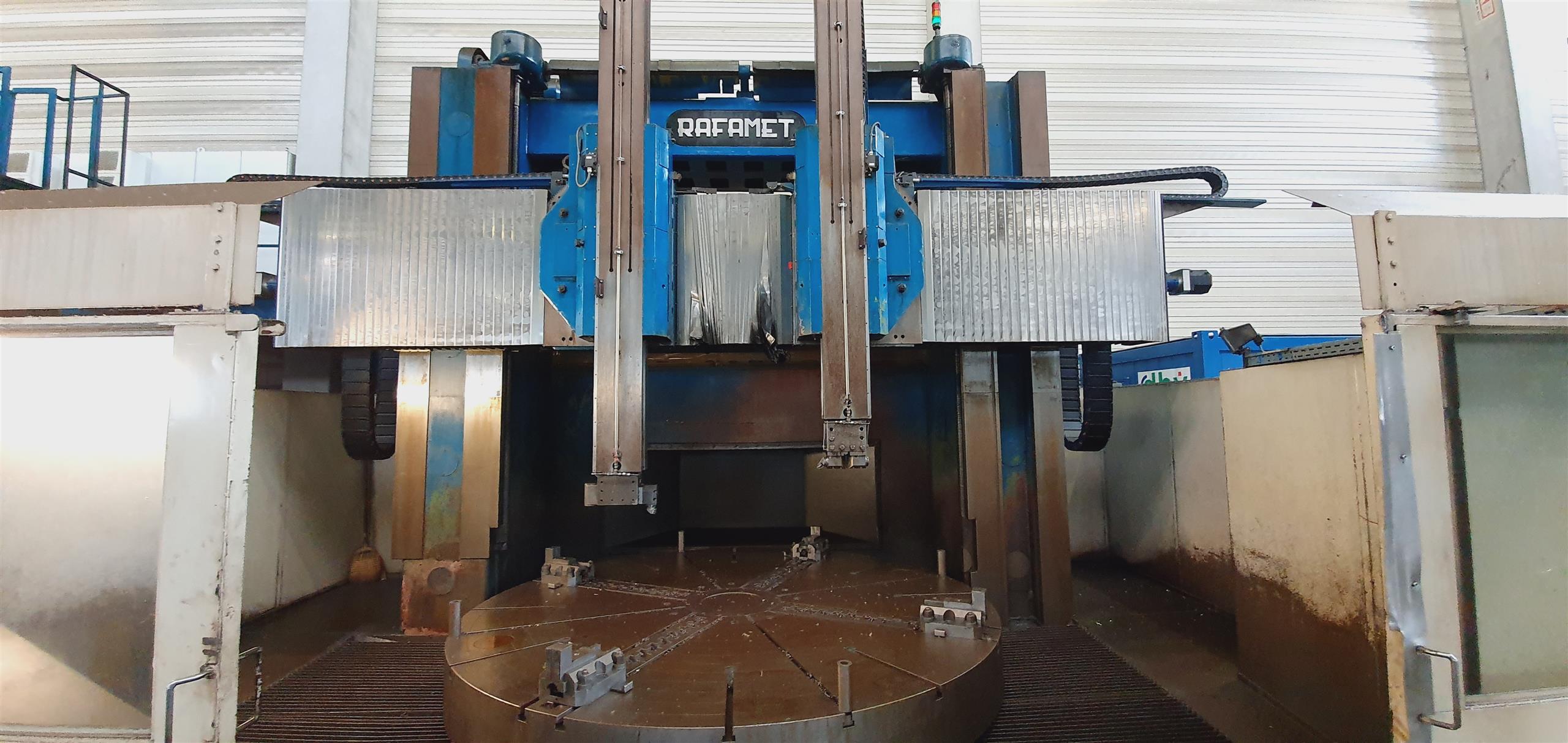

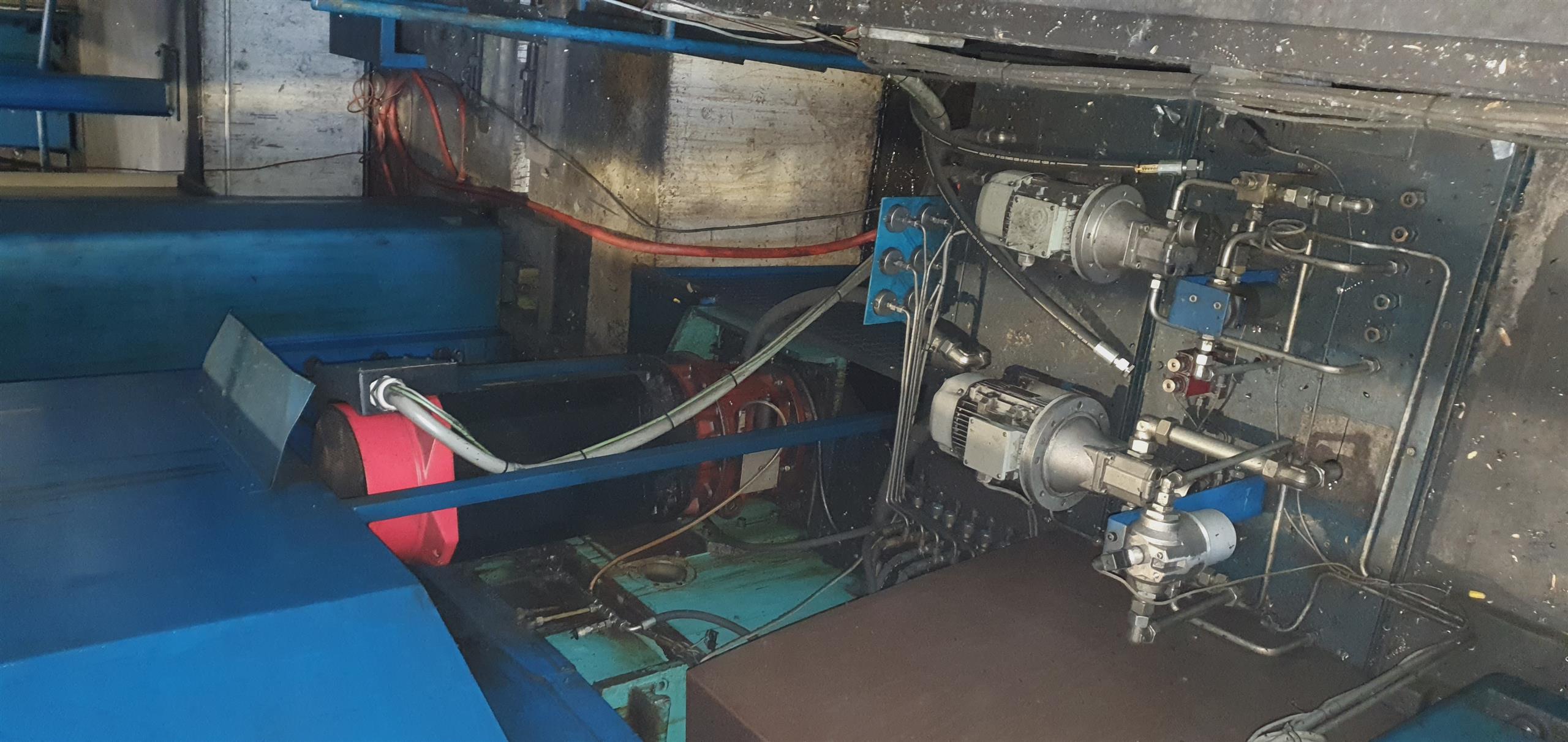

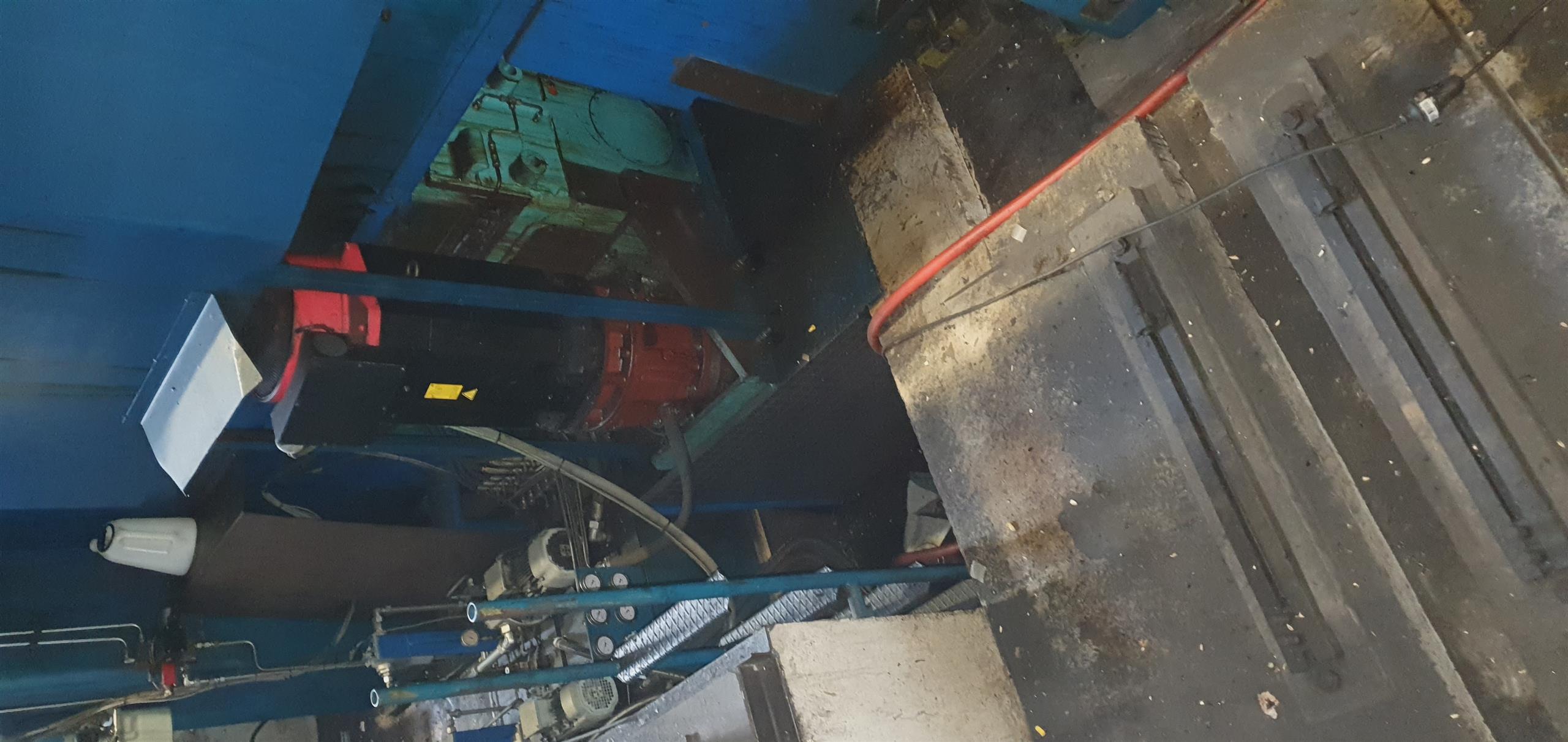

Machine Gallery :
