Details :
Make: Heyligenstaedt

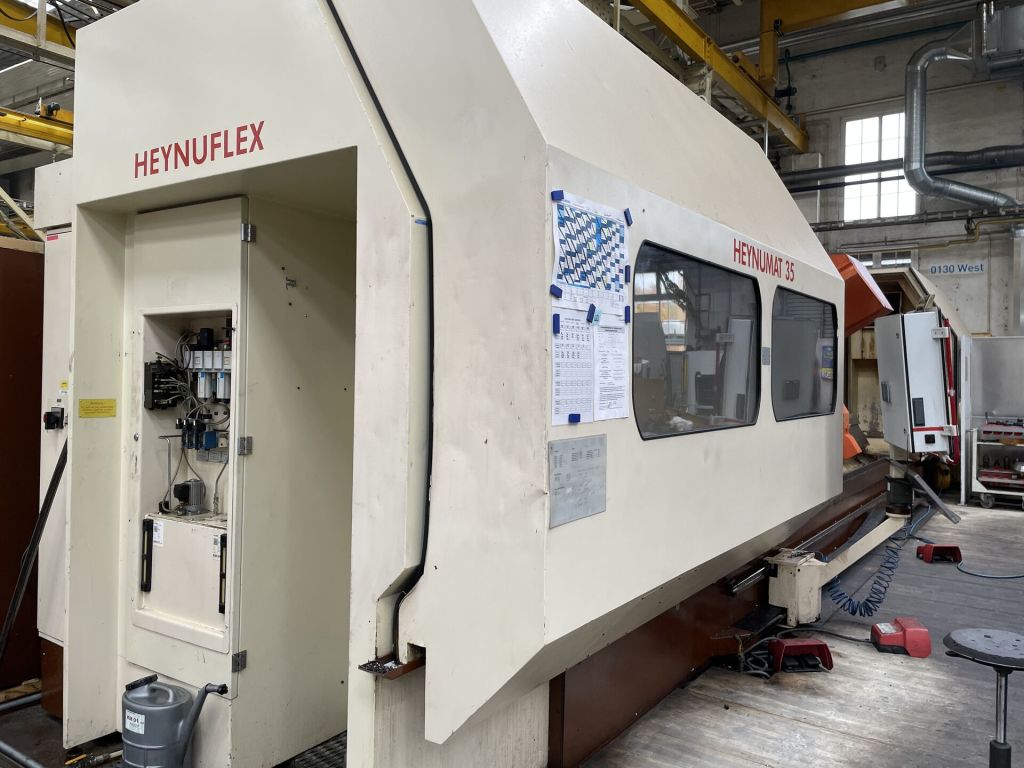

Type: Heynumat 35/6000
Year: 2002

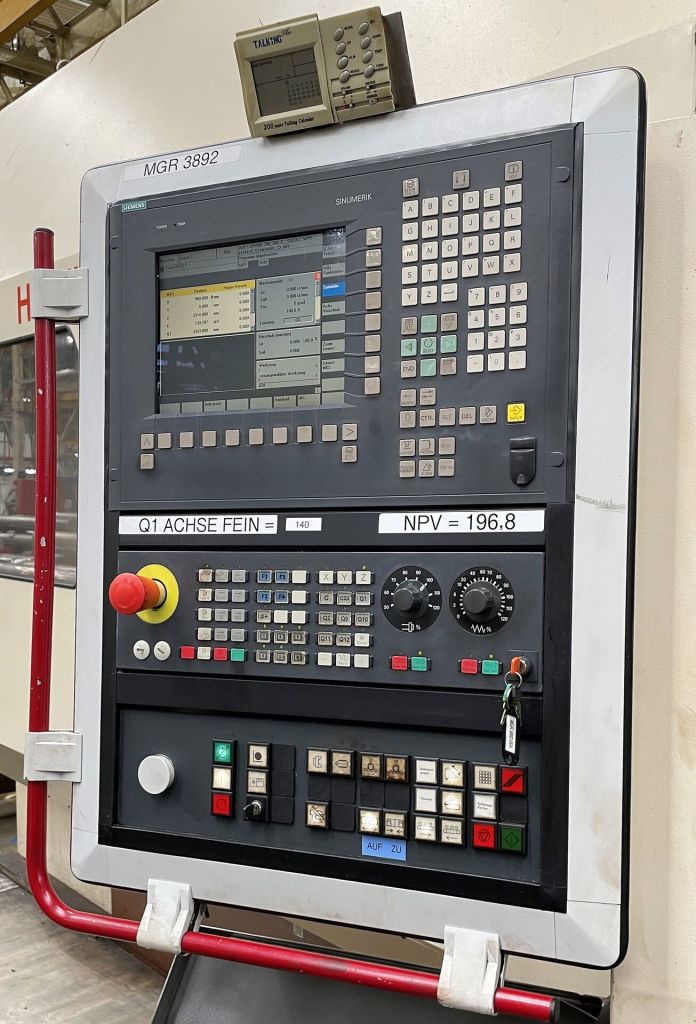

Control: Siemens Sinumerik 840D
Technical Details :
- Center distance max.: 6000 mm
- Swing diameter over bed max.: 890 mm
- Turning diameter max.: 820 mm
- Spindle bore: 122 mm
- Spindle diameter in front bearing: 240 mm
- Spindle nose: A15 / DIN 55026
- Main drive power: 80 kW (100% ED) / 105 kW (40% ED)
- Number of axes: 4 (X, Y, Z, C); C-axis: yes, max. torque 5000 Nm

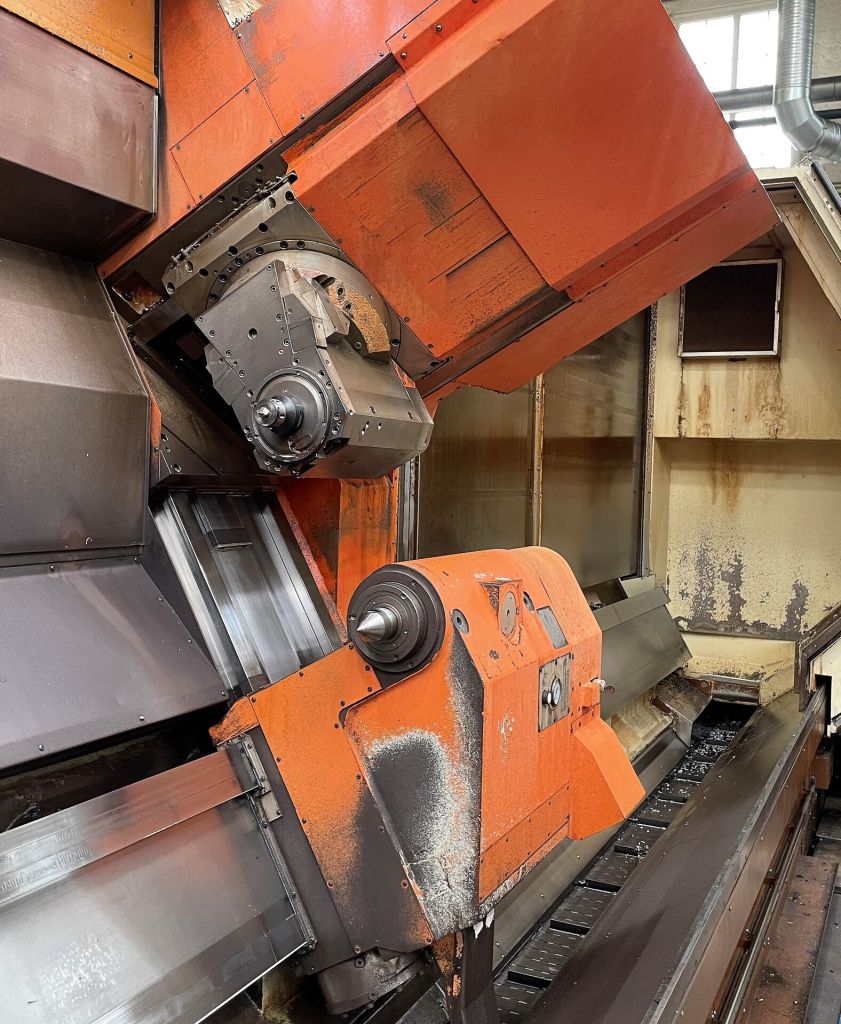

- Tool system: Vert./Hor. head, Capto C8 (Sandvik)
- Milling spindle: 28 kW / 267 Nm (100% ED)
- Tool magazine: 100 positions, max. tool length 650 mm
- Travel X: -10 / +490 mm
- Travel Y: -130 / +300 mm
- Travel Z: +180 / +6110 mm
- Rapid traverse X / Z: 15 m/min, Y: 10 m/min

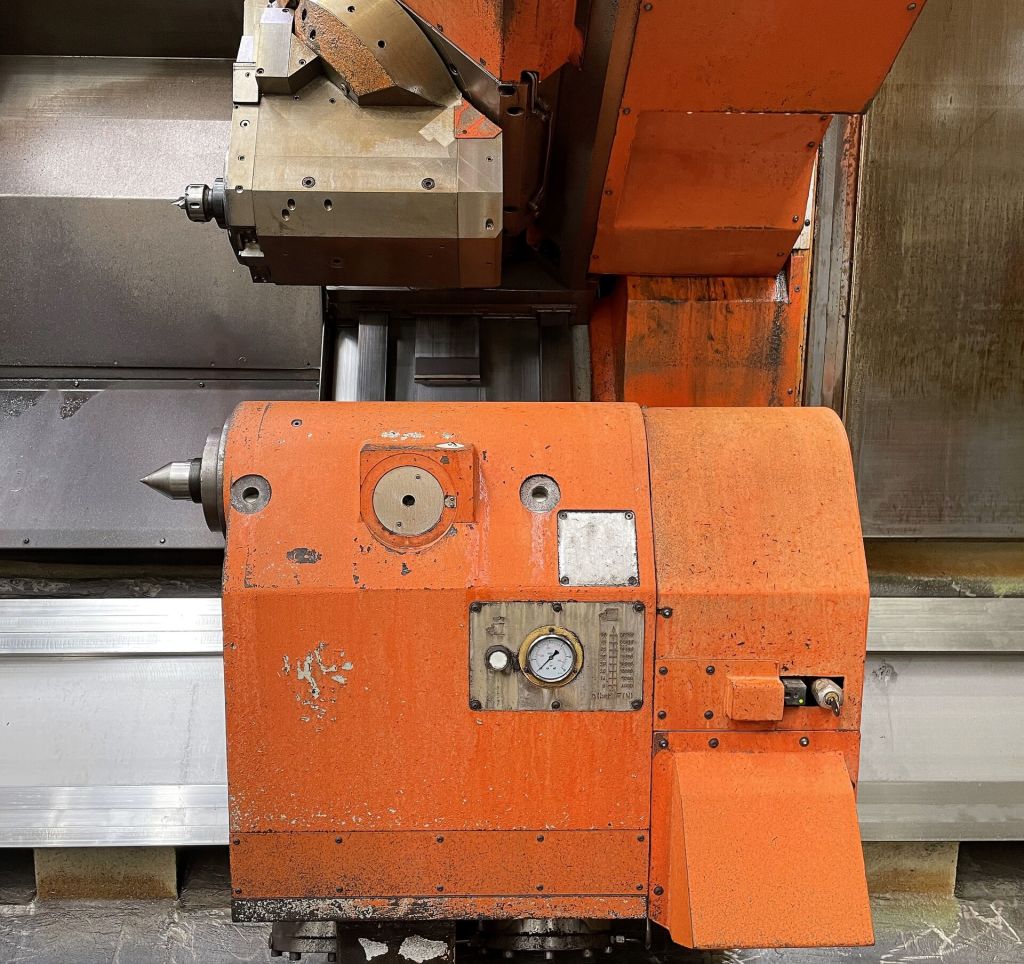

- Tailstock: yes, quill diameter 160 mm, taper MK 6

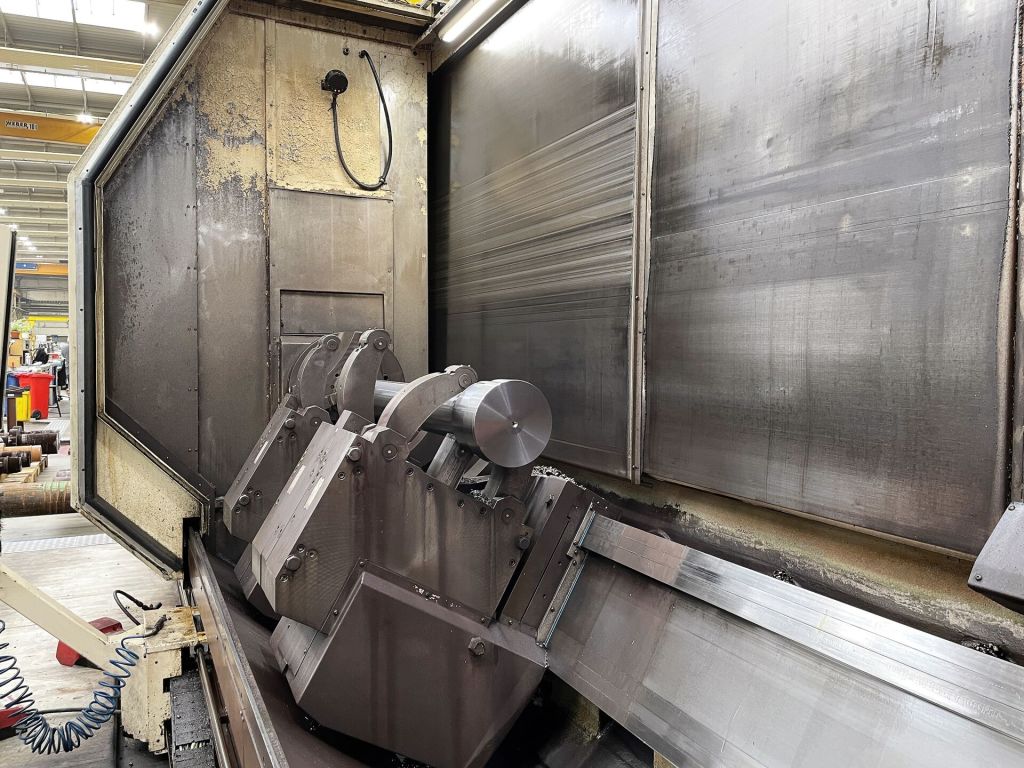

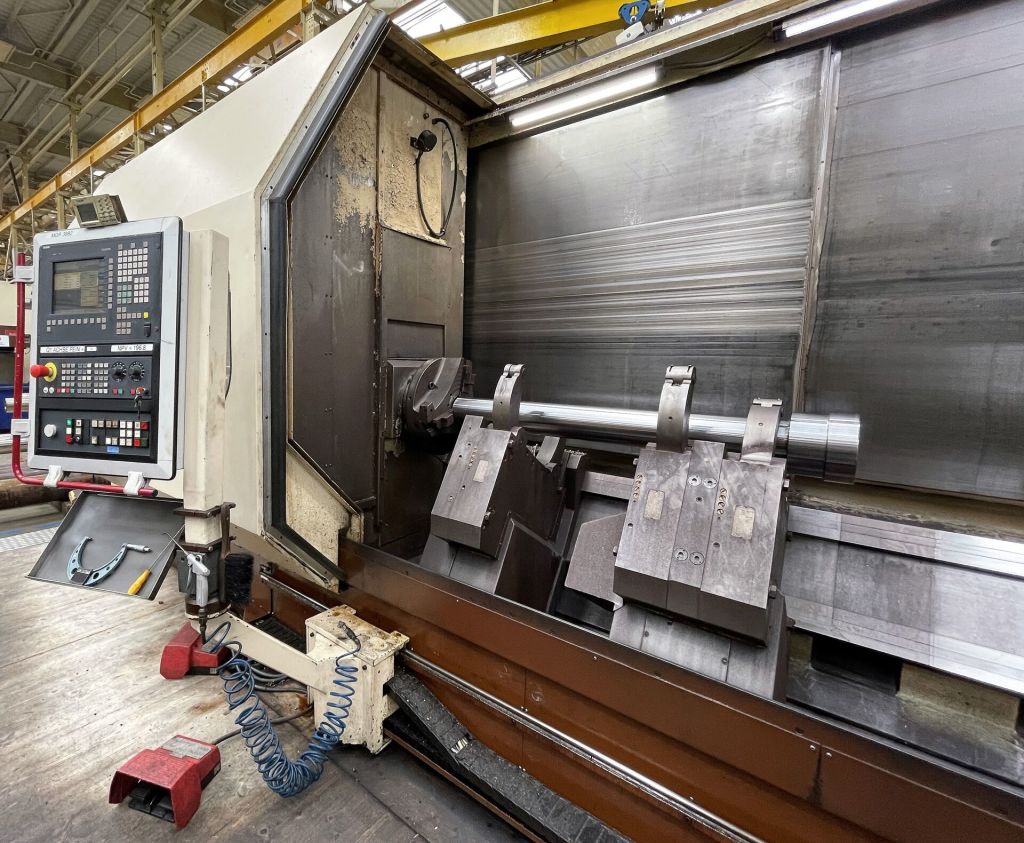

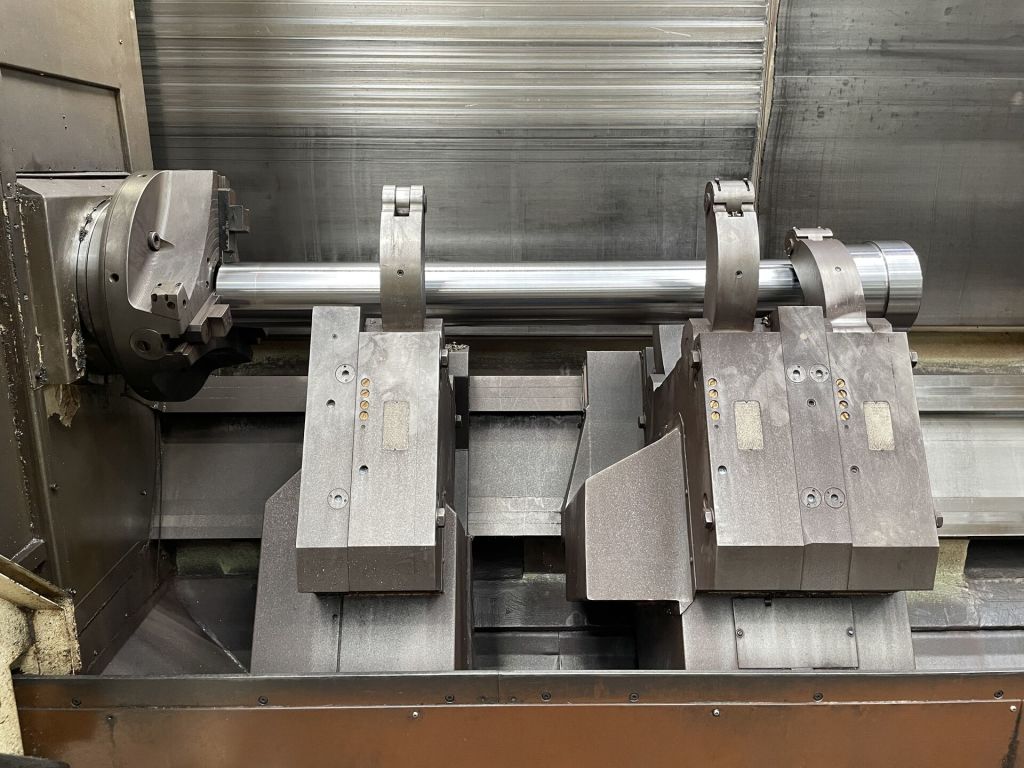

- 3 steady rests (one of them programmable)
- Chip conveyor and paper belt filter system
- Dimensions approx. (L x W x H): 17000 x 4900 x 3300 mm
- Weight approx.: 33.000 kg
