Details :

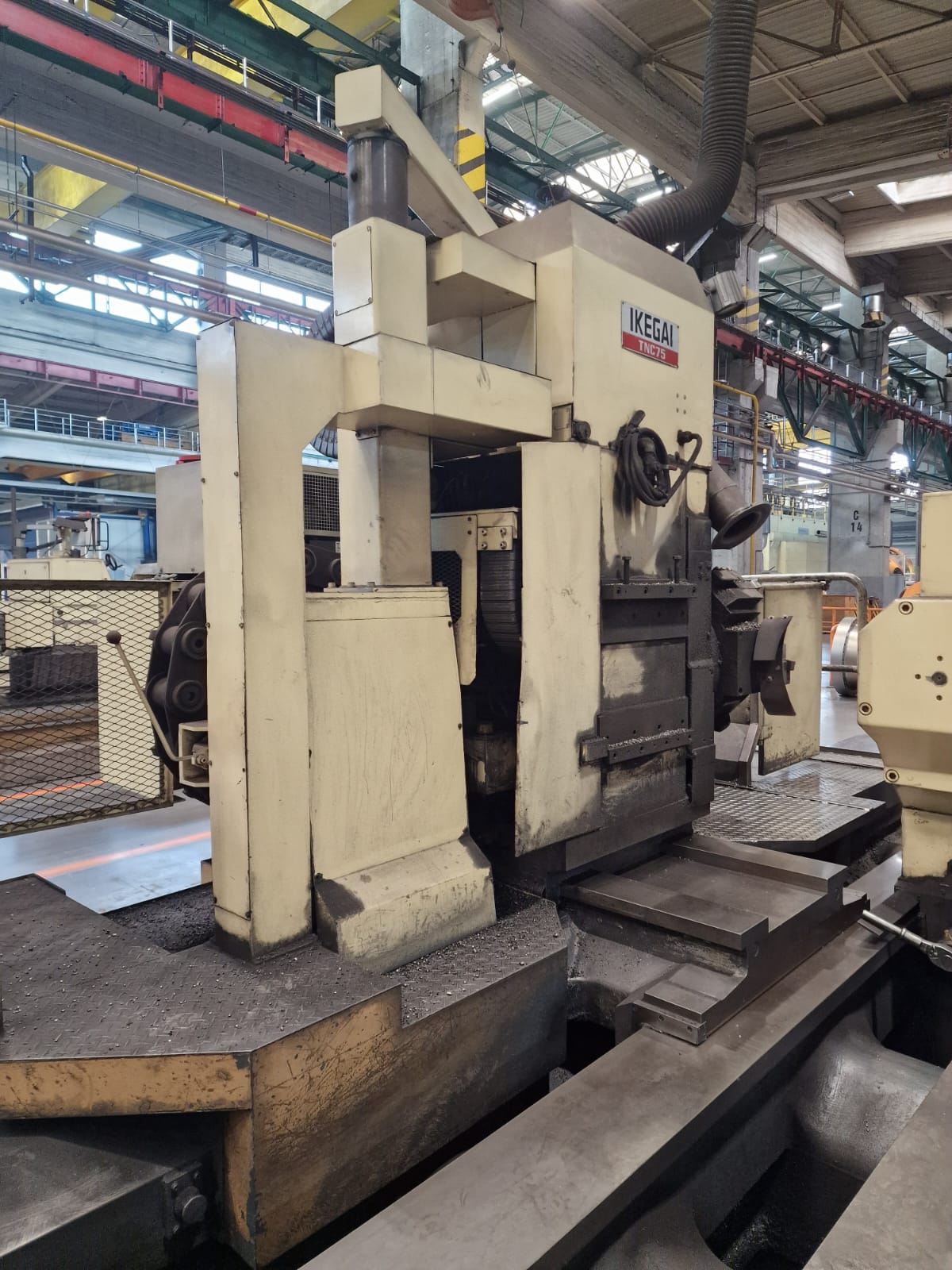

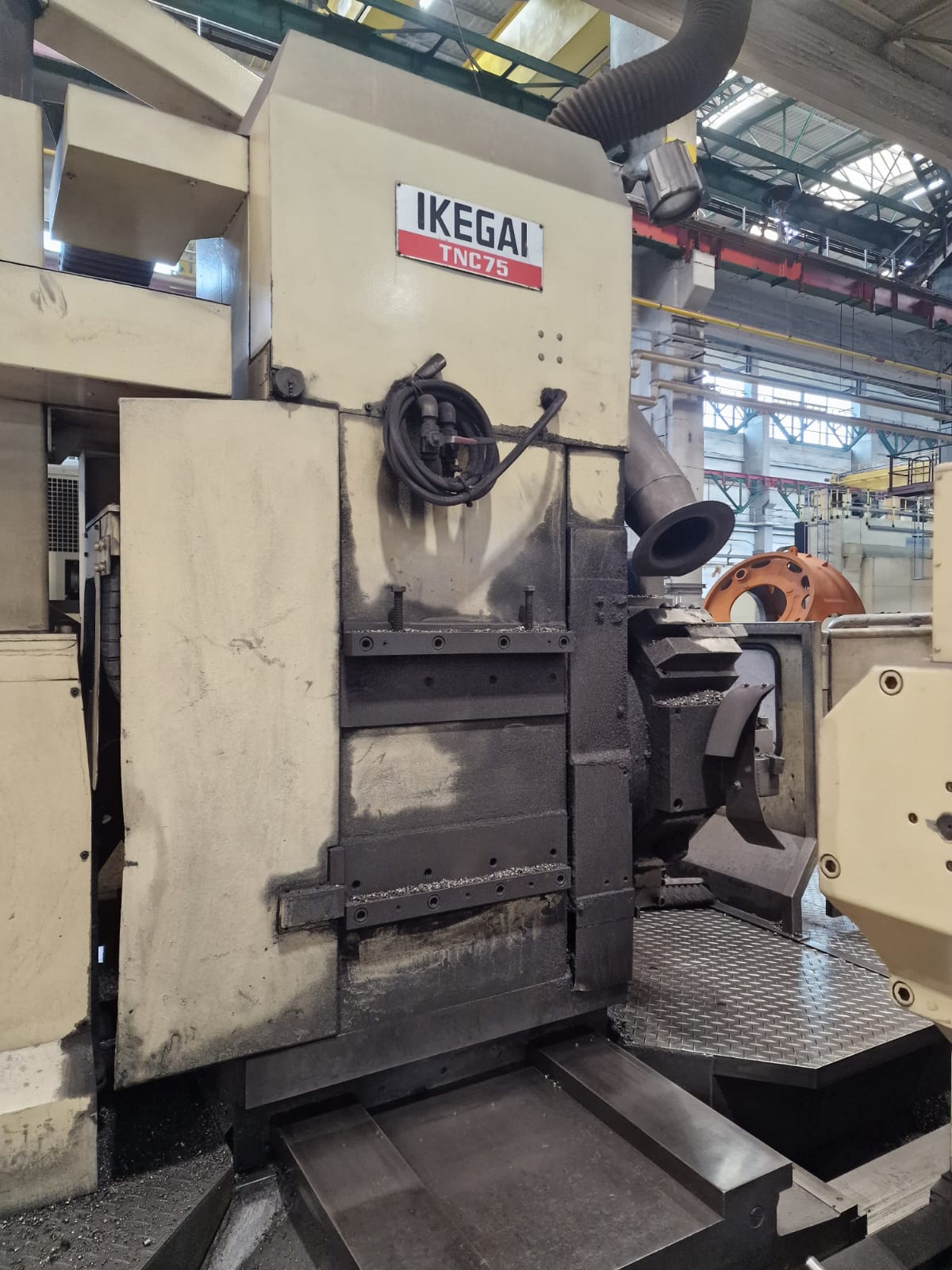

Make: Ikegai (Japan)
Type: TNC 75
Year: 1990
Control: Fanuc 15-T
Good working condition. The machine is sold only as a turning machine; milling functions are disabled.
Technical Details :
- Center height over bed: 750 mm
- Center height over floor level: 1380 mm
- Swing over bed: 1500 mm
- Swing over cross slide: 1200 mm
- Max. distance between centers: 7000 mm

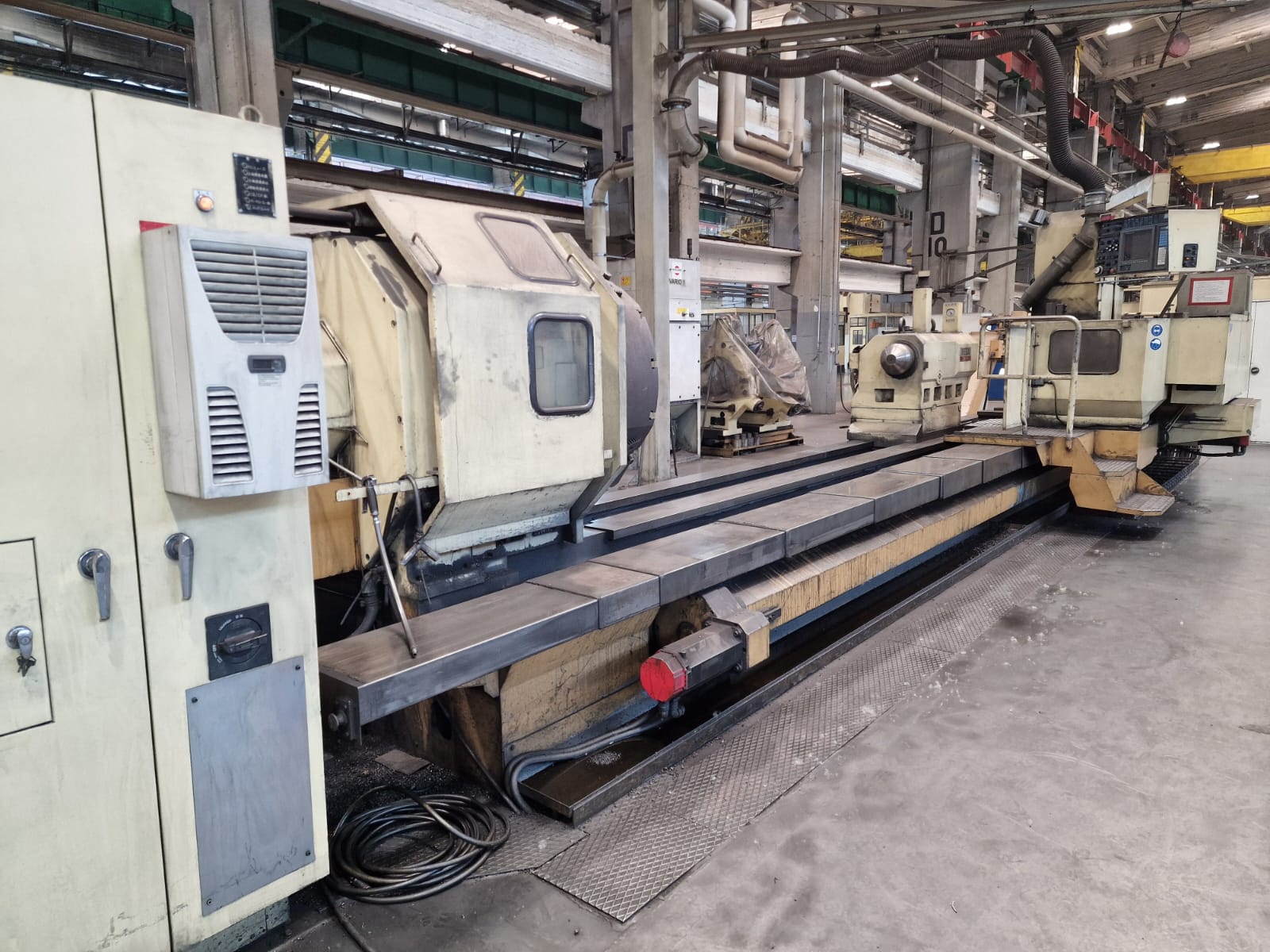

- Bed (width x height): 1500 x 630 mm
- Bed, full length: 10,200 mm

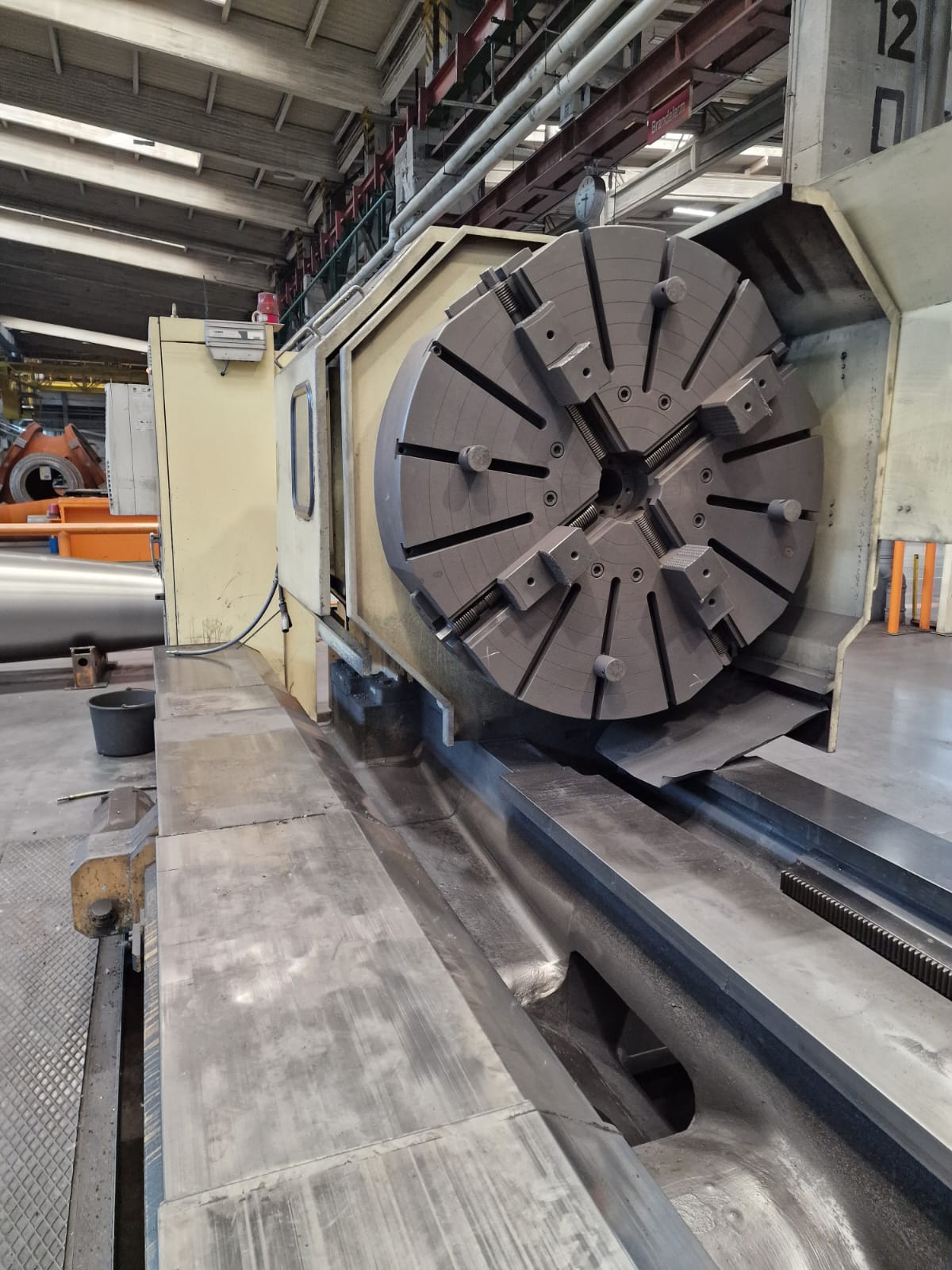

- Spindle nose: JIS A2 No. 20
- Spindle bore taper: dia. 100, taper 1:10
- Front spindle bearing diameter: 280 mm
- Rear spindle bearing diameter: 240 mm
- Spindle speed: 2.5 - 250 rpm, stepless, 2 ranges (H: 10 - 250, L: 2.5 - 60 rpm)
- Rapid traverse X-axis: 2000 mm/min
- Rapid traverse Z-axis: 4000 mm/min
- Rapid traverse tailstock: 2000 mm/min
- X-axis travel: 560 mm
- Z-axis travel: 7200 mm

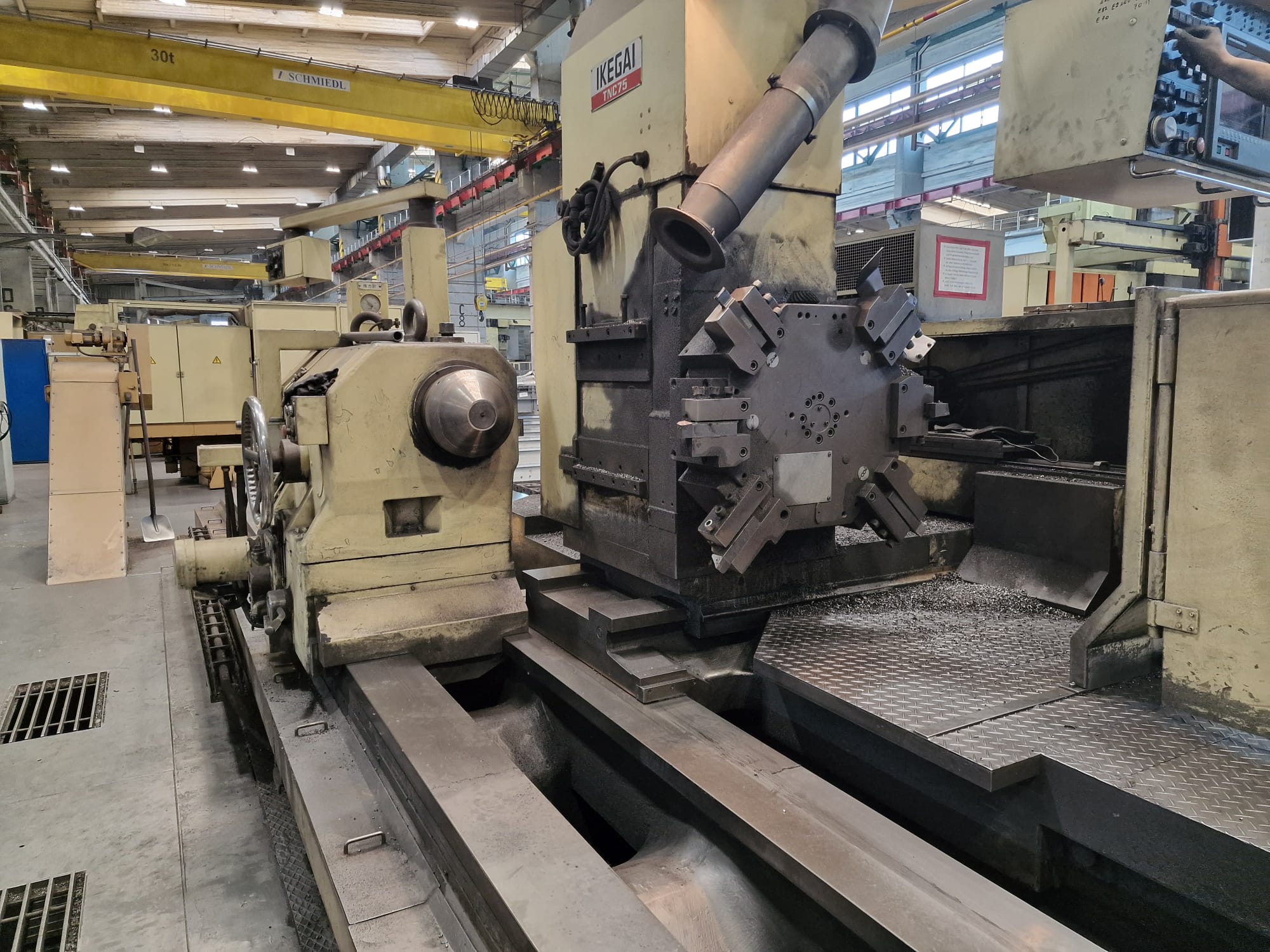

- Tailstock: built-in live center with own drive and radial force measuring device
- Tailstock quill diameter: 260 mm
- Tailstock quill taper: MT No. 7
- Tailstock quill travel: 350 mm
