Details :

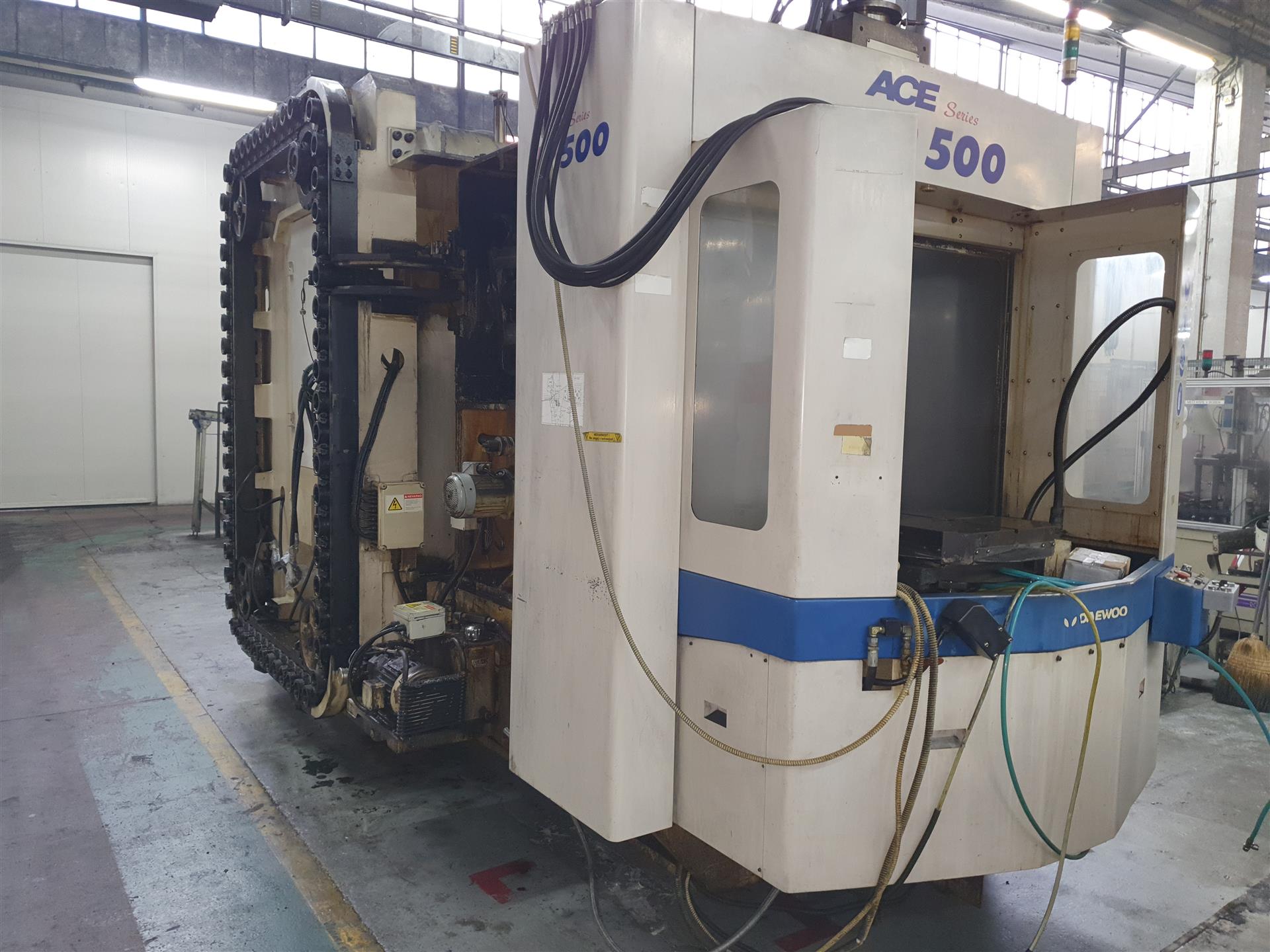

| Make | Doosan Daewoo |
| Type | ACE HP 500 |
| Year of manufacture | 2004 |
| Control | Fanuc 18iM |
Technical Details :
| X Travel | 800 mm |
| Y Travel | 700 mm |
| Z Travel | 750 mm |

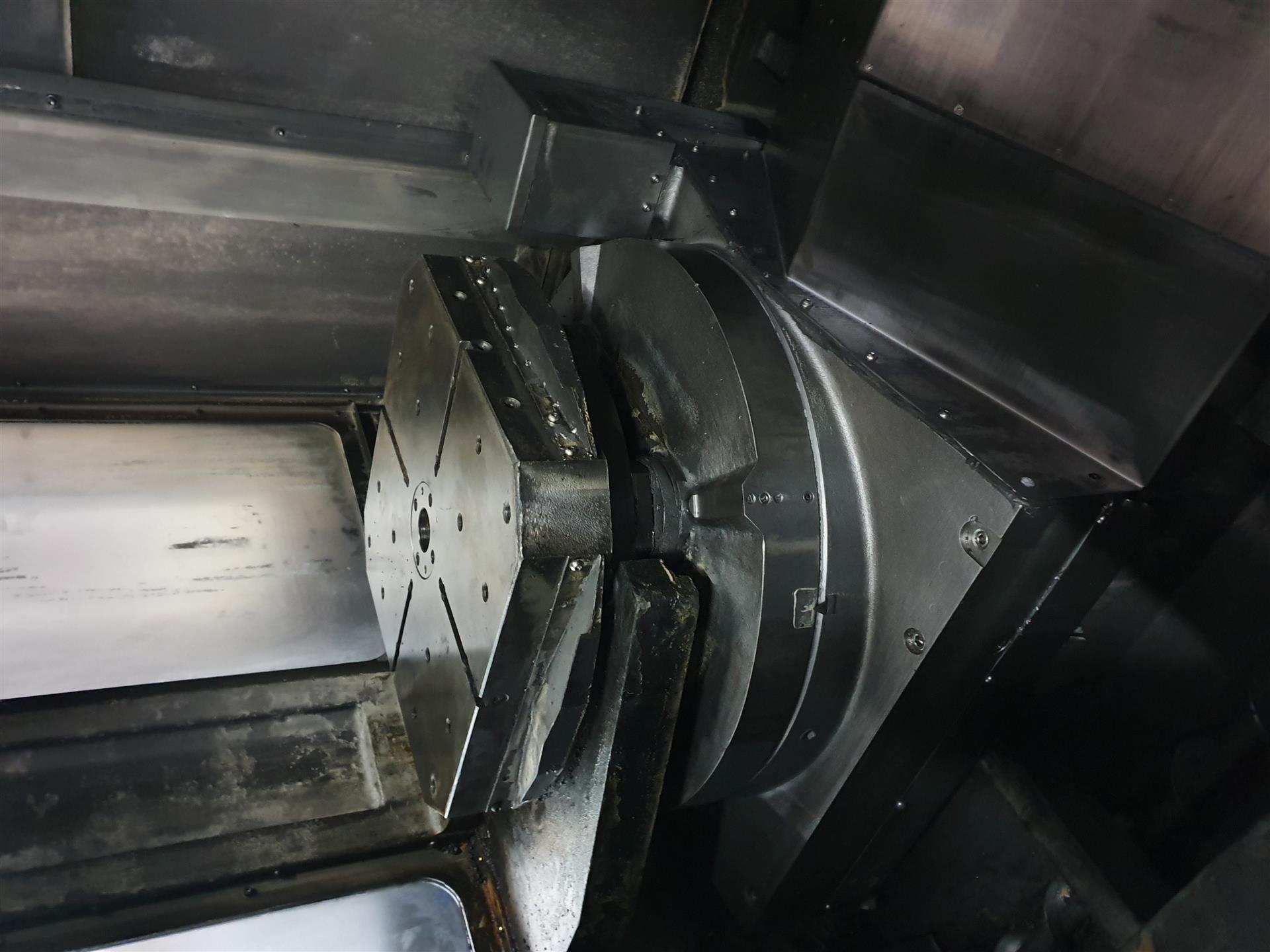

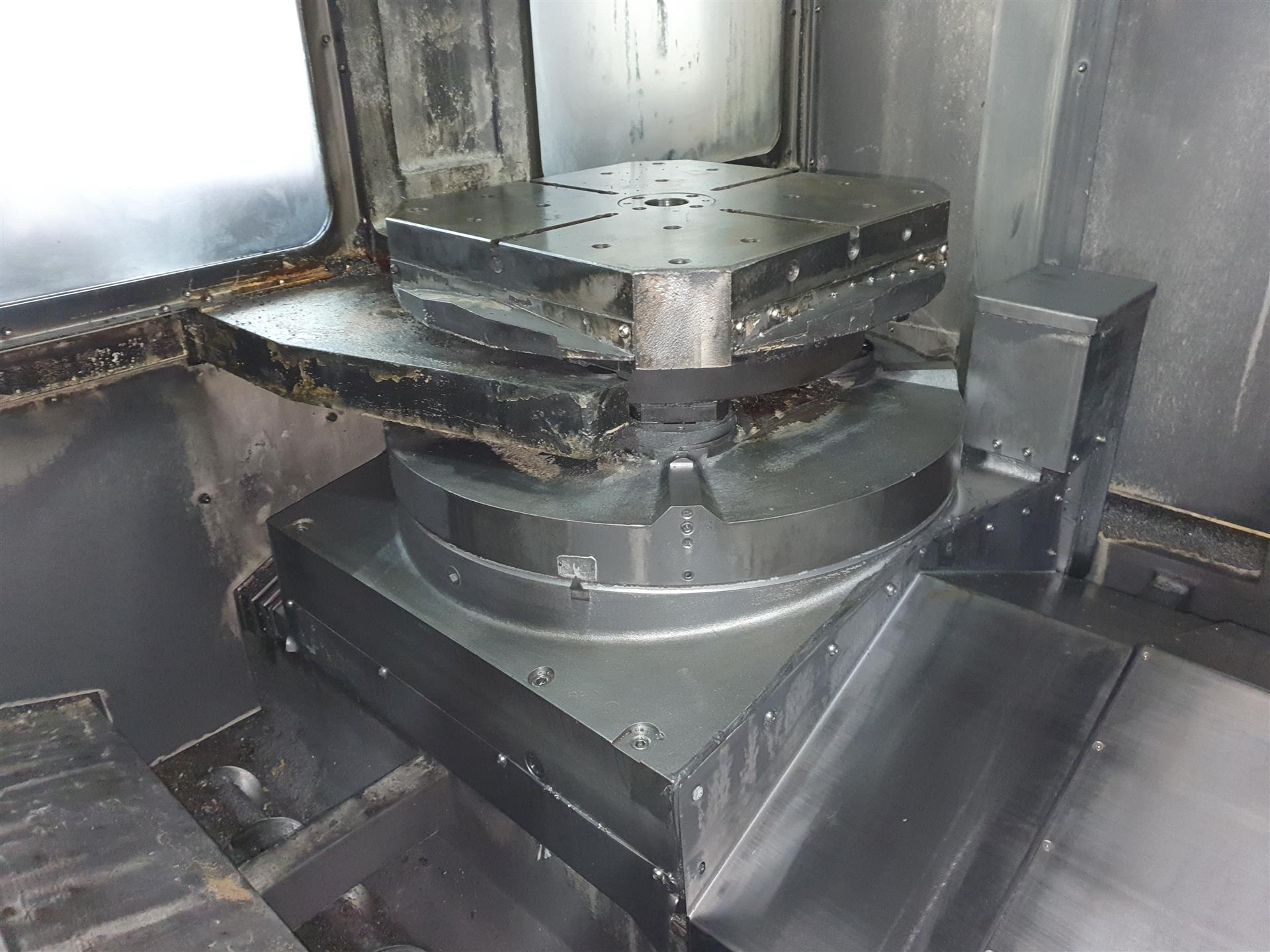

| Number of pallets | 2 Way |
| Sie of Pallets | 500 x 500 mm |
| Cutting Feeds | 20000 mm/min |
| Rapid Feed | 40000 mm/min |
| Spindle Taper | BT 50 |
| Spindle motor | 25 KW |
| Spindle spped RPM | 8000 RPM |
| Tool Magazine (ATC | 60 places |
| Distance Spindle nose to Table center | 150 - 900 mm |
| Max. table turning speed | 20 rpm |
| Machine weight | approx. 14 Tonnes |
