Horizontal Machining Center (HMC) - Doosan

Horizontal Machining Center (HMC), Recently Arrived, All Machines

Details :

Make Doosan
Type H 1000
Year of manufacture 2007
Control Fanuc 18iM

Technical Details :

X Travel 2000 mm
Y Travel 1350 mm
Z Travel 1250 mm

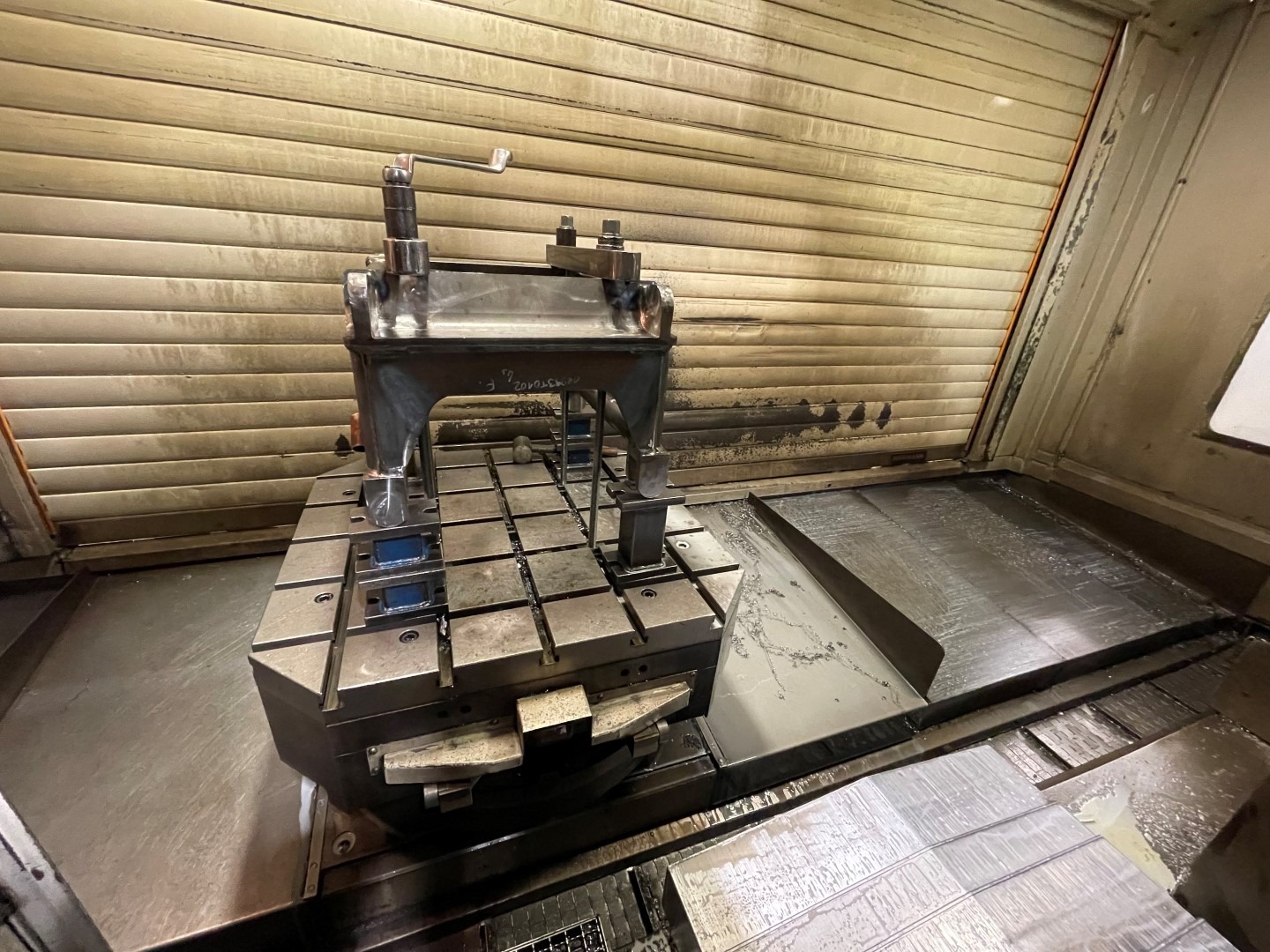

Sie of Pallets 1000 x 1000  mm

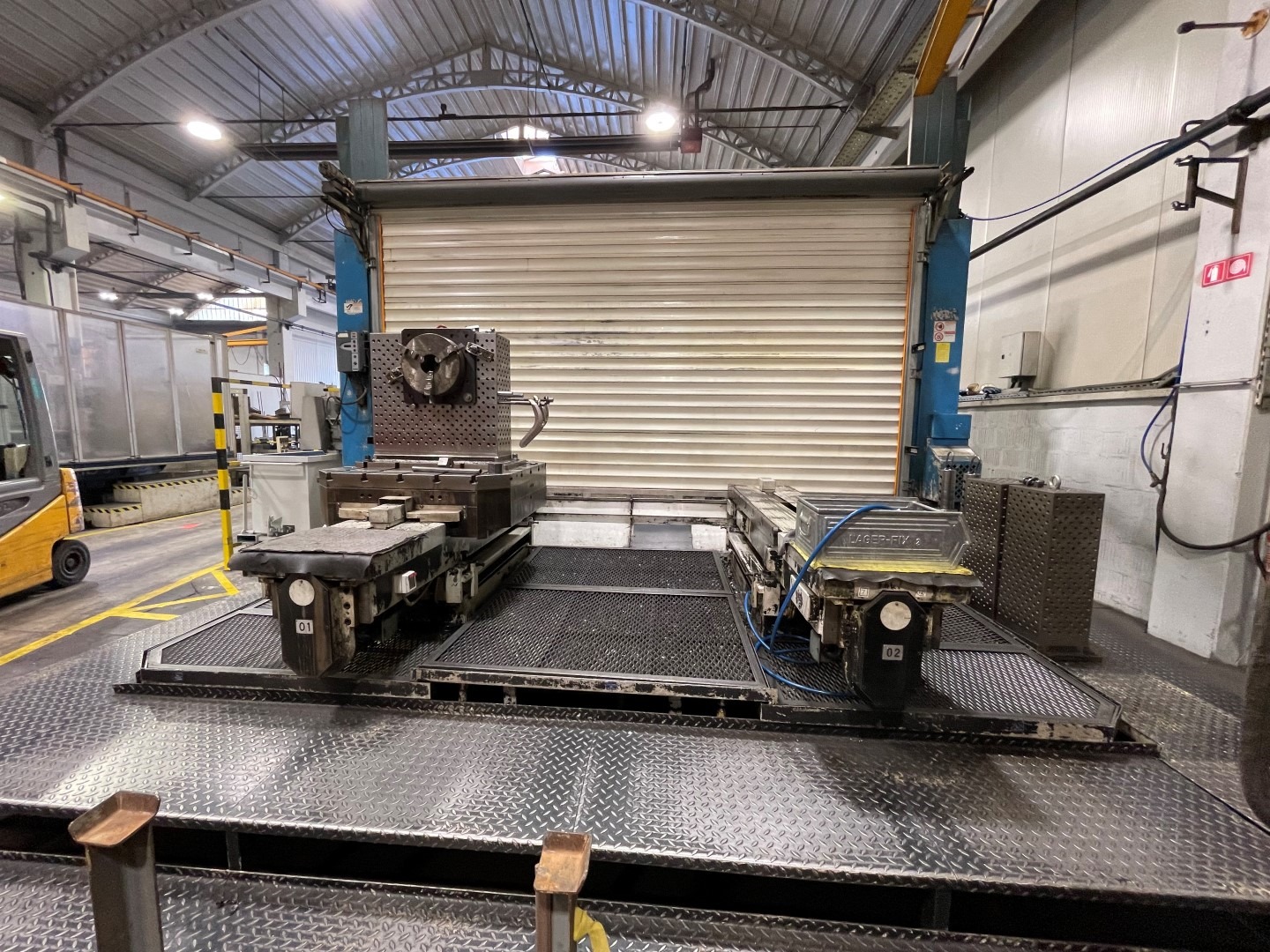

Pallet Changer Twin Type
Pallet Table load capacity 2000 kg
Max. tool length 600mm
Max. tool diameter 300mm
Max. tool weight 25 kg
Cutting Feeds 4 m/min
Rapid Feed 12 m/min
Spindle Taper BT 50
Spindle motor 25 KW
Spindle spped RPM 4500 RPM
Machine weight 27500 kg

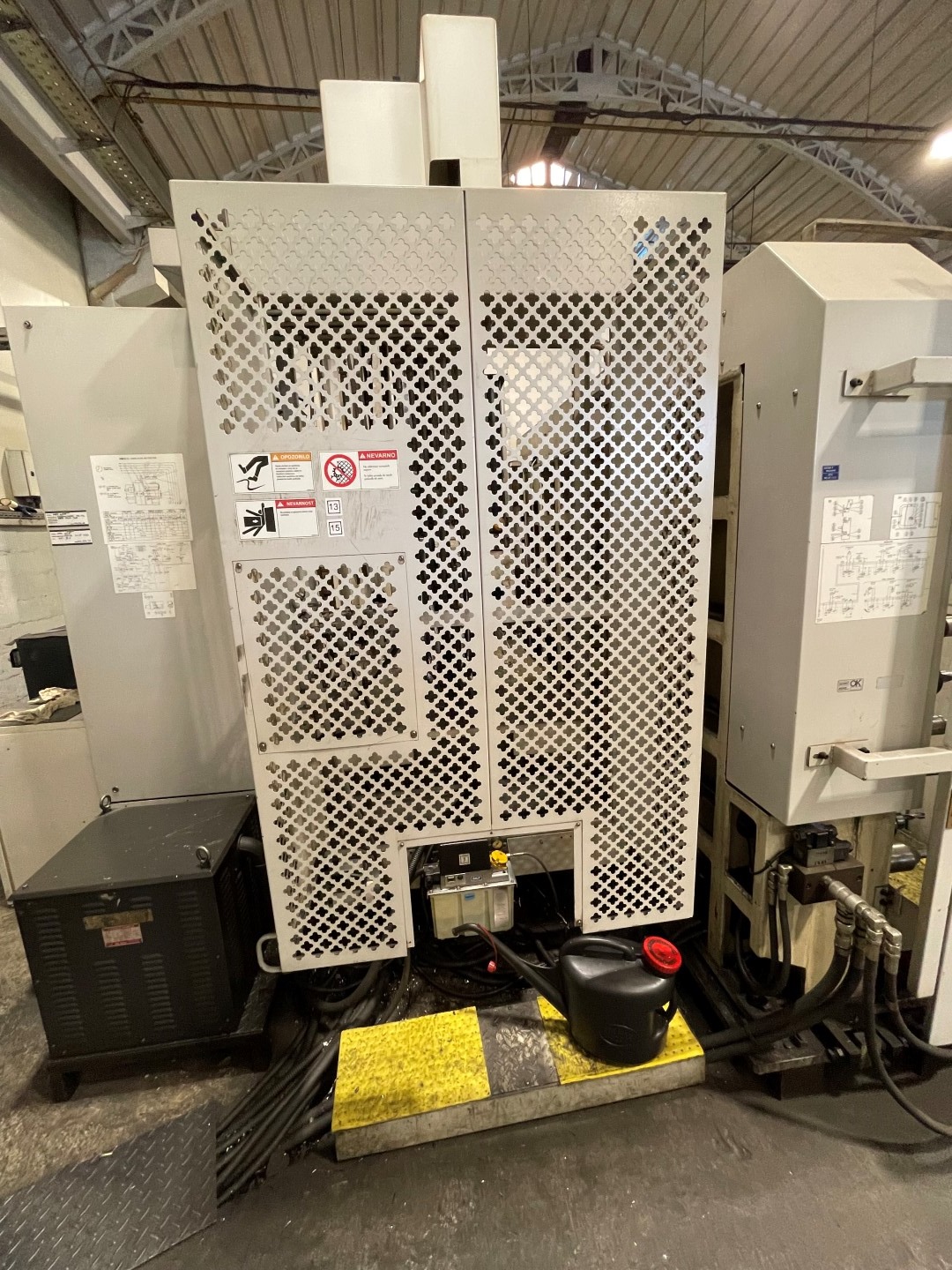

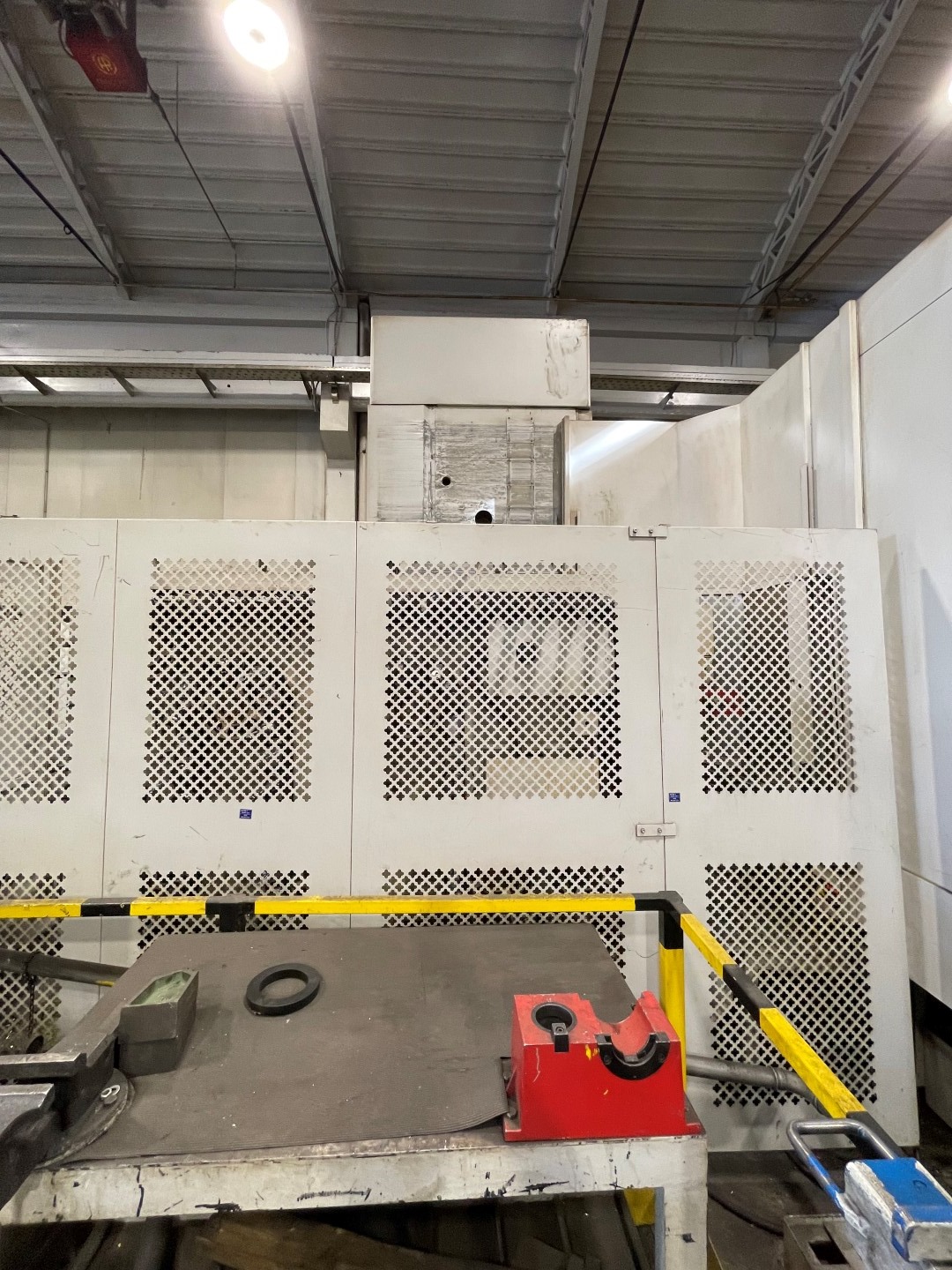

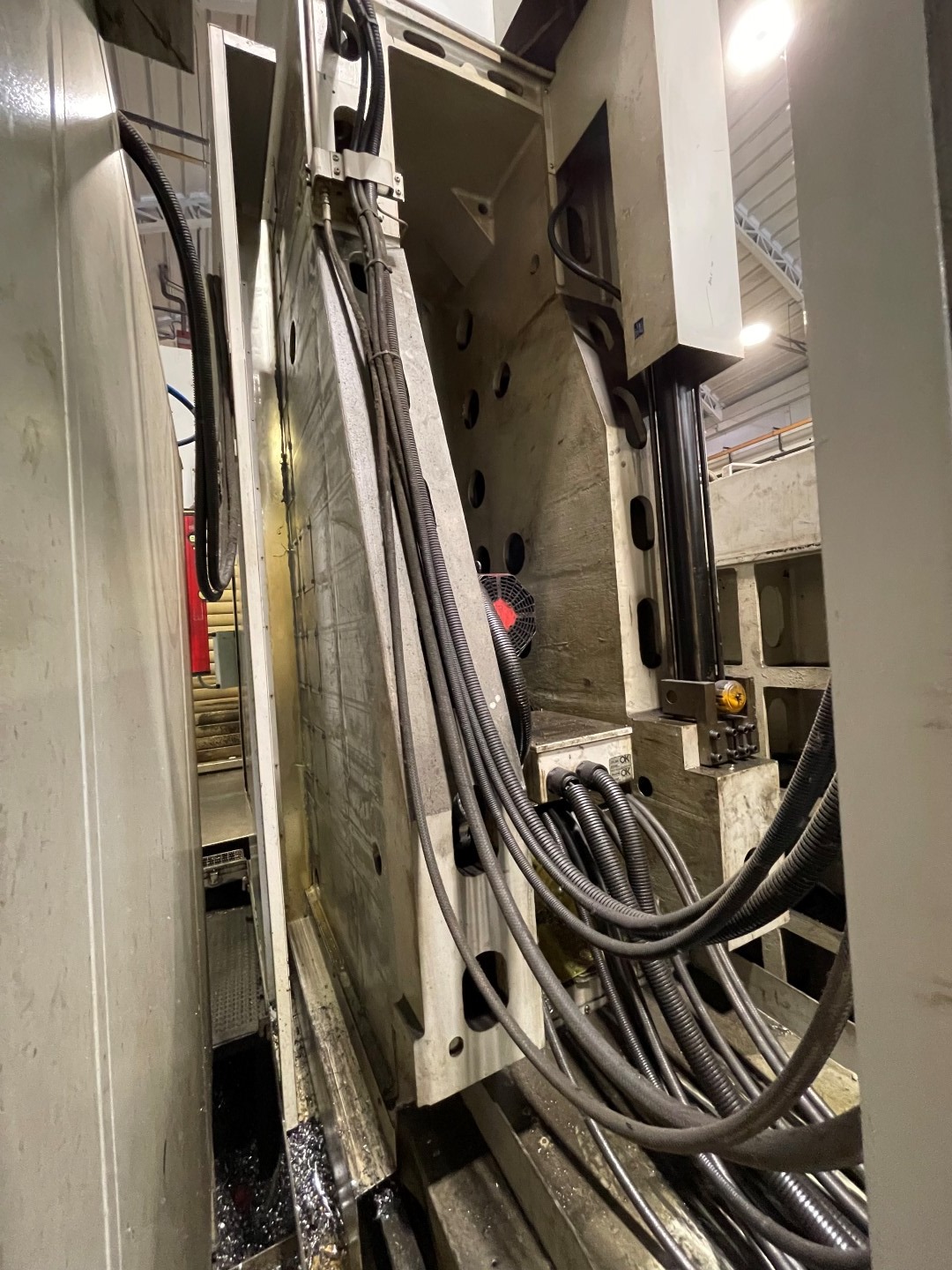

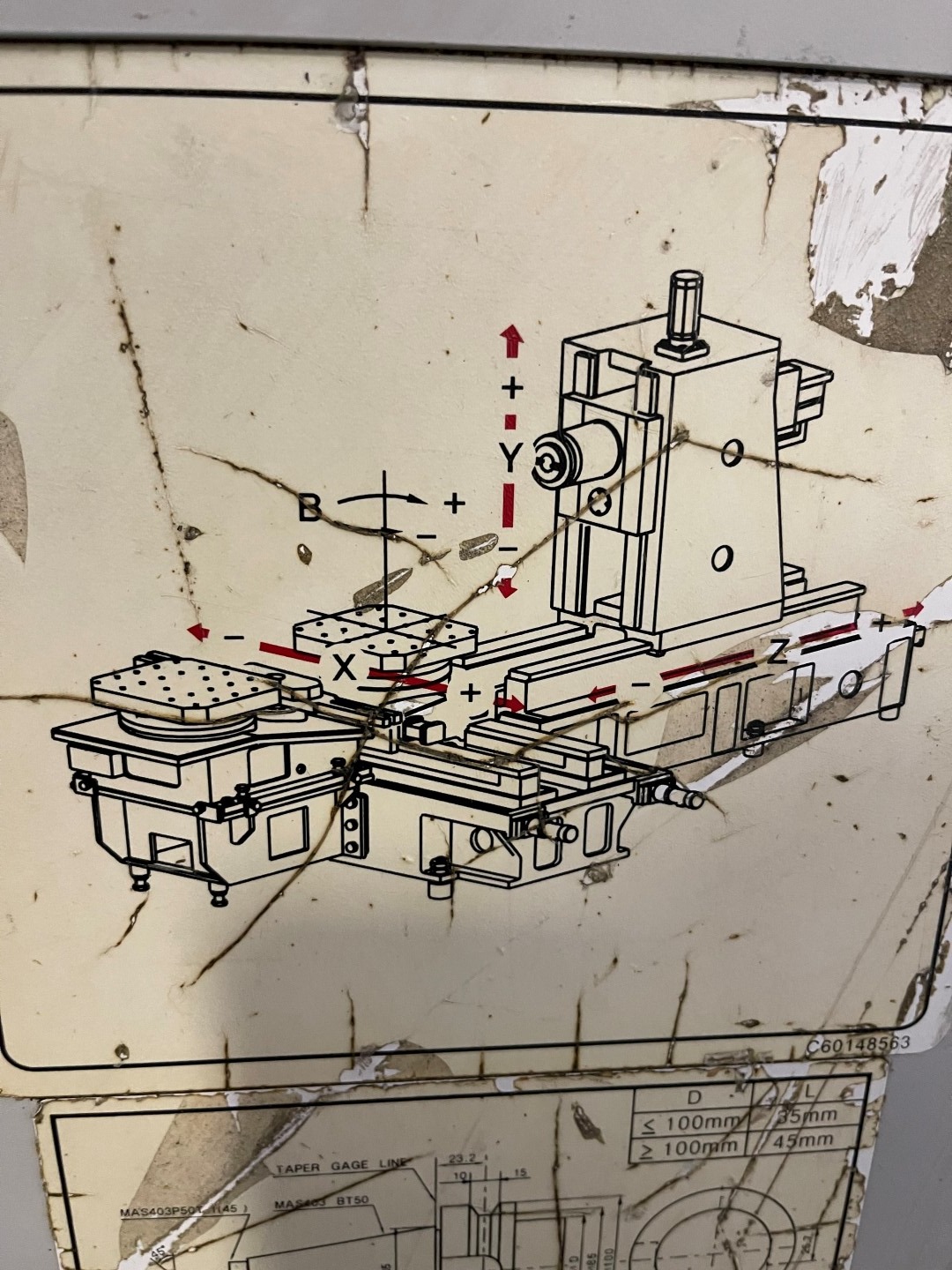

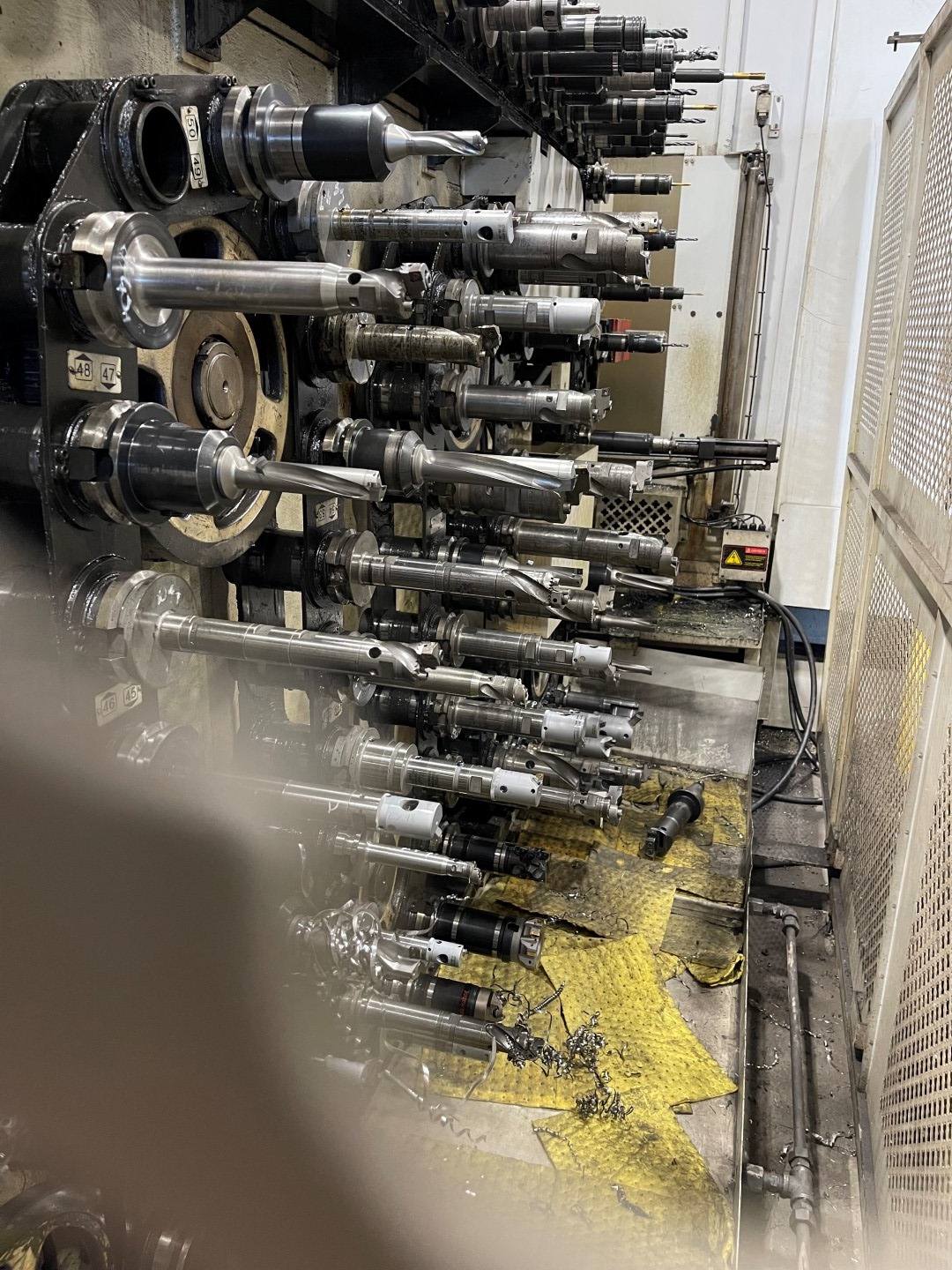

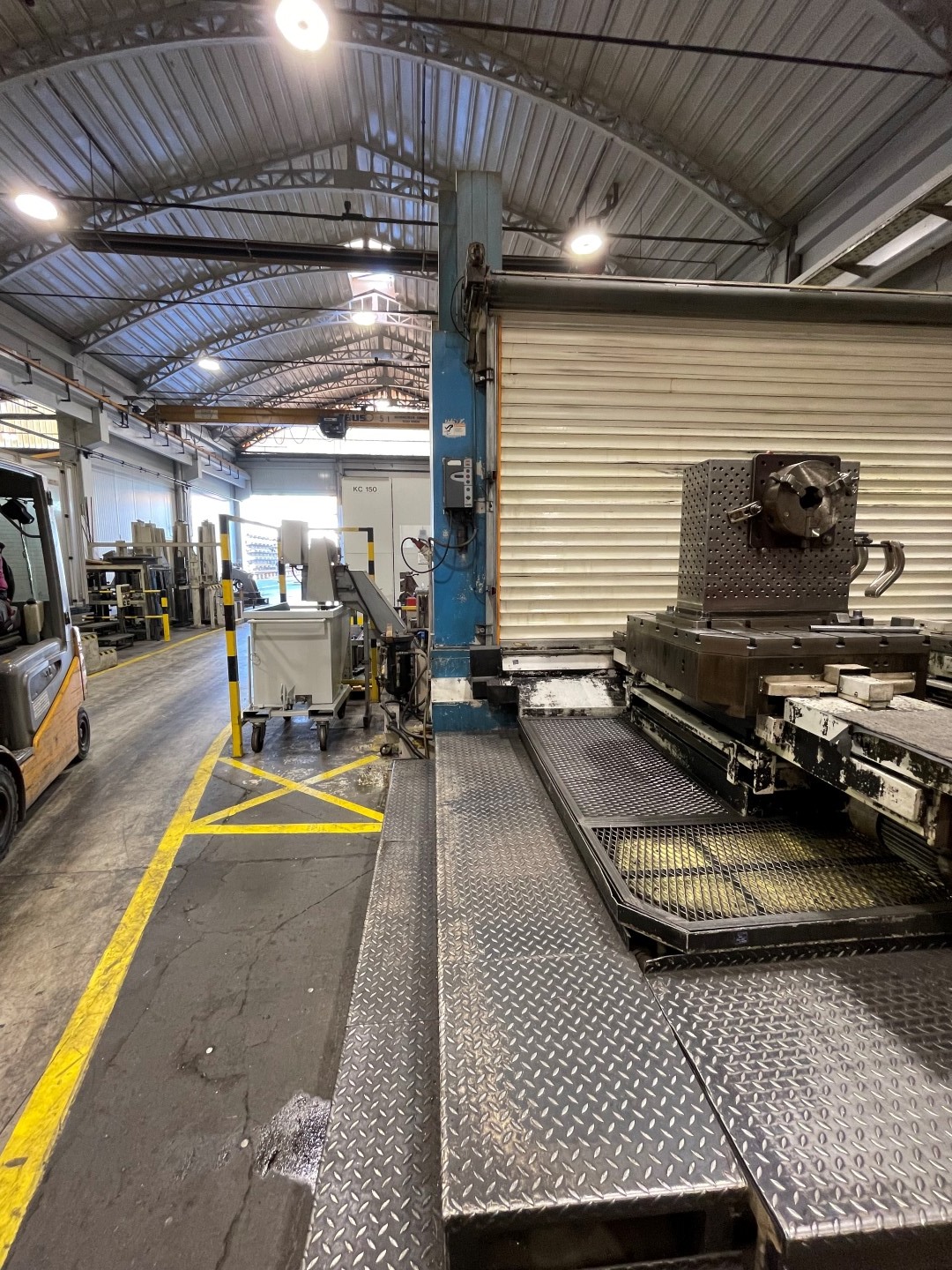

Machine Gallery :
