Waldrich Coburg Multitec 2500 - 2008 - 7000 x 2500 mm

Bridge type VMC / Portal / Gantry-Machining, Planer & Planomiller, SOLD Articles, All Machines

Details :

Make: Waldrich Coburg

Type: Multitec 2500

Year: 2008

Control: Siemens 840-D

Technical Details :

Travels and capacities:

Travels X: 7000 mm (Longitudinal of the table)

Travel Y: 3500 mm (Horizontal travel of the Ram)

Travel Z: 1500 mm (Travel of the Ram)

Travel W: 1500 mm (Travel of the cross-slide)

C-axis: 360°x0.001° (Programmable on the Ram spindle)

B-axis with NC universal head: +-95°

Table Size: 6000 x 2000 mm

Distance between columns: 2500 mm

Distance between Tool holder and Table: 2500 mm (Working height)

Max. table load capacity: 15 Tonnes



Spindle:

Spindle power: 45 KW

Spindle speed: up to 5000 rpm

Spindle torque: 1250 NM

Ram size: 400 x 400 mm

Spindle taper: HSK 100A

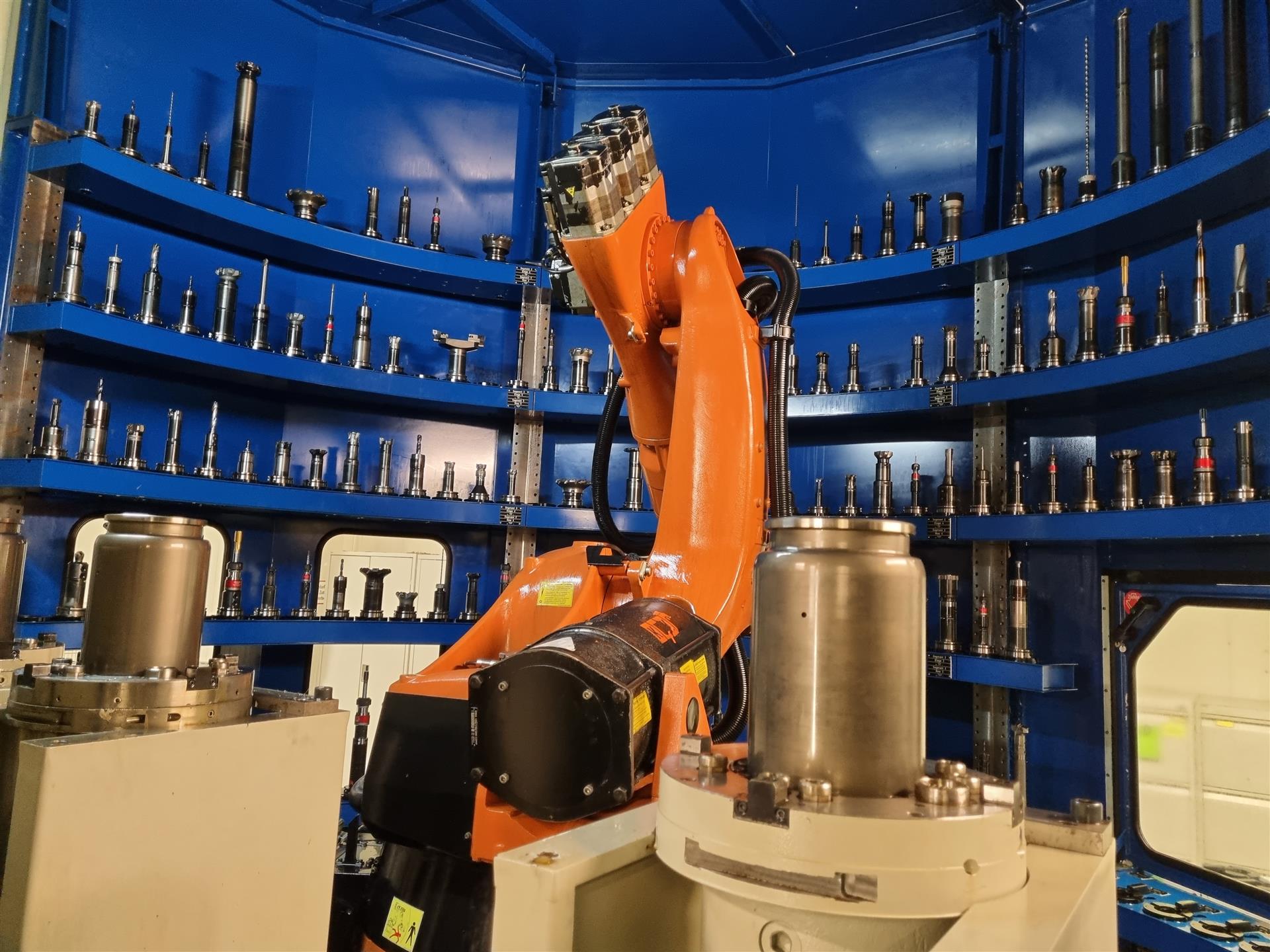

ATC, tool changer: 232 places

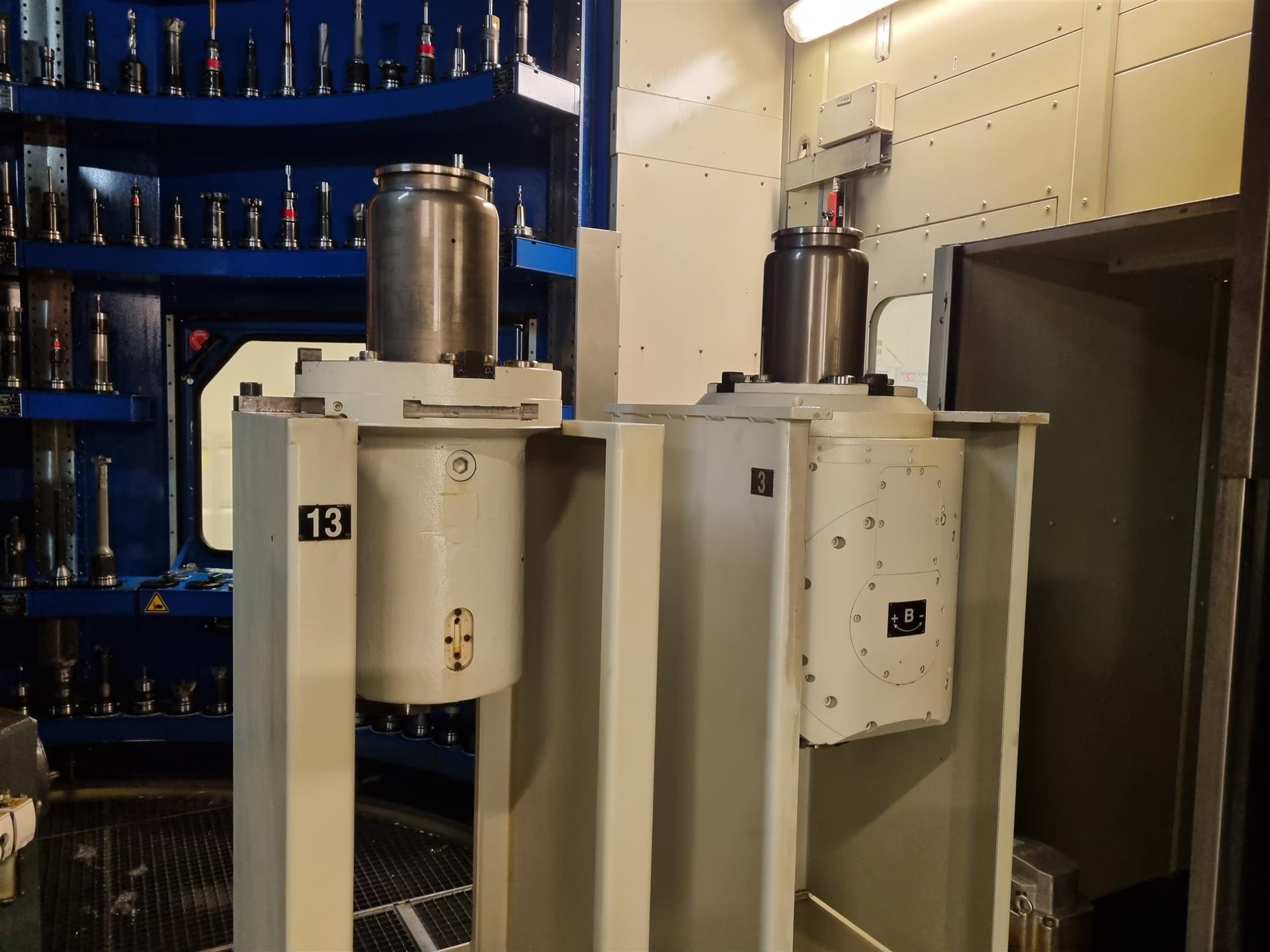

AHC, automatic head changer: 8 places



Feeds:

X: 60000 mm/min, acc. 1m/s²

Y: 60000 mm/min, acc. 2m/s²

Z: 60000 mm/min, acc. 2m/s²

W: 6000 mm/min, acc. 1m/s²



Machine comes with following:

- chip conveyor

- 1x Horizontal head 125C/250

- 1x Horizontal head 125C/600

- 1x Vertical Head (standard): 125C/150

- 1x Vertical Head (Long): 125C/500

- 1x Vertical Head (Offset):  125C/500

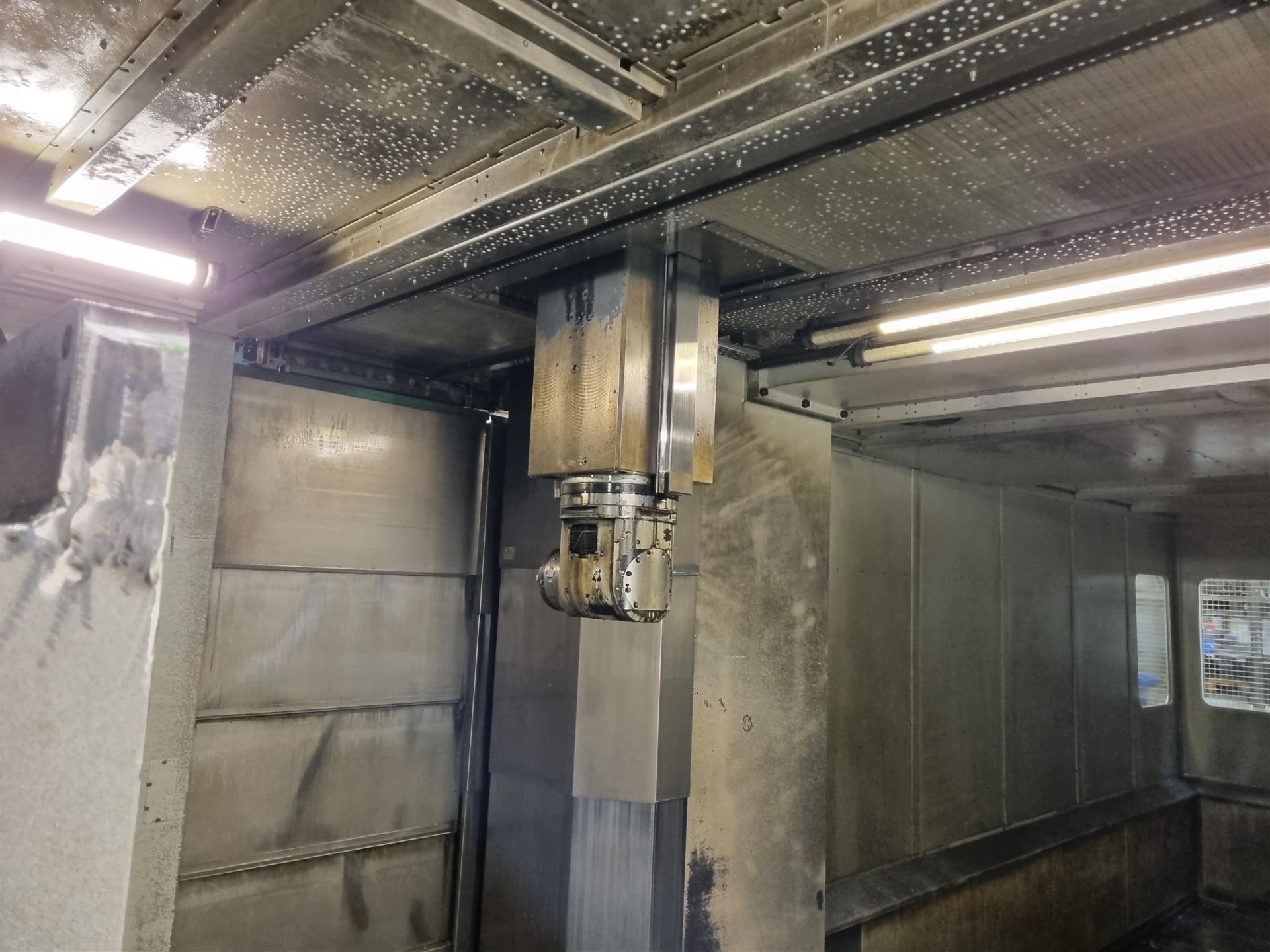

- 1x NC Swivel Universal Head: USP 125C

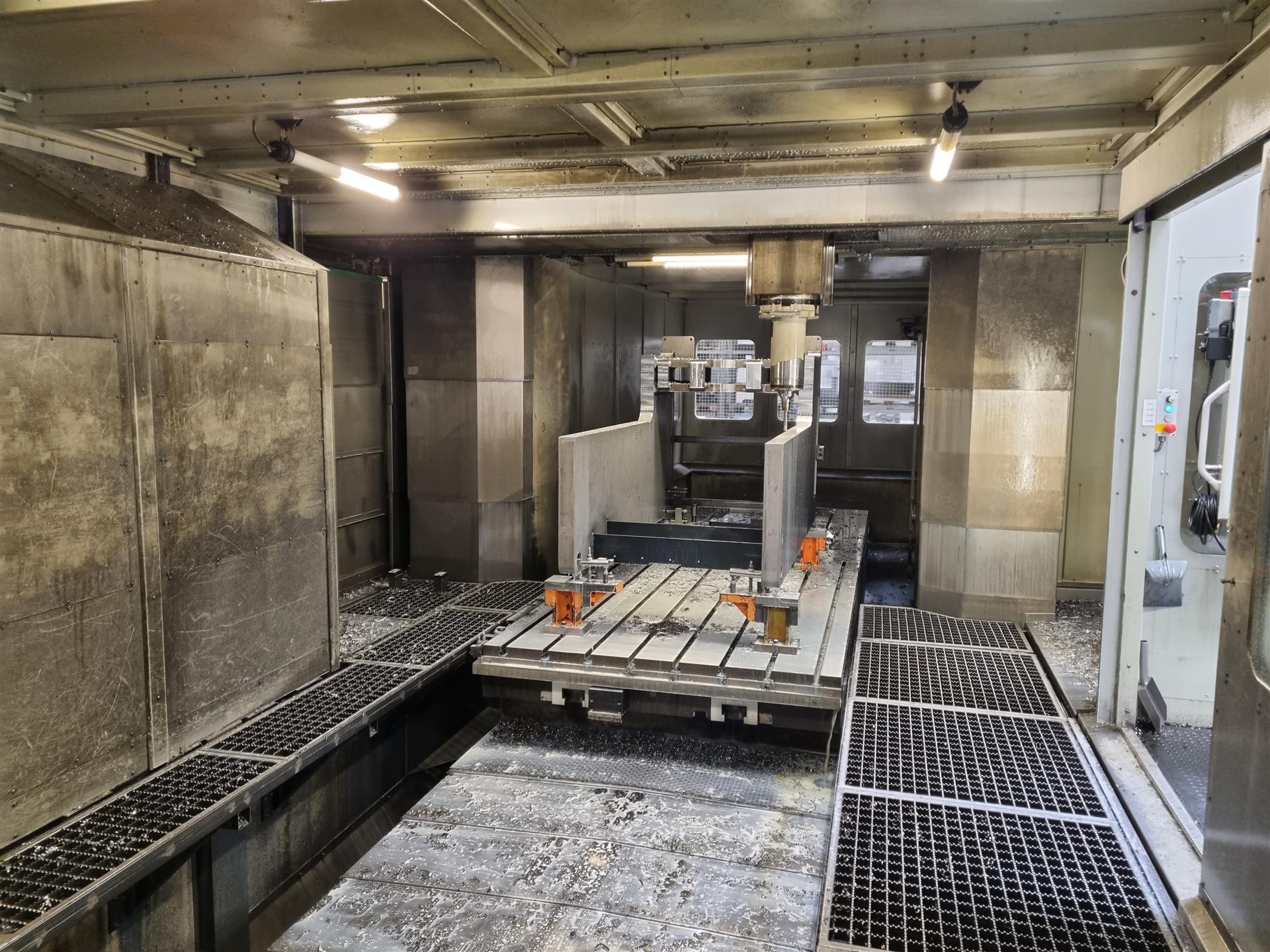

- New table with T-slots

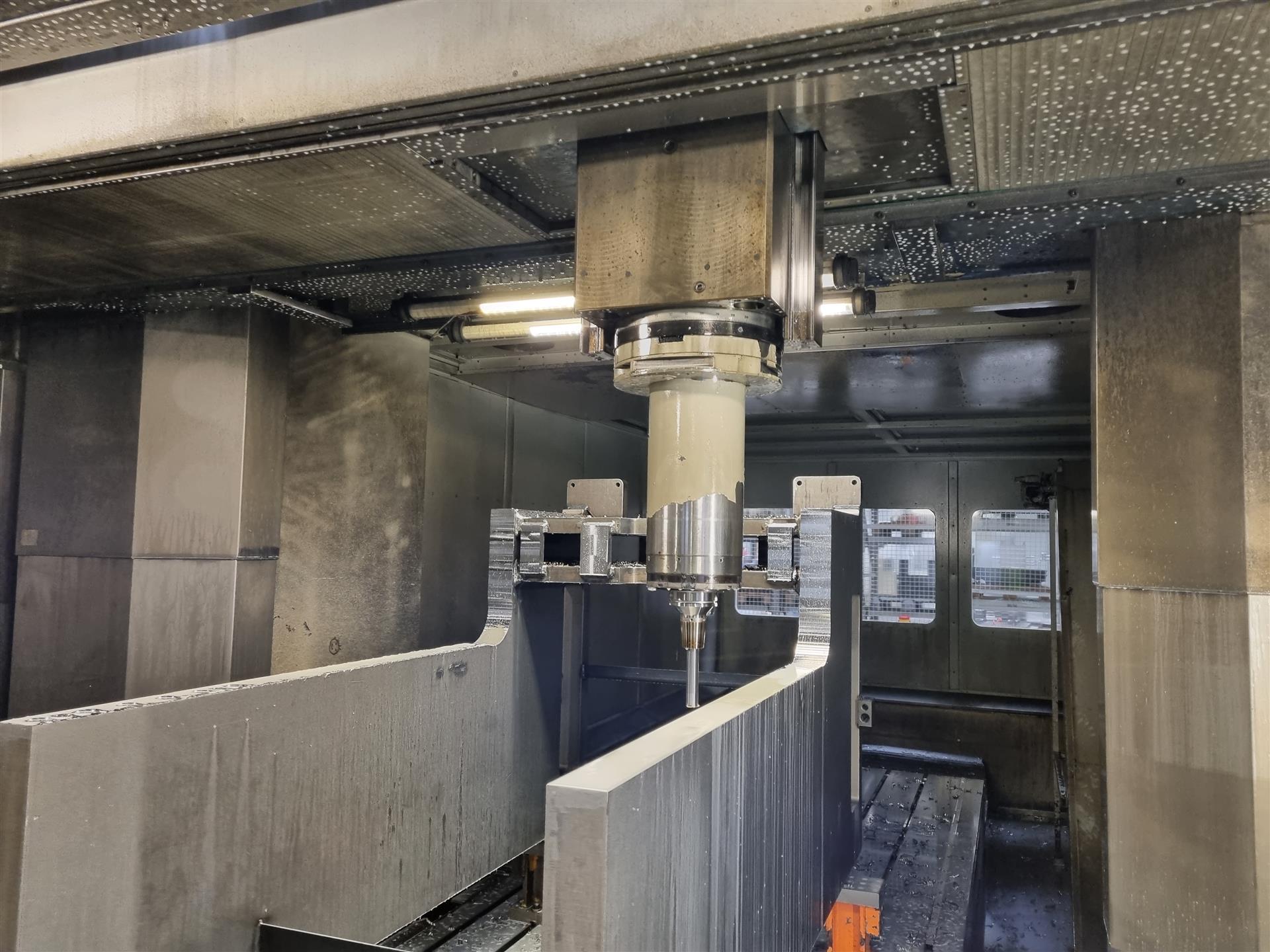

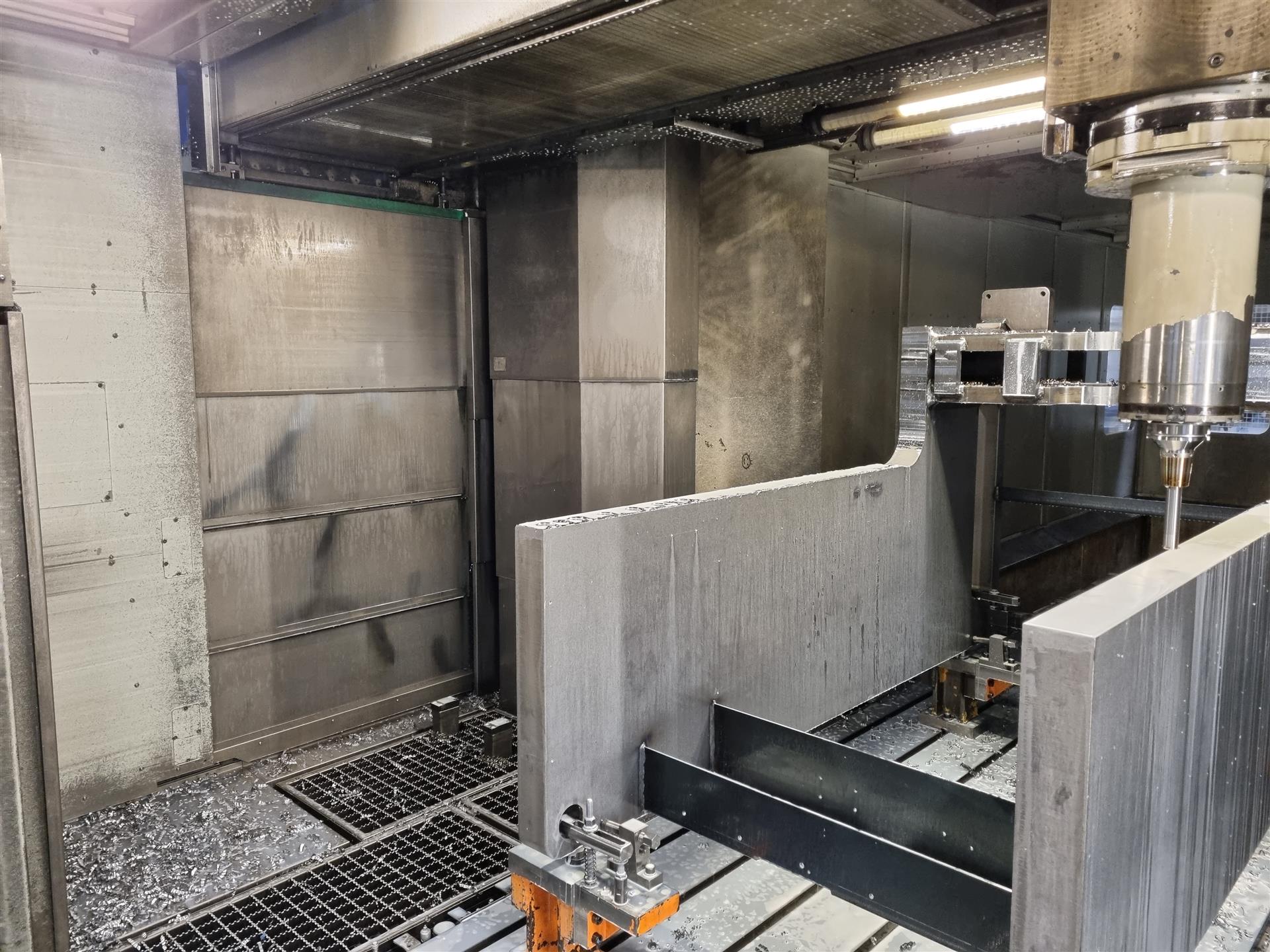

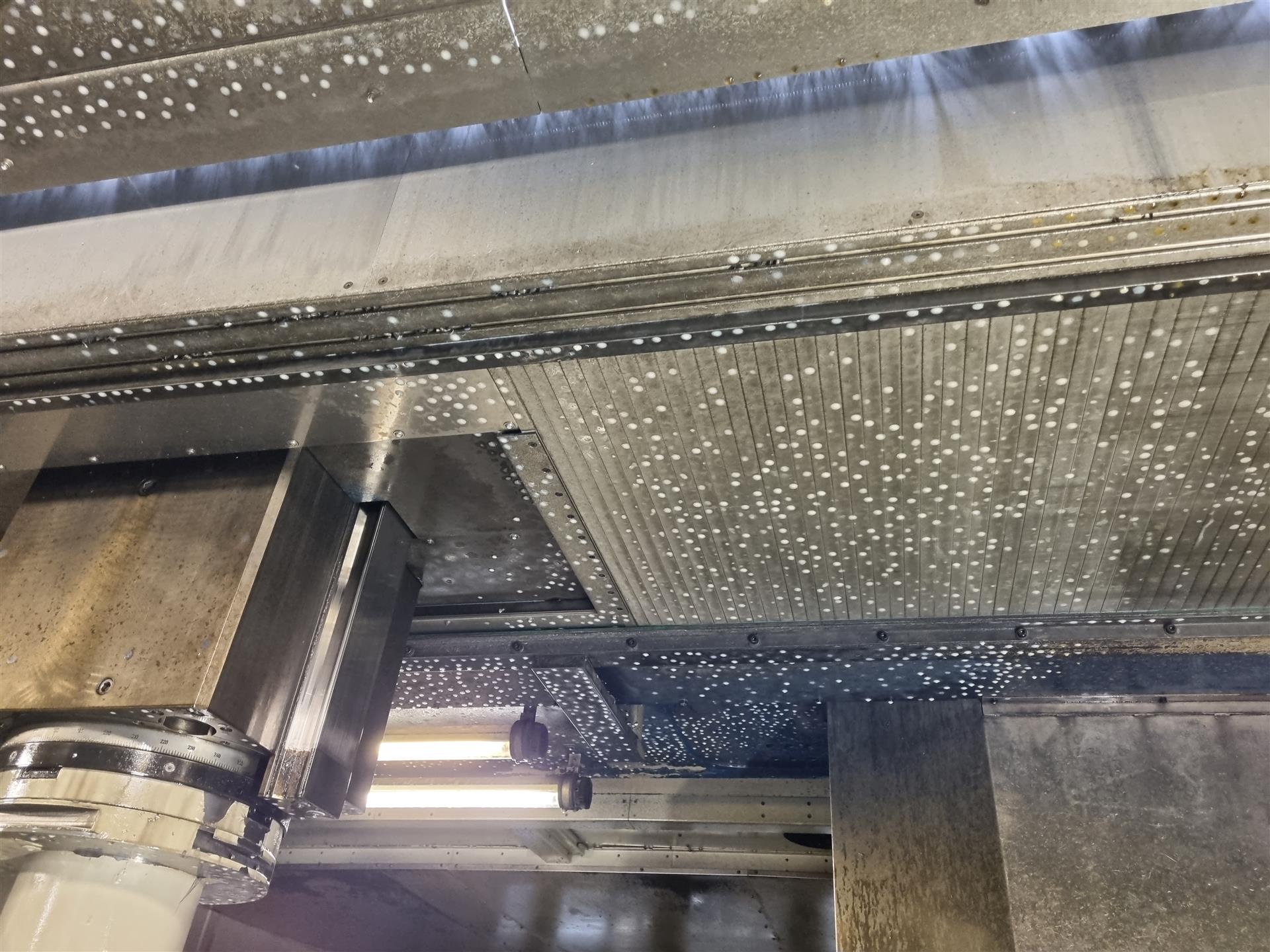

Machine Gallery :
