Details :

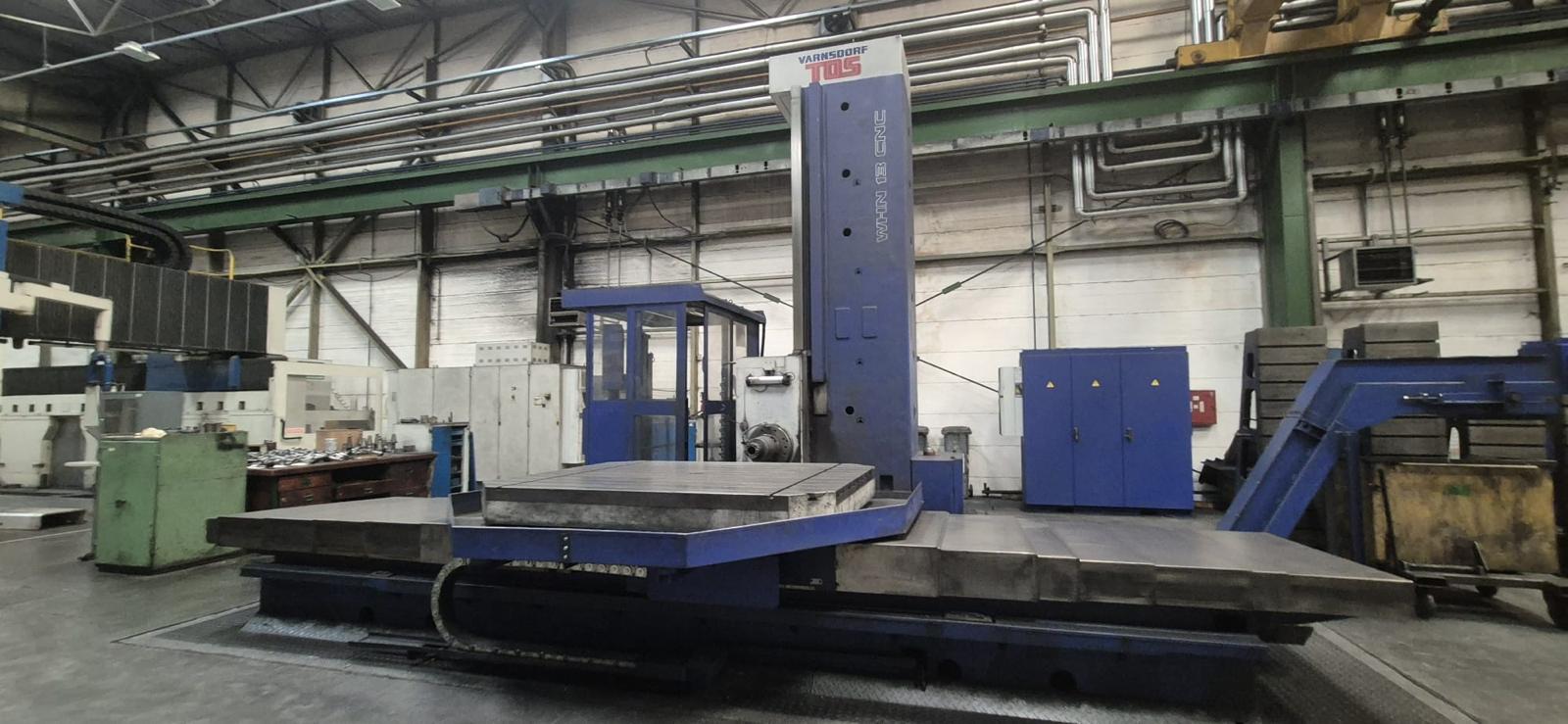

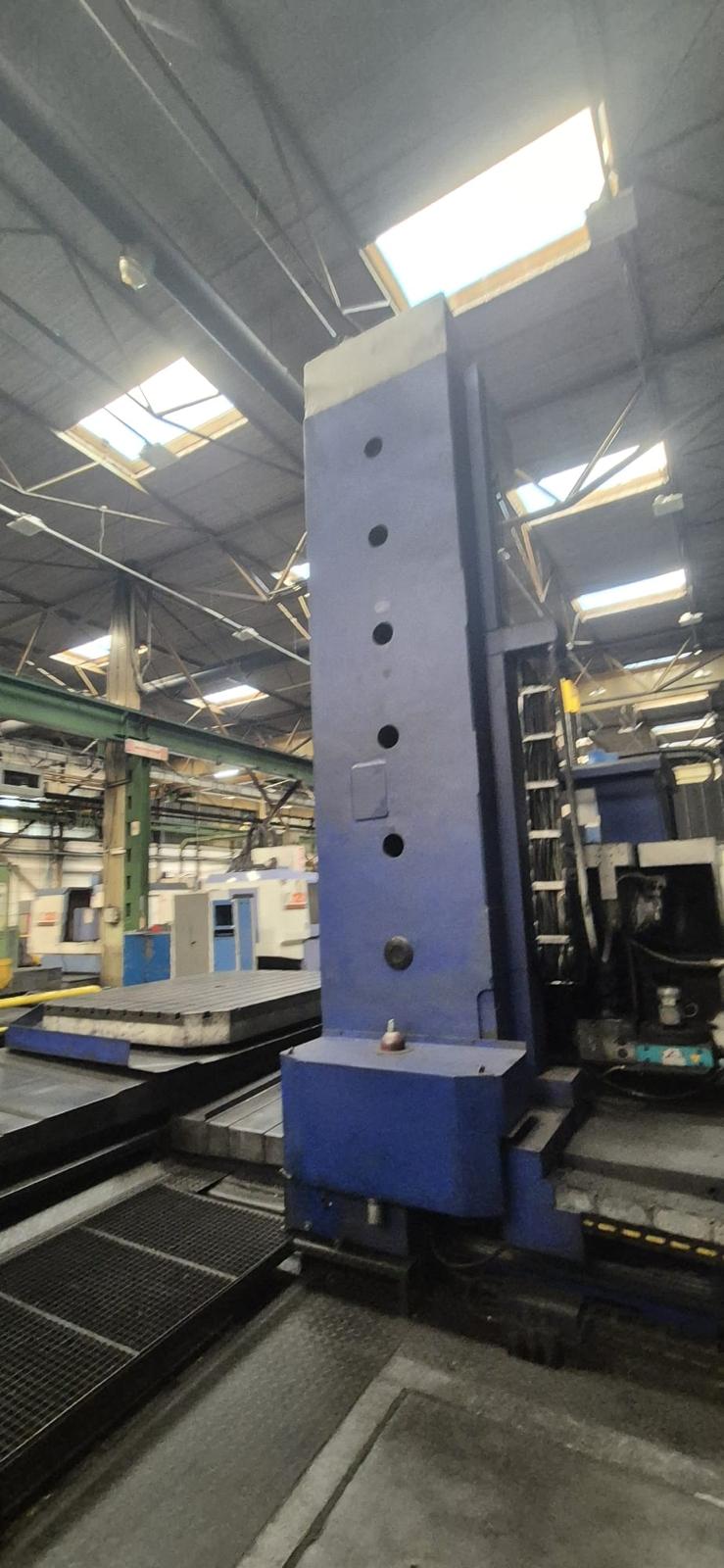

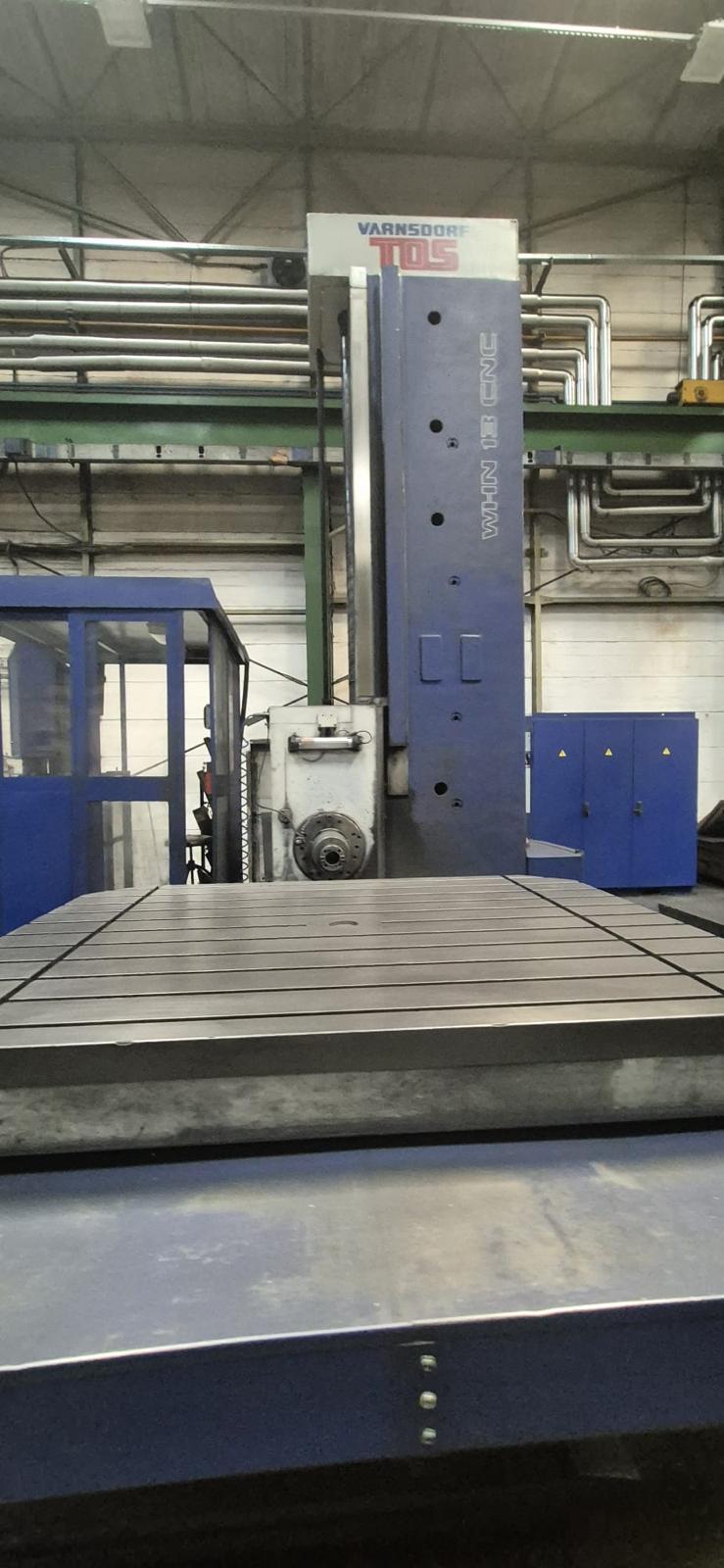

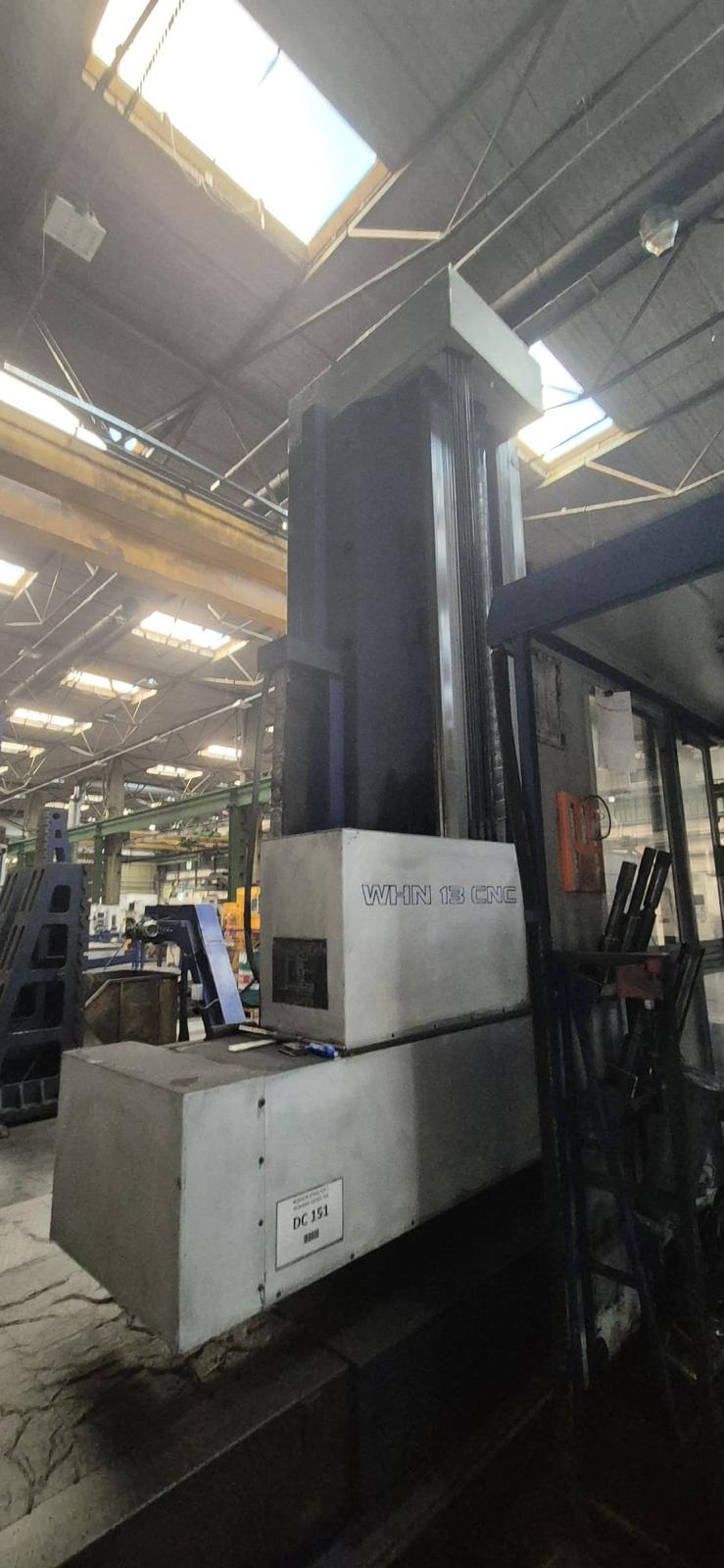

| Machine Type | CNC Table type boring | |
| Make | TOS Varnsdorf | |
| Type | WHN 13 CNC | |
| CNC Control | Heidenhain TNC 426 | |
| Year of Manufacture | 2001 / Overhaul 2015 | |
| Country of origin | Czech Republic | |
Technical Details :
| spindle diameter | 130 mm | |
| x-travel (cross) | 4000 mm | |
| y-travel (Vertical) | 2500 mm | |
| Z-travel (Table to column) | 1600 mm | |
| W-travel (spindle quill) | 700 mm | |
| Table surface area | 2200 x 1800 mm | |
| Table load capacity | 12000 kg | |
| Table Index | 0,001 degree | |
| Rapid X/Y/Z &W | 10000 & 6000 mm/min | |
| Feed X/Y/Z/W | 3000 mm/min | |
| spindle cone | SK 50 | |
| Spindle speed | 5 - 2500 rpm | |
| Spindle Power | 37 KW | |
| Approximate total weight | 36000 kg | |
