Details :
| Make | Favretto - Italy |
| Type | ME/U 200 CNC |
| Year | 2001 |

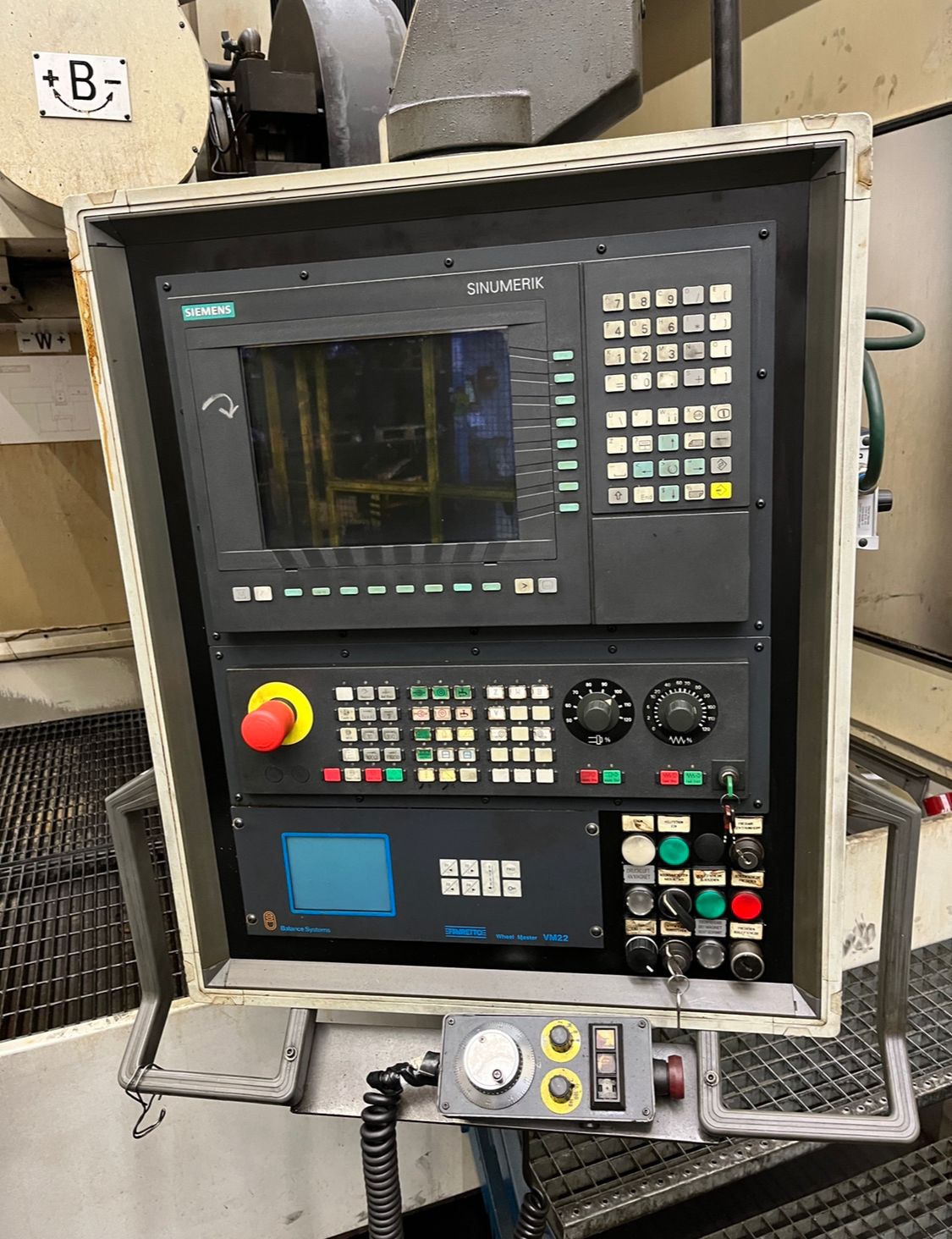

| Control | Siemens 840-D |
Technical Details :
| Max. Grinding length | 2000 mm |
| Max. Grinding width | 1000 mm |
| Max. Grinding height | 700 mm |
|
Grinding HeadPower |
30/22 KW |
| Tilting | +- 30 /22° |
| Wheel dimensions | 508 x 203.2 x 100 mm |
| Speed | 1200 - 2800 rpm |
| Feed | 1 - 40 m/min |
| Max. Load | 1500 Kg |
| Table size | 2150 x 900 mm |
| Usable travel | 2150 mm |
| Max. travel | 2500 mm |
| Crossslide Min. positioning | 0.001 mm |
| Rapid | 10 m/min |
| Vertical axis Min. positioning | 0.001 mm |
| Rapid | 10 m/min |
| Travel | 750 mm |
| Total space requirement | 10700 x 5500 x 4500 mm |
| Total weight | 22500 Kg |
