Details :

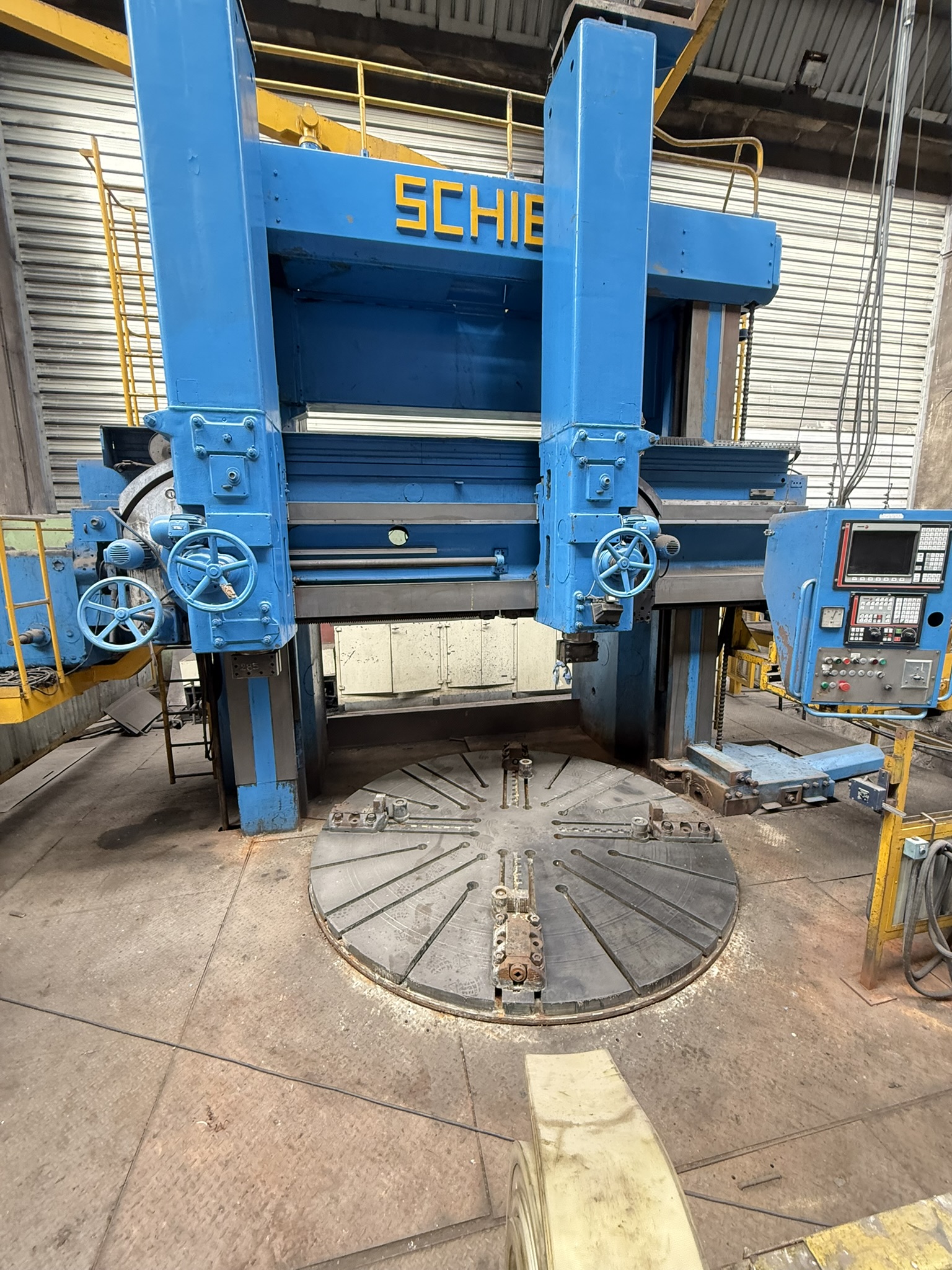

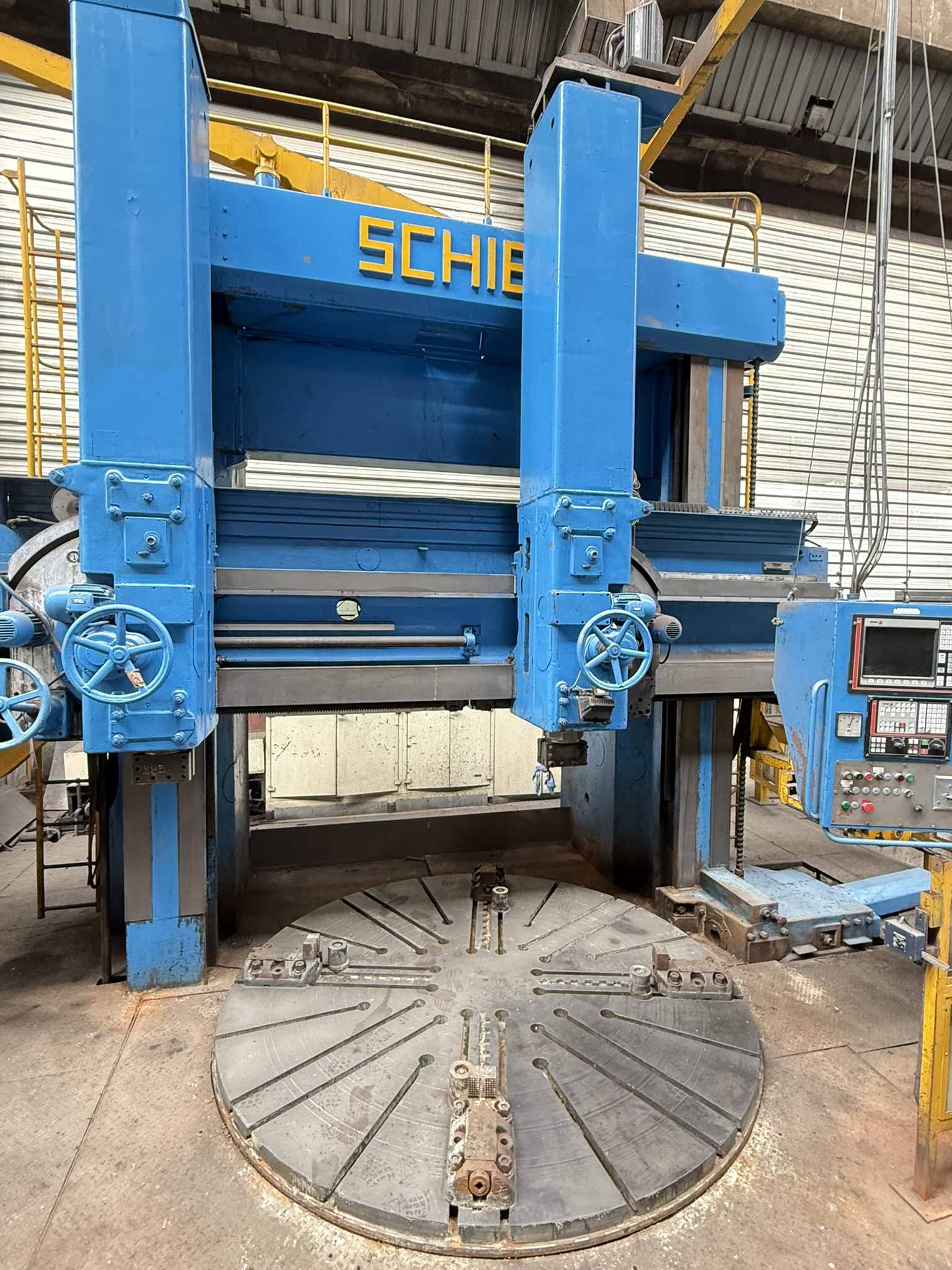

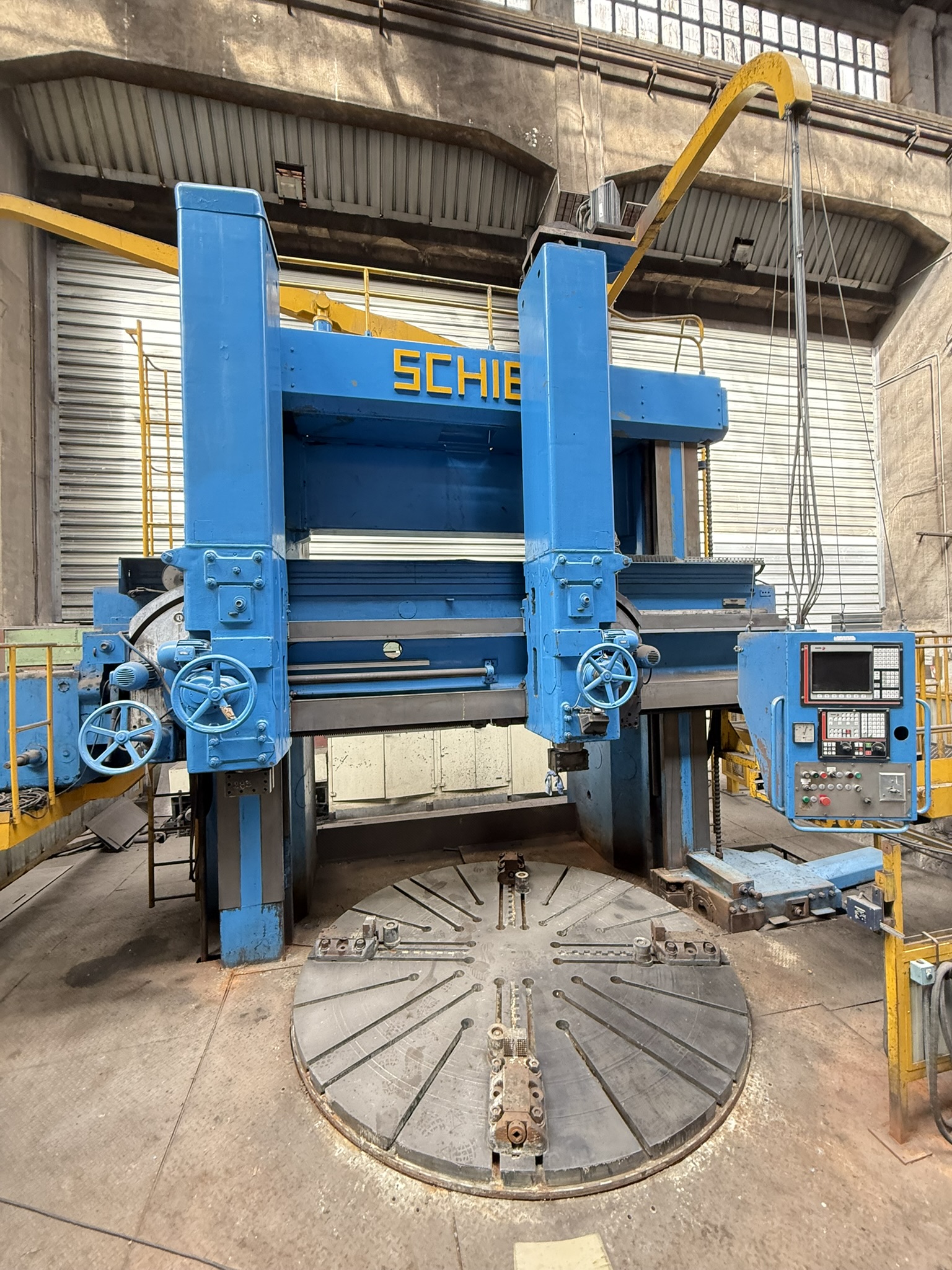

| Type of Machine | CNC Vertical Lathe (VTL) |
| Make | Schiess |
| Type | 3K |
| Year of manufacture | Retrofit 2005 |

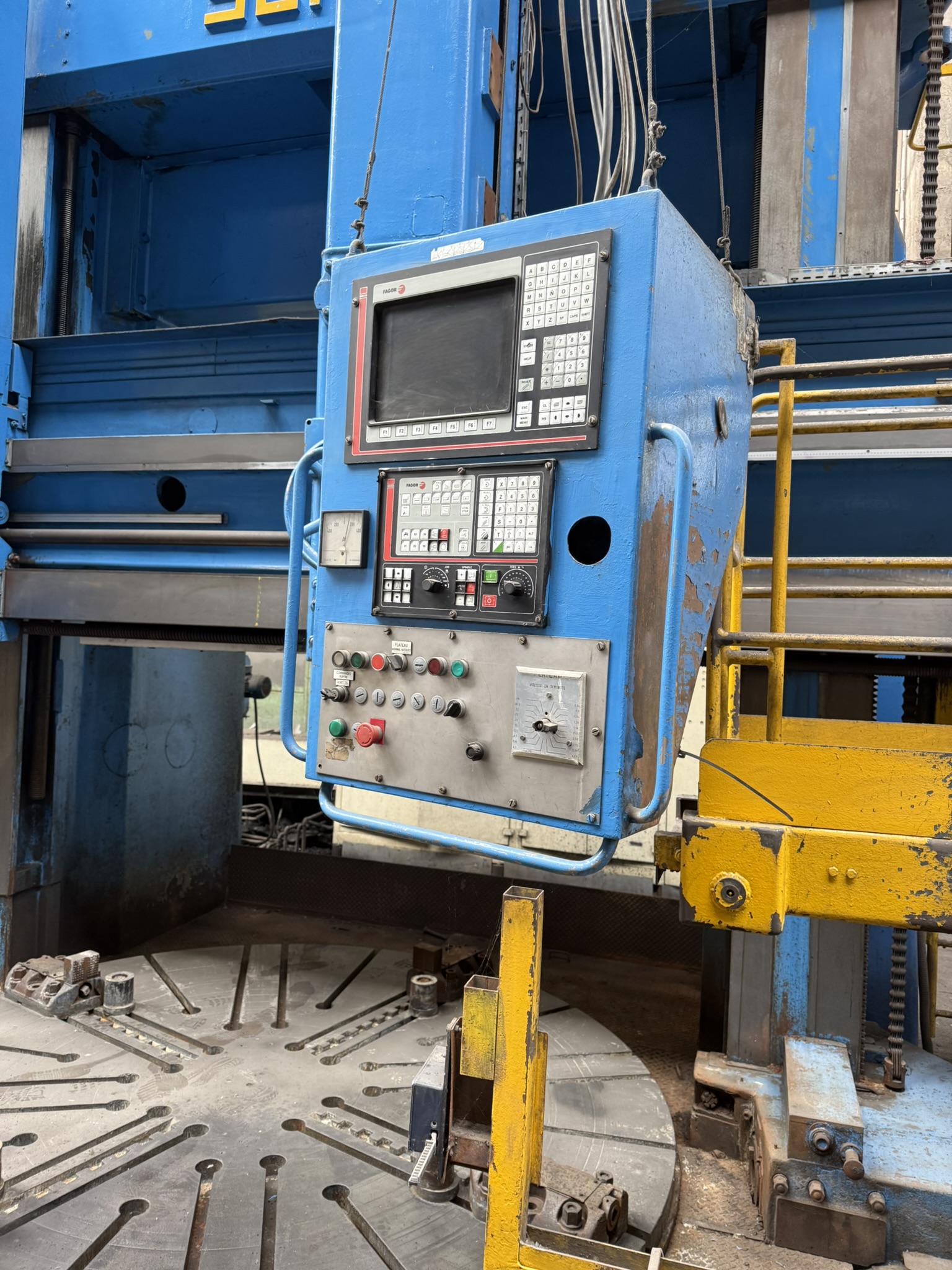

| Control | Fagor |
| Storage Location | Europe |
| Country of Origin | Germany |
Technical Details :

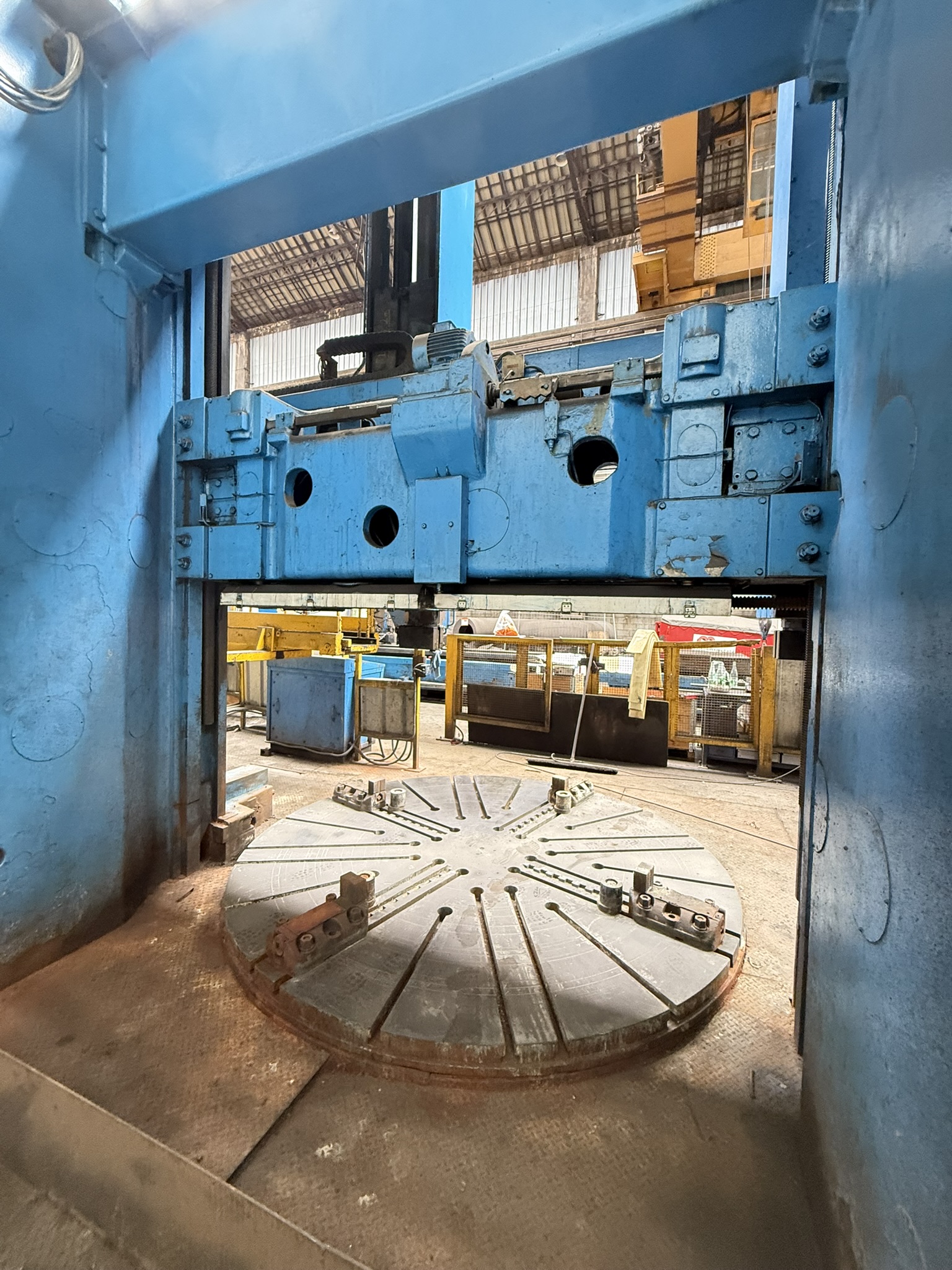

| Faceplate Dia | 3000 mm |
| Max. turning dia | 3500 mm |
| Max. turning height | 2750 mm |
| Max. workpiece weight | 20000 Kg |
| Max. vertical travel Ram | 1500 mm |
| Max horizontsl travel Ram | 1800 mm |
| Max. travel of cross slide | 2100 mm |
| Chuck speed | 48 rpm |
| Machine weight | 75 Tonnes |
Other Details :
Right support CNC controlled, Left side conventional
