| turning diameter over bed |
1050 mm |
| turning diameter over slide rest |
730 mm |
| turning length |
6000 mm |
| spindle bore |
102 mm |

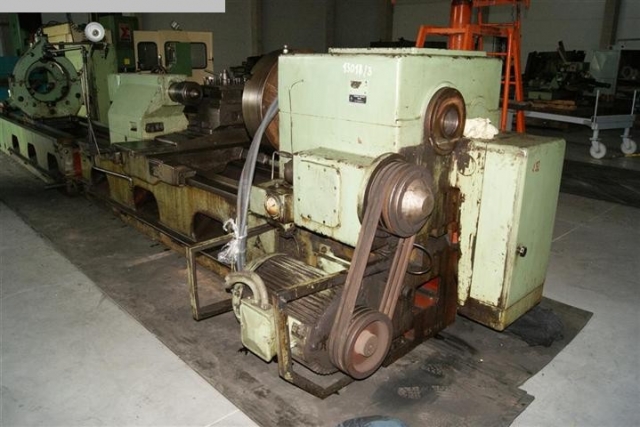

| main drive |
26,5 kW |
| turning speed range |
2,25 -450 U/min |
| feeds: bed slide/longitudinal |
0,08 -56 mm/U |
| feeds -cross |
0,025-18 mm/U |
| metric threading |
1 -112 mm |
| thread -module |
0,5 -28 Modul |
| threading WHITWORTH |
Gew./1" |
| max. workpiece weight between centres |
5000 kg |

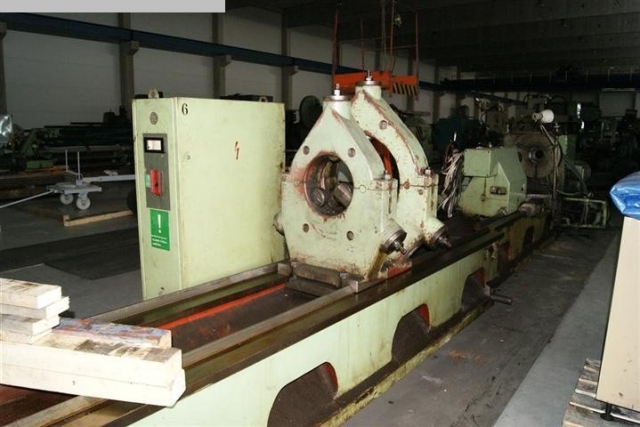

| workpiece weight in steadies max. |
6000 kg |

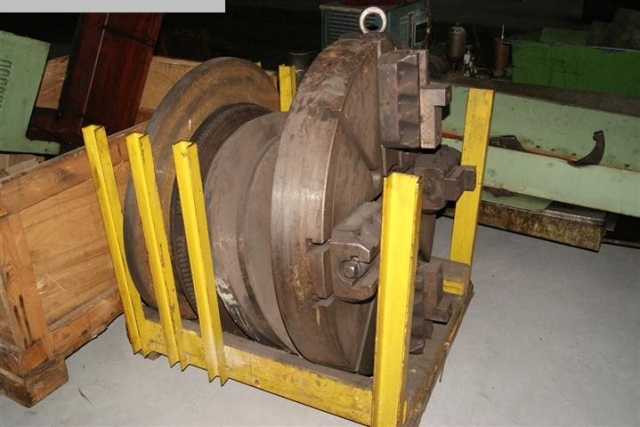

| faceplate diameter |
1000 mm |
| spindle diameter in front bearing |
180 mm |
| bed width |
630 mm |
| bed height over floor |
800 mm |
| total power requirement |
35 kW |
| weight of the machine ca. |
11,6 t |
| dimensions of the machine ca. |
8,8 x 1,97 x 1,46 m |
