Ram-Type Floor Boring and Milling M/C TOS-VARNSDORF WRD 150Q CNC 1133-B261

SOLD Articles

Details :

Stock No 1133-B261
Machine type Ram-Type Floor Boring and Milling M/C
Make TOS-VARNSDORF
Type WRD 150Q CNC
Newin 2008
Control CNC
Location Czech republic
Country of origin Czech Republic
Term of delivery at Immediate
Quotation Free loaded; Container/Truck
Price 0.00 EUR

Technical Details :

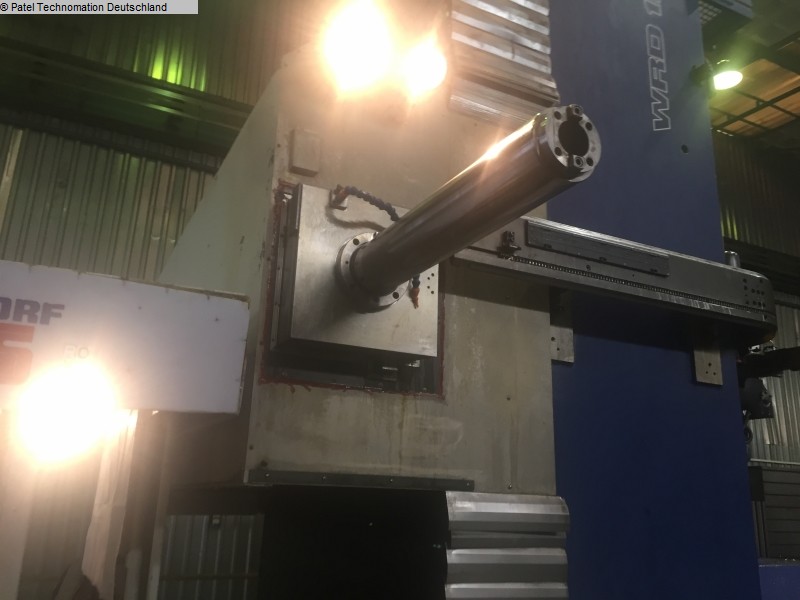

spindle diameter 160 mm
x-travel 18000 mm
y-travel 3500 mm
Ram size: square type 450 x 450
ram stroke – adjustable min/max 1200 mm
spindle stroke – max. 1000 mm
spindle taper MT ISO 50
Control Heidenhain iTNC 530
spindle speed: 10 -2500 rpm
spindle drive motor 60 kW

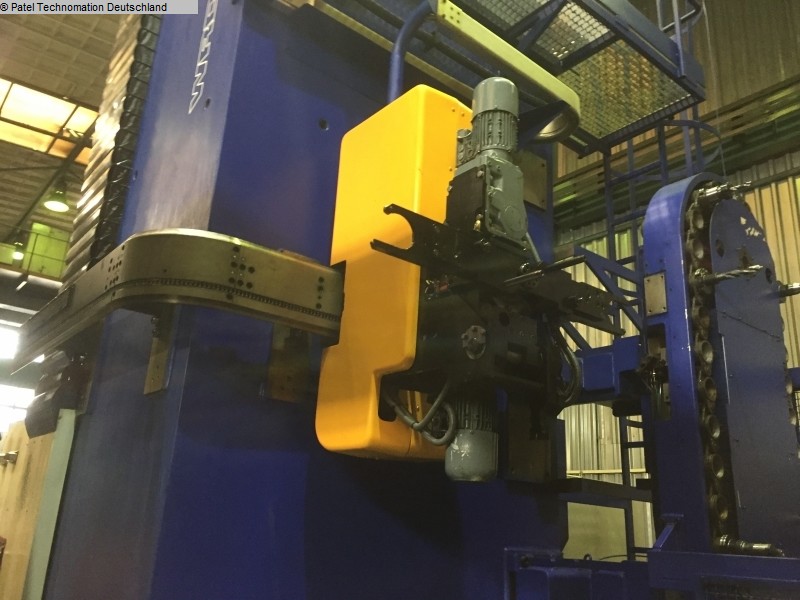

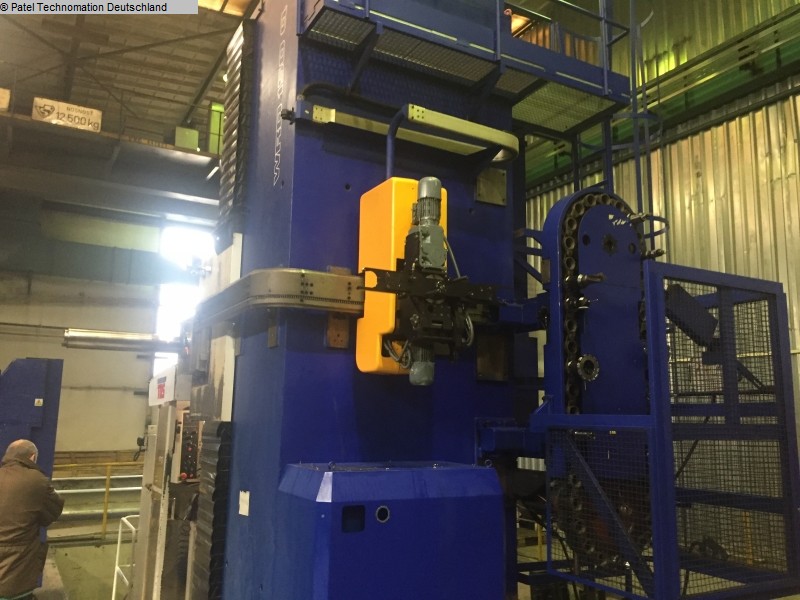

tool change unit 40 pos
Floor-Plate size L x W 4 x (4020x1885x400 mm)

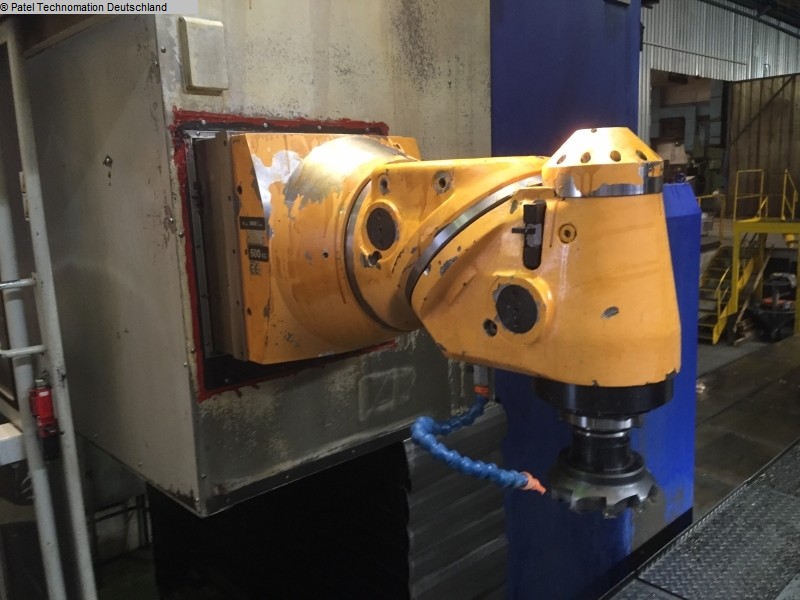

Automatic universal milling head HUI 50 CNC with P
internal coolant system feed 20 bar
total power requirement kW
weight of the machine ca. 85 t
dimensions of the machine ca. 7,6 x 3,7 x 7,7 m

Other Details :

  • max. depth of mm spindle bore 1600
  • max. spindle travel with automatic clamping 1490 mm
  • max. torque to the spindle axis 160000 kpcm
  • bed height 480 mm x line width bed 1600 mm
  • Rotary table Skoda type E20
  • Rotary Table size 2000 x 2000 mm
  • Rotary table weight capacity 20 tone
  • Rotary table travel 1200 mm
  • Rotary table weight 9750 kg
  • Floor plates size (1 pcs) 6400 x 1870 mm
  • floor plate weight (each) ca. 8 tone
  • Angular milling head No (can be prodcured)
  • Other information
  • The machine had worked till dismantled
  • With complete documentation

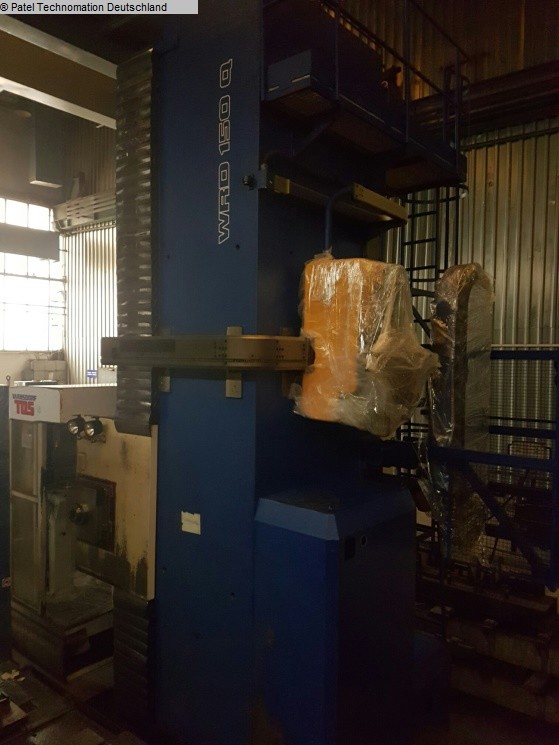

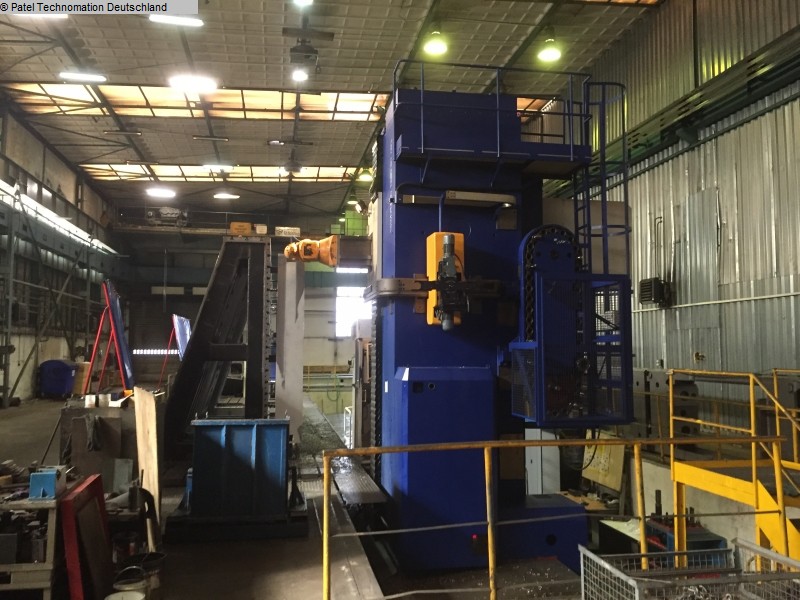

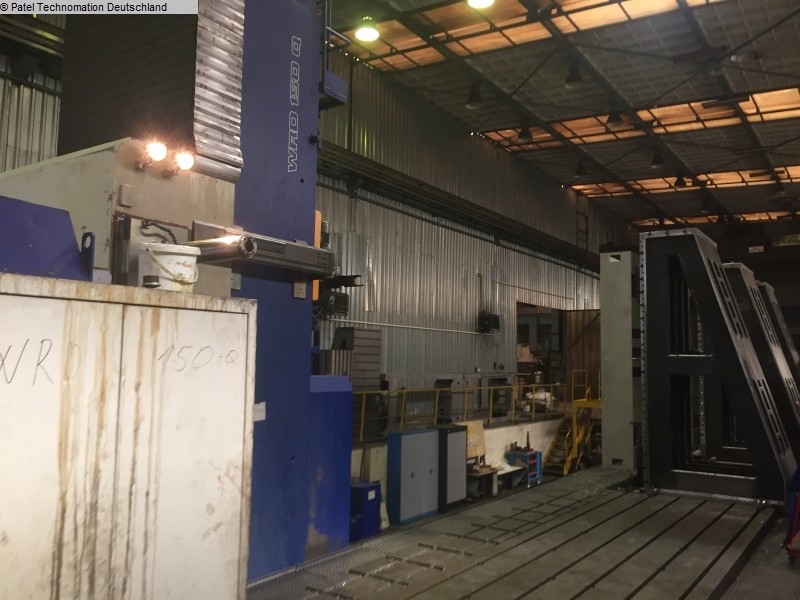

Machine Gallery :
