Roll Grinder 630 x 4000

Grinding Machines, SOLD Articles, All Machines

Details :

Machine Type Cylindrical Grinder
Make TOS
Control Conventional
Year of Manufacture
Country of origin Czech republic
Technical Details
Max Grinding length 4000 mm
Max Grinding dia 630 mm
Center height 320 mm
Cross travel of Grinding slide 420 mm
Infeed amount of Grinding slide 0,01 - 0,06 mm/table stock
Taper grinding / taper angle / table swivel 3-6 degree
Machine weight 17 ton
Machine size 10 x 3,10 x 2,20 m
Other information
  • Heavy Duty Cylindrical / Roll Grinding Machine for automatic longitudinal grinding of hydraulic cylinders and rolls for printing machines etc. Also suitable for Plunge Grinding Process without table
  • movement on bearing faces or other gaps.

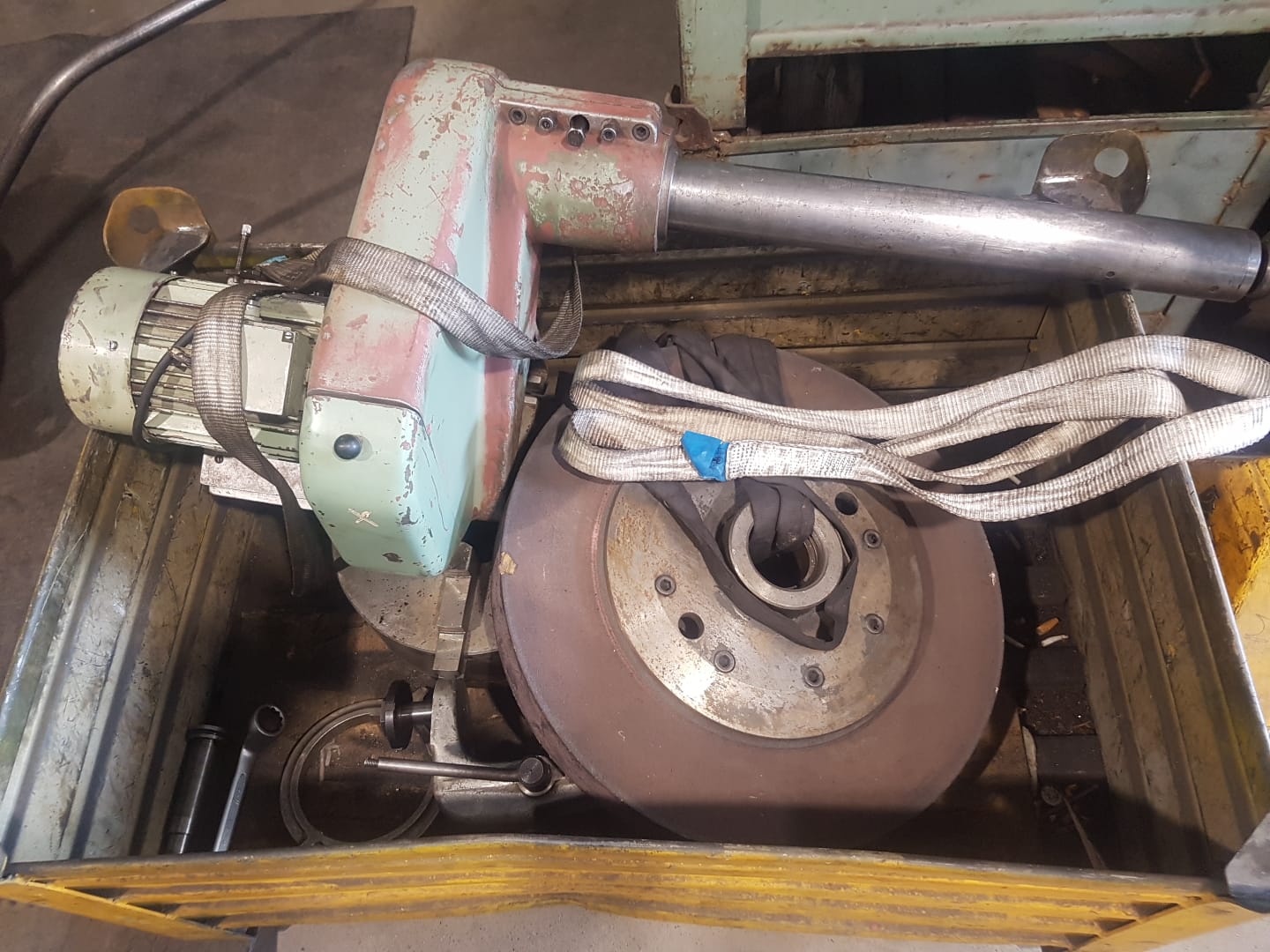

  • Internal Grinding Device to be mounted on Grinding slide with own motor drive with interchangeable grinding spindles, also used for face grinding operations.
  • Swivable Grinding slide up to 30 � / Swivable Workhead up to 45�/ Swivable Table
  • Hydraulic HD Tailstock with adjustable pressure on quill according to workpiece weight and with Spindle taper of MK 6 and with grinding wheel dressing device mounted.

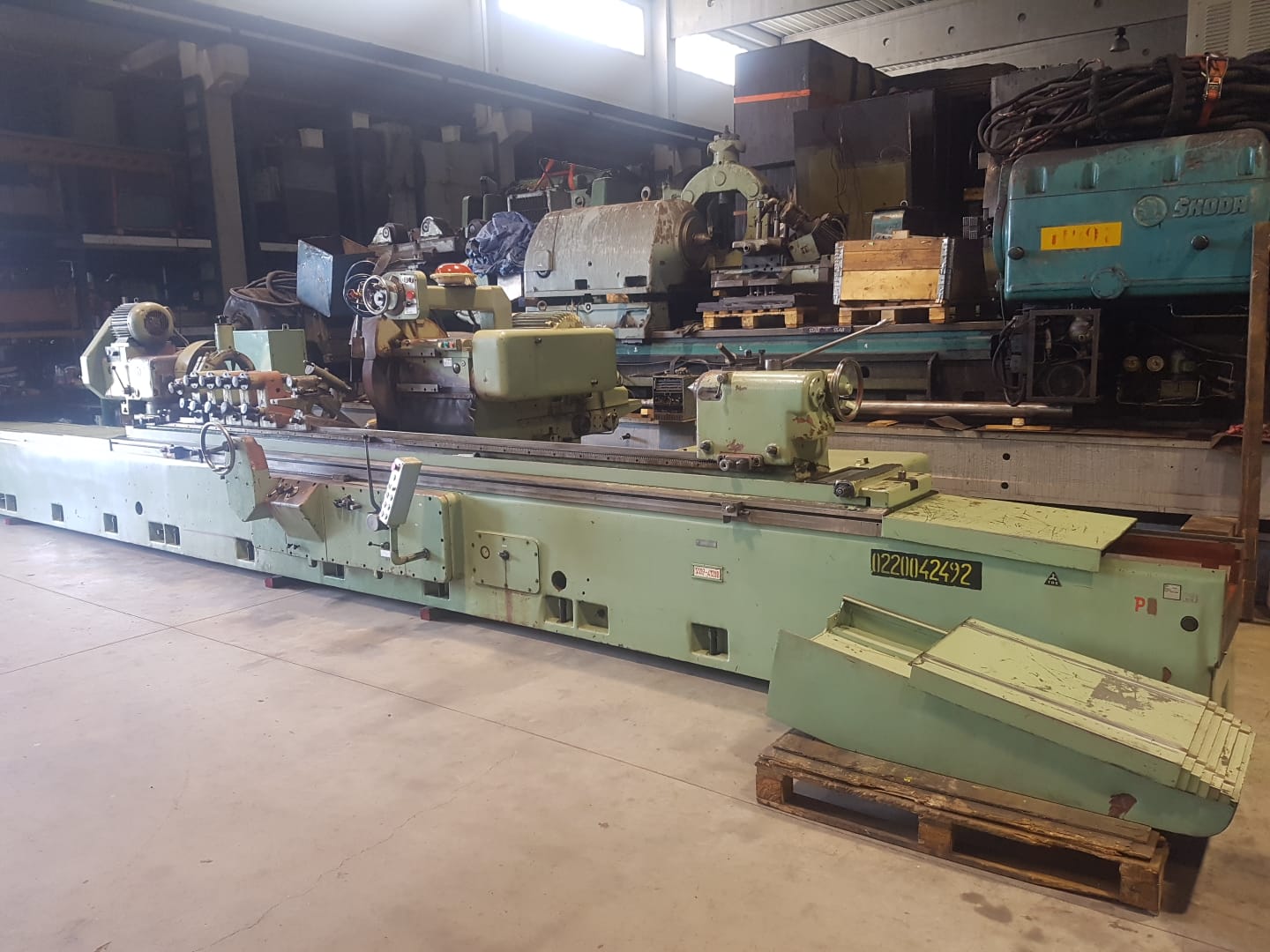

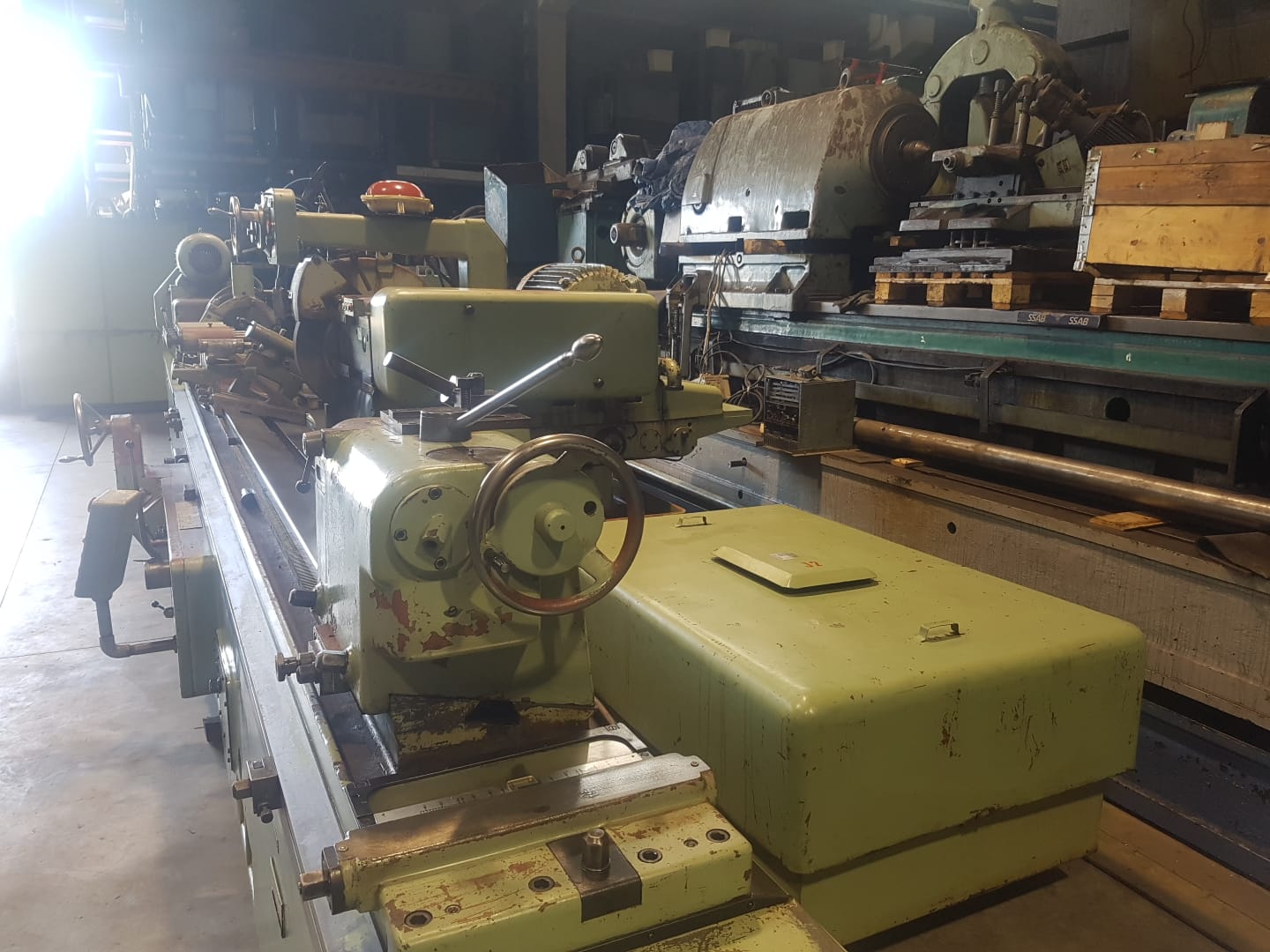

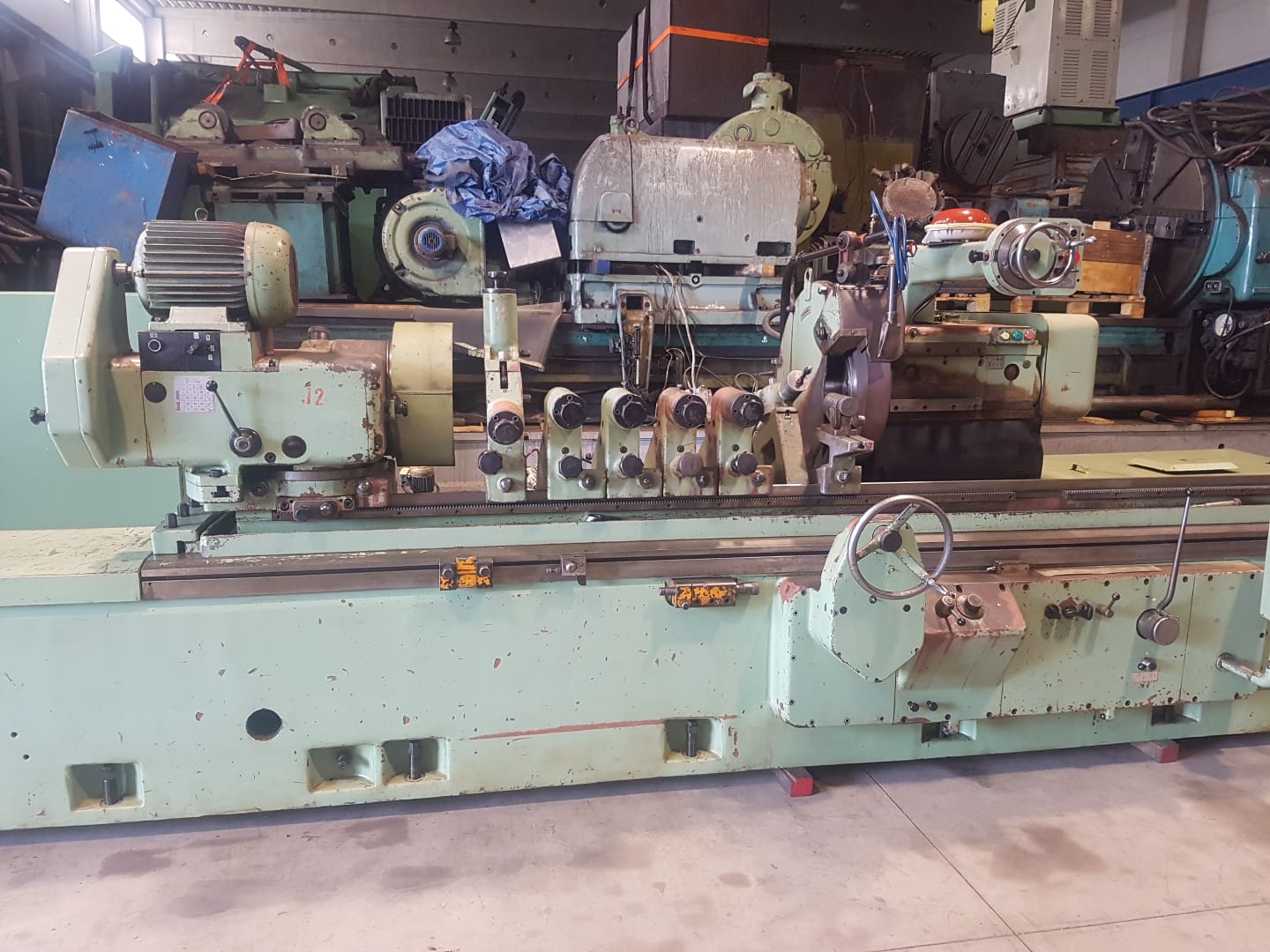

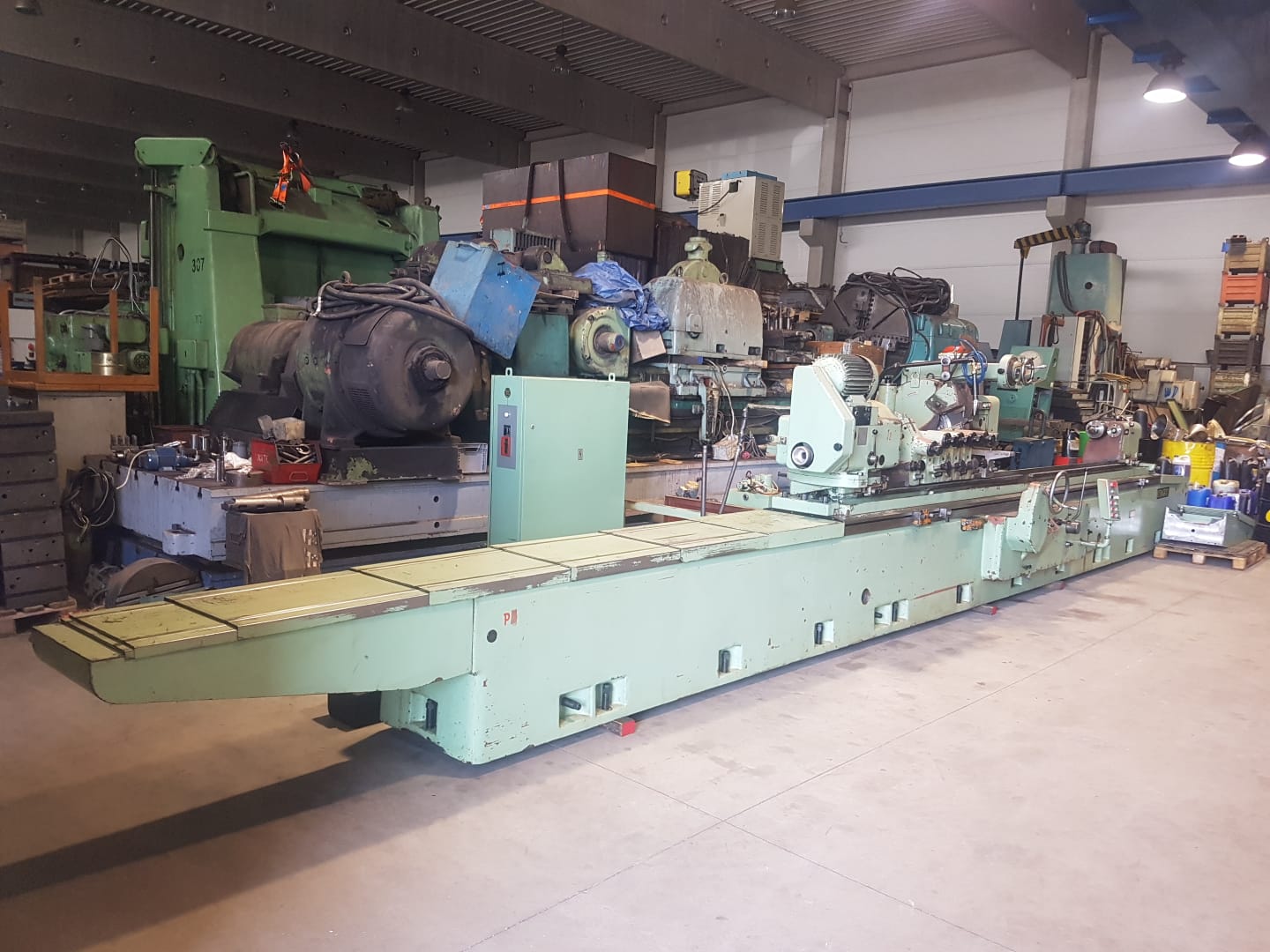

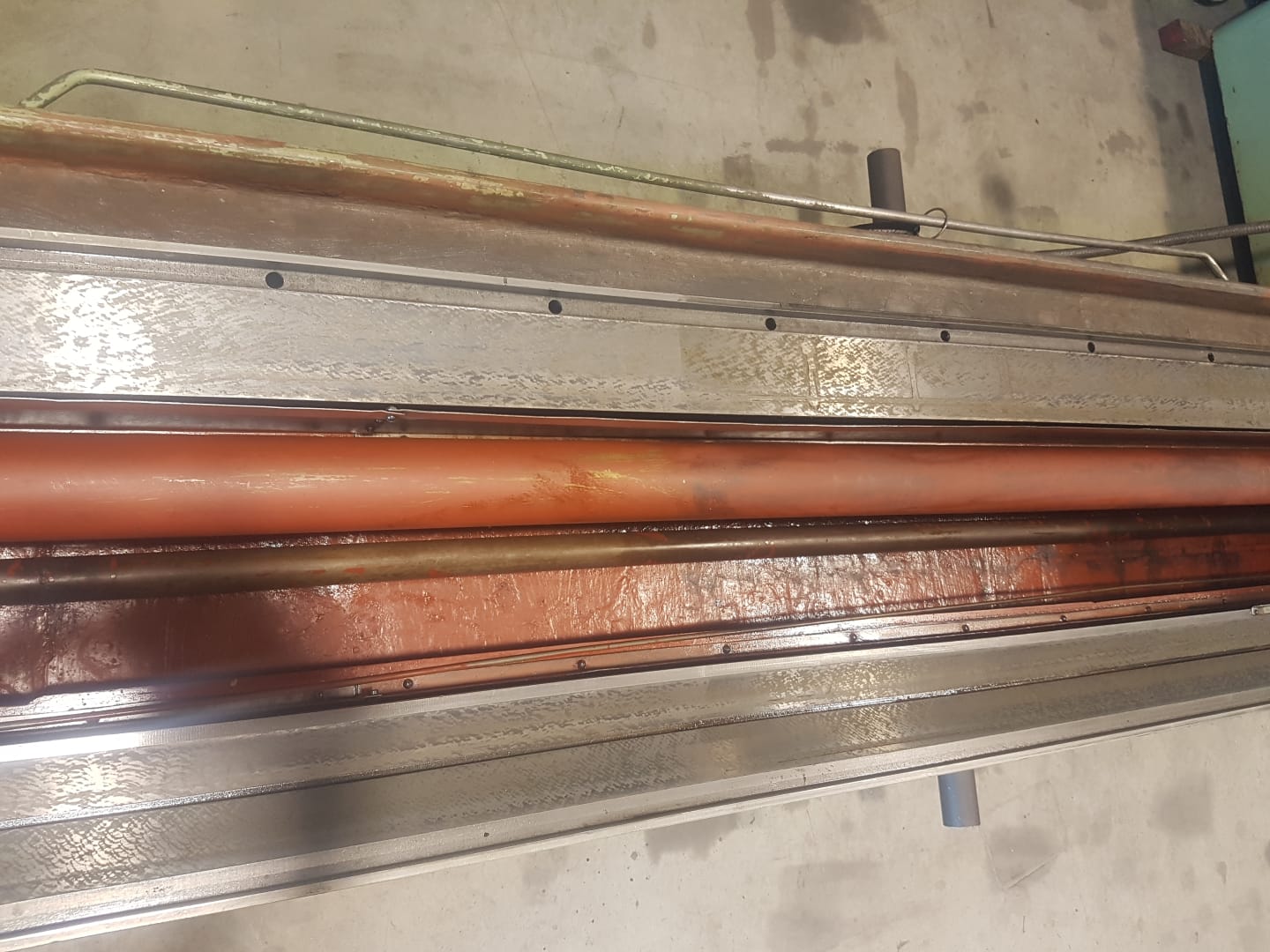

Machine Gallery :
