Table Broing TOS W100A with ISO50 Taper #B262

SOLD Articles

Details :



Stock No B262
Machine type Table Type Boring and Milling Machine
Make TOS
Type W 100 A
Newin
Control
Location Czech Republic
Country of origin Czech Republic
Term of delivery as per agreement
Quotation Free loaded on Truck / Container
Price



Technical Details :

spindle diameter 100 mm
cross travel of table 1600 mm
vertical adjustment of drilling slide 1250 mm
drilling depth in one stroke 800 mm
spindle taper ISO 50
spindle turning speed range 7,1 – 1120 U/min
faceplate diameter 600 mm
table surface area 1250 x 1250 mm
table adjustment – longitudinal 1600 mm
table rotating 360 °
voltage 380 V
feeds longditudinal/cross/vertical 10 – 1500 mm/min
rapid motion -longitudinal/cross/vertical 3 m/min
dimensions of the machine ca. 7 x 3,6 x 3,6 m
total power requirement 17 kW

Other Details :

  • With face plate with face slide and hard metal plates in guide ways.

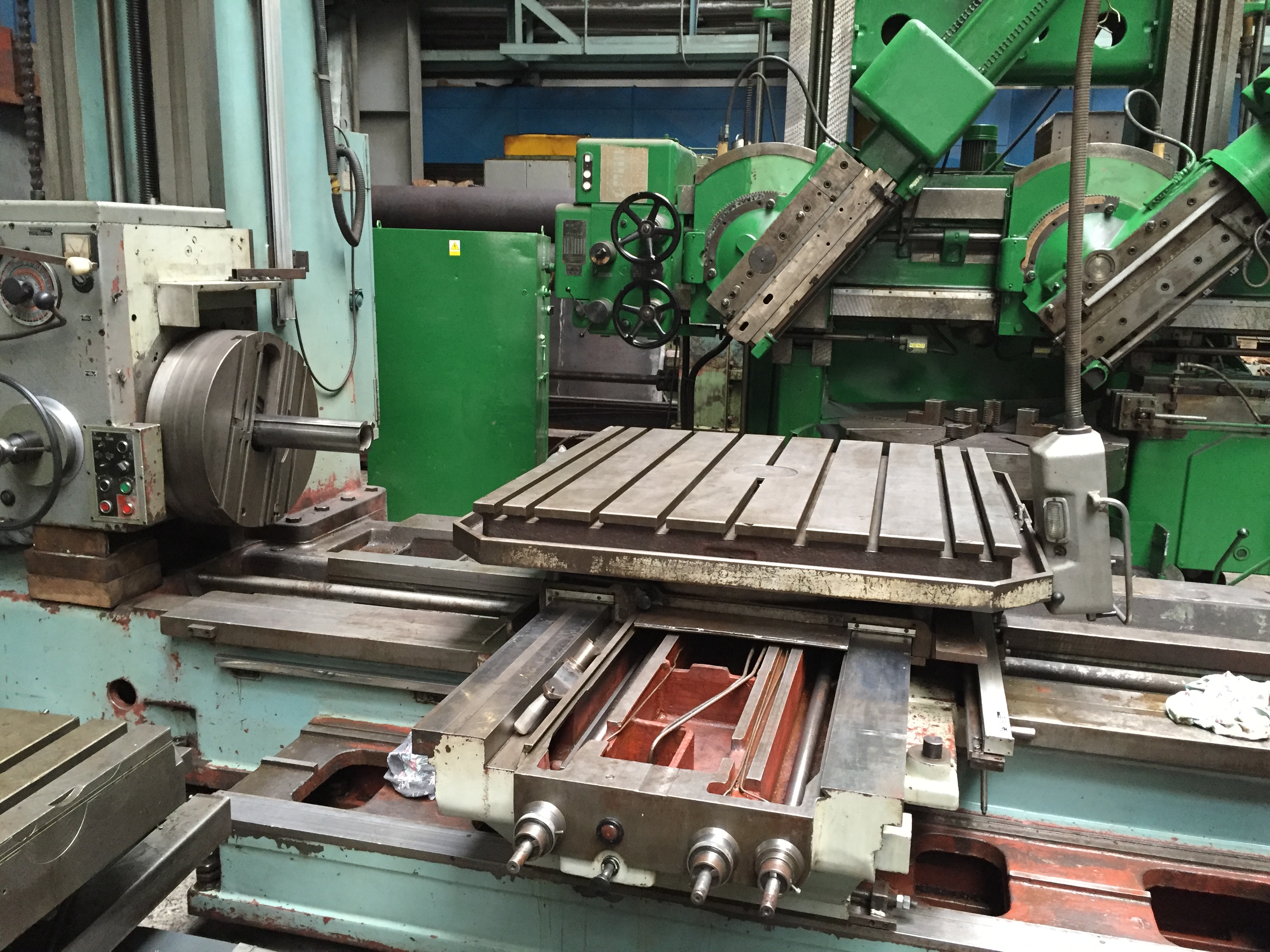

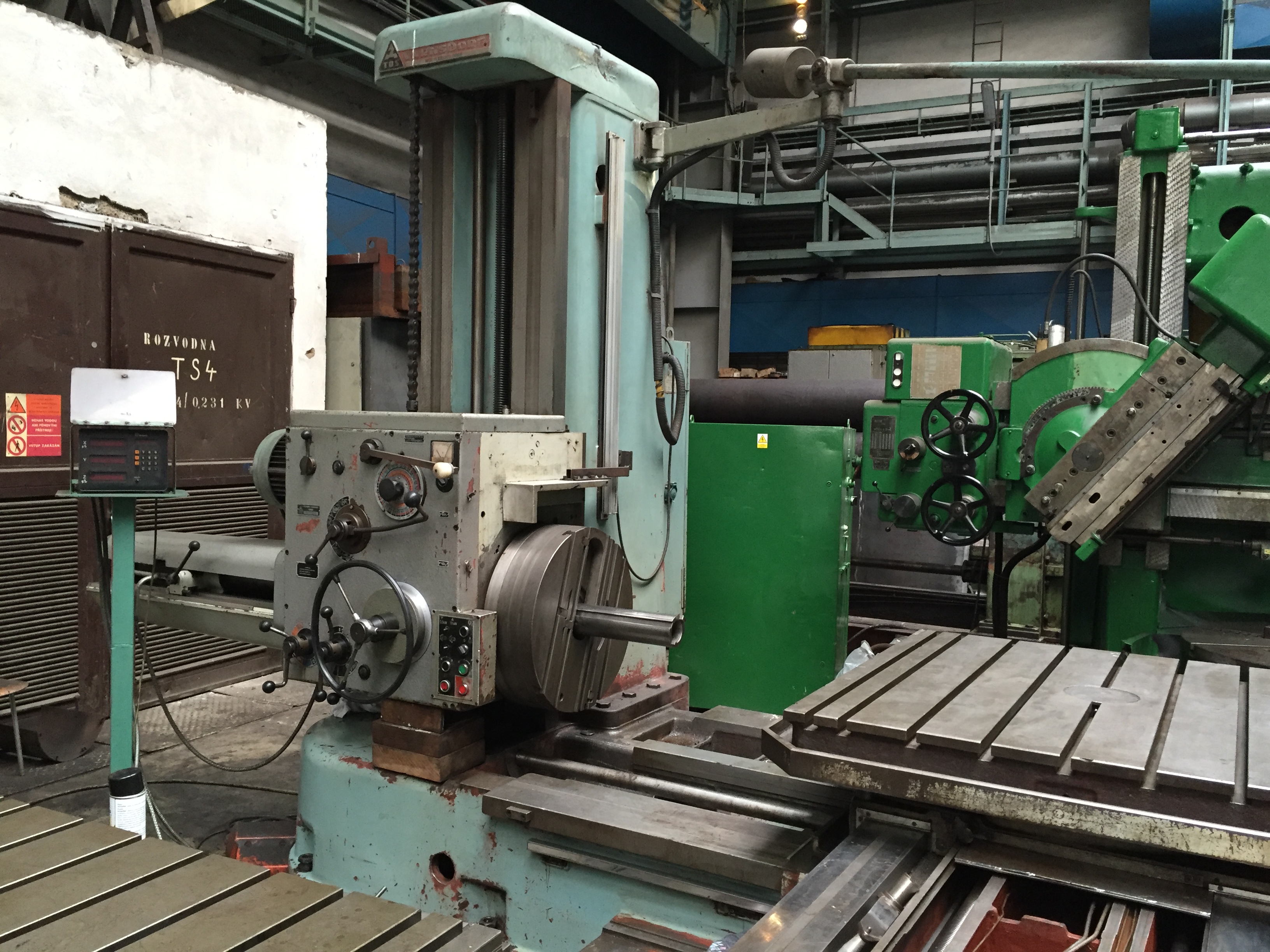

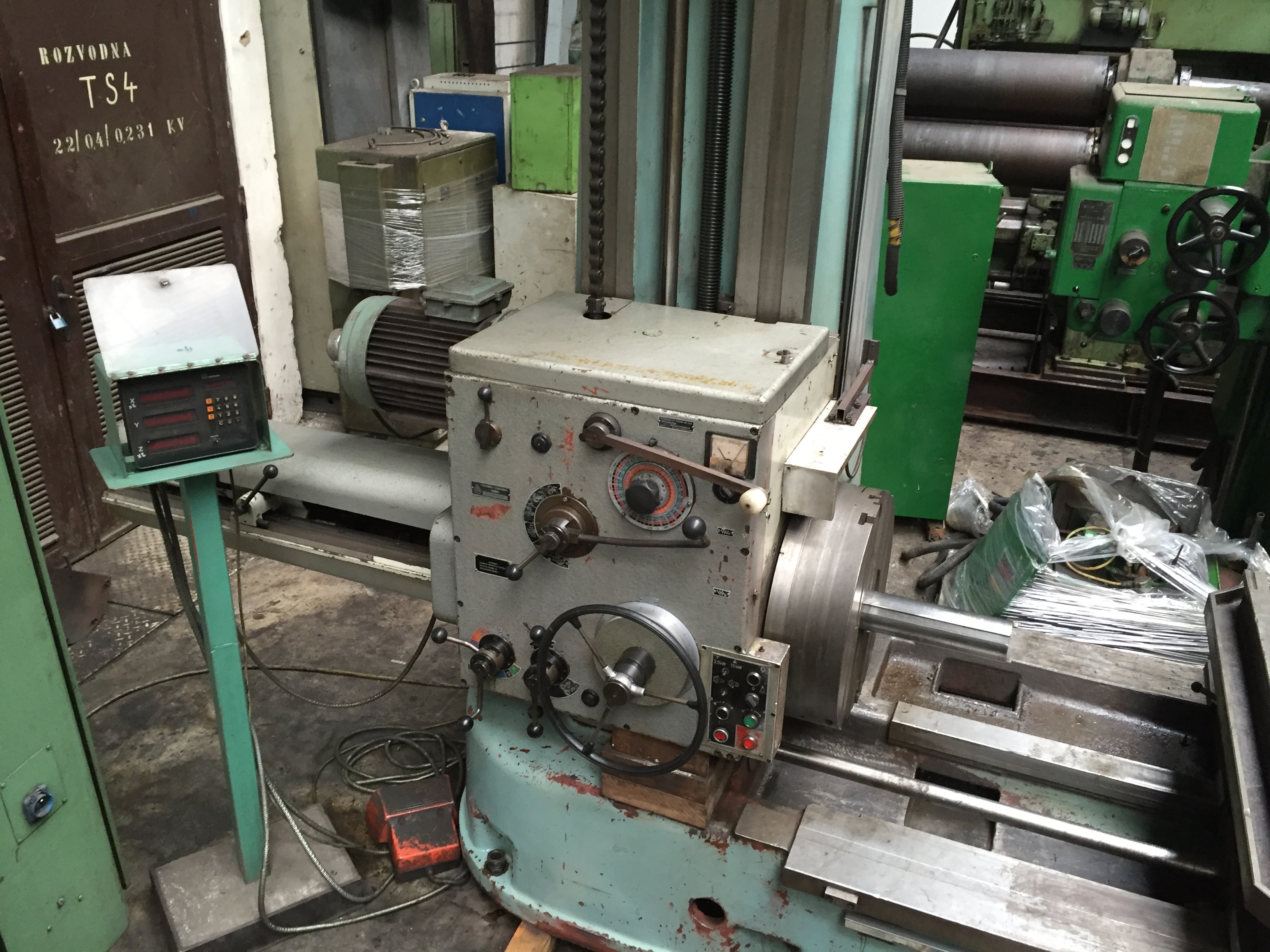

Machine Gallery :
