Details :

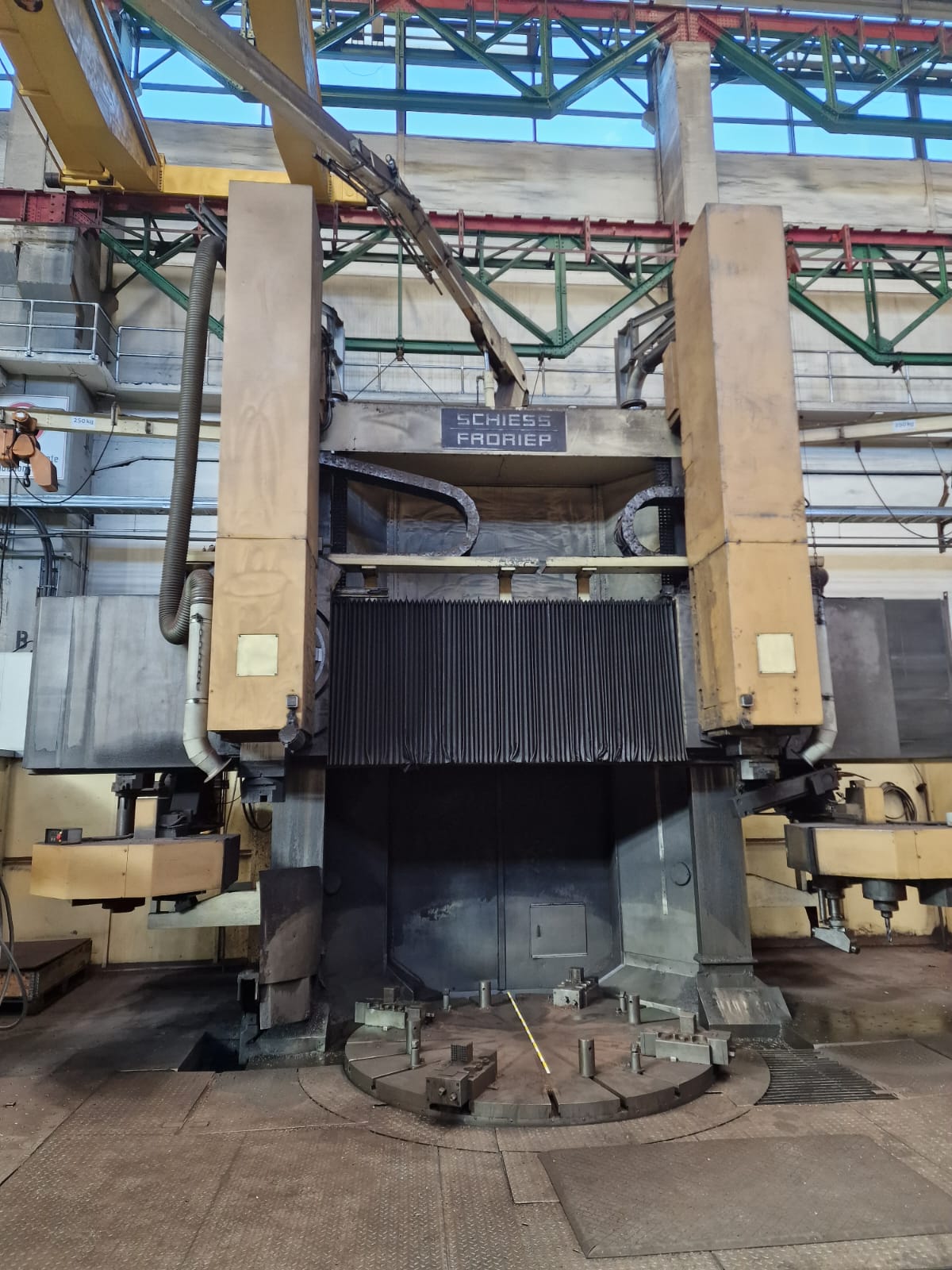

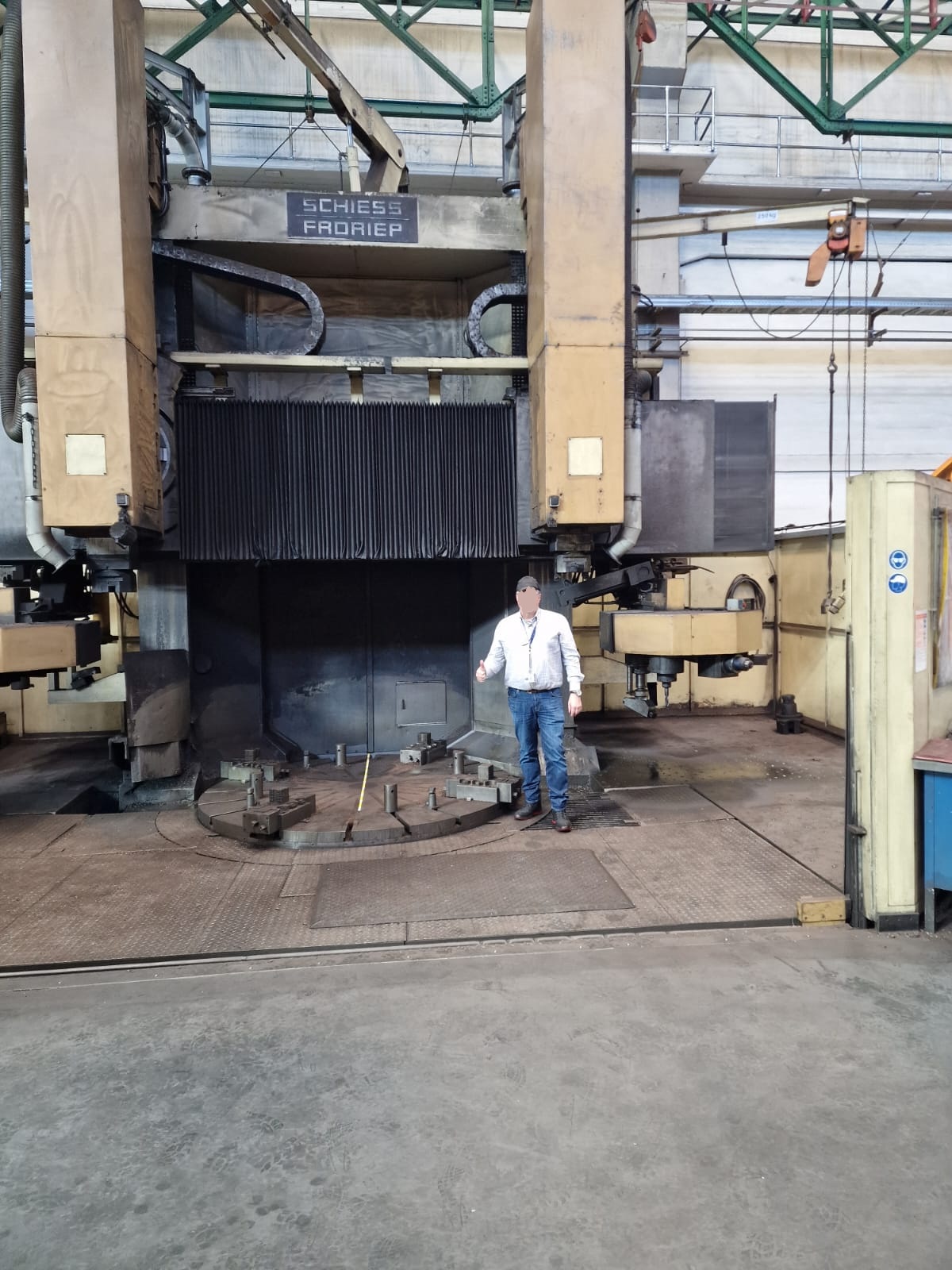

Make: Schiess
Type: 32 DS 250/350
Year: 1982

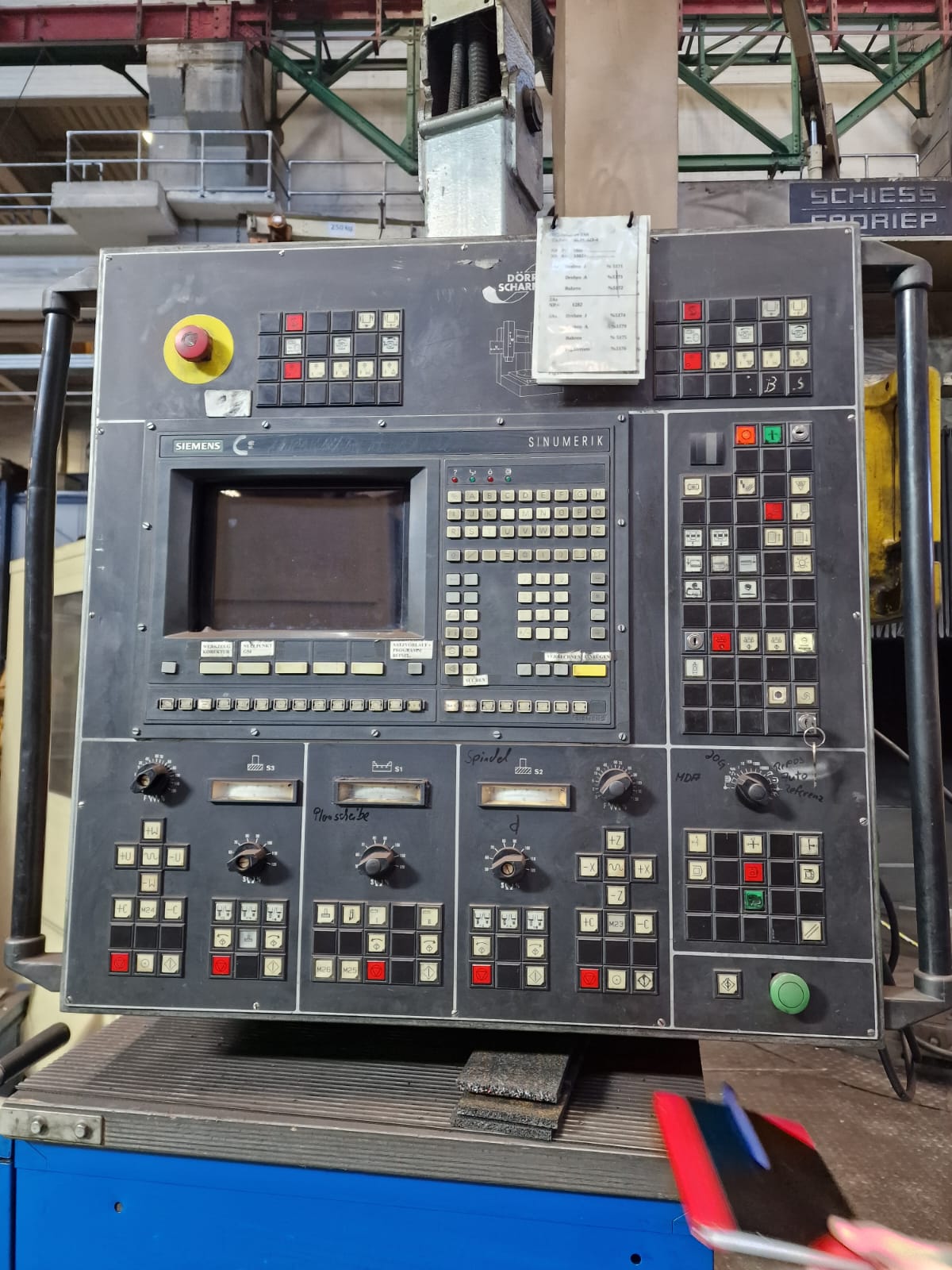

Control: Siemens 840-C

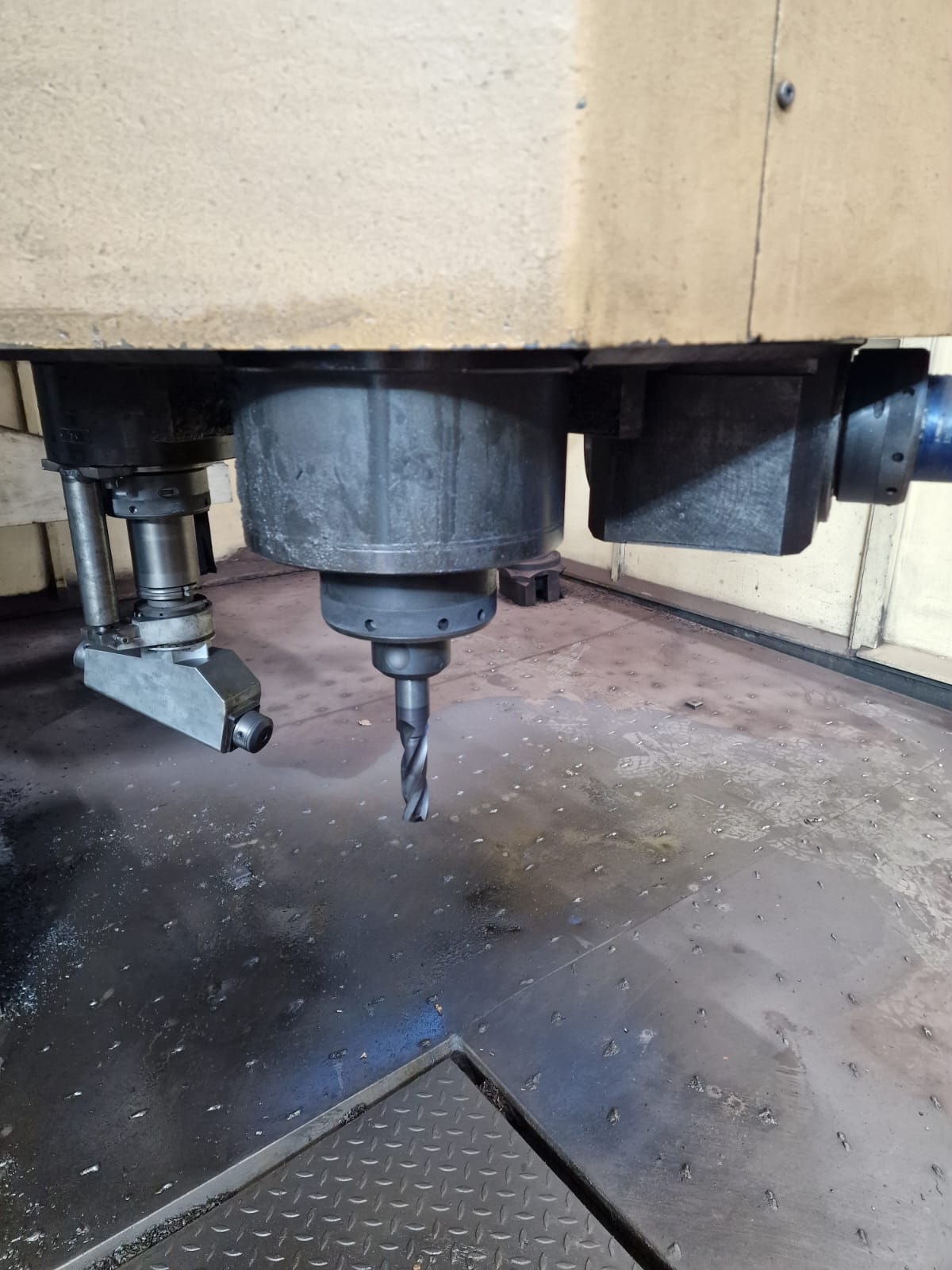

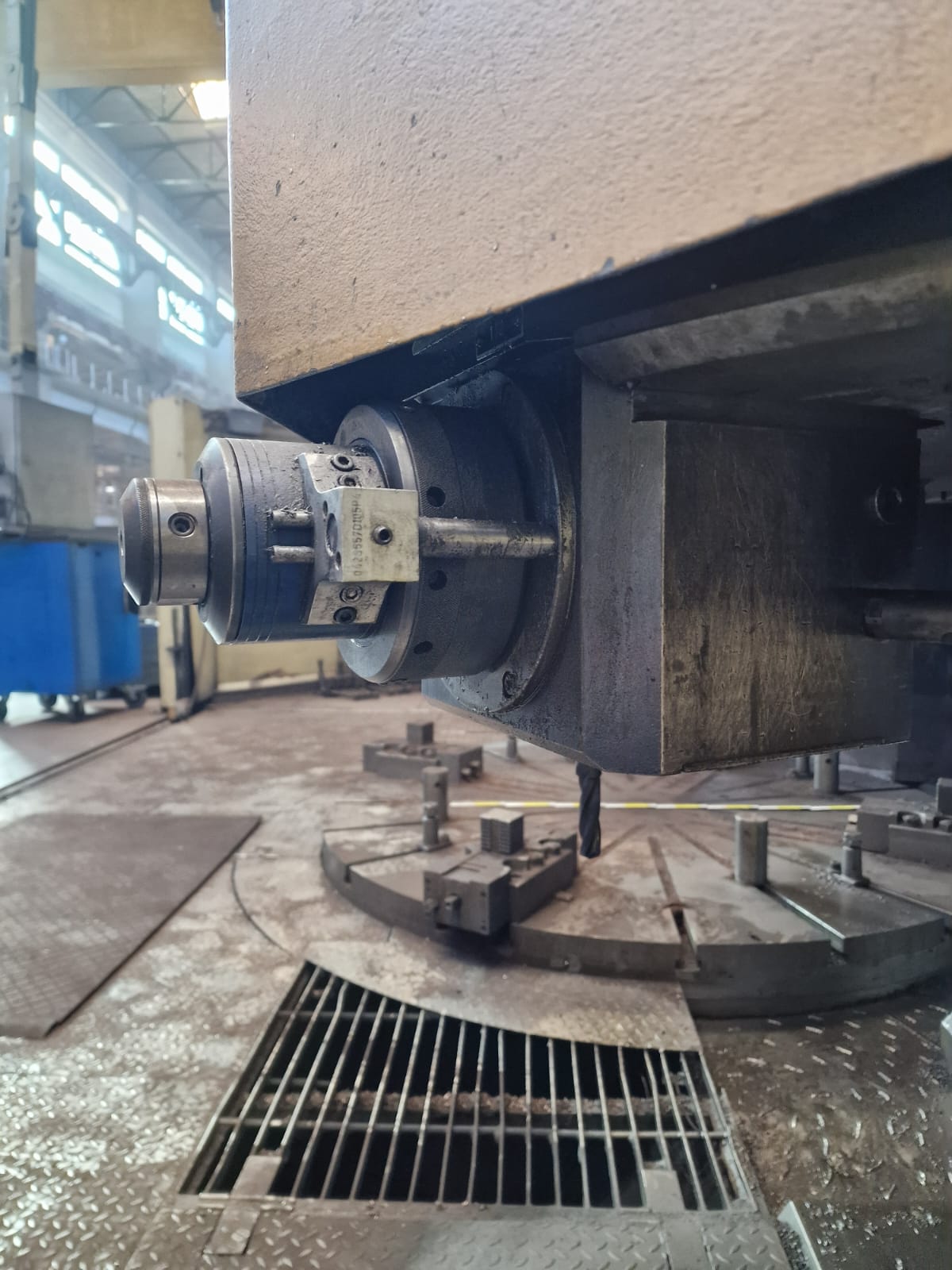

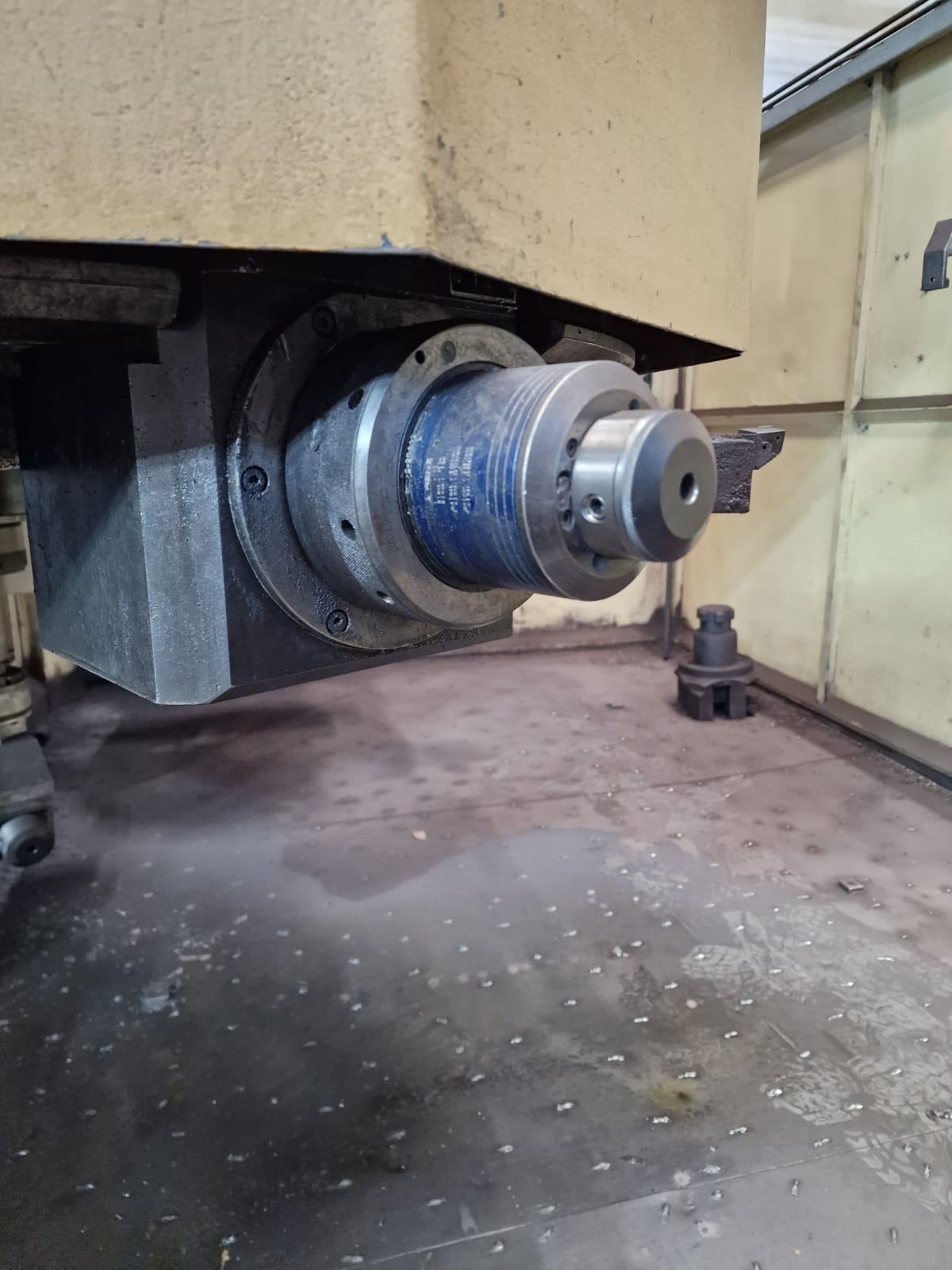

The machine has old CNC control but otherwise has all the modern features. Original CNC with C-axis and live tools.
Technical Details :
- Table dia: 2500 mm
- Max. turning dia: 3200 mm
- Max. turning height under tool: 2500 mm
- Max. turning height under ram: 2780 mm
- Max. table load capacity: 25 Tonnes
- Ram travel vertical: 1600 mm
- Ram travel horizontal: 2260 mm (410 mm out of this for ATC)
- Ram cross section: 250 x 300 mm
- Table speed: 1.25 to 125 rpm (2-step gearbox)
- Table motor: 71 KW
- Milling spindle motor: 18 KW
- Milling spindle speed: 1600 rpm (2-step gearbox)
- Cross slide travel: 2000 mm
