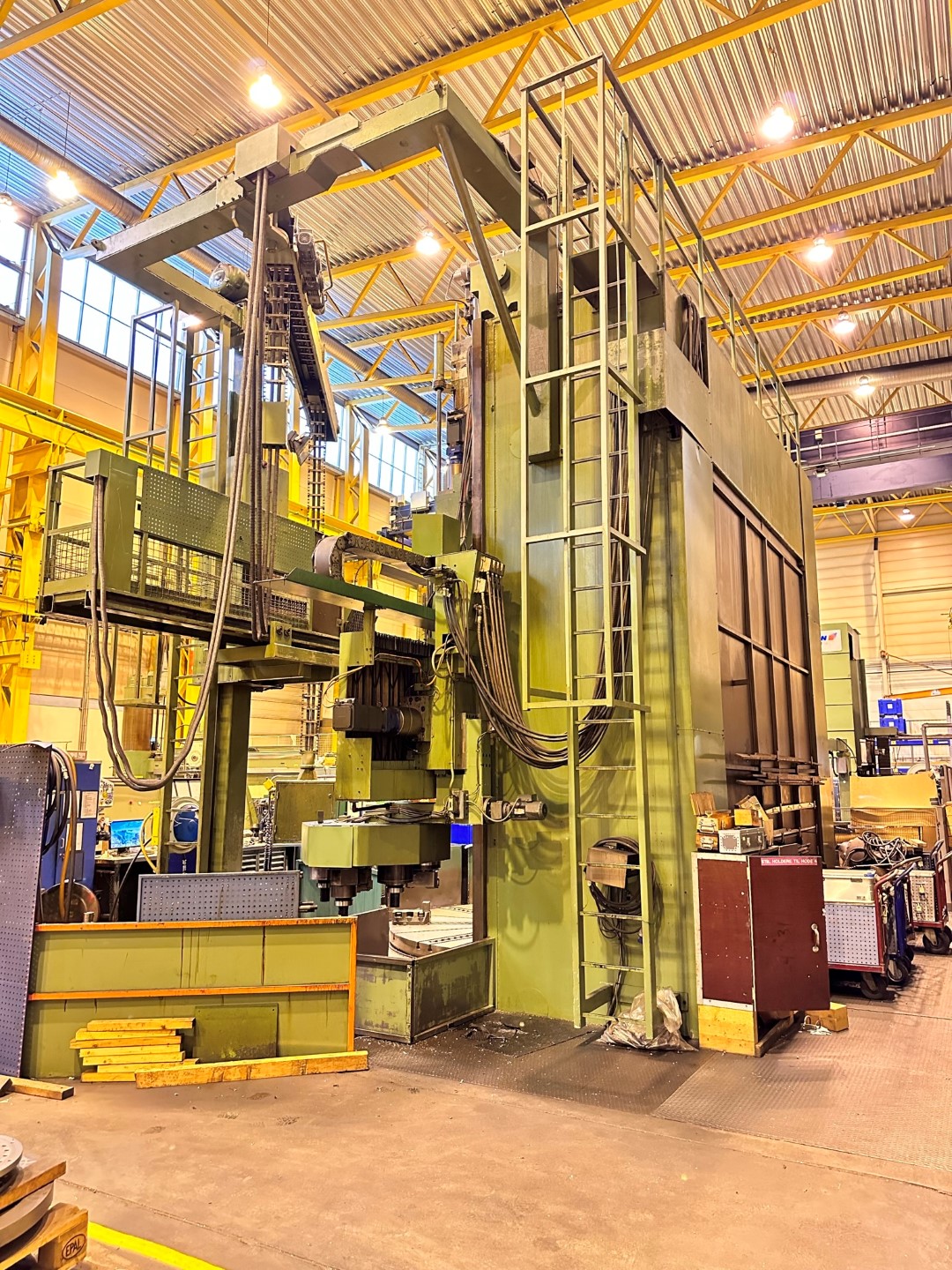

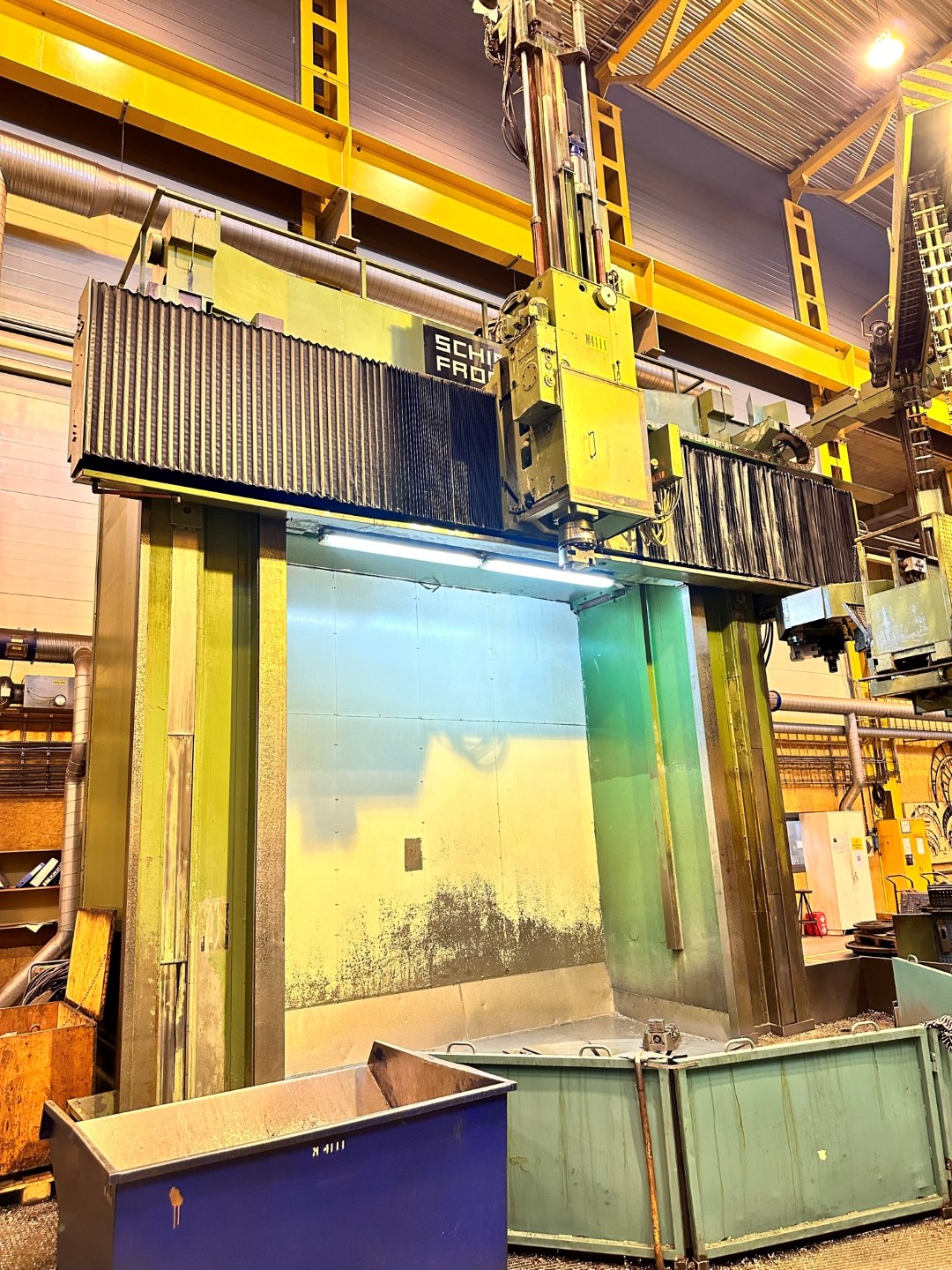

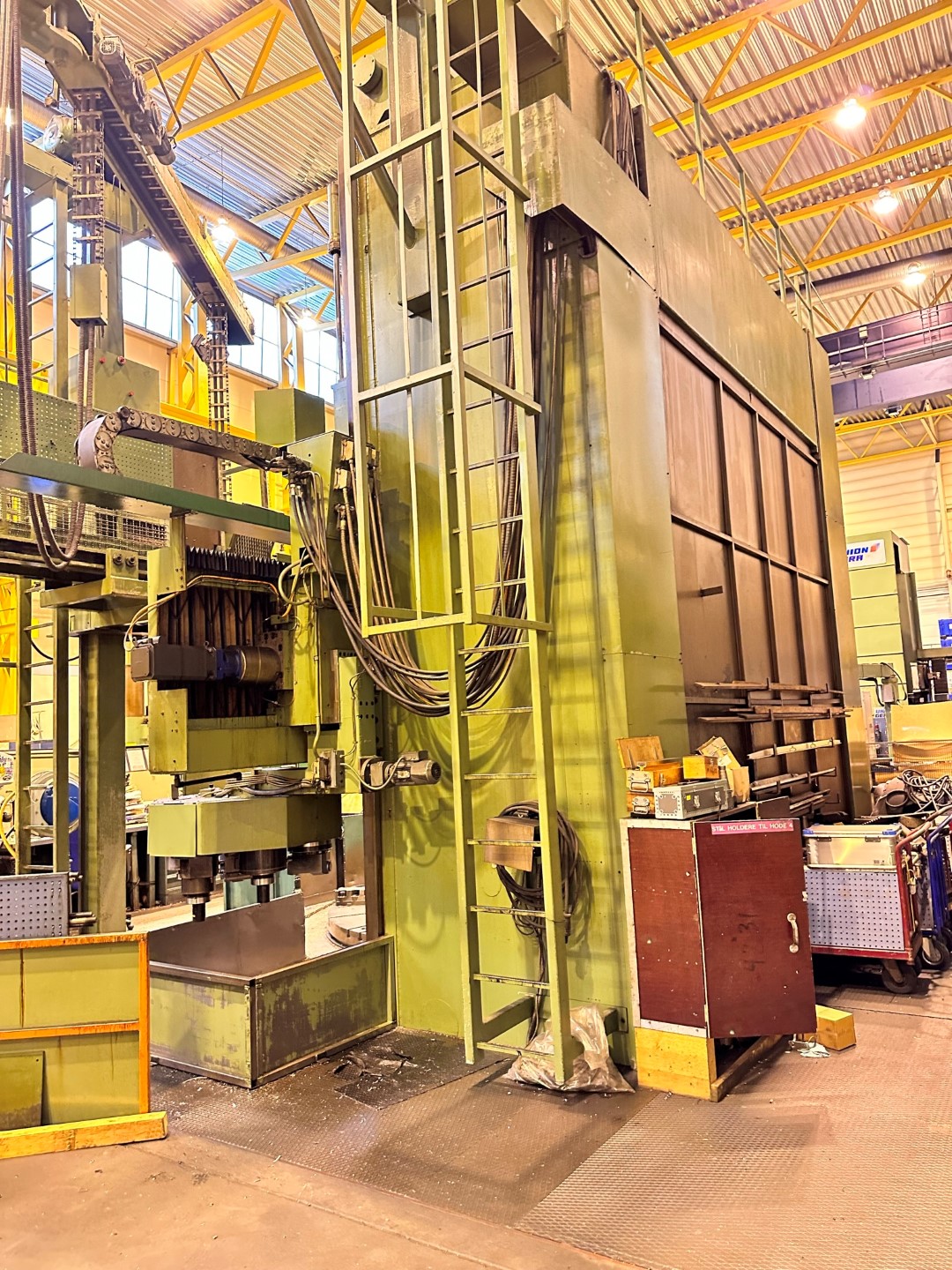

CNC VTL-Schiess - Froriep 4.5 m Dia x 4 m H with C-axis

Vertical Lathes (VTL), Recently Arrived, All Machines

Details :

Type of Machine CNC VTL
Make Schiess - Froriep
Type  40 DZ U

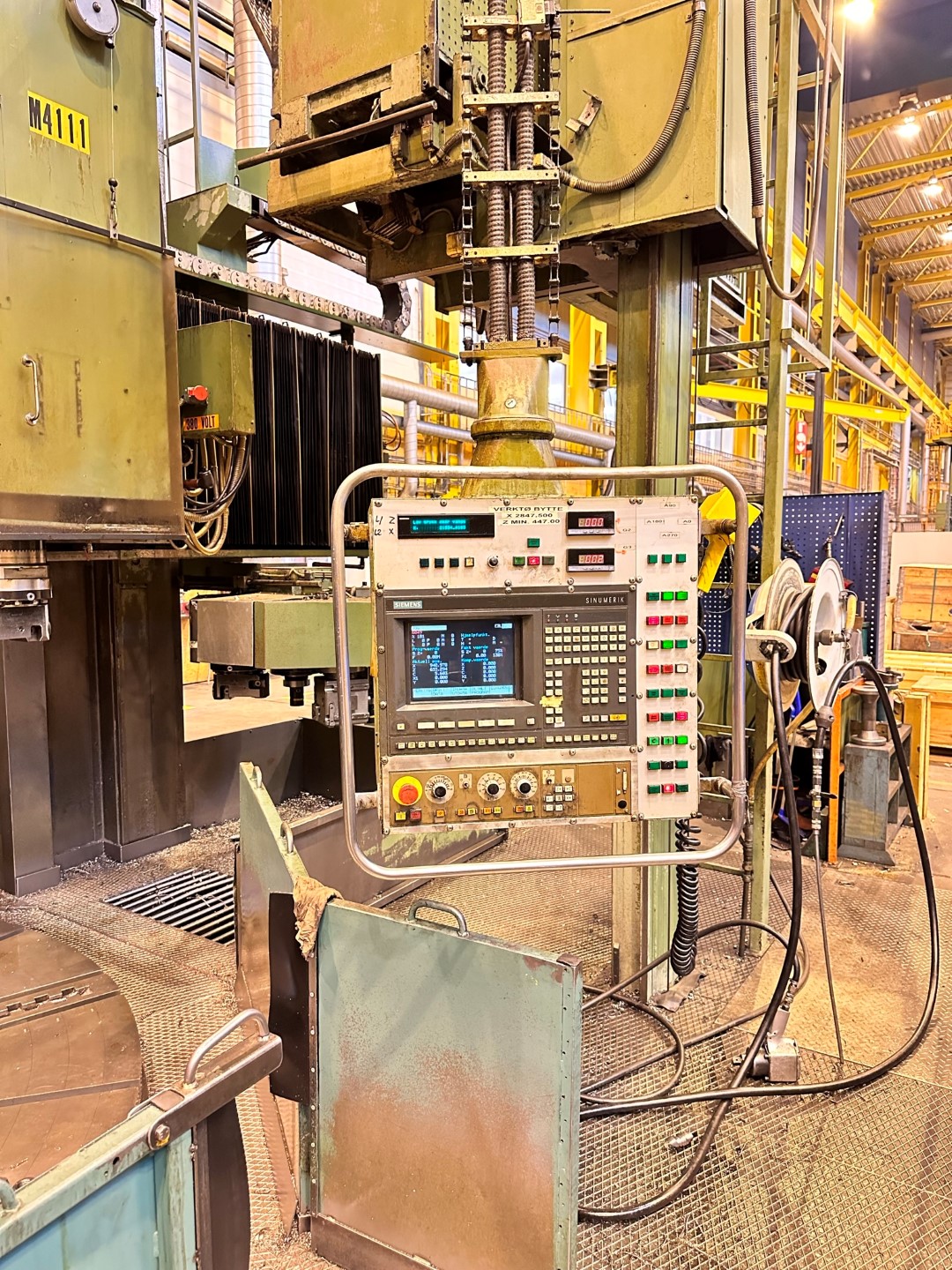

Control Siemens 850-T

Technical Details :

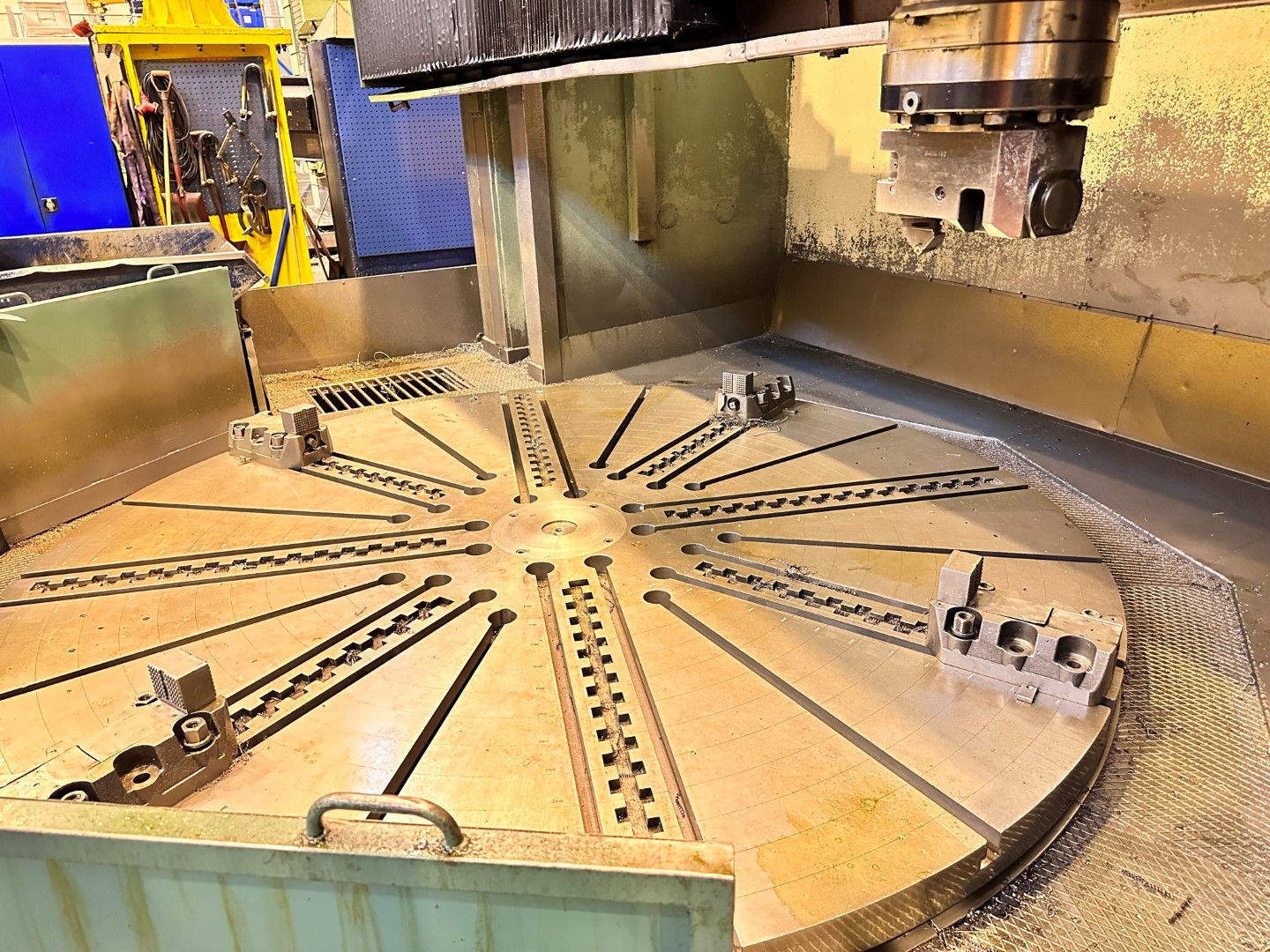

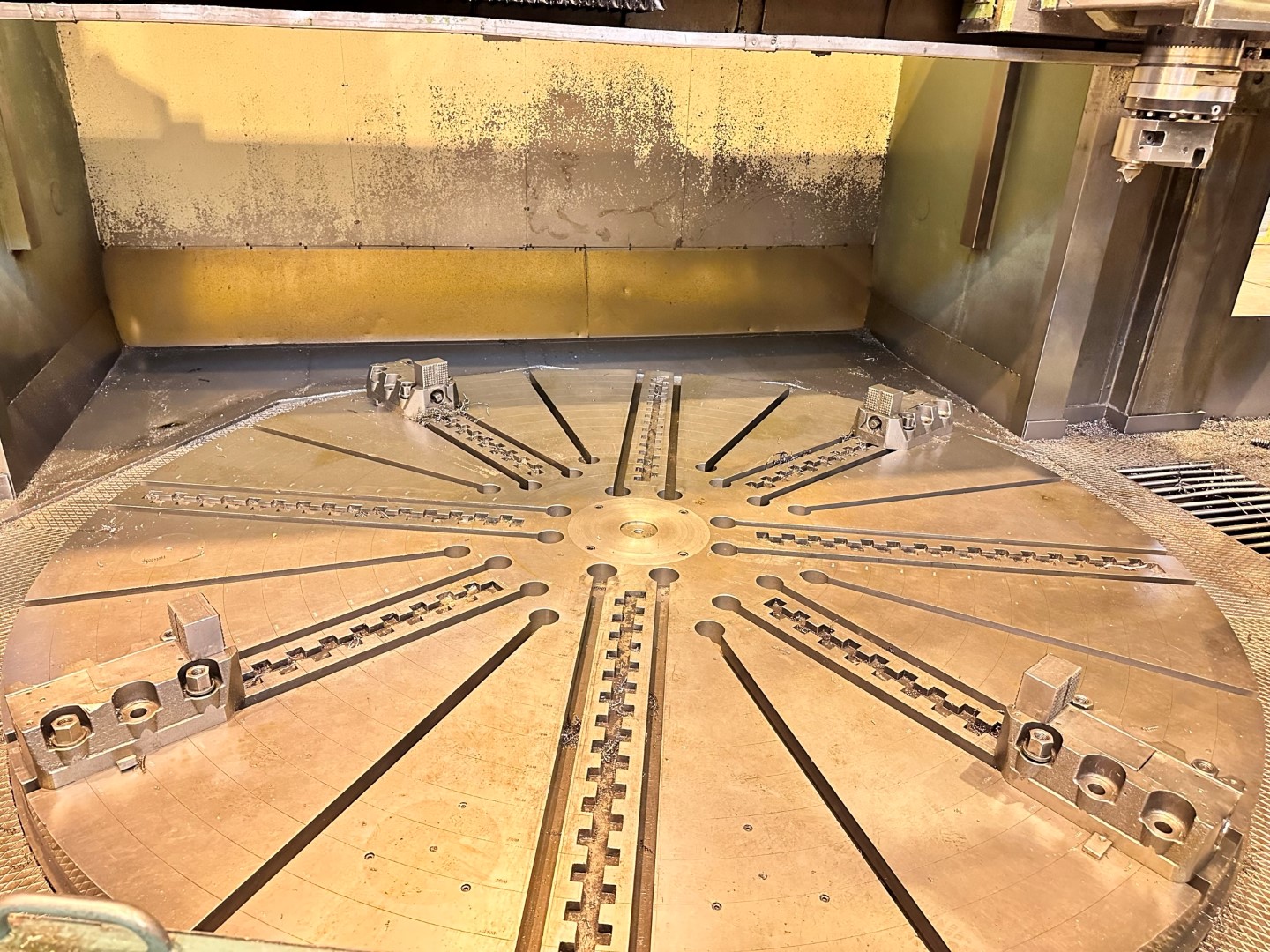

Chuck dia 3500 mm
Turning dia 4500 mm
Max. turning height 4000 mm
Ram travel vertical 2250 mm
Ram travel horizontal   2250 mm
Max. spindle rpm  up to 80 rpm
Max. table load capacity  63 Tonnes

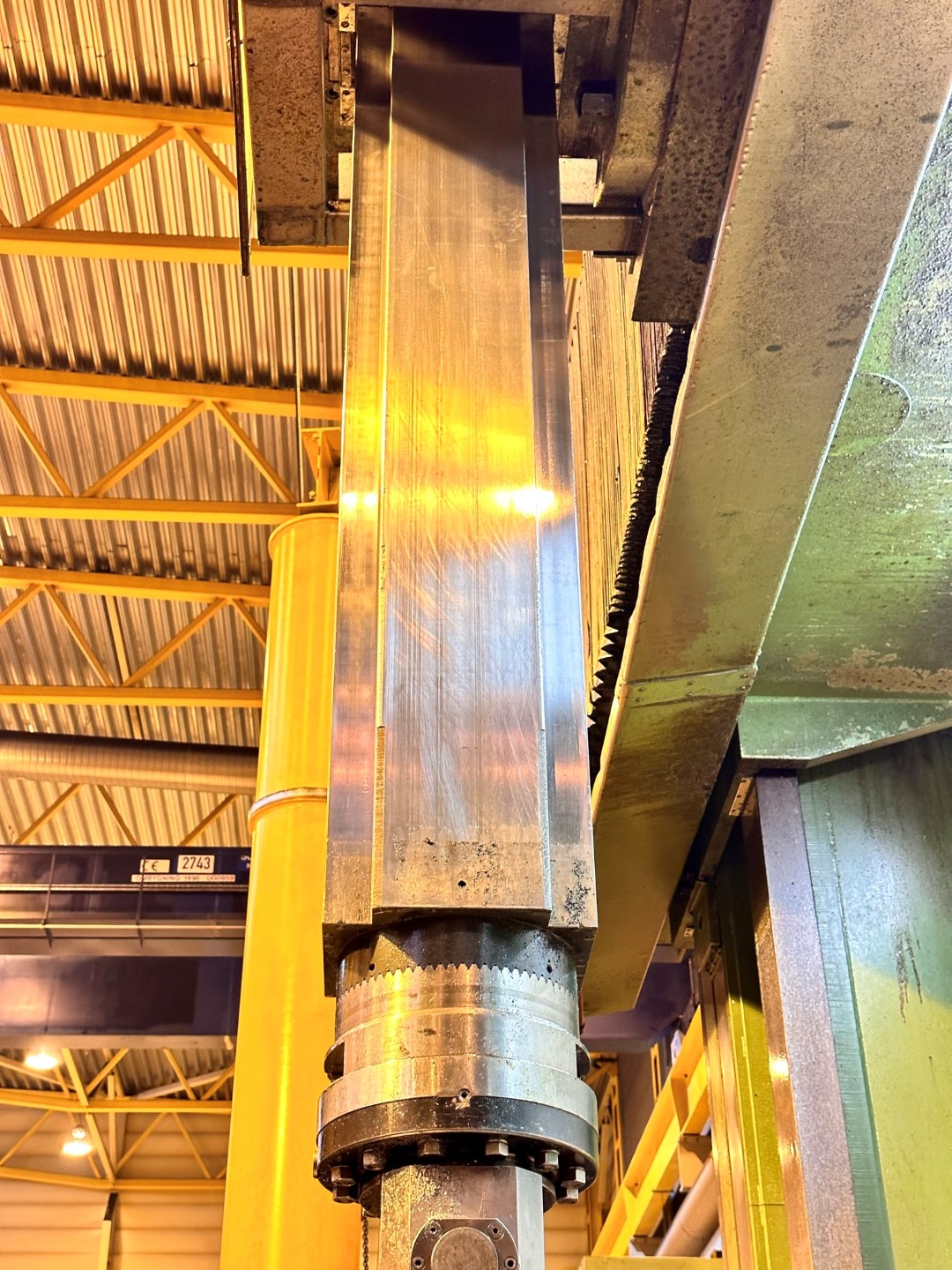

Ram cross section 300 x 300 mm
C-axis positioning 0.001°
Milling spindle power 18 KW
Milling spindle speed up to 800 rpm

Other Details :

Machine comes with:

- Extended head

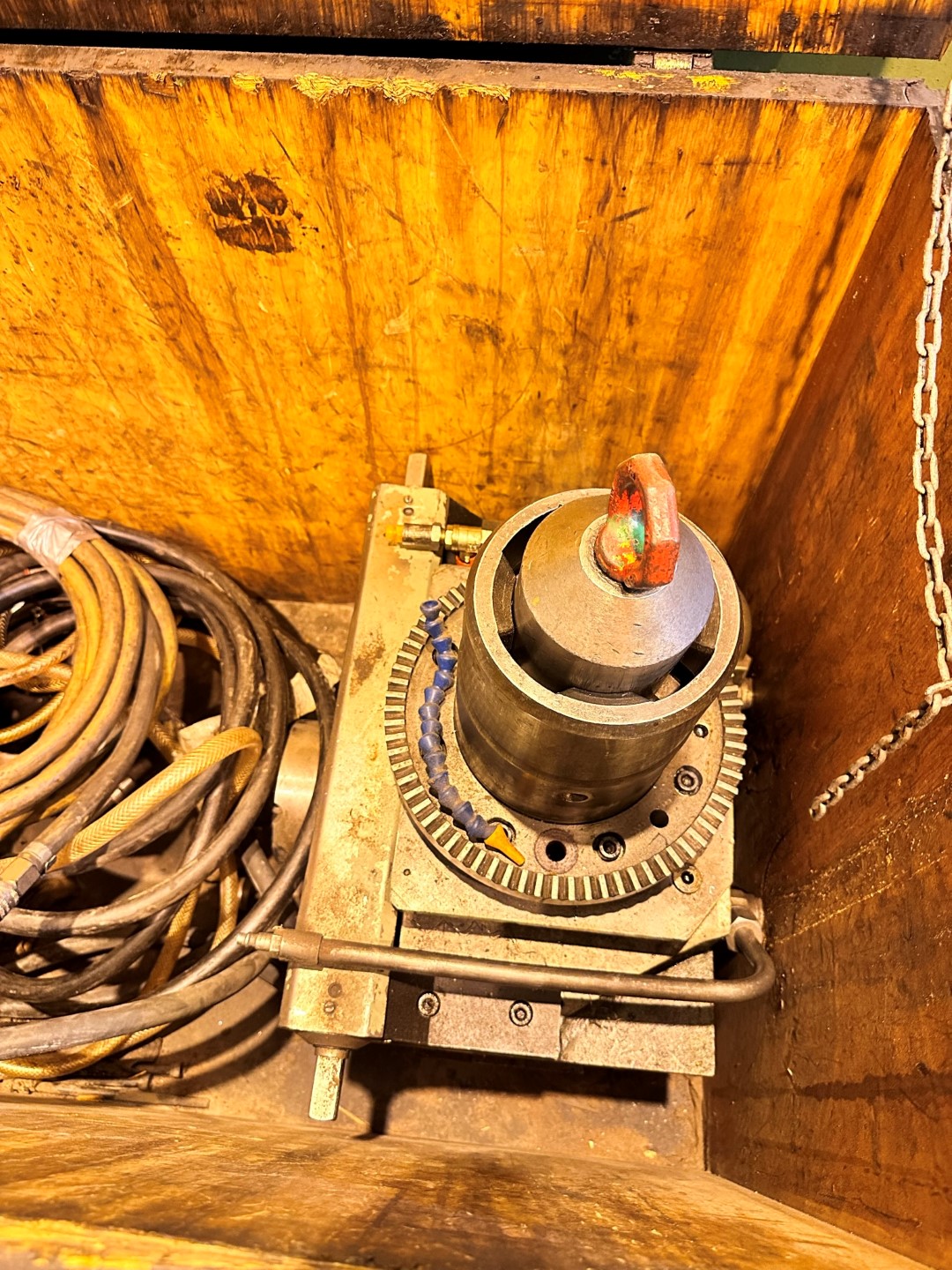

- Angular Milling head

- Swivelling Milling head

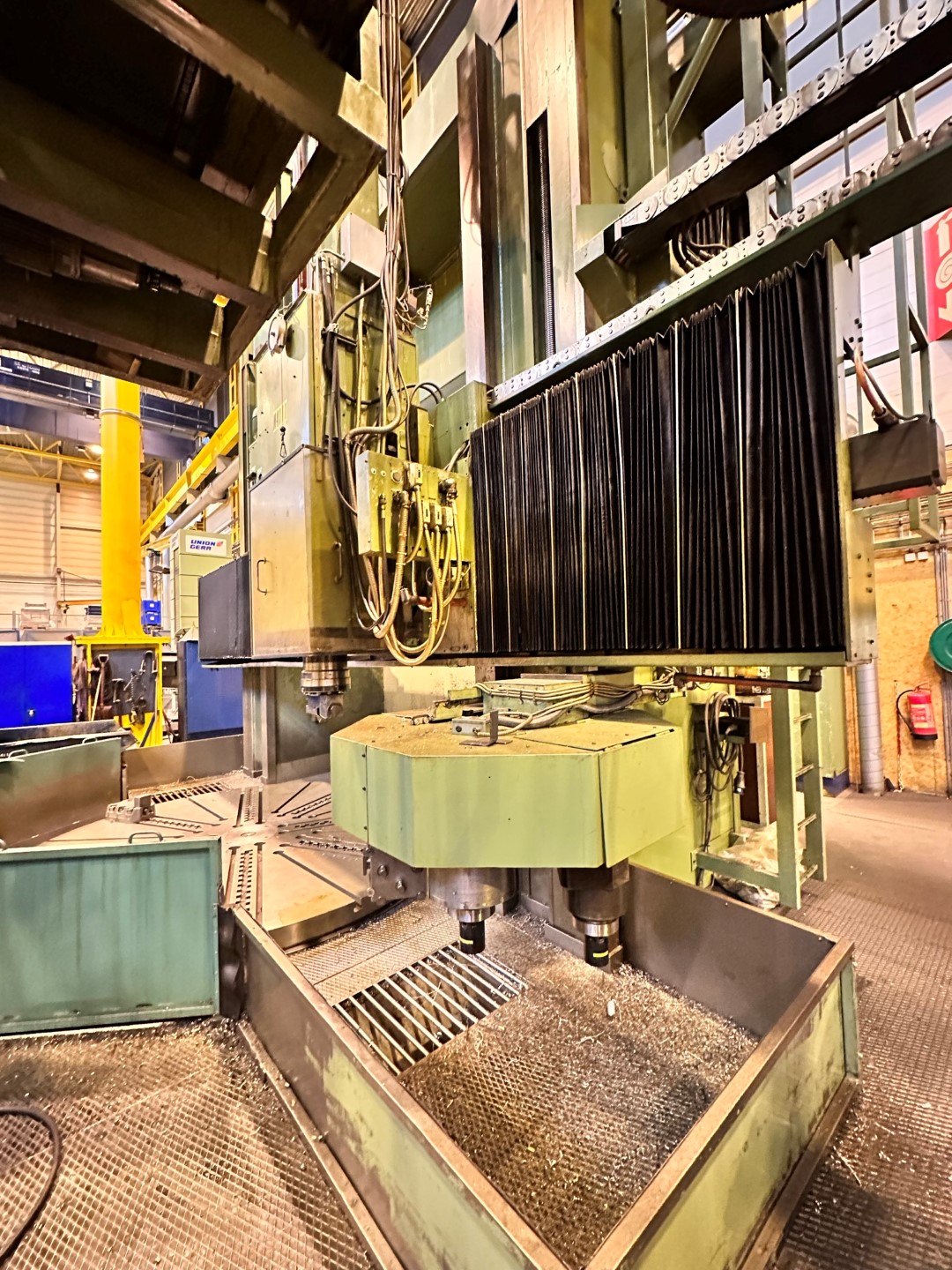

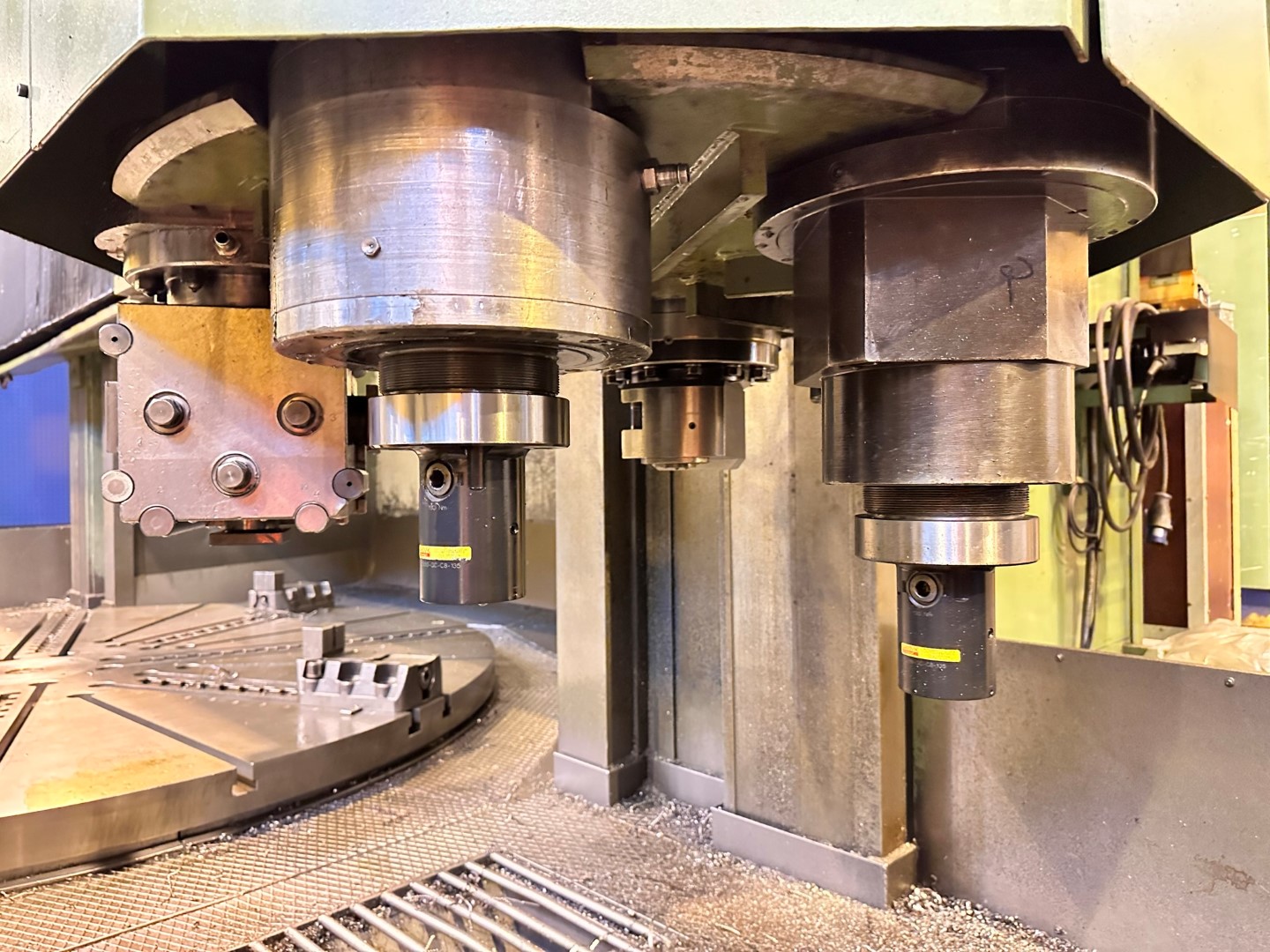

- Tool Changer for turning and milling tools

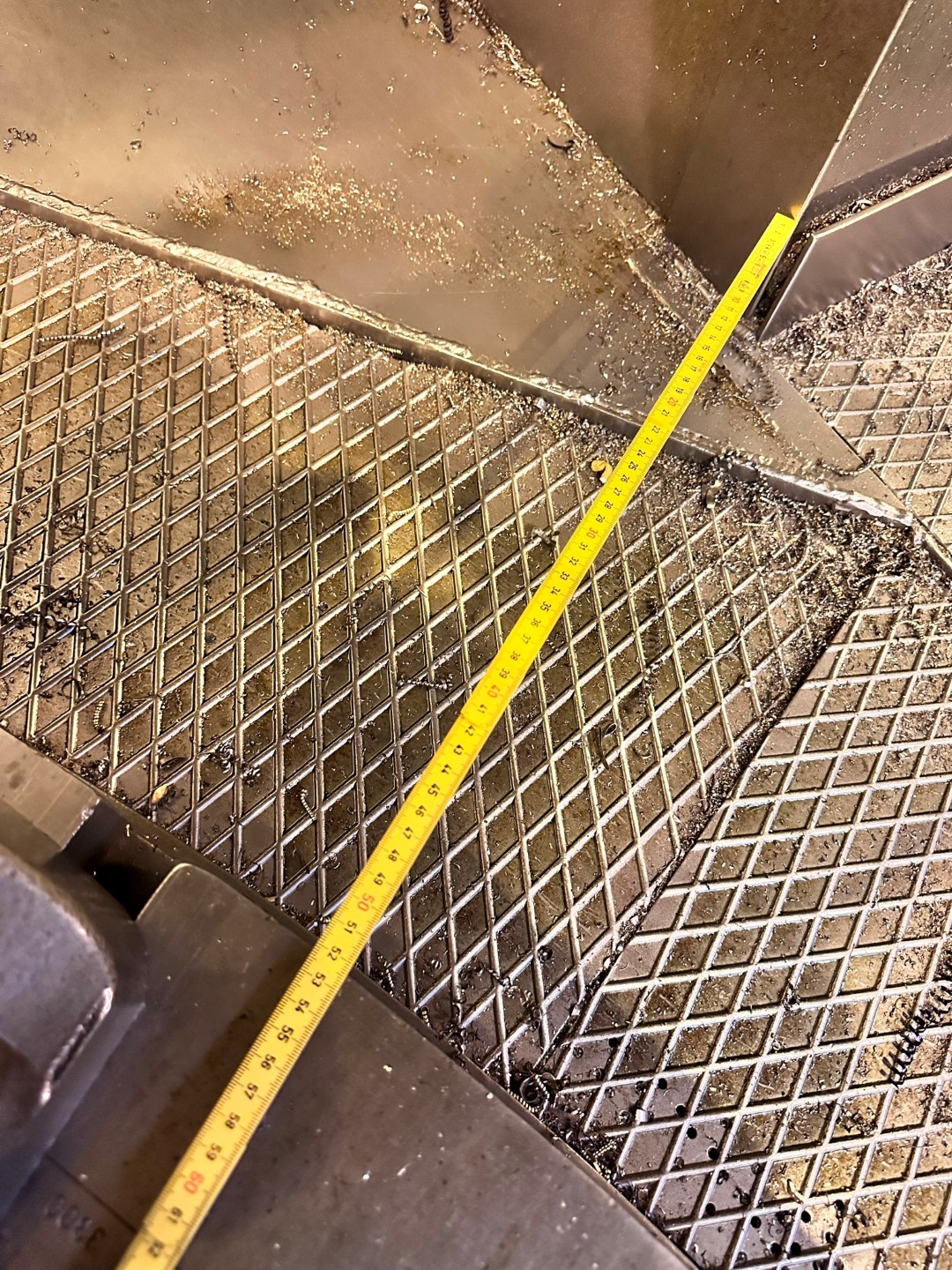

- Chip conveyor

- Tooling and some spares
