CNC VTL TITAN SC 27

Vertical Lathes (VTL), Recently Arrived, All Machines

Details :

Type of Machine CNC Vertical Lathe (VTL)
Make Titan
Type SC 27
Year of manufacture 1986 / 1999 (Retrofit)

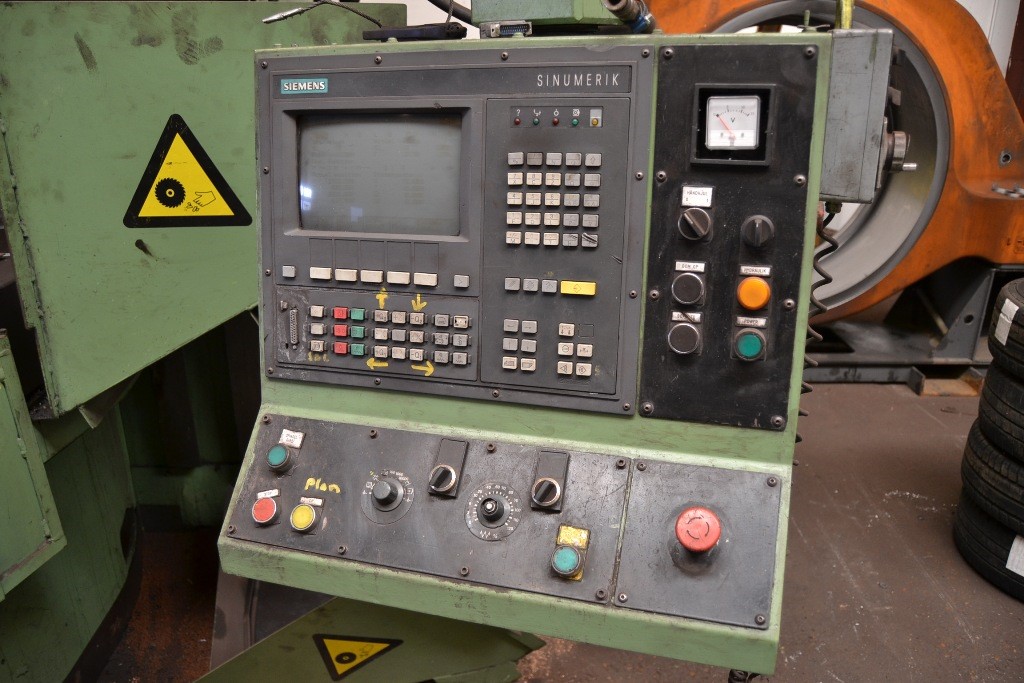

Control Siemens 840C - Germany
Storage Location In Transit
Country of Origin Romania

Technical Details :

Faceplate Dia 2500 mm
Max. turning dia 2700 mm
Max. turning height 1900 mm
Max. workpiece weight 15000 Kg
Max. vertical travel Left Ram  1200 mm
Max vertical travel right Ram 800 mm
Max. travel of cross slide 1600 mm
Max. Ram Swivel  +-35°
Machine weight 40 Tonnes

Machine Gallery :
