Details :
Make: TOS Hulin
Type: Powerturn 3000
Year: 2010

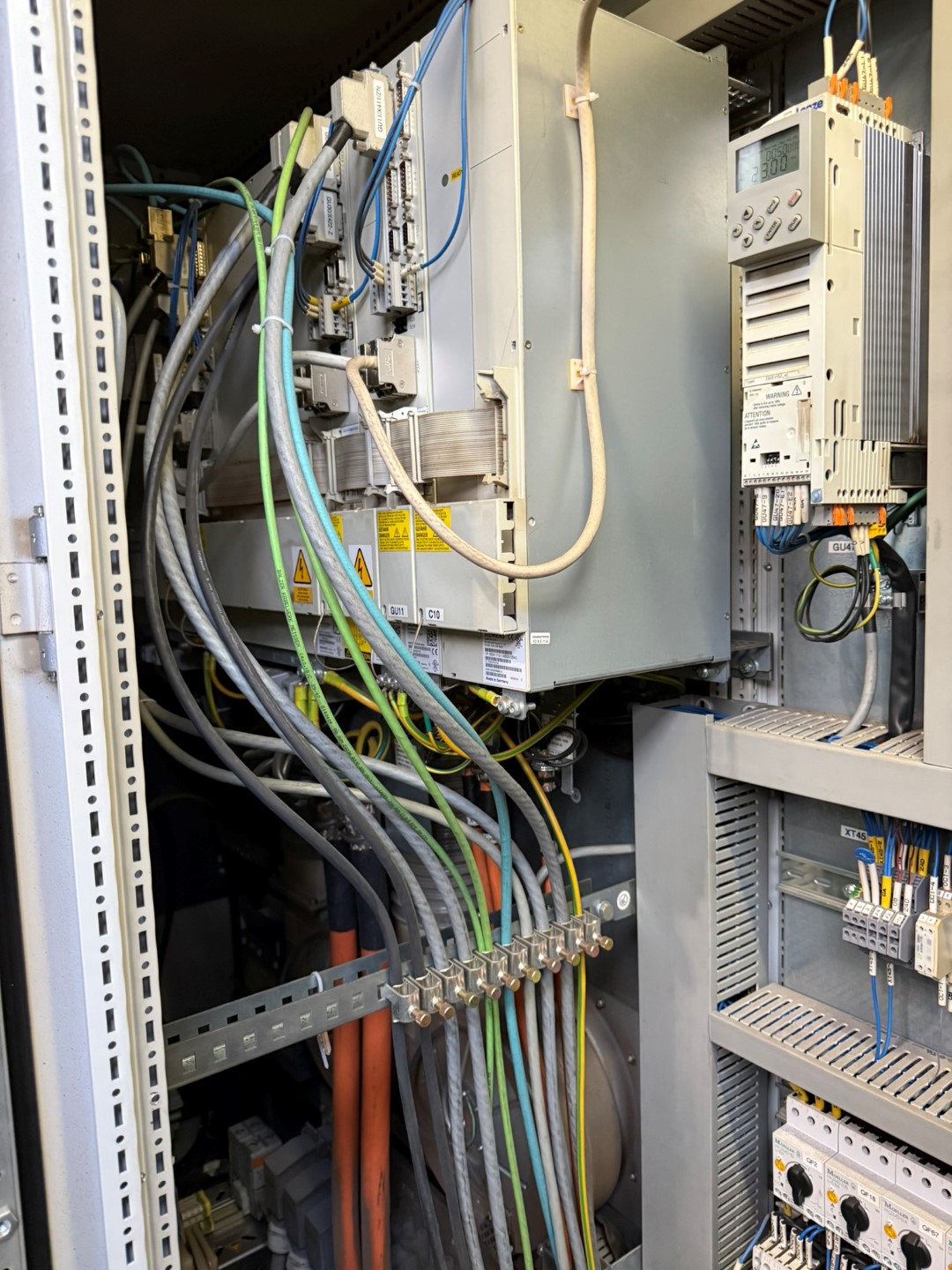

Control: Siemens 840-D

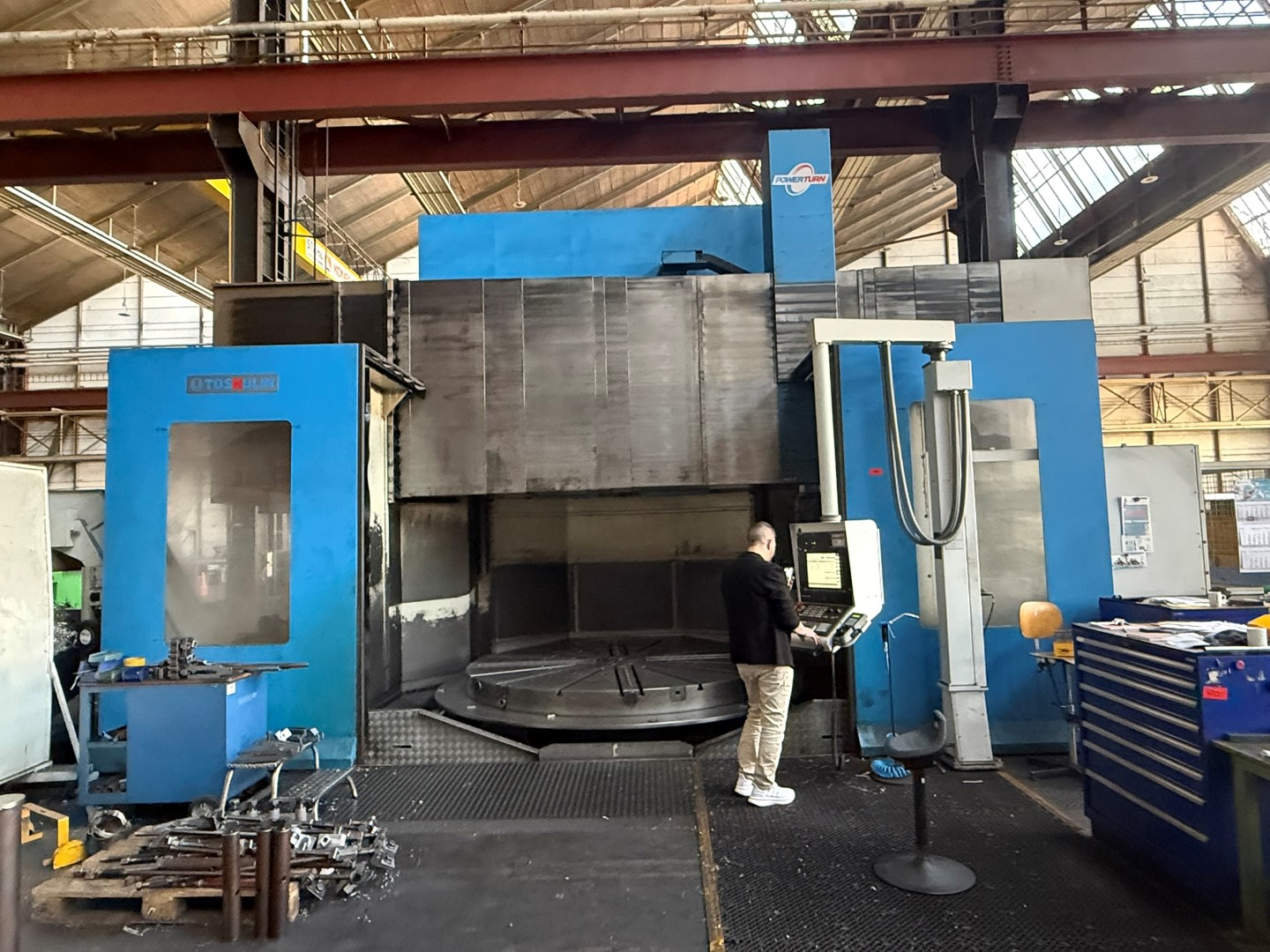

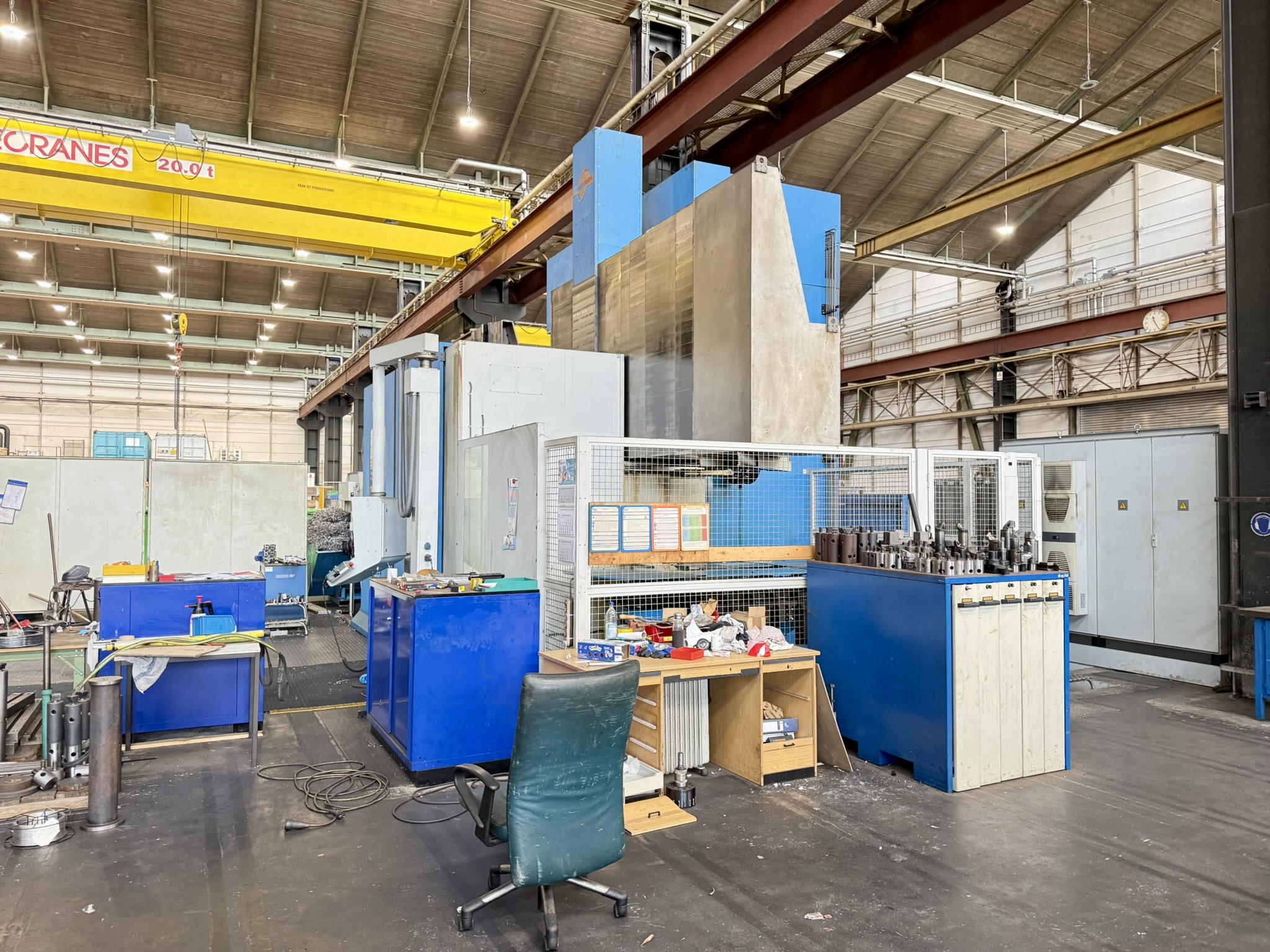

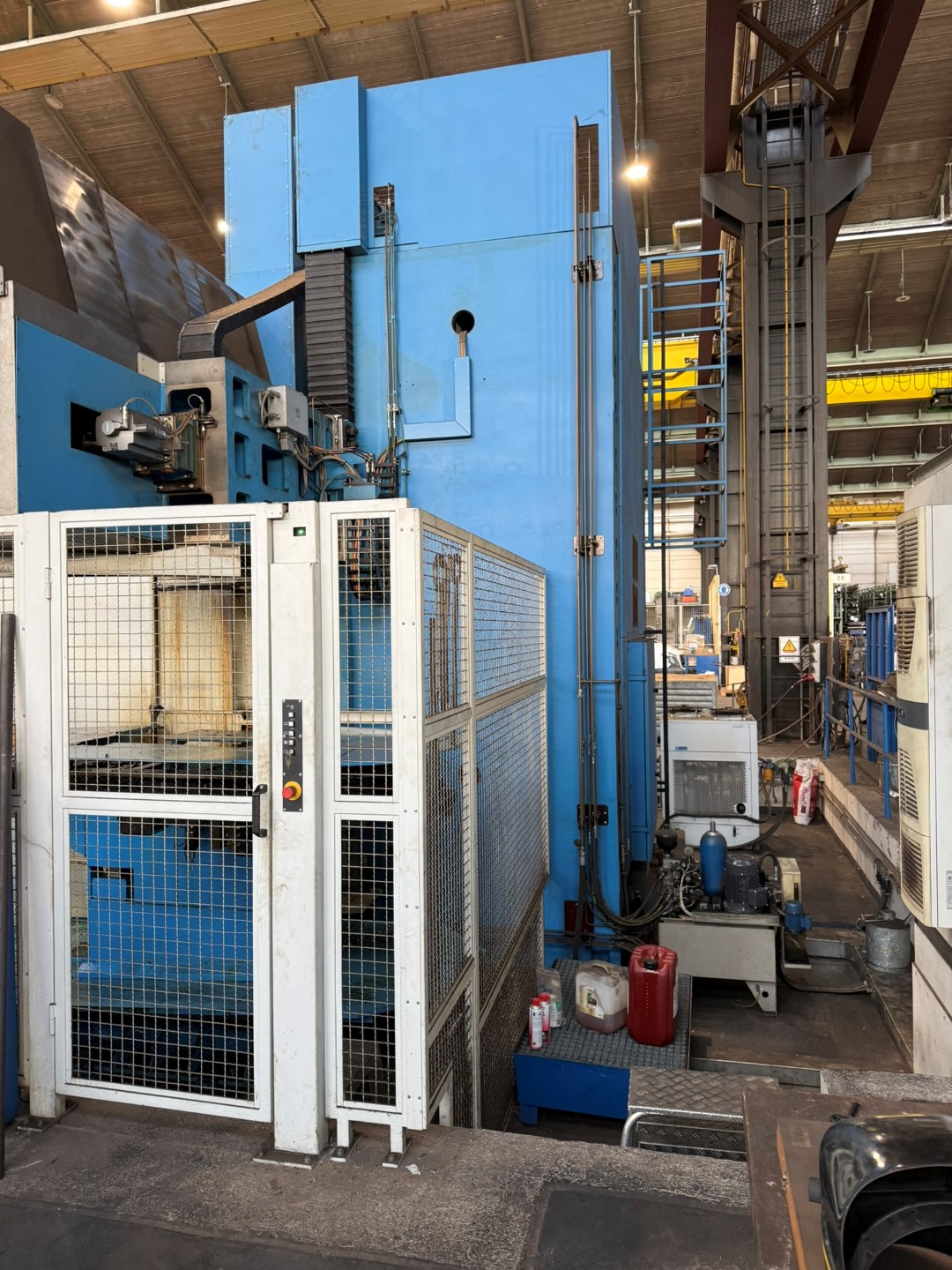

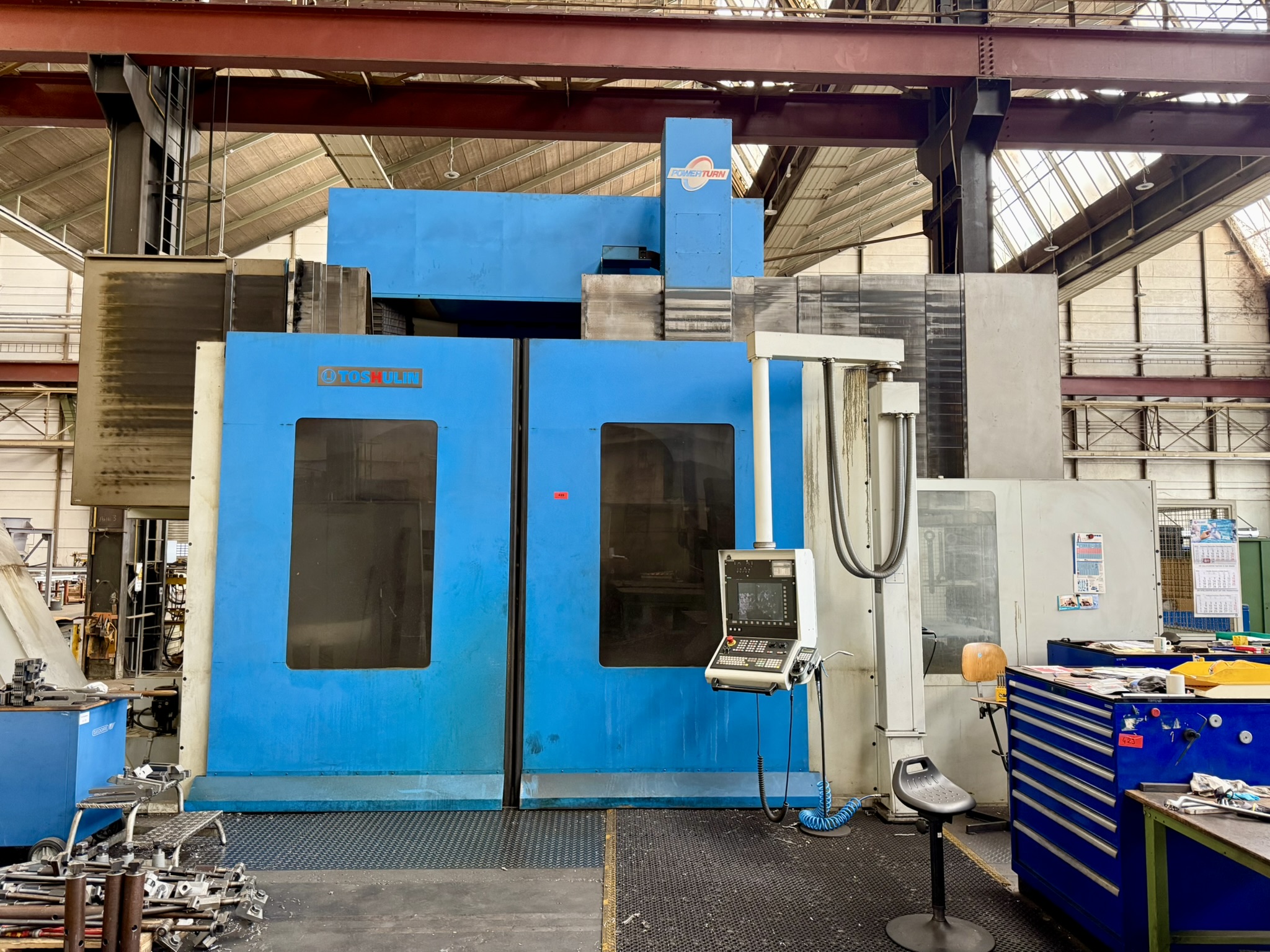

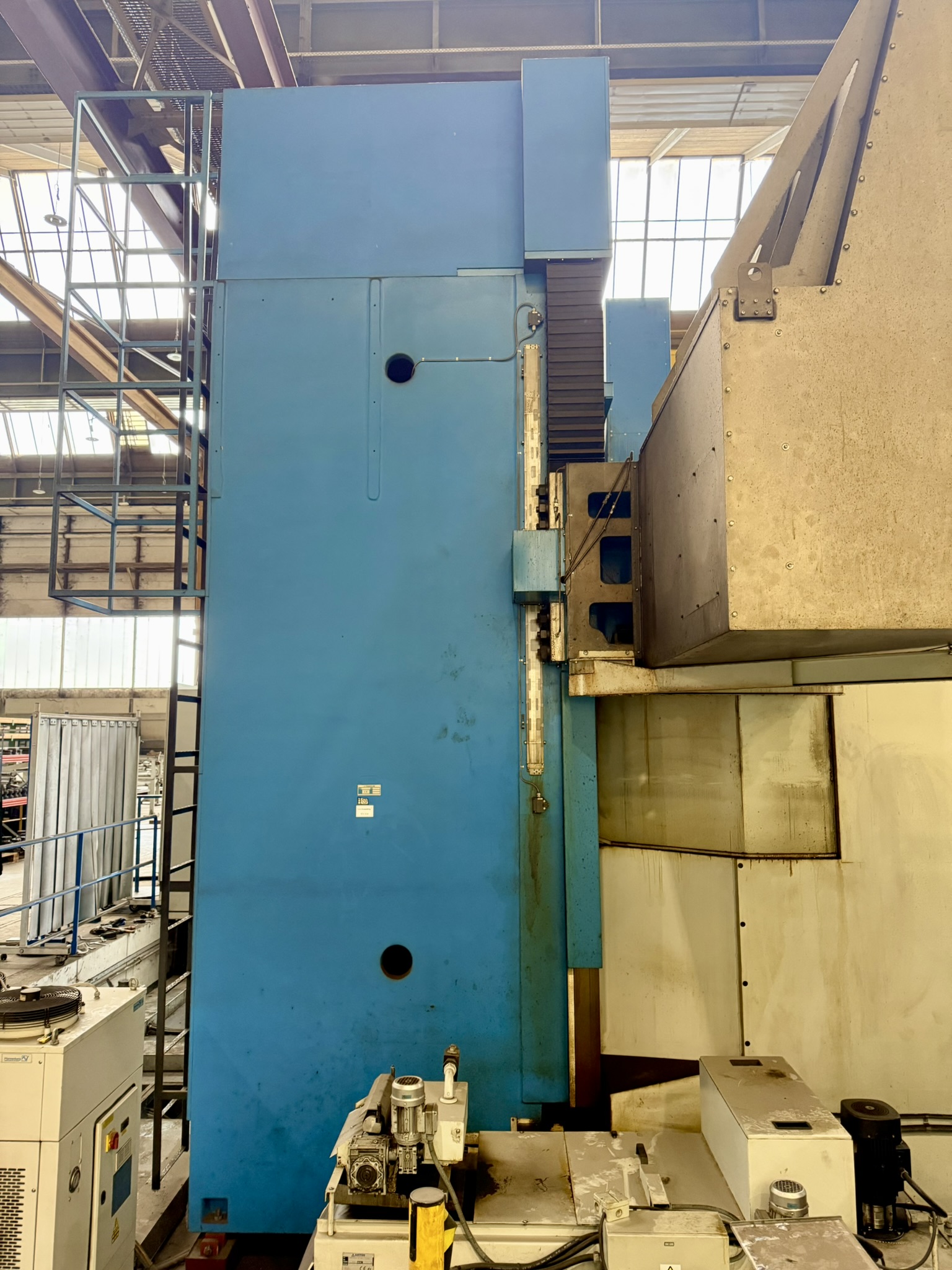

Excellent CNC Vertical Turning Lathe (VTL). The machine can be inspected in south Germany near Freiburg.
Technical Details :
- Table dia: 3000 mm
- Max. turning dia: 3600 mm
- Max. distance table to ram: 2640 mm
- Ram cross-section: 240 x 240 mm
- Ram travel vertical: 1500 mm
- Ram travel horizontal Left/right from table axis: 1930 / 2250 mm (+920 mm for tool change)
- Max. workpiece weight: 30 Tonnes
- Cross slide travel: 1800 mm
- Table speed: 200 rpm (2 step gearbox)
- Main spindle power: 80 KW
- Cutting Feed: up to 4000 mm/min
- Rapid feed: 10000 mm/min
- Tool changer: 45 places incl. 20 places for Capto C8 holders
- High pressure coolant
- Overall dimensions: 10570 x 8445 x 7375 mm
- Machine weight: 72000 Kg
